UP4B-150-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> UP4B-150-R

UP4B-150-R: DescriptionInd,Ferrite,15uH,20% +Tol,20% -Tol,8759 Case; CategoryPassive components inductor; File Size883KB，7 Pages; ManufacturerEaton; Environmental Compliance; Related ProductsFound8parts with similar functions to UP4B-150-R

Download Datasheet Parametric View All

UP4B-150-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UP4B-150-R	-	-	View	Buy Now

UP4B-150-R Overview

Ind,Ferrite,15uH,20% +Tol,20% -Tol,8759 Case

UP4B-150-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.023 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	UP4B
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

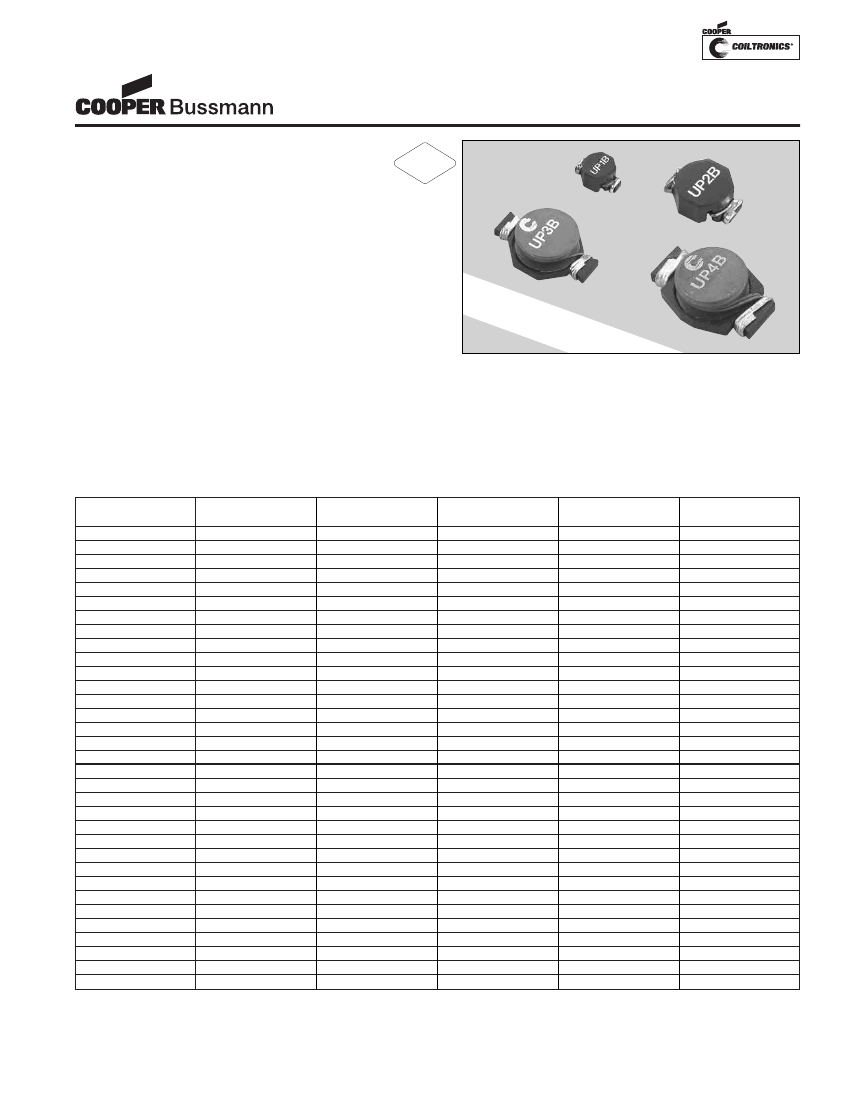

UNI-PAC™

Power Inductors

(Surface Mount)

Description

RoHS

2002/95/EC

• Miniature surface mount design

• Inductance range from 0.470uH to 1000uH

• Current range from 19.2 to .47 Amps

• Maximum power density

• Ideal for applications requiring low inductance and high

current in a miniature package

• Modified standard products are available

• Protective case eliminates core breakage

• Meets UL 94V-0 flammability standard

• Ferrite core material

Applications

• DC-DC converters on board level and industrial

products

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating ambient temperature range: -40°C to +85°C

(range is application specific)

• Solder reflow temperature: +260°C max. for 10 seconds

max.

Part

Number

UP1B-R47-R

UP1B-1R0-R

UP1B-1R5-R

UP1B-2R2-R

UP1B-3R3-R

UP1B-4R7-R

UP1B-6R8-R

UP1B-100-R

UP1B-150-R

UP1B-220-R

UP1B-330-R

UP1B-470-R

UP1B-680-R

UP1B-101-R

UP1B-151-R

UP1B-221-R

UP1B-331-R

UP2B-R47-R

UP2B-1R0-R

UP2B-1R5-R

UP2B-2R2-R

UP2B-3R3-R

UP2B-4R7-R

UP2B-6R8-R

UP2B-100-R

UP2B-150-R

UP2B-220-R

UP2B-330-R

UP2B-470-R

UP2B-680-R

UP2B-820-R

UP2B-101-R

UP2B-151-R

Inductance

µH (rated)

0.47

1.0

1.5

2.2

3.3

4.7

6.8

10.0

15.0

22.0

33.0

47.0

68.0

100.0

150.0

220.0

330.0

0.47

1.0

1.5

2.2

3.3

4.7

6.8

10.0

15.0

22.0

33.0

47.0

68.0

82.0

100.0

150.0

OCL

(1)

µH±20%

0.569

1.20

1.61

2.62

3.79

5.15

6.87

11.00

16.00

23.50

36.00

48.50

73.52

112.67

152.40

223.10

331.90

0.595

1.00

1.46

2.56

3.23

4.77

6.63

9.73

15.43

22.50

33.13

48.65

68.17

84.1

102.60

150

NOW

PRO AVAIL

TECT ABL

I VE E WI

CAS TH A

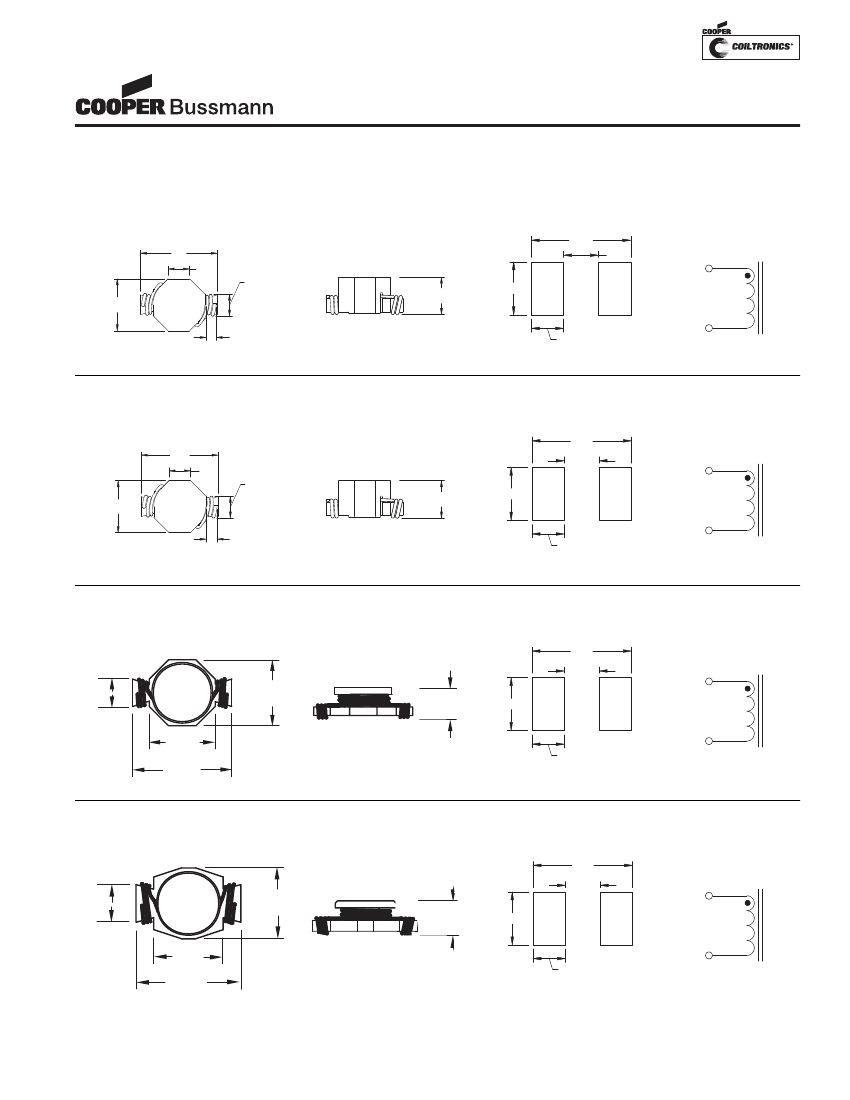

Packaging

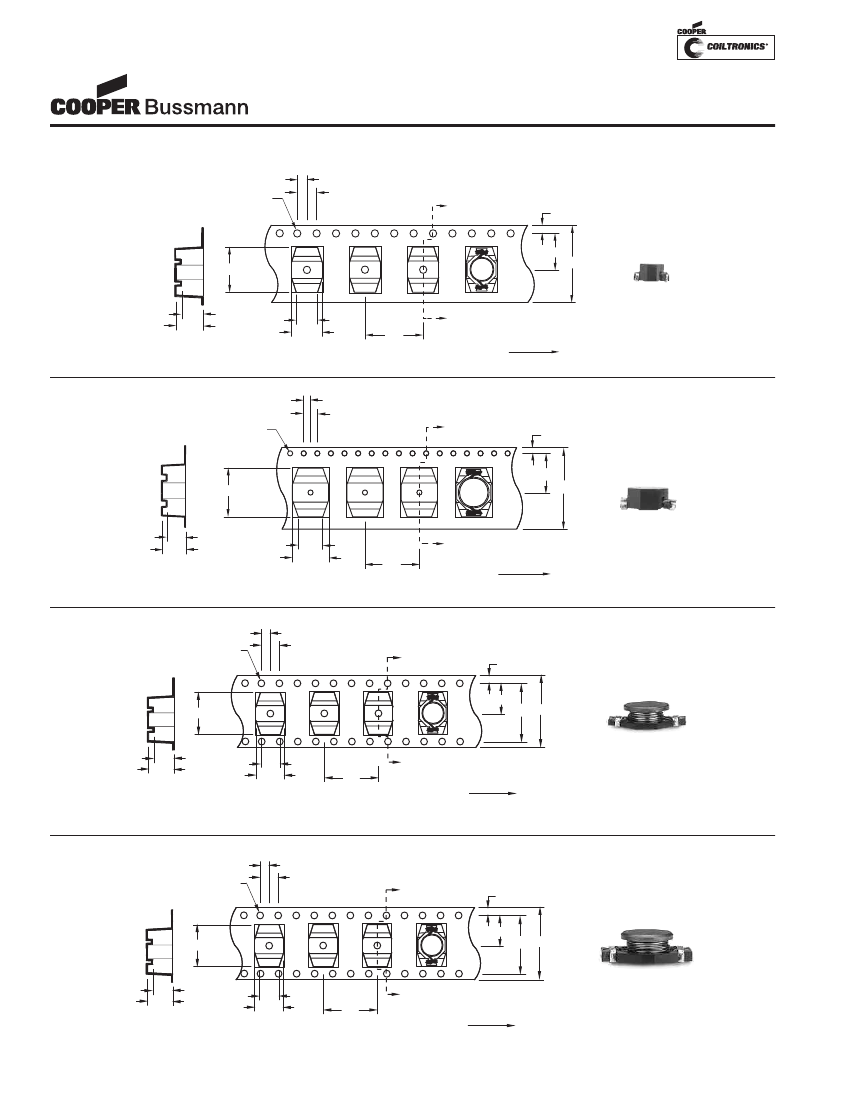

• Supplied in tape and reel packaging, 900 (UP1B), 550

(UP2B), 450 (UP3B), and 275 (UP4B) per reel

RMS

(2)

Amperes

6.0

4.4

4.2

3.1

2.9

2.2

1.7

1.5

1.2

1.0

0.82

0.72

0.58

0.47

0.40

0.36

0.28

10.6

9.3

8.3

7.2

6.5

5.5

5.0

4.3

3.5

2.8

2.1

1.7

1.5

1.34

1.2

1.0

SAT

(3)

Amperes

7.7

5.3

4.5

3.5

3.0

2.6

2.2

1.9

1.5

1.2

0.99

0.87

0.67

0.53

0.46

0.38

0.31

11.4

9.9

7.9

6.1

5.1

4.2

3.6

3.3

2.4

2.0

1.7

1.4

1.2

1.03

0.95

0.77

DCR

(4)

Ohms max.

0.0097

0.0177

0.0200

0.0363

0.0428

0.0544

0.0897

0.1107

0.1747

0.2541

0.3670

0.4740

0.7320

1.11

1.61

1.96

3.10

0.0049

0.0065

0.0081

0.0107

0.0128

0.0165

0.0202

0.0267

0.0410

0.0617

0.0917

0.1388

0.1787

0.2235

0.2707

0.4100

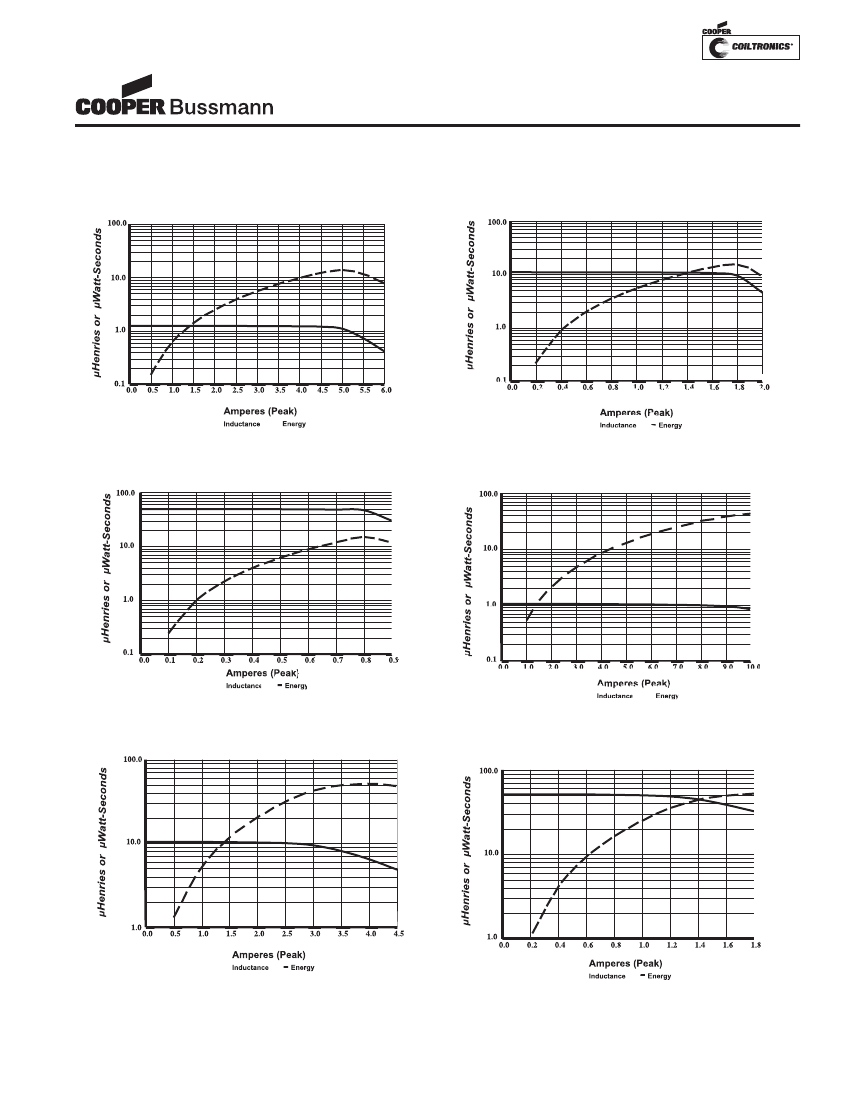

Notes:

(1) Open Circuit Inductance Test Parameters: 100KHz, .250Vrms, 0.0Adc.

(2) RMS current for an approximate

∆T

of 40°C. at an ambient temperature

of 85˚C.

(3) Peak current for approximately 30% rolloff UP1B, 3B, 4B. 10% rolloff

UP2B @ 20°C

(4) DCR limits 20°C.

Recommended Resources

Single tube wireless transmitter circuit diagram

SaSong brand BCD-170W refrigerator circuit

Voice controlled delayed farewell light circuit

24V, 2A regulated power supply circuit

4-bit addition and subtraction circuit

The three-phase motor adopts a commutation circuit with automatic stop by proximity switch.

UP4B-150-R Similar Products

Part Number	Manufacturer	Description
UP4B-150	Cooper Industries	General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 8759, CHIP
ASPI-1306T-150M	Abracon	1 ELEMENT, 15uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT
ASPI-1306T-150-M	Abracon	1 ELEMENT, 15uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT
IDC-732815UH+/-20%	Vishay(威世)	General Fixed Inductor, 1 ELEMENT, 15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
HM71-50150LF	TT Electronics plc	General Purpose Inductor, 15uH, 20%, 1 Element, SMD,
DO5022P-153HB	COILCRAFT	General Purpose Inductor, 15uH, 20%, 1 Element, SMD
IDC7328NB150M	Vishay(威世)	General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD
DO5022P-153HC	COILCRAFT	General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 8864, CHIP
