DO5022P-153HC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DO5022P-153HC

DO5022P-153HC: DescriptionGeneral Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 8864, CHIP; CategoryPassive components inductor; File Size247KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

DO5022P-153HC Overview

General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 8864, CHIP

DO5022P-153HC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	COILCRAFT
package instruction	8864
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	8864
structure	Low Voltage
core material	FERRITE
DC Resistance	0.032 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DO5022HC
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	8 mm
Package length	22.35 mm
Package form	SMT
Package width	16.26 mm
self resonant frequency	20 MHz
series	DO5022HC
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

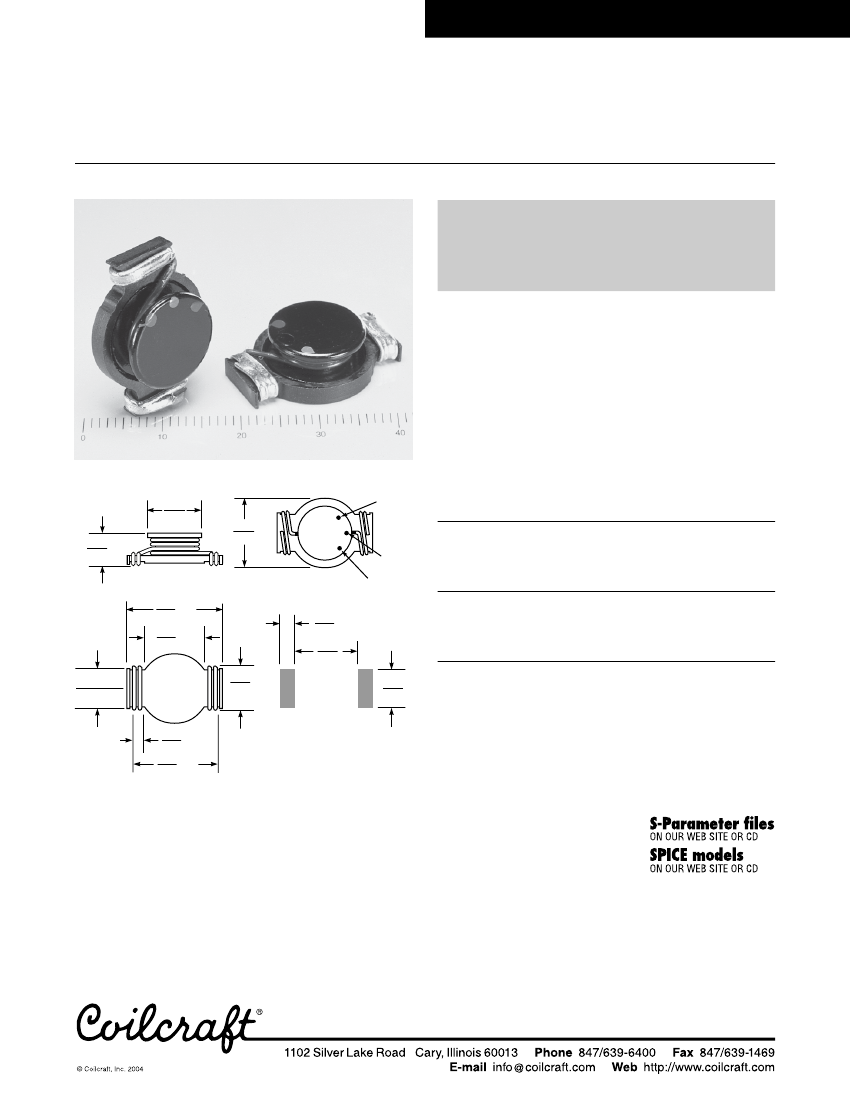

Document 181-1

SMTPowerInductors-DO5022HC Series

We now offer an improved version of

this series: DO5010HC.

It is electrically equivalent, has a smaller footprint and

comes in more inductance values. We will, however,

continue to produce the DO5022HC indefinitely.

This family of inductors was designed for high current,

low-voltage DC-DC converter applications, especially the

latest generation of 3.3 V microprocessors. Current ratings

up to 15 A rms and saturation currents up to 30 A are

available.

These parts are only 8,0 mm high and have exceptionally

low DC resistance thanks to the use of heavier gauge wire.

The DO5022HC Series has been optimized for reliable

surface mounting with a large flat top and self-leaded

design. In addition to the standard parts shown, custom

values are available.

1st

significant

digit

0.640

max

16,26

2nd

significant

digit

Multiplier

0.880

max

22,35

0.561

max

14,25

0.500

12,7

0.315

max

8,00

Part

Number

DO5022P-781HC

DO5022P-152HC

DO5022P-222HC

DO5022P-332HC

DO5022P-392HC

DO5022P-472HC

DO5022P-602HC

DO5022P-782HC

DO5022P-103HC

DO5022P-153HC

Inductance

(µH ±20%)

0.78

1.5

2.2

3.3

3.9

4.7

6.0

7.8

DCR

max

(m )

2.6

4.0

6.1

8.6

SRF

typ

sat

(MHz) (A)

156

100

rms

(A)

9.0

8.4

7.5

6.0

4.4

0.125

3,18

0.565

14,35

0.380

max

9,66

(See note)

0.340

8,64

0.340 ±0.010

8,64 ±0,25

0.125

max

3,18

0.815

max

20,70

Note: Based on 781HC.

Recommended

Land Pattern

1. Part number on reel label may have a B suffix to indicate that the

reel is not machine ready.

2. Inductance tested at 100 kHz, 0.1 Vrms.

3. SRF measured using Agilent/HP8753D network analyzer.

4. DC current at which the inductance drops 10% (typ) from its

value without current.

5. Average current for a 40°C rise above 25°C ambient.

6. Operating temperature range

−40°C

to +85°C.

7. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

Parts/reel: 13″ 250 Tape width: 44 mm

For packaging data see Tape and Reel Specifications section.

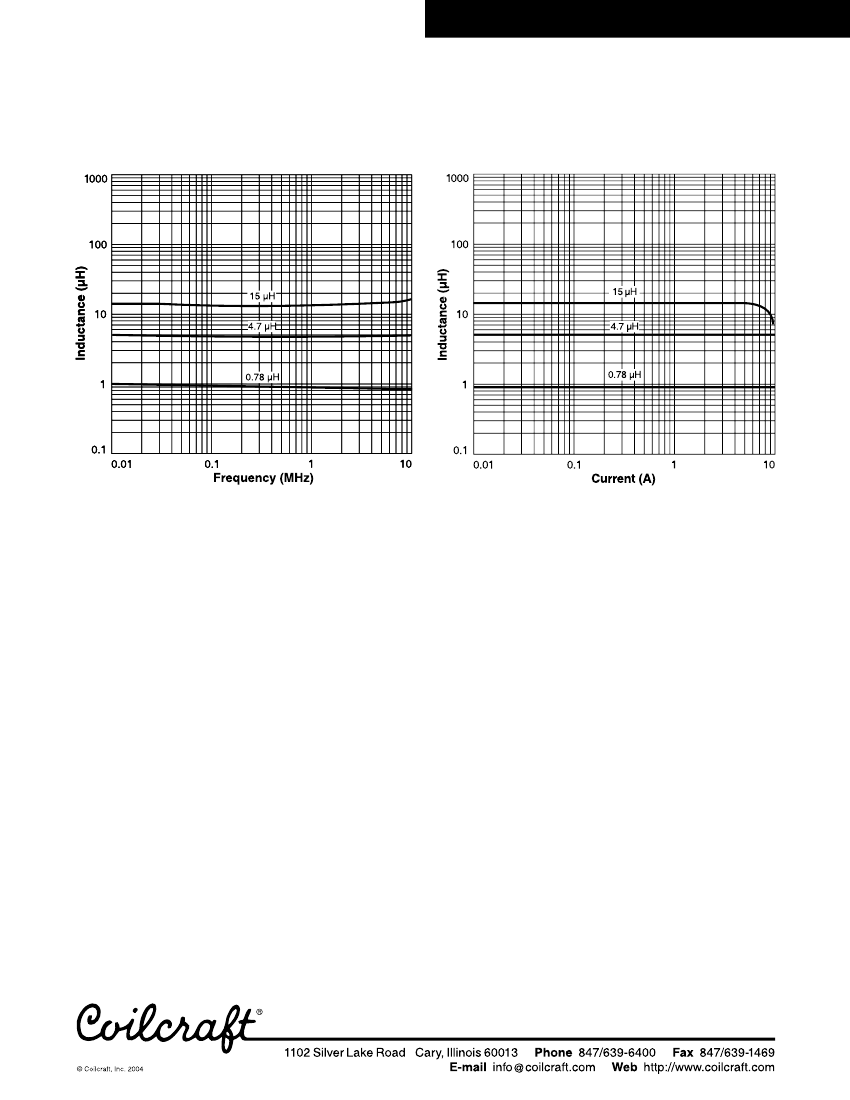

Specifications subject to change without notice.

Document 181-1

Revised 05/09/03
