LM1117RS-2.5V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM1117RS-2.5V

LM1117RS-2.5V: DescriptionFixed Positive LDO Regulator, 2.5V, 1.3V Dropout, PSSO2, TO-252, 3/2 PIN; CategoryPower/power management The power supply circuit; File Size379KB，12 Pages; ManufacturerHTC Korea（TAEJIN Technology ）; Websitehttp://www.htckorea.co.kr/

Download Datasheet Parametric View All

LM1117RS-2.5V Overview

Fixed Positive LDO Regulator, 2.5V, 1.3V Dropout, PSSO2, TO-252, 3/2 PIN

LM1117RS-2.5V Parametric

Parameter Name	Attribute value
package instruction	TO-252, 3/2 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	1.3 V
Maximum input voltage	12 V
Minimum input voltage	4 V
JESD-30 code	R-PSSO-G2
Number of functions	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	1 A
Maximum output voltage 1	2.525 V
Minimum output voltage 1	2.475 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

1A L.D.O VOLTAGE REGULATOR

FEATURES

Output Current up to 1 A

Low Dropout Voltage (1.2V at 1A Output current)

Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V,

1.8V, 2.5V, 2.85V, 3.3V, 5.0V

Line Regulation typically at 0.1% max.

Load Regulation typically at 0.2% max.

Internal Current and Terminal Protection

Maximum Input Voltage 20V

Surface Mount Package SOT-223, TO-252, SOT-89

100% Thermal Limit Burn-In

Moisture Sensitivity Level 3

SOT-223 PKG

LM1117

TO-252 PKG

SOT-89 PKG

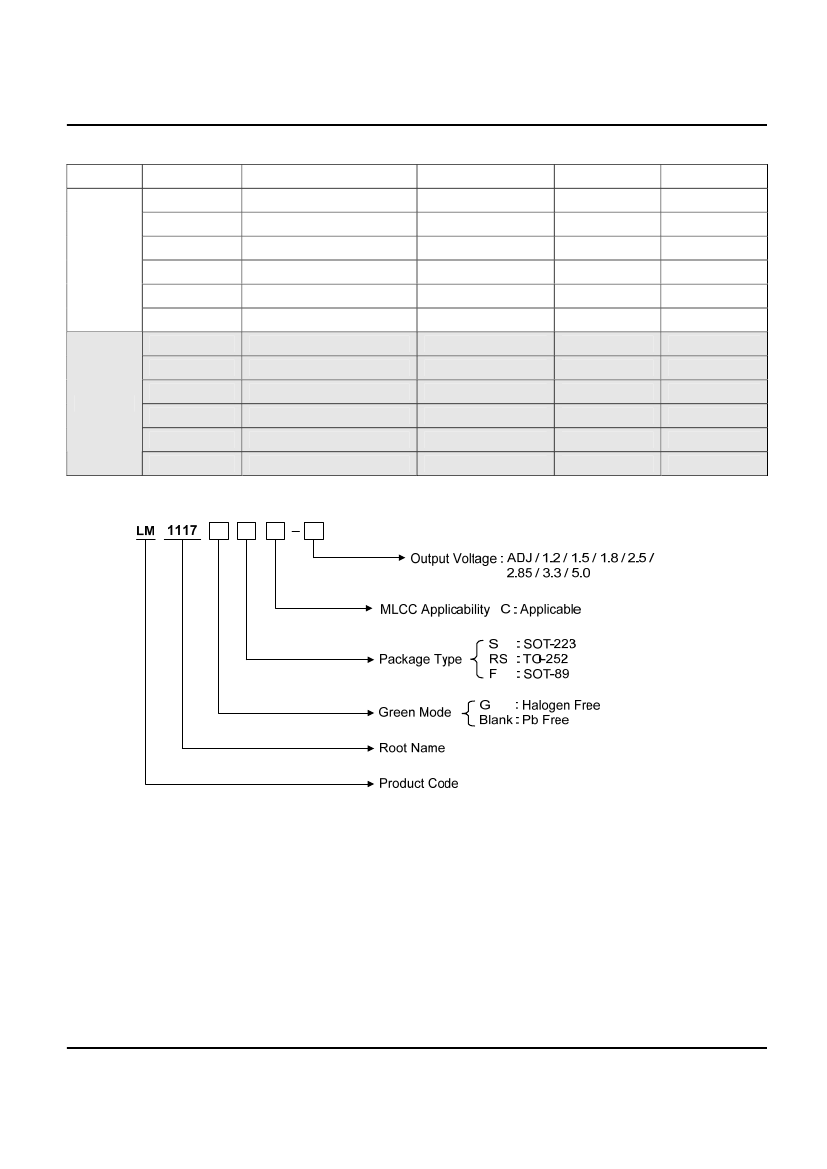

ORDERING INFORMATION

APPLICATION

Active SCSI Terminators

Portable/ Plan Top/ Notebook Computers

High Efficiency Linear Regulators

SMPS Post Regulators

Mother B/D Clock Supplies

Disk Drives

Battery Chargers

Device

Package

LM1117S-ADJ

LM1117S-X.X

SOT-223 3L

LM1117GS-ADJ

LM1117GS-X.X

LM1117RS-ADJ

LM1117RS-X.X

TO-252 3L

LM1117GRS-ADJ

LM1117GRS-X.X

LM1117F-ADJ

LM1117F-X.X

SOT-89 3L

LM1117GF-ADJ

LM1117GF-X.X

X.X = Output Voltage = 1.2V, 1.5V, 1.8V, 2.5V, 2.85V,

3.3V, 5.0V

DESCRIPSION

The LM1117 is a low power positive-voltage regulator designed to meet 1A output current and comply with SCSI-II

specifications with a fixed output voltage of 2.85V. This device is an excellent choice for use in battery-powered

applications, as active terminators for the SCSI bus, and portable computers. The LM1117 features very low

quiescent current and very low dropout voltage of 1V at a full load and lower as output current decreases.

LM1117 is available as an adjustable or fixed 1.2V, 1.5V, 1.8V, 2.5V, 2.85, 3.3V, and 5.0V output voltages. The

LM1117 is offered in a 3-pin surface mount package SOT-223, TO-252 & SOT-89. The output capacitor of 10㎌ or

larger is needed for output stability of LM1117 as required by most of the other regulator circuits.

Absolute Maximum Ratings

= 25℃, unless otherwise specified)

CHARACTERISTIC

DC Input Voltage

Lead Temperature (Soldering, 5 seconds)

Operating Junction Temperature Range

Storage Temperature Range

July 2012 Rev. 1.20
