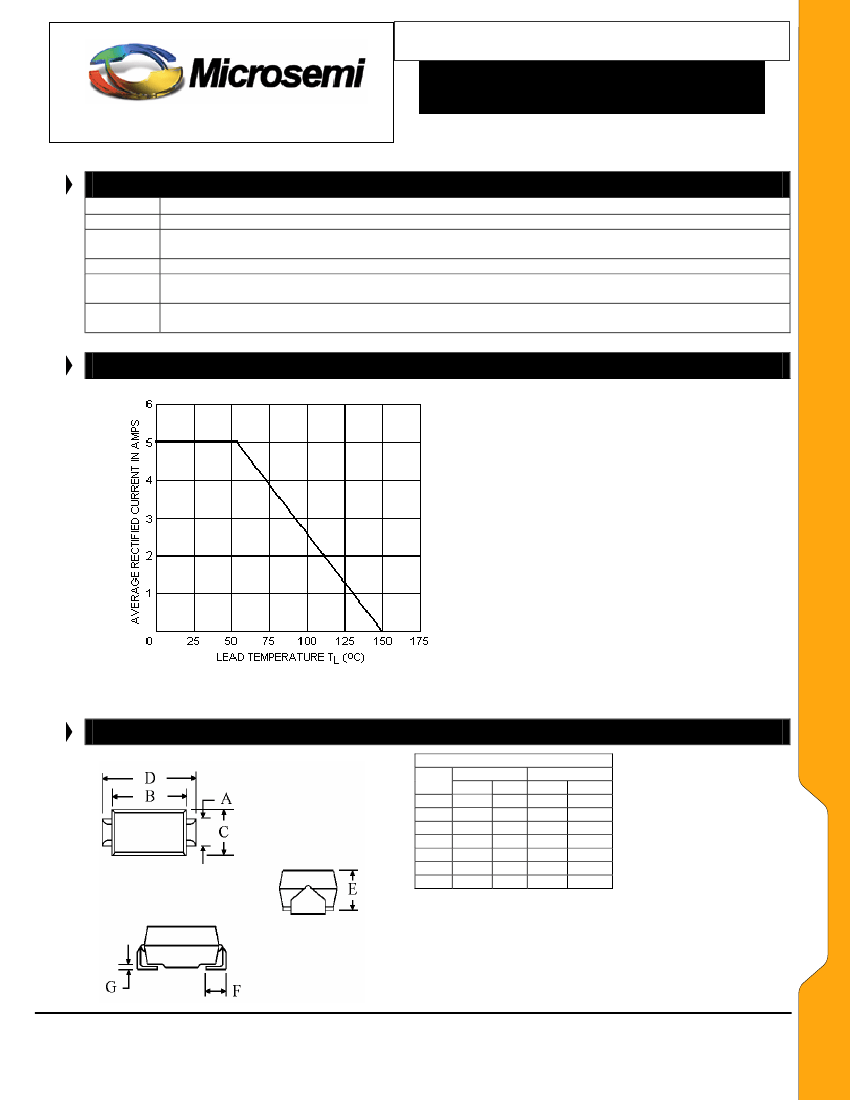

HSMCJ5550 thru HSMCJ5554, e3
Plastic Surface Mount 5 Amp Standard
Rectifier Series (200 –1000 V)
SCOTTSDALE DIVISION
DESCRIPTION
This series of rectifier diodes provide a cost-effective plastic surface mount package
with similar electrical parameters as the popular 1N5550 through 1N5554 series. It
fits the same footprint as the DO-214AB (SMC) package. Also its rectangular profile
design makes it easy to handle compared to cylindrical body style packages such as
its standard 1N5550-1N5554US counterpart. This robust design also provides stress
relief with its popular J-bend contacts when mounted on various substrate materials.
It unique axial subassembly also provides a very efficient thermal path for power
dissipation for its 5 Amp forward (I
O
) current rating and superior surge performance.
This also provides the same low thermal resistance of its military counterpart also
offered by Microsemi in the Tungsten slug surface mount package.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
APPEARANCE
WWW .
Microsemi
.C
OM
FEATURES
•
•
•
Standard 5 Amp rectifier series 200 to 1000 V
Economical plastic surface mount with robust axial
subassembly package
Options for screening in accordance with MIL-PRF-
19500 for JAN, JANTX, and JANTXV are also
available by adding MQ, MX, or MV prefixes
respectively to part number, e.g. MXHSMCJ5550,
MVHSMCJ5554, etc.
RoHS Compliant devices available by adding “e3” suffix
UL94V-0 Flammability Classification
•
•
•
•
•
•
APPLICATIONS / BENEFITS
Standard 5 Amp rectifiers series 200 to 1000 V
General rectifier applications including bridges, half-
bridges, catch diodes, etc.
High forward surge current capability
Extremely robust internal construction
Easy for pick-and-place equipment
Low thermal resistance
•
•
MAXIMUM RATINGS
•
•
•
•
•
Operating Temperature: -55
o
C to +150
o
C
Storage Temperature: -55
o
C to +150
o
C
Average Rectified Current (I
O
): 5 Amps @ T
L
= 55
o
C
Thermal Resistance (R
θJL
): 11
o
C /W (junction to
mounting plane)
Forward Surge Current (8.3 ms half sine): 200 Amps
•
•
•
•
MECHANICAL AND PACKAGING
CASE: Void Free Transfer Molded Thermosetting Plastic
(see modified DO-214AB dimensions and notes)
TERMINALS: Tin-lead or RoHS compliant annealed
matte-tin plating solderable to MIL-STD-750, method 2026
POLARITY: Cathode Marked with Band
MARKING: Part number without HSMCJ prefix, e.g. 5550,
5551, 5552, etc.
WEIGHT: 0.4 Grams (Approx.)
•
ELECTRICAL CHARACTERISTICS @ 25 ºC
TYPE
MINIMUM
REVERSE
BREAKDOWN
VOLTAGE
@50μA
WORKING
PEAK
REVERSE
VOLTAGE
V
RWM
VOLTS
AVERAGE
RECTIFIED
CURRENT
I
O
AMPS
o
(T
L
=55 C)
FORWARD VOLTAGE
VF @ 5 A
MIN.
MAX.
Reverse
Current
I
R
@ V
RWM
μA
REVERSE
RECOVERY
trr
μsec
HSMCJ5550 thru
HSMCJ5554
HSMCJ5550
HSMCJ5551
HSMCJ5552
HSMCJ5553
HSMCJ5554
240
480
660
880
1100
200
400
600
800
1000
5.0
5.0
5.0
5.0
5.0
.6V
.6V
.6V
.6V
.6V
1.2V
1.2V
1.2V
1.3V
1.3V
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
2.0
2.0
Copyright
©
2007
6-20-2007 REV A
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
HSMCJ5550 thru HSMCJ5554, e3
Plastic Surface Mount 5 Amp Standard
Rectifier Series (200 –1000 V)
SCOTTSDALE DIVISION
Symbol
V
BR
V
RWM
V
F
I
R
C
SYMBOLS & DEFINITIONS
Definition
Minimum Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Working Peak Reverse Voltage: The maximum peak voltage that can be applied over the operating
temperature range.
Maximum Forward Voltage: The maximum forward voltage the device will exhibit at a specified current.
Maximum Reverse Current: The maximum reverse leakage current that will flow at the specified voltage and
temperature.
Capacitance: The capacitance of the TVS as defined @ 0 volts at a frequency of 1 MHz and stated in
picofarads.
WWW .
Microsemi
.C
OM
GRAPHS
FIGURE 2
MAXIMUM CURRENT vs. LEAD TEMPERATURE
PACKAGE DIMENSIONS
DIM
A
B
C
D
E
F
G
DIMENSIONS
INCHES
mm
MIN MAX MIN
MAX
.177 .203 4.50
5.15
.239 .243 6.08
6.18
.234 .240 5.95
6.10
.320 .330 8.13
8.38
.200 .214 5.08
5.43
.053 .067 1.35
1.70
.002 .025 0.05
0.64
HSMCJ5550 thru
HSMCJ5554
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01mm)
are given for general information only and
are based upon 1 inch = 25.4 mm mm.
Copyright
©
2007
6-20-2007 REV A
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 2
