RN2101FT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RN2101FT

RN2101FT: DescriptionTRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TESM, 2-1B1A, 3 PIN, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size548KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

RN2101FT Overview

TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TESM, 2-1B1A, 3 PIN, BIP General Purpose Small Signal

RN2101FT Parametric

Parameter Name	Attribute value
package instruction	TESM, 2-1B1A, 3 PIN
Contacts	3
Reach Compliance Code	unknown
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-F3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

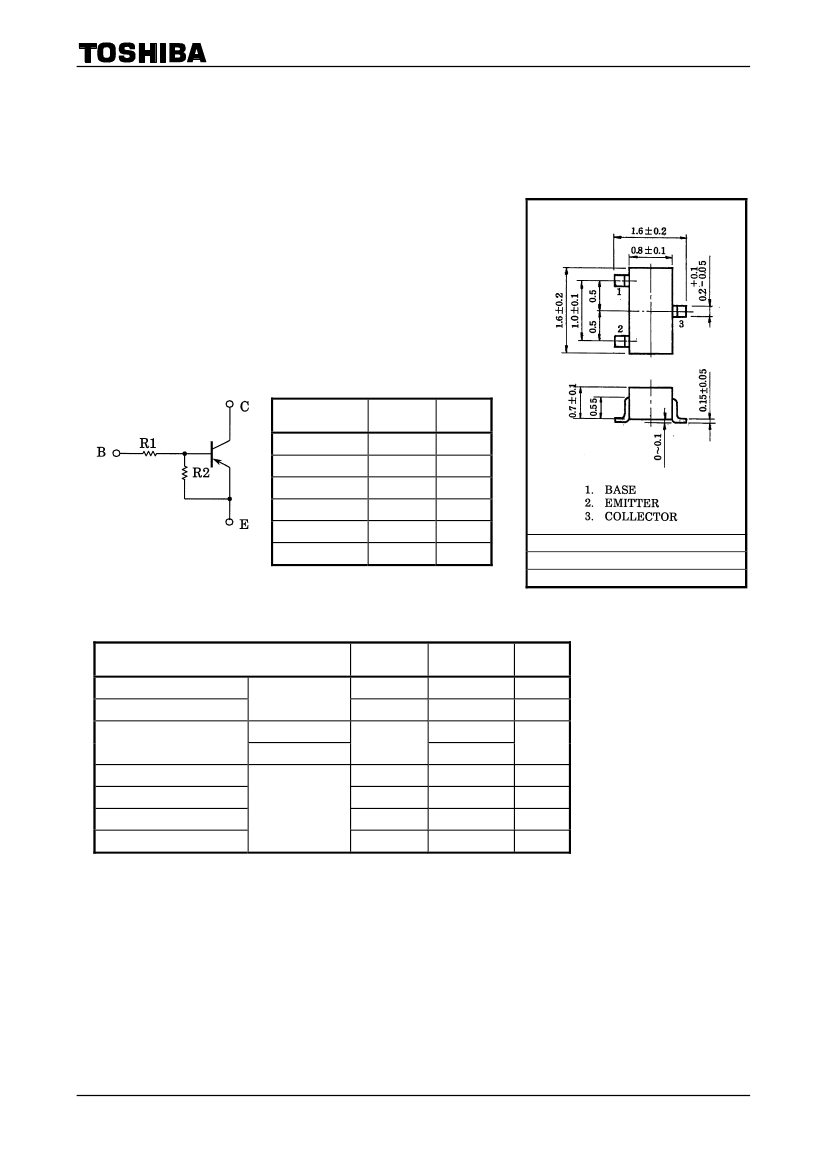

RN2101∼RN2106

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)

RN2101, RN2102, RN2103,

RN2104, RN2105, RN2106

Switching, Inverter Circuit, Interface Circuit

and Driver Circuit Applications

Built-in bias resistors

Simplified circuit design

Fewer parts and simplified manufacturing process

Complementary to RN1101~RN1106

Unit: mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN2101

RN2102

RN2103

RN2104

RN2105

RN2106

R1 (kΩ)

4.7

2.2

4.7

R2 (kΩ)

4.7

JEDEC

―

JEITA

―

TOSHIBA

2-2H1A

Weight: 2.4 mg (typ.)

Absolute Maximum Ratings

(Ta = 25°C)

Characteristic

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN2101~2106

RN2101~2104

RN2105, 2106

Symbol

CBO

CEO

EBO

stg

Rating

−50

−10

−5

−100

100

150

−55~150

Unit

°C

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the

significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even

if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum

ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test

report and estimated failure rate, etc).

2007-11-01

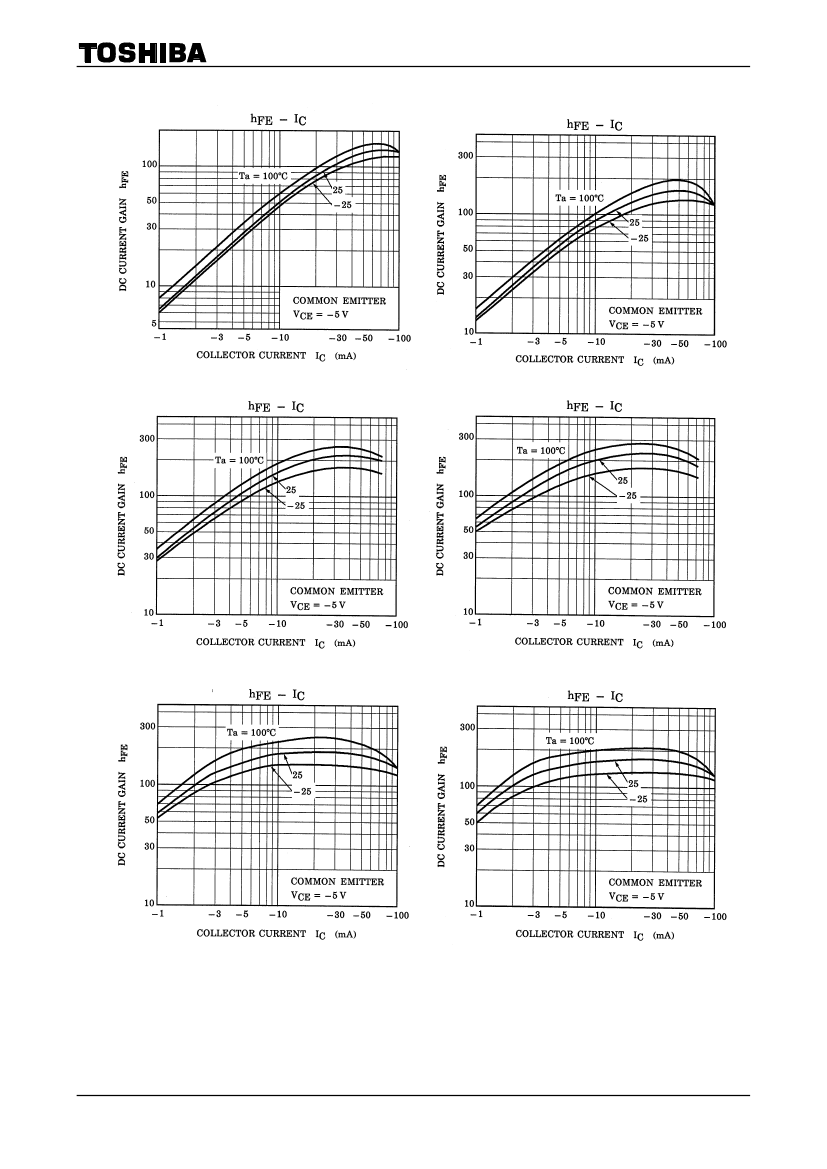

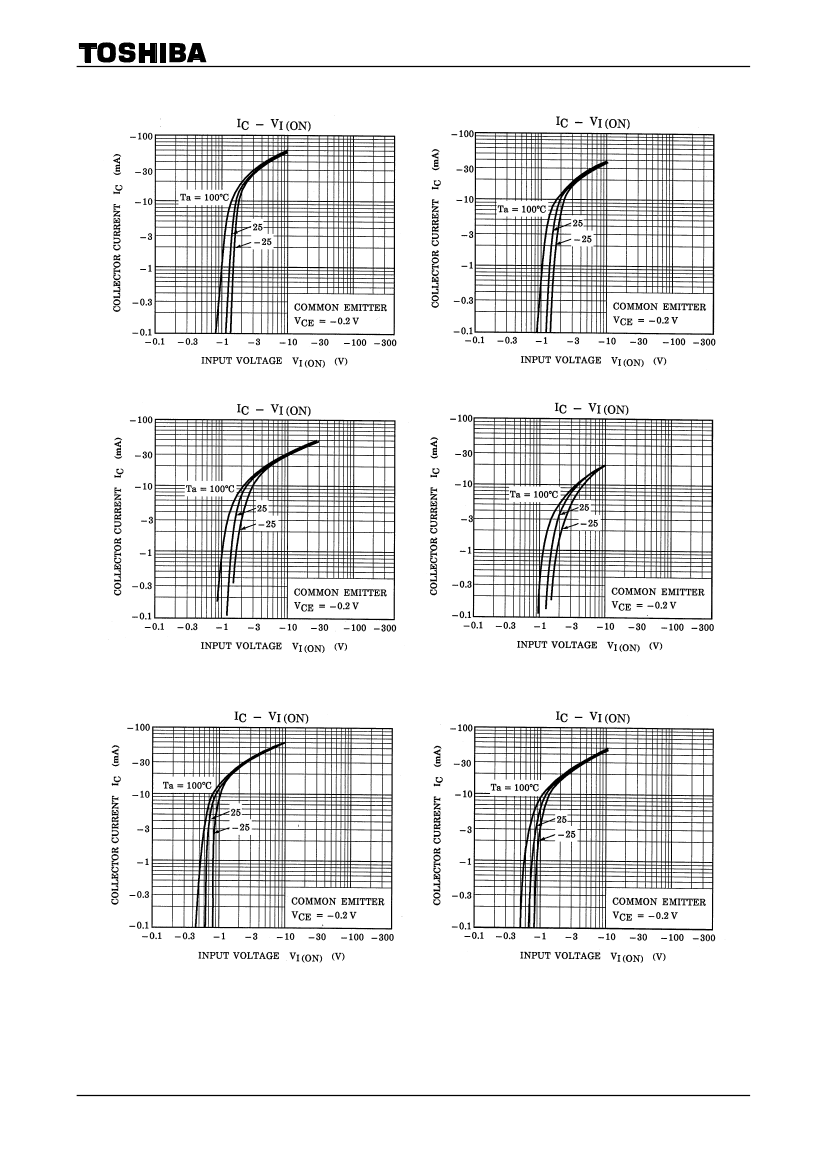

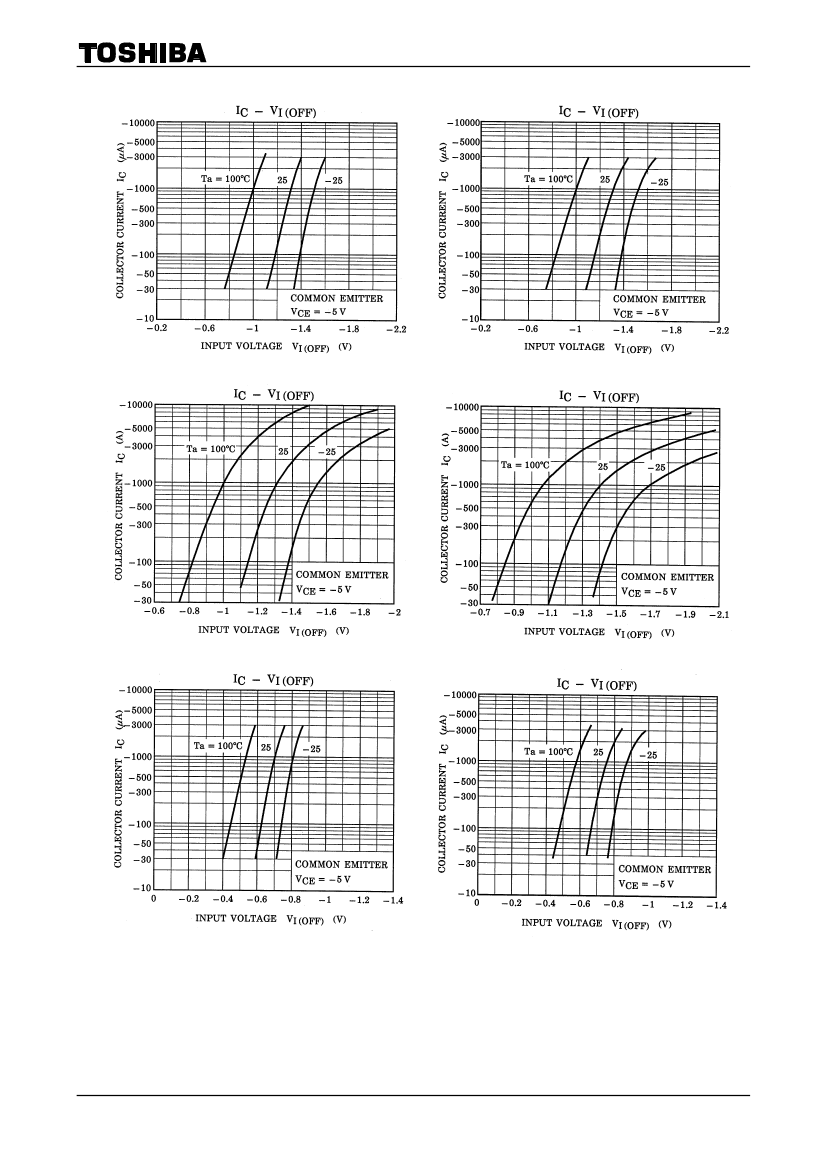

RN2101FT Related Products

	RN2101FT	RN2101(TE85R)	RN2101(TE85L)
Description	TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TESM, 2-1B1A, 3 PIN, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal
package instruction	TESM, 2-1B1A, 3 PIN	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3	3
Reach Compliance Code	unknown	unknow	unknown
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	50 V	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30	30	30
JESD-30 code	R-PDSO-F3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	FLAT	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz
Base Number Matches	1	1	1
ECCN code	-	EAR99	EAR99

Recommended Resources

Stator coil connection method a

Sound controlled toy low light circuit

Integrated circuit adjustable thermostat circuit diagram

High precision fast sample and hold circuit circuit diagram

TC7107 negative power conversion circuit diagram

Monostable remote control switch receiving circuit
