PI74FCT2X823TBX datasheet, PDF

PI74FCT2X823TBX: DescriptionBus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, BQSOP-48; Categorylogic logic; File Size33KB，2 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

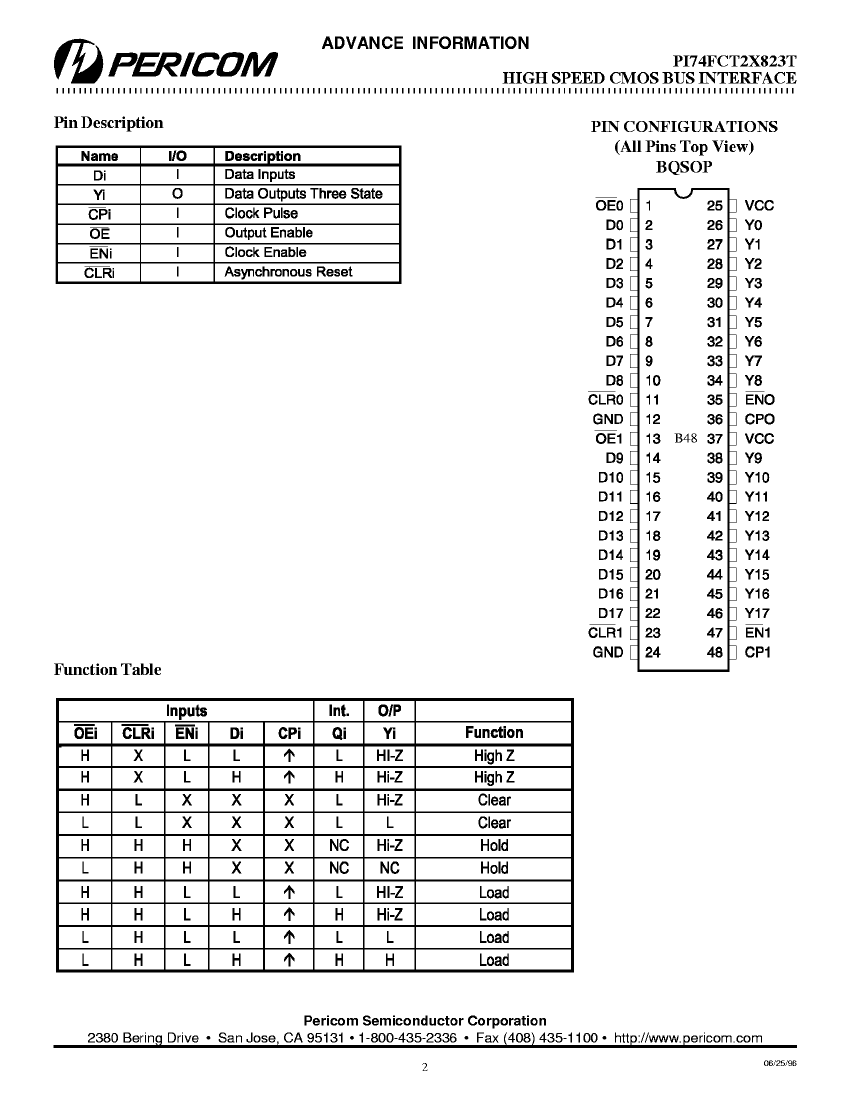

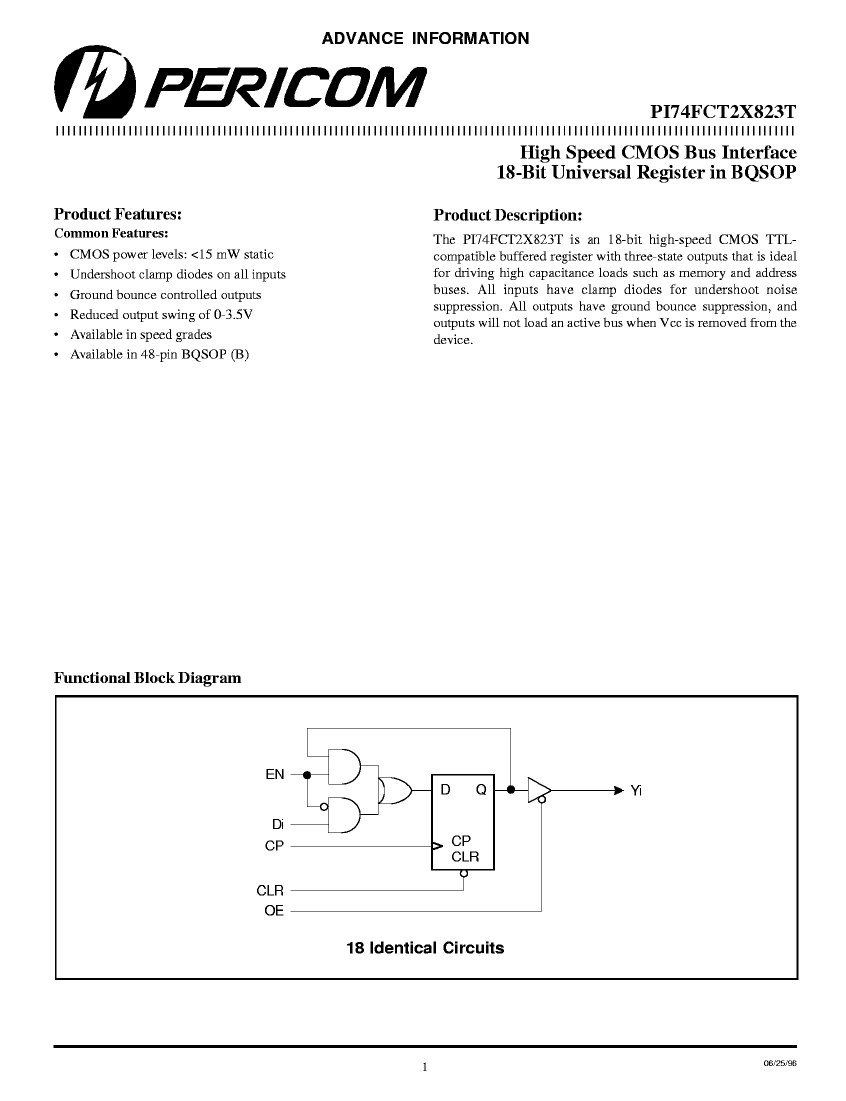

PI74FCT2X823TBX Overview

Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, BQSOP-48

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
series	FCT
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	9.9 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	9
Number of functions	2
Number of ports	2
Number of terminals	48
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2 mm
surface mount	YES
technology	CMOS
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.4 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	PI74FCT2X823TBX	PI74FCT2X823TB
Description	Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, BQSOP-48	Bus Driver, FCT Series, 2-Func, 9-Bit, True Output, CMOS, PDSO48, BQSOP-48
Parts packaging code	SOIC	SOIC
package instruction	SSOP,	SSOP,
Contacts	48	48
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
series	FCT	FCT
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
length	9.9 mm	9.9 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	9	9
Number of functions	2	2
Number of ports	2	2
Number of terminals	48	48
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	2 mm	2 mm
surface mount	YES	YES
technology	CMOS	CMOS
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	0.4 mm	0.4 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
Base Number Matches	1	1
