HDSC2036-14S datasheet, PDF - EEWORLD Datasheet

HDSC2036-14S: DescriptionDigital to Synchro or Resolver, Hybrid, MDIP36, 0.780 X 1.900 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36; CategoryAnalog mixed-signal IC converter; File Size460KB，8 Pages; ManufacturerNatel Engineering Company

Download Datasheet Parametric View All

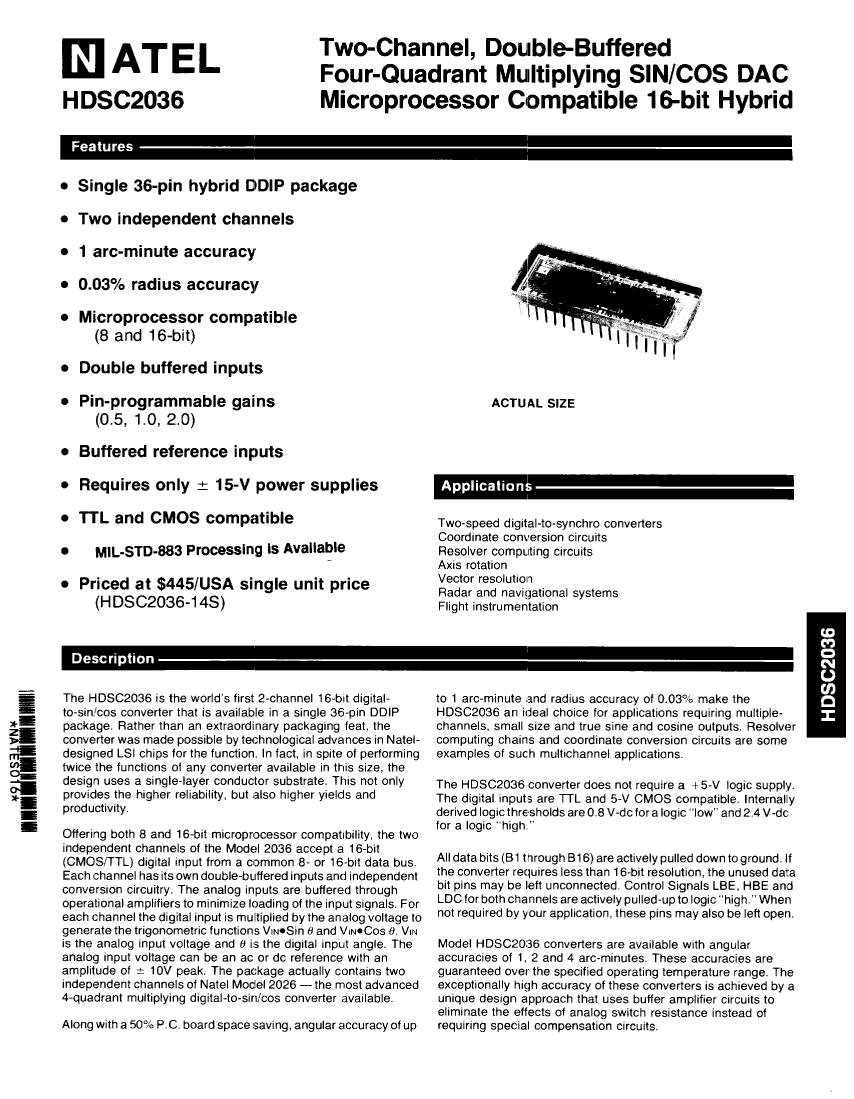

HDSC2036-14S Overview

Digital to Synchro or Resolver, Hybrid, MDIP36, 0.780 X 1.900 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36

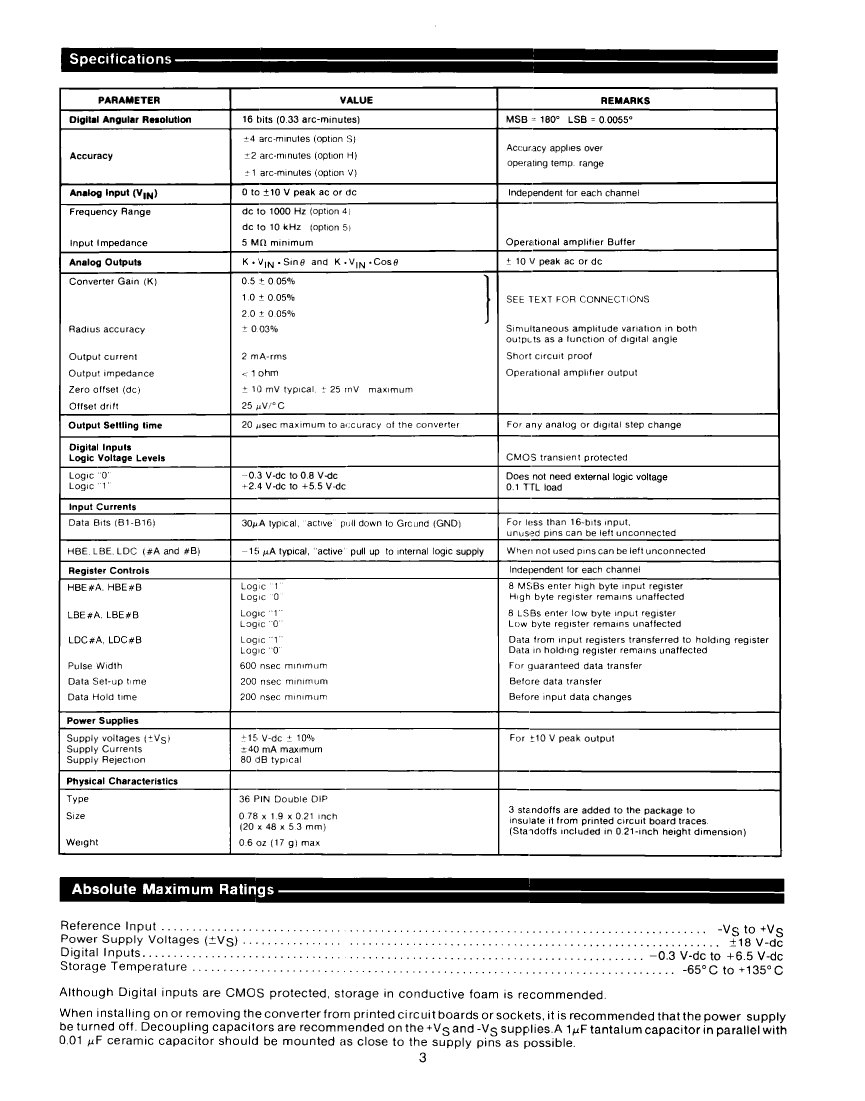

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	36
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TWO CHANNEL
Maximum angular accuracy	4 arc min
Converter type	DIGITAL TO SYNCHRO OR RESOLVER
JESD-30 code	R-MDIP-P36
length	48.13 mm
Maximum negative supply voltage	-16.5 V
Minimum negative supply voltage	-13.5 V
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	36
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.4 mm
Signal/output frequency	1000 Hz
Maximum slew rate	45 mA
Maximum supply voltage	16.5 V
Minimum supply voltage	13.5 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1
