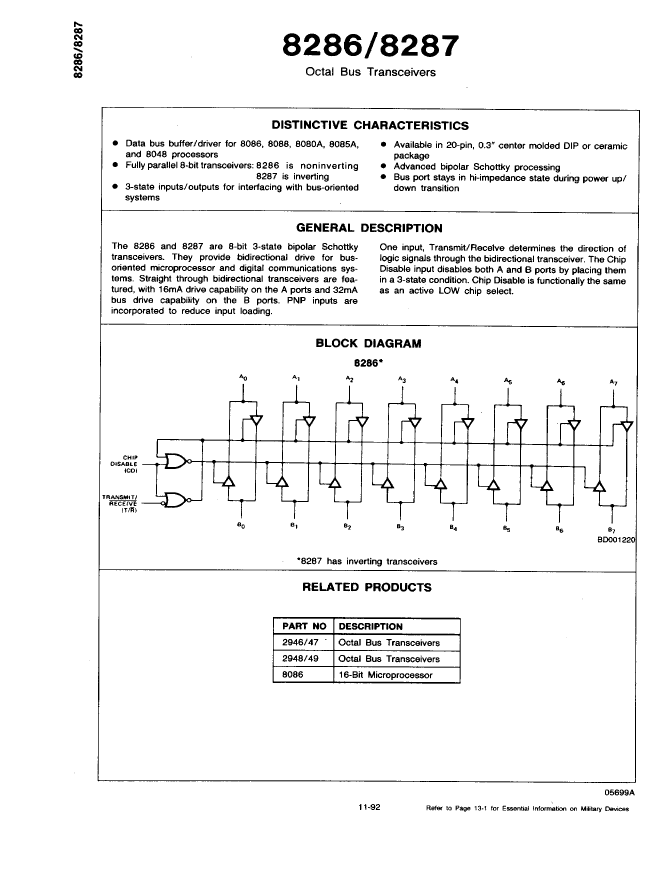

Bus Transceiver, TTL/H/L Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, 0.300 INCH, PLASTIC, DIP-20

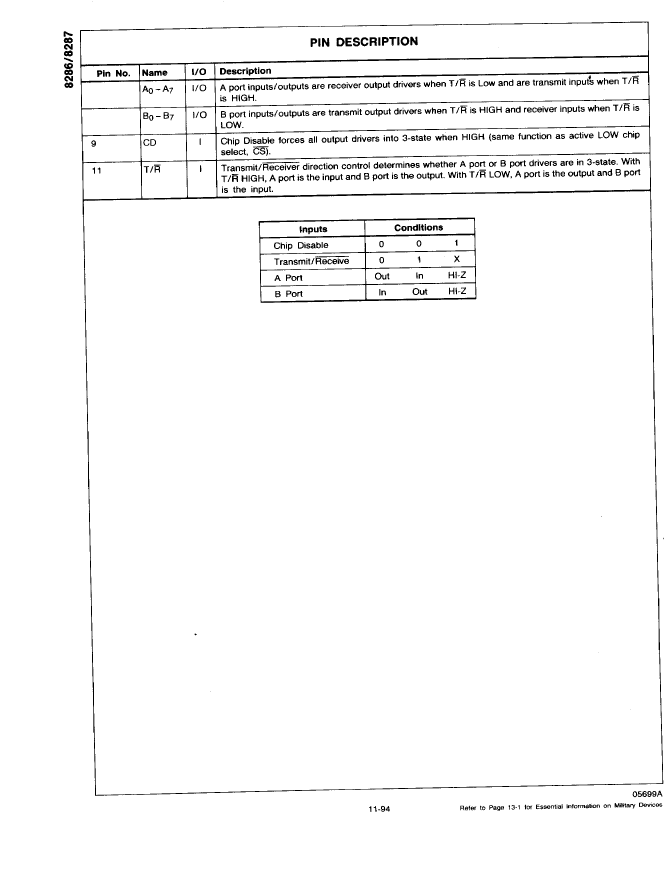

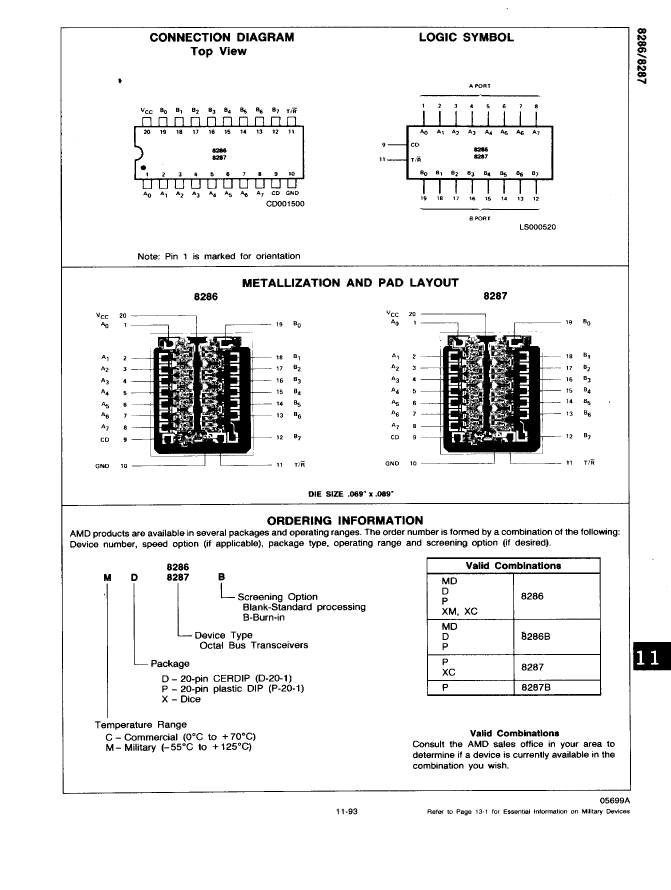

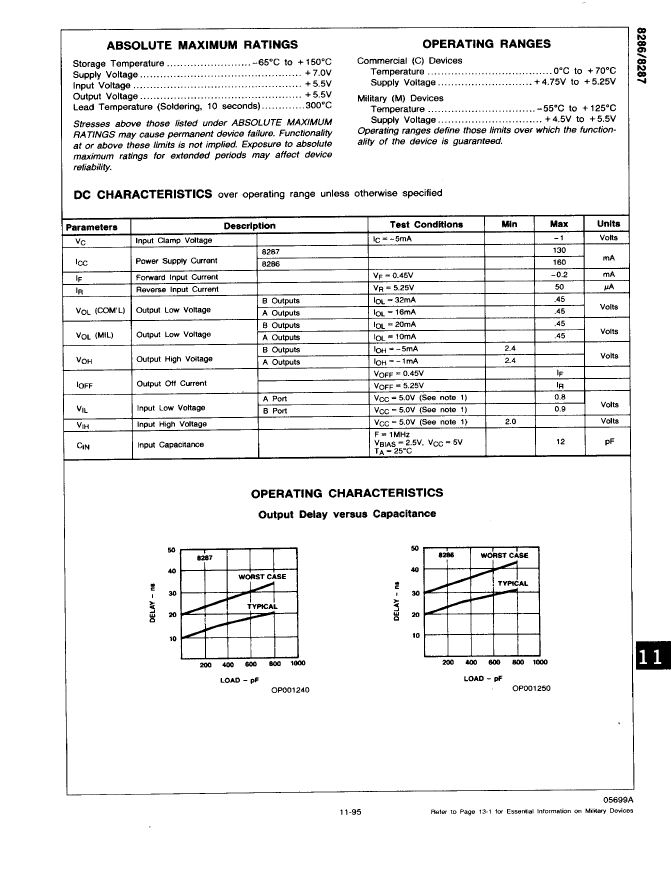

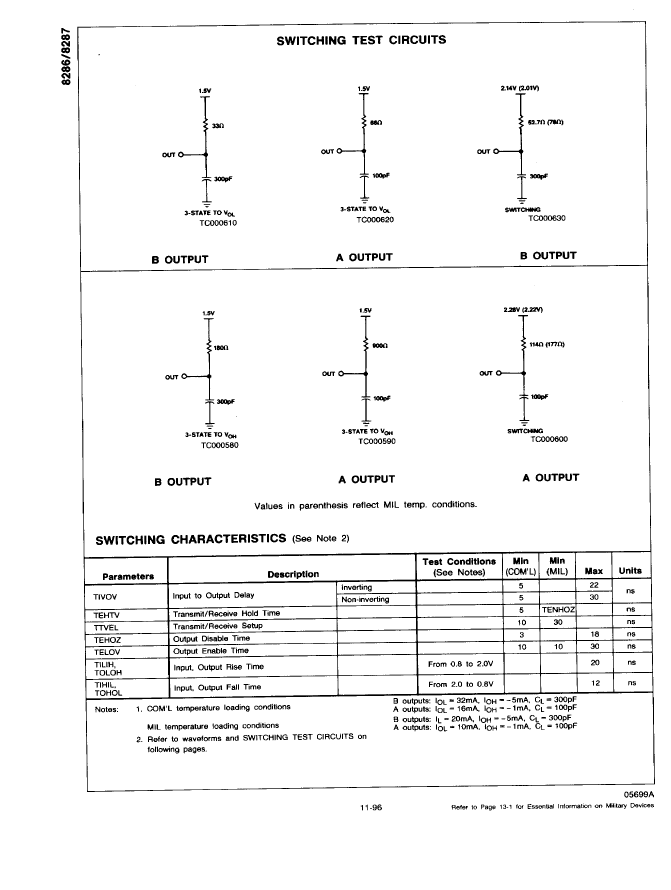

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP20,.3 |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Other features | WITH DIRECTION CONTROL |
| Control type | COMMON CONTROL |
| Counting direction | BIDIRECTIONAL |
| series | TTL/H/L |
| JESD-30 code | R-PDIP-T20 |
| JESD-609 code | e0 |
| length | 26.162 mm |
| Logic integrated circuit type | BUS TRANSCEIVER |
| MaximumI(ol) | 0.032 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP20,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 160 mA |
| Prop。Delay @ Nom-Sup | 30 ns |
| propagation delay (tpd) | 30 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| translate | N/A |
| width | 7.62 mm |
| Base Number Matches | 1 |
| P8286B | P8286 | D8286 | D8286B | P8287B | P8287 | |
|---|---|---|---|---|---|---|
| Description | Bus Transceiver, TTL/H/L Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, 0.300 INCH, PLASTIC, DIP-20 | Bus Transceiver, TTL/H/L Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, 0.300 INCH, PLASTIC, DIP-20 | Bus Transceiver, TTL/H/L Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, 0.300 INCH, CERDIP-20 | Bus Transceiver, TTL/H/L Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, 0.300 INCH, CERDIP-20 | Bus Transceiver, TTL/H/L Series, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20, 0.300 INCH, PLASTIC, DIP-20 | Bus Transceiver, TTL/H/L Series, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20, 0.300 INCH, PLASTIC, DIP-20 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | DIP, DIP20,.3 | DIP, DIP20,.3 | DIP, DIP20,.3 | DIP, DIP20,.3 | DIP, DIP20,.3 | DIP, DIP20,.3 |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknow |
| Other features | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | - | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL |
| Control type | COMMON CONTROL | COMMON CONTROL | - | COMMON CONTROL | COMMON CONTROL | COMMON CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | - | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| series | TTL/H/L | TTL/H/L | - | TTL/H/L | TTL/H/L | TTL/H/L |
| JESD-30 code | R-PDIP-T20 | R-PDIP-T20 | - | R-CDIP-T20 | R-PDIP-T20 | R-PDIP-T20 |
| JESD-609 code | e0 | e0 | - | e0 | e0 | e0 |
| length | 26.162 mm | 26.162 mm | - | 24.4475 mm | 26.162 mm | 26.162 mm |
| Logic integrated circuit type | BUS TRANSCEIVER | BUS TRANSCEIVER | - | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER |
| MaximumI(ol) | 0.032 A | 0.032 A | - | 0.032 A | 0.032 A | 0.032 A |
| Number of digits | 8 | 8 | - | 8 | 8 | 8 |
| Number of functions | 1 | 1 | - | 1 | 1 | 1 |
| Number of ports | 2 | 2 | - | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | - | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 70 °C | - | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | - | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | - | TRUE | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | - | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | - | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP20,.3 | DIP20,.3 | - | DIP20,.3 | DIP20,.3 | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | - | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | - | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 160 mA | 160 mA | - | 160 mA | 130 mA | 130 mA |
| Prop。Delay @ Nom-Sup | 30 ns | 30 ns | - | 30 ns | 30 ns | - |
| propagation delay (tpd) | 30 ns | 30 ns | - | 30 ns | 22 ns | 22 ns |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 5.08 mm | - | 5.08 mm | 5.08 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | - | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | - | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | - | 5 V | 5 V | 5 V |
| surface mount | NO | NO | - | NO | NO | NO |
| technology | TTL | TTL | - | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | - | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | - | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| translate | N/A | N/A | - | N/A | N/A | N/A |
| width | 7.62 mm | 7.62 mm | - | 7.62 mm | 7.62 mm | 7.62 mm |
| Maker | - | - | AMD | AMD | AMD | AMD |
