BZH12/Z0000/00

Description
Mains Power Connector, Female and Male, Solder Terminal
CategoryThe connector    The connector
File Size62KB,1 Pages
ManufacturerBULGIN
Websitehttp://www.bulgin.co.uk/
Environmental Compliance
Download Datasheet Parametric View All

BZH12/Z0000/00 Overview

Mains Power Connector, Female and Male, Solder Terminal

BZH12/Z0000/00 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresSTANDARDS: UL; VDE; CSA
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE AND MALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberBZH12
Installation typePANEL
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts6
Base Number Matches1

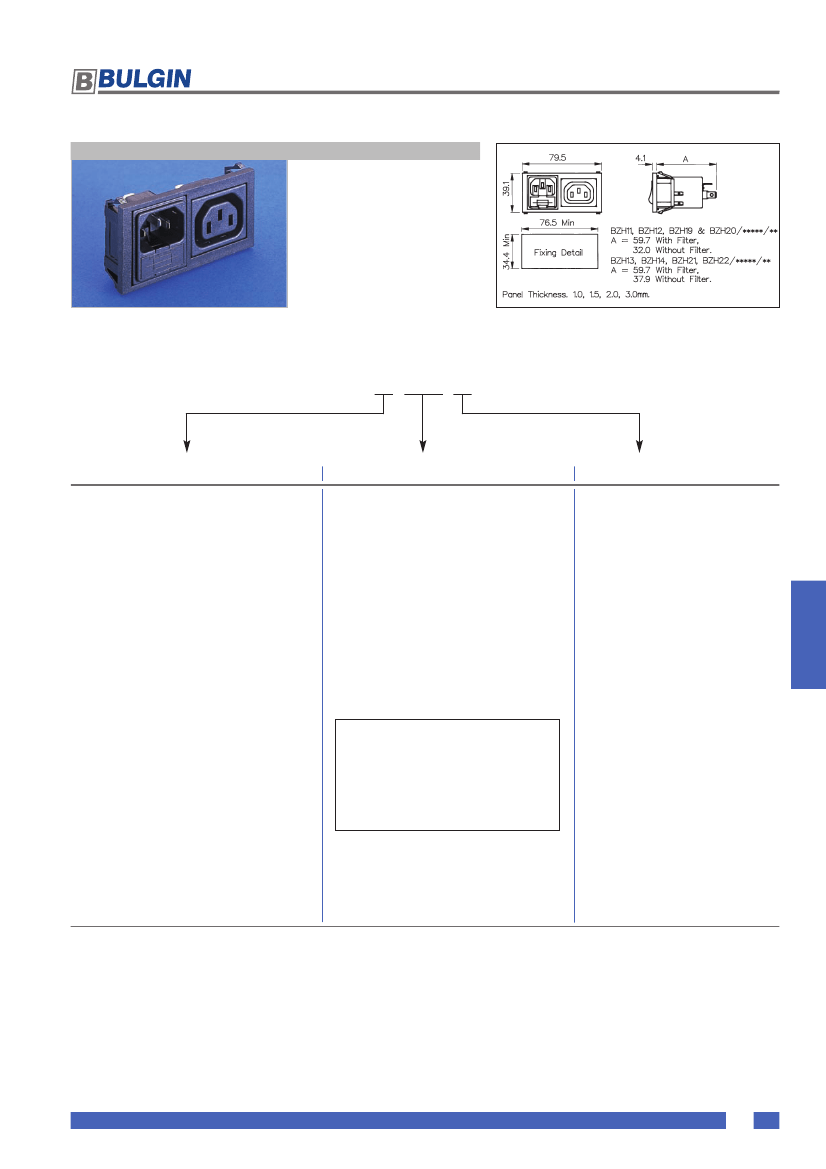

POLYSNAP
®
POWER INLET MODULES
C14 IEC Fused Inlet/Sheet F IEC Outlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
Fused Inlet/Outlet
Combination with 2.8mm or
6.3mm tags
Filtered Inlet Option
Single or Twin Fused
BZH11/Z0000/00
How to Order
BZH xx / xxxxx / xx
Type of Inlet / Outlet
Single Fused C14 Power Inlet (cold condition) and
Sheet F Non-shuttered Power Outlet, 2.8 or 6.3mm
tabs:
11
= PF0011/63 + PX0695/63
12
= PF0011/28 + PX0695/28
Twin Fused C14 Power Inlet (cold condition) and
Sheet F Non-shuttered Power Outlet , 2.8 or 6.3mm
tabs:
13
= PF0033/63 + PX0695/63
14
= PF0033/28 + PX0695/28
Single Fused C14 Power Inlet (cold condition) and
Sheet F Shuttered Power Outlet, 2.8 or 6.3mm tabs:
19
= PF0011/63 + PX0783/63
20
= PF0011/28 + PX0783/28
Twin Fused C14 Power Inlet (cold condition) and
Sheet F Shuttered Power Outlet , 2.8 or 6.3mm
tabs:
21
= PF0033/63 + PX0783/63
22
= PF0033/28 + PX0783/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical (Twin Fuse Version only)
Combination of Other Components
None
00
= None
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 127-129.
E.g. BZH11/A0620/00
Note: For technical details of individual components please see page 106
www.elektron-bulgin.com
121
IEC CONNECTORS
