AUTOMATIC GAIN-CONTROL AMPLIFIERS
MODEL: AGC SERIES
FEATURES
•
•
•
•
Input dynamic range up to 75 dB
Output variation < 2 dB
Multioctave bandwidth
Improved NPR for spectral purity
OPTIONS
•
•
•
•
Customized center frequencies
Manual gain control
Open or closed-loop operation
Increased or decreased acquisition time
MODEL
NUMBER
AGC-7-10.7/4A
AGC-7-21.4/10A
AGC-7-30/10A
AGC-7-60/20A
AGC-7-70/30A
AGC-7-140/40A
AGC-7-160/40A
AGC-7-300/400A
CENTER
FREQUENCY
(MHz)
10.7
21.4
30
60
70
140
160
300
3 dB
BANDWIDTH
(MHz)
4
10
10
20
30
40
40
400
DYNAMIC
RANGE
(dBm)
-70
-70
-70
-70
-70
-70
-70
-65
to
to
to
to
to
to
to
to
0
0
0
0
0
0
0
0
OUTPUT POWER
VARIATION
(±dB)
0.5
0.5
0.5
0.5
1
1
1
1.5
OUTPUT
POWER
(dBm)
10
10
10
10
5
5
5
3
ADDITIONAL SPECIFICATIONS
The above models are available in ‘A’ housing.
Custom housing and electrical specifications are also available. Contact factory for details.
Output power and output power variation is measured at center frequency and 25°C.
Additional output power variation of ±0.5 dB will occur over operating temperature of -40 to +85°C.
Input/output impedance is 50
Ω.
Input VSWR is < 1.5:1 typical.
Output VSWR is < 2.0:1 typical.
Noise figure is < 6 dB at center frequency and 25°C.
Acquisition time is < 500 µs typically at -30 dBm.
Power: ±12 VDC at 300 mA typical for models up to 160 MHz and 350 mA typical for 300 MHz model.
ORDER OPTIONS
For ±15 VDC, add suffix “C”.
All units are available in phase and gain tracking sets up to three channels to within ±5° and ±1 dB at 25°C.
Typical part number: AGC-7-160/40AC (for ‘A’ housing at ±15 VDC).
NOTE: FOR MODIFICATION OF OUR STANDARD MODELS, PLEASE CONSULT FACTORY.
100 Davids Drive, Hauppauge, NY 11788 • TEL: (631) 439-9220 • FAX: (631) 436-7430 •
www.miteq.com
C-17B/25 08-14-07
AGC SERIES TYPICAL TEST DATA
TYPICAL MONITOR VS. GAIN
(OUTPUT POWER 3 dBm NOMINAL)

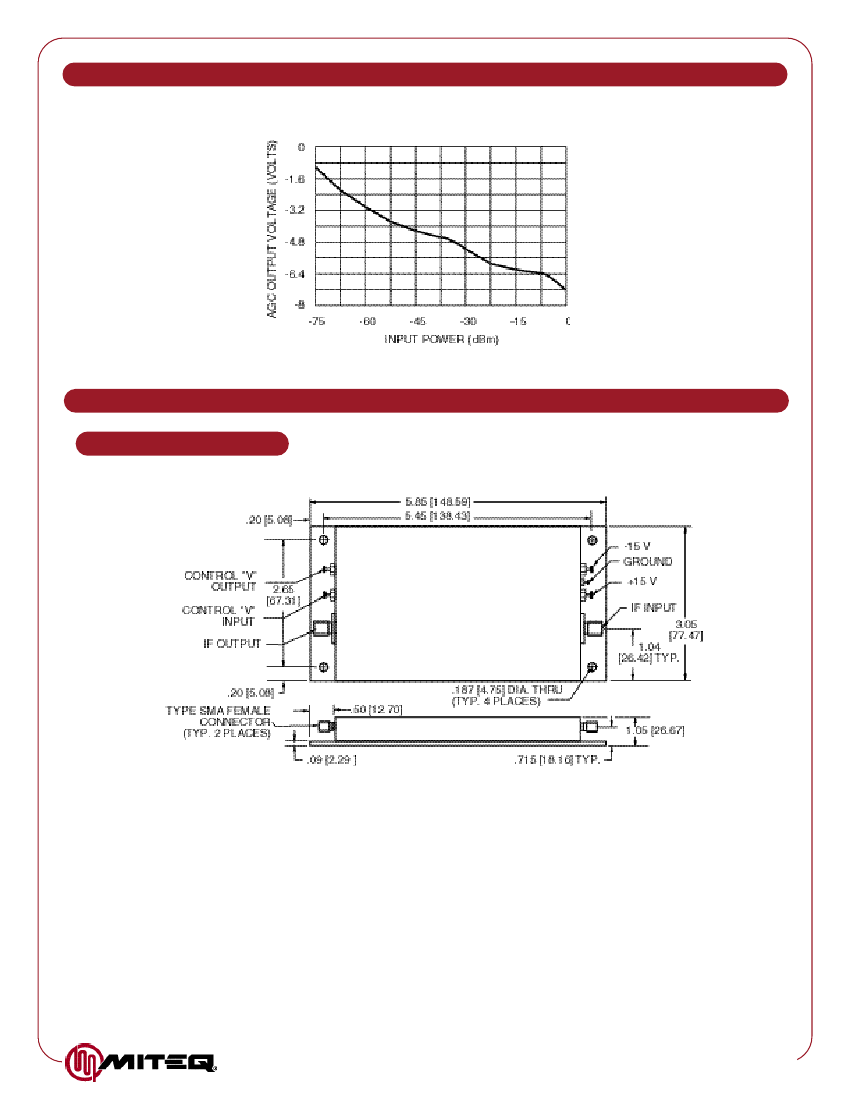

AGC SERIES OUTLINE DRAWING
OUTLINE A
NOTE: DIMENSIONS SHOWN IN BRACKETS [ ] ARE IN MILLIMETERS.
100 Davids Drive, Hauppauge, NY 11788 • TEL: (631) 439-9220 • FAX: (631) 436-7430 •
www.miteq.com
C-17B/26 08-14-07
