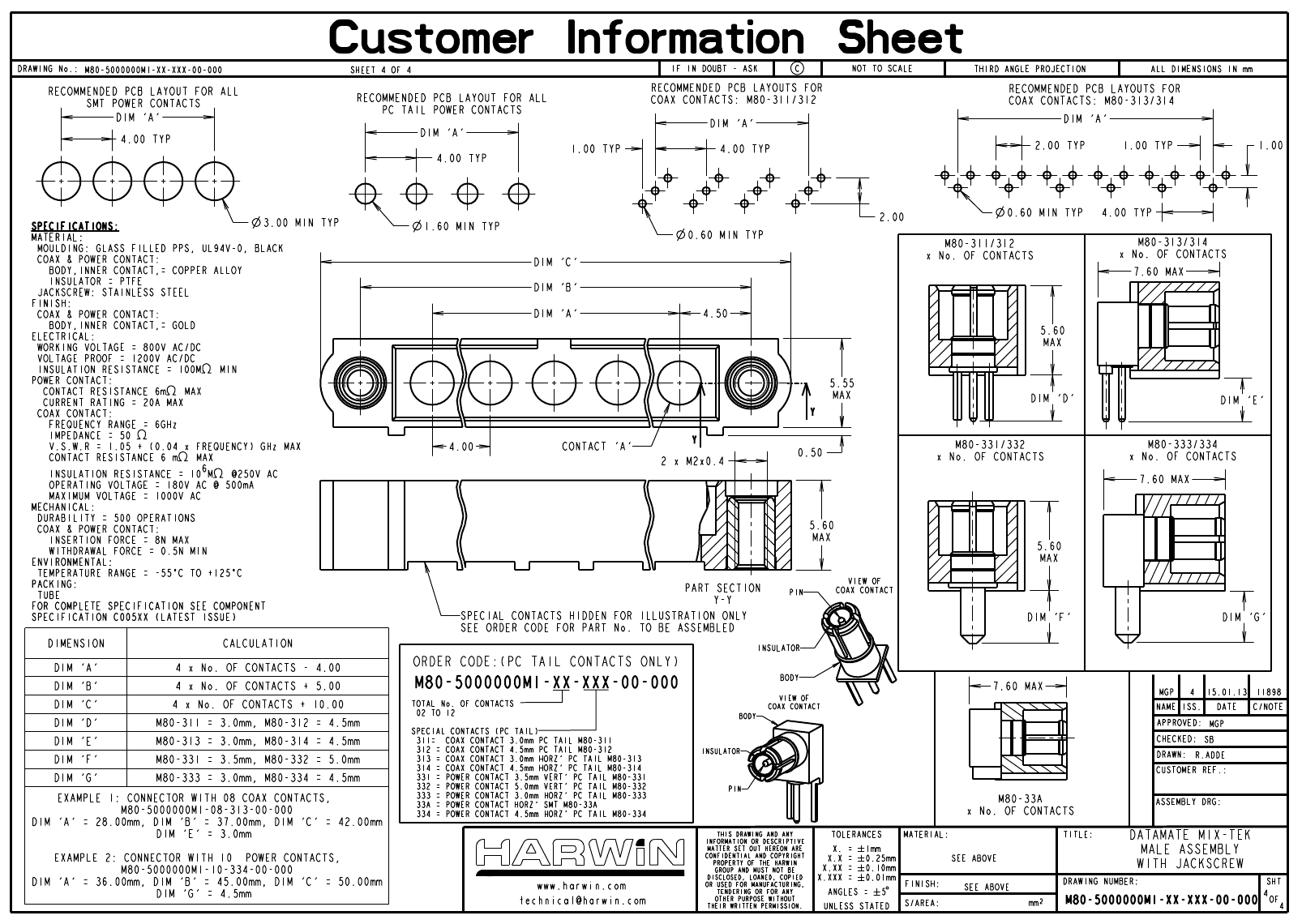

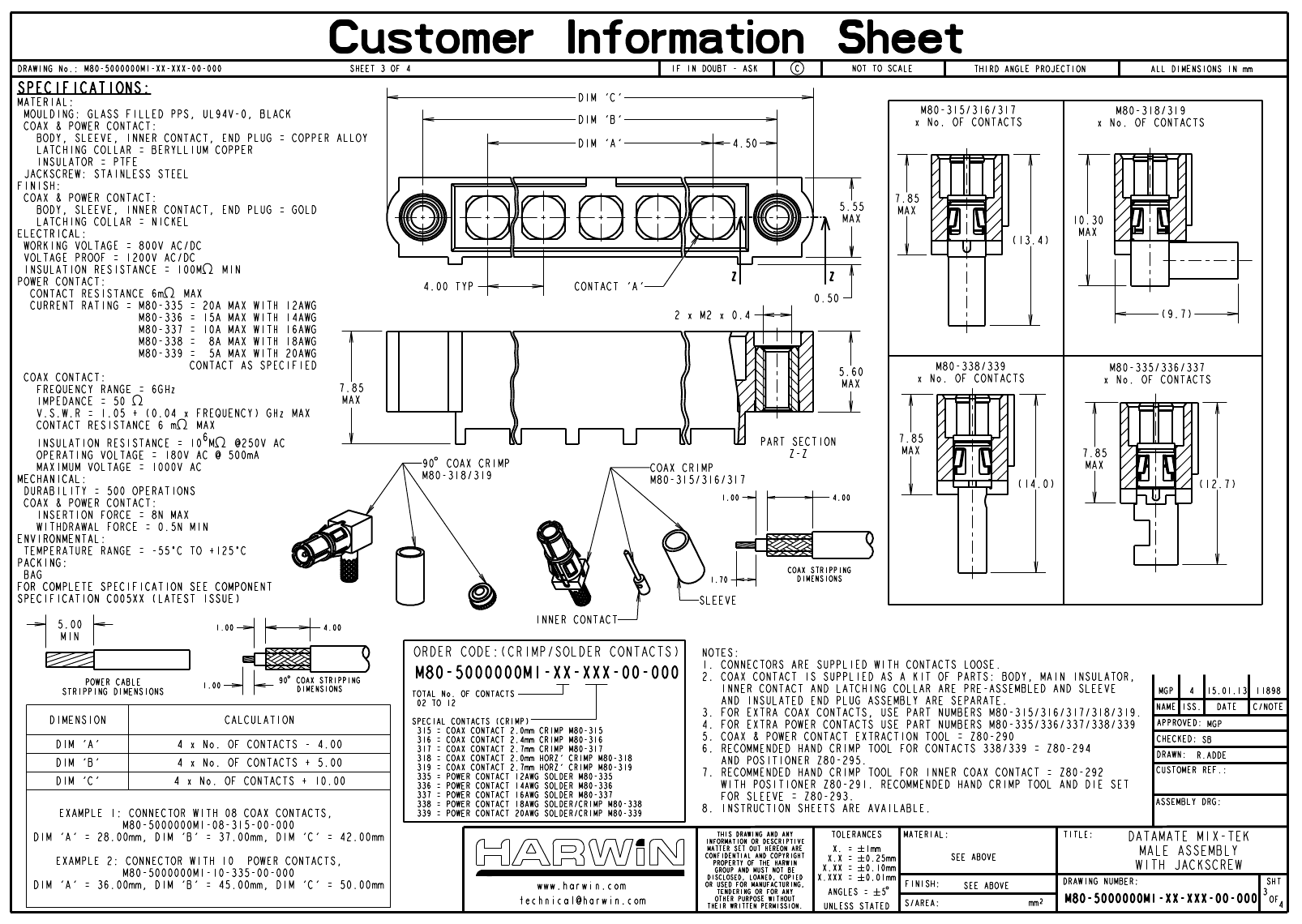

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, M2, Black Insulator, Receptacle,
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.238 inch |
| subject depth | 0.22 inch |
| body length | 1.496 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S0P7 |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | Gold (Au) |
| Contact point gender | MALE |
| Contact material | BRASS |
| Contact resistance | 6 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation option 1 | M2 |
| Installation option 2 | JACKSCREW |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.138 inch |
| Terminal pitch | 4 mm |
| Termination type | SOLDER |
| Total number of contacts | 7 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .5004 N |
| Base Number Matches | 1 |
| M80-5000000M1-07-331-00-000 | M80-5000000M1-08-33A-00-000 | M80-5000000M1-10-333-00-000 | M80-5000000M1-03-333-00-000 | M80-5000000M1-07-333-00-000 | M80-5000000M1-08-335-00-000 | M80-5000000M1-09-33A-00-000 | |
|---|---|---|---|---|---|---|---|
| Description | Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, M2, Black Insulator, Receptacle, | Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal | Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, M2, Black Insulator, Receptacle, | Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, M2, Black Insulator, Receptacle, | Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, M2, Black Insulator, Receptacle, | Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, M2, Black Insulator, Receptacle | Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact completed and terminated | Gold (Au) | GOLD | Gold (Au) | Gold (Au) | Gold (Au) | Gold (Au) | GOLD |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | CABLE | BOARD |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Termination type | SOLDER | SURFACE MOUNT | SOLDER | SOLDER | SOLDER | SOLDER | SURFACE MOUNT |
| Total number of contacts | 7 | 8 | 10 | 3 | 7 | 8 | 9 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Is it lead-free? | Lead free | - | Lead free | Lead free | Lead free | Lead free | - |
| Is it Rohs certified? | conform to | - | conform to | conform to | conform to | conform to | - |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | - |
| Other features | ROHS COMPLIANT | - | PANEL MOUNTABLE | ROHS COMPLIANT | ROHS COMPLIANT | PANEL MOUNTABLE | - |
| body width | 0.238 inch | - | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch | - |
| body length | 1.496 inch | - | 1.969 inch | 0.866 inch | 1.496 inch | 1.654 inch | - |
| Body/casing type | RECEPTACLE | - | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | - |
| Contact arrangement | S0P7 | - | S0P10 | S0P3 | S0P7 | S0P8 | - |
| Contact material | BRASS | - | BRASS | BRASS | BRASS | COPPER ALLOY | - |
| Contact resistance | 6 mΩ | - | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | - |
| Contact style | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | - |
| Durability | 500 Cycles | - | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | - |
| maximum insertion force | 4.8928 N | - | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N | - |
| Insulation resistance | 100000000 Ω | - | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | - |
| Insulator color | BLACK | - | BLACK | BLACK | BLACK | BLACK | - |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | - | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | - |
| Installation option 1 | M2 | - | M2 | M2 | M2 | M2 | - |
| Installation option 2 | JACKSCREW | - | JACKSCREW | JACKSCREW | JACKSCREW | JACKSCREW | - |
| Number of connectors | ONE | - | ONE | ONE | ONE | ONE | - |
| Maximum operating temperature | 125 °C | - | 125 °C | 125 °C | 125 °C | 125 °C | - |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C | -55 °C | -55 °C | - |
| Guideline | UL | - | UL | UL | UL | UL | - |
| reliability | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - |
| Terminal length | 0.138 inch | - | 0.118 inch | 0.118 inch | 0.118 inch | - | - |
| Terminal pitch | 4 mm | 4 mm | 4 mm | 4 mm | 4 mm | - | 4 mm |
| Evacuation force-minimum value | .5004 N | - | .5004 N | .5004 N | .5004 N | .5004 N | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - |
