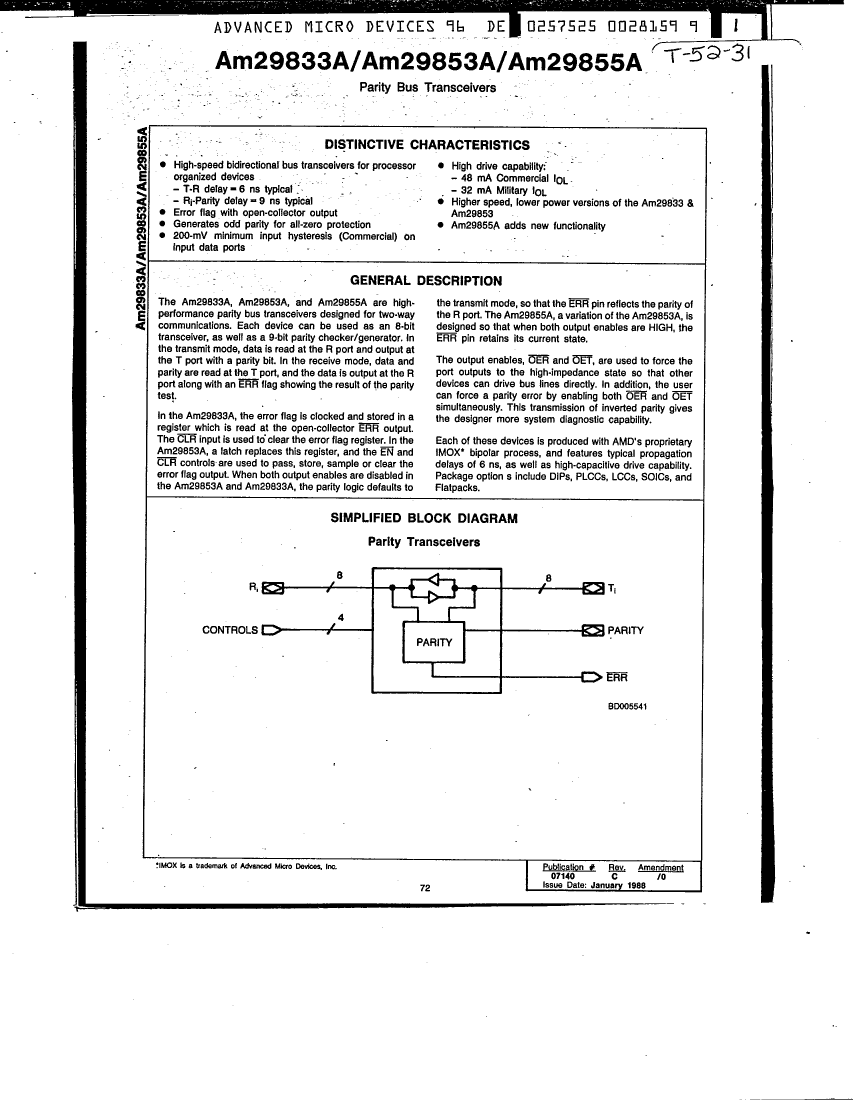

Bus Transceiver, S Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, SLIM, CERAMIC, DIP-24

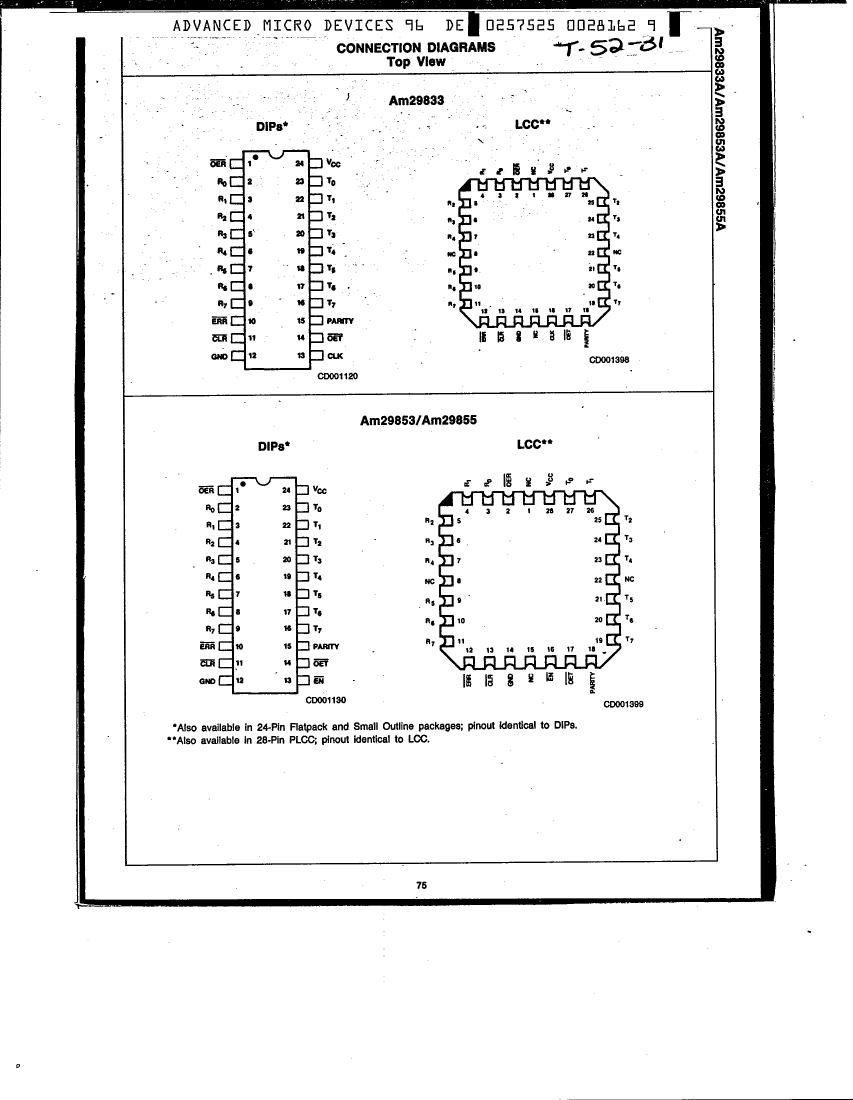

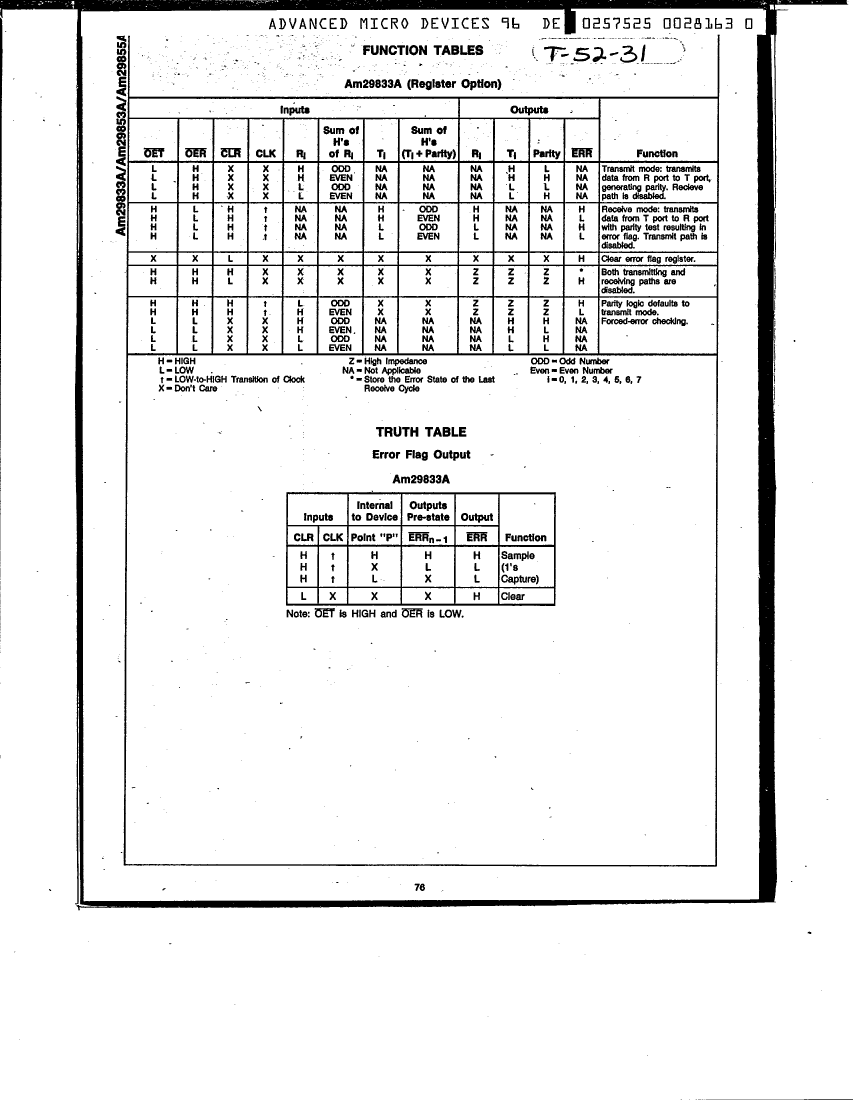

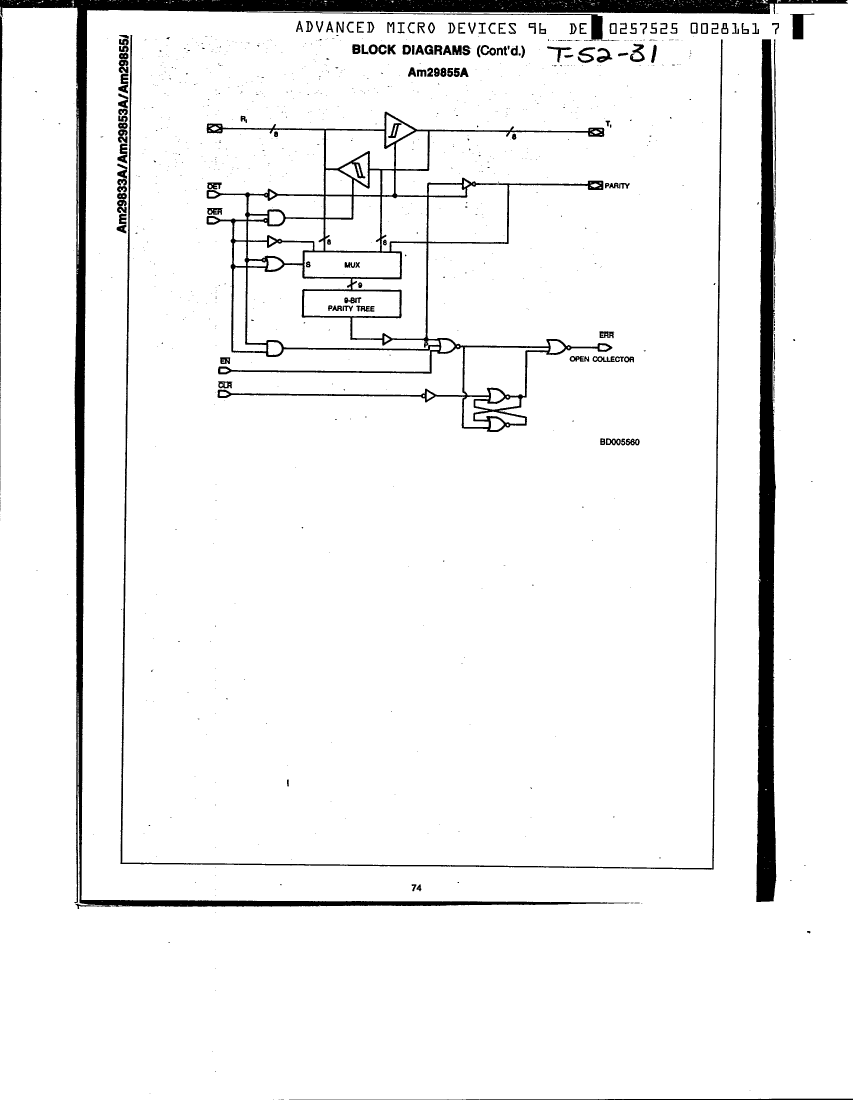

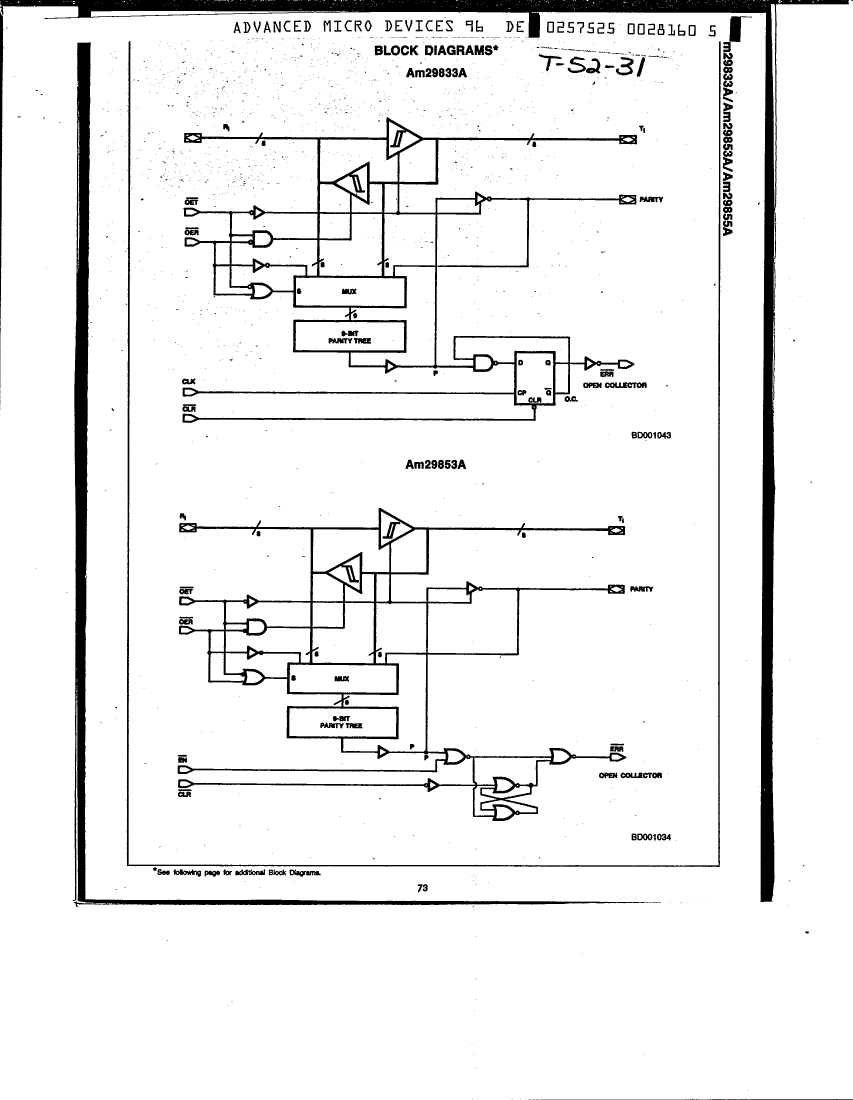

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP24,.3 |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| Other features | INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; PARITY GENERATION A TO B; ERROR DETECTION B TO A |
| Control type | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL |
| series | S |
| JESD-30 code | R-GDIP-T24 |
| JESD-609 code | e0 |
| length | 31.9405 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS TRANSCEIVER |
| MaximumI(ol) | 0.048 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 180 mA |
| Prop。Delay @ Nom-Sup | 16 ns |
| propagation delay (tpd) | 14 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| translate | N/A |
| Trigger type | NEGATIVE EDGE |
| width | 7.62 mm |
| Base Number Matches | 1 |
