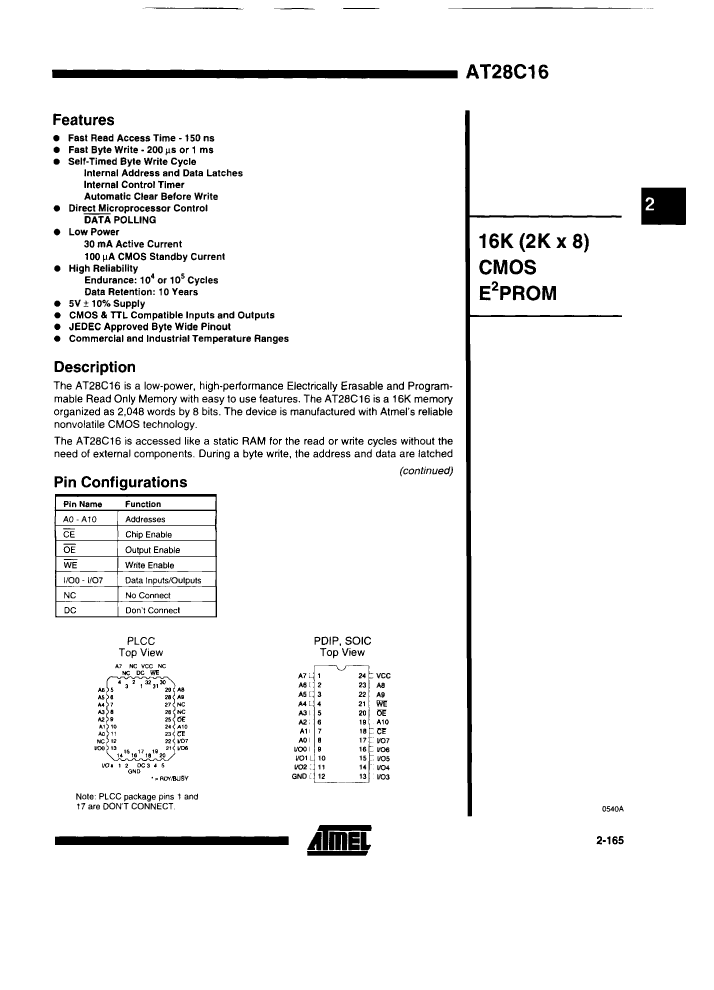

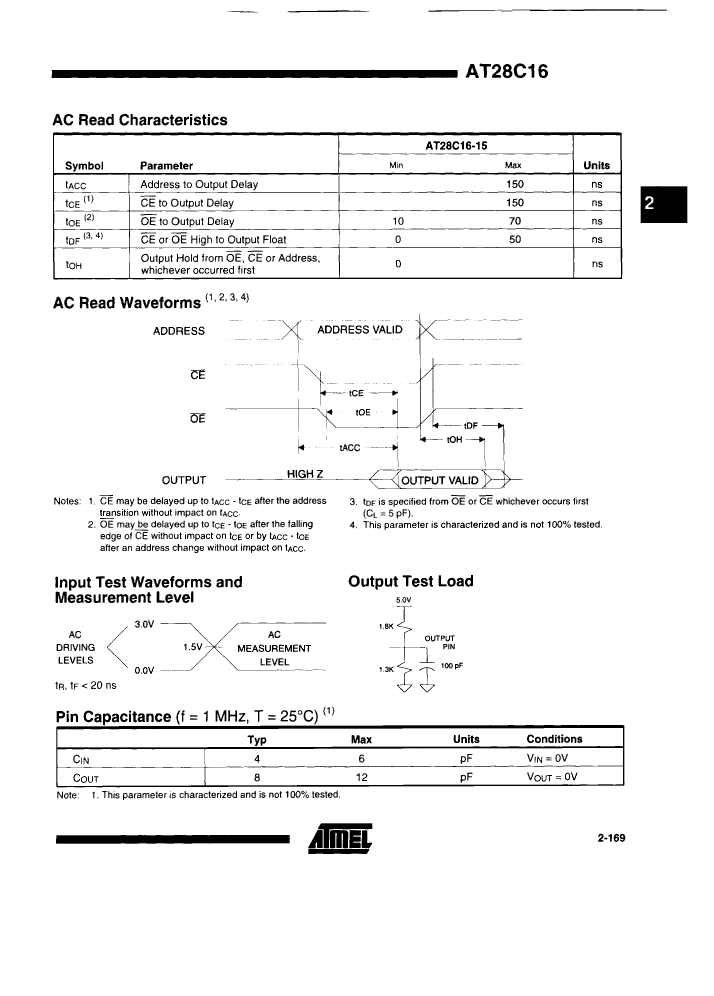

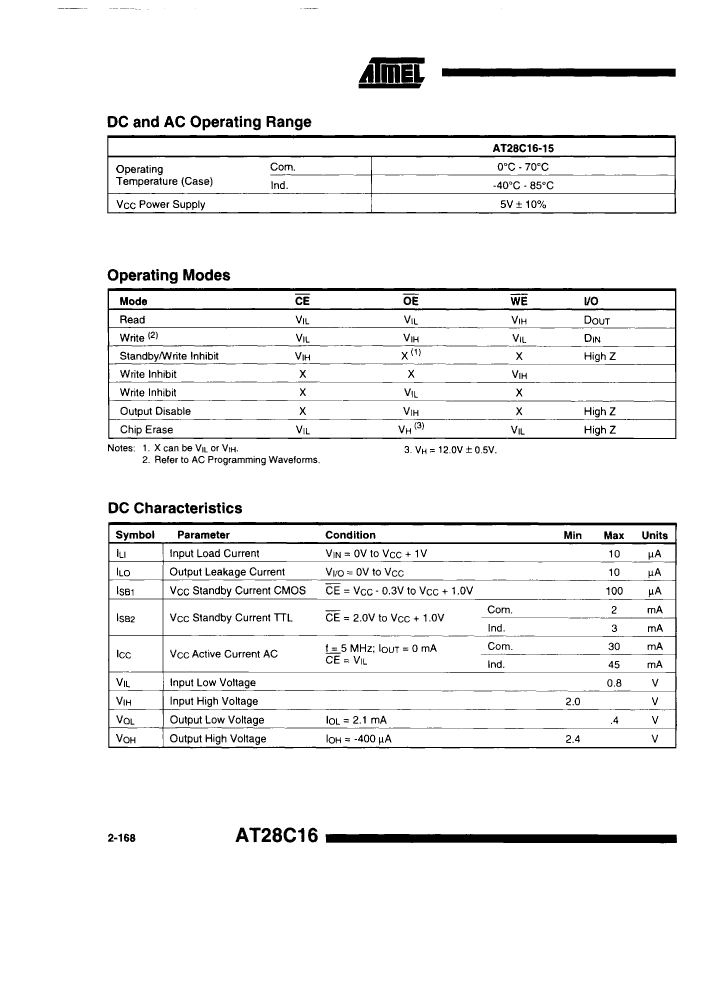

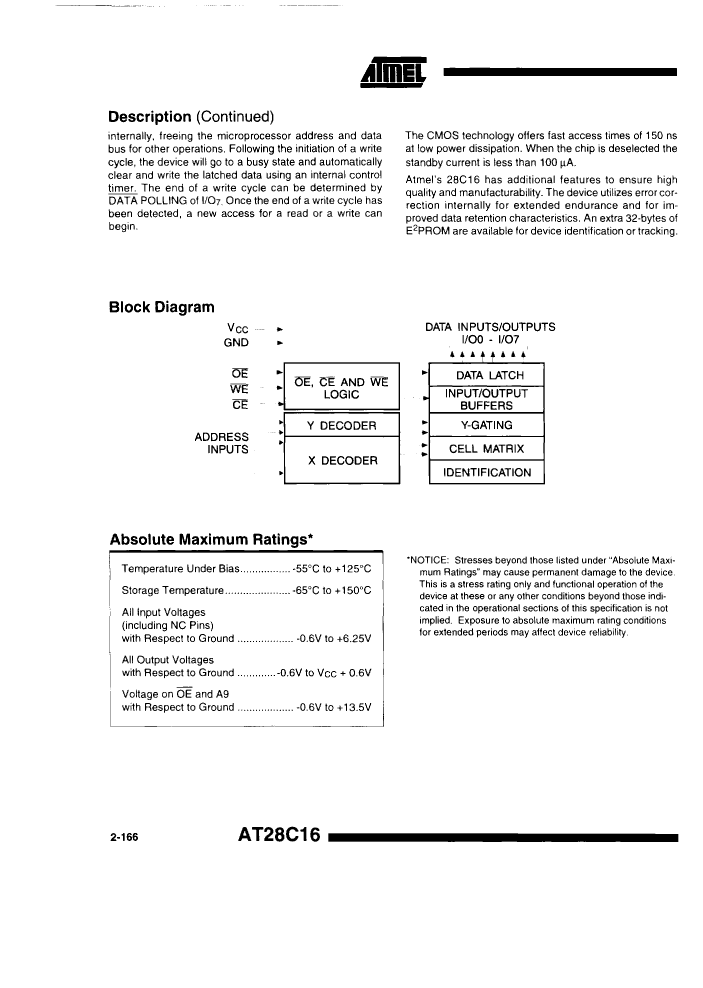

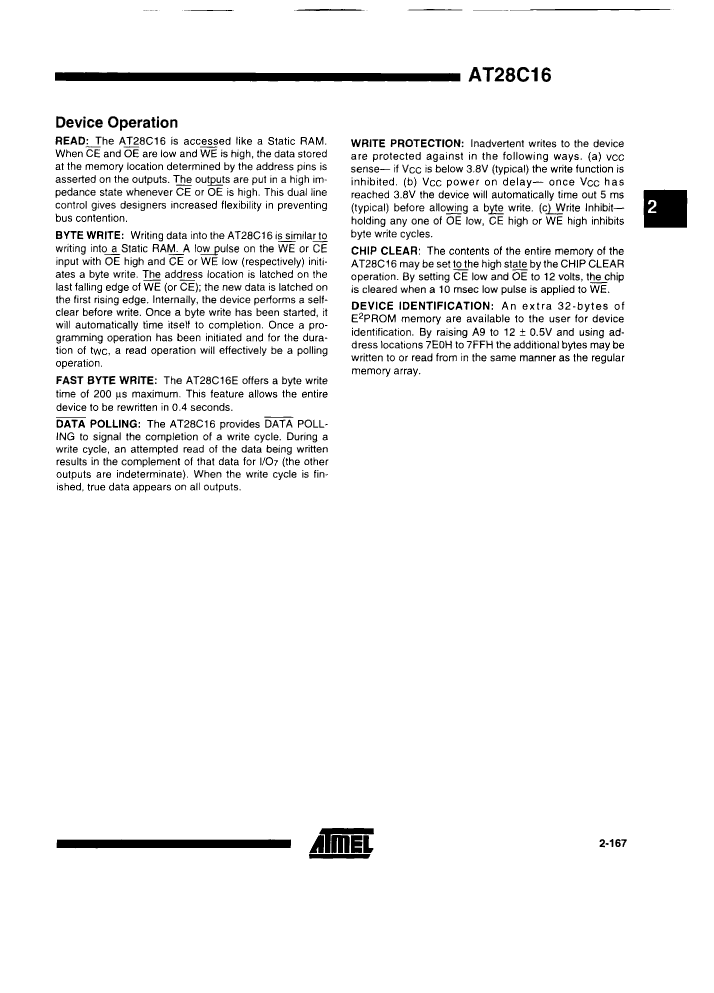

AT28C16-15JIT/R datasheet, PDF

Datasheet> All Categories > storage> storage> AT28C16-15JIT/R

AT28C16-15JIT/R: DescriptionEEPROM, 2KX8, 150ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32; Categorystorage storage; File Size205KB，9 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT28C16-15JIT/R Overview

EEPROM, 2KX8, 150ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32

AT28C16-15JIT/R Parametric

Parameter Name	Attribute value
Parts packaging code	QFJ
package instruction	QCCJ,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	150 ns
Other features	AUTOMATIC WRITE
JESD-30 code	R-PQCC-J32
length	13.97 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	32
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	3.55 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

Preview

Download Datasheet

View All

AT28C16-15JIT/R Related Products

	AT28C16-15JIT/R	AT28C16E-15SCT/R	AT28C16-15JCT/R	AT28C16-15SIT/R	AT28C16E-15JIT/R	AT28C16E-15SIT/R	AT28C16E-15JCT/R	AT28C16-15SCT/R
Description	EEPROM, 2KX8, 150ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32	EEPROM, 2KX8, 150ns, Parallel, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	EEPROM, 2KX8, 150ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32	EEPROM, 2KX8, 150ns, Parallel, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	EEPROM, 2KX8, 150ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32	EEPROM, 2KX8, 150ns, Parallel, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	EEPROM, 2KX8, 150ns, Parallel, CMOS, PQCC32, PLASTIC, LCC-32	EEPROM, 2KX8, 150ns, Parallel, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24
Parts packaging code	QFJ	SOIC	QFJ	SOIC	QFJ	SOIC	QFJ	SOIC
package instruction	QCCJ,	SOP,	QCCJ,	SOP,	PLASTIC, LCC-32	SOP,	QCCJ,	SOP,
Contacts	32	24	32	24	32	24	32	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns
Other features	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE
JESD-30 code	R-PQCC-J32	R-PDSO-G24	R-PQCC-J32	R-PDSO-G24	R-PQCC-J32	R-PDSO-G24	R-PQCC-J32	R-PDSO-G24
length	13.97 mm	15.4 mm	13.97 mm	15.4 mm	13.97 mm	15.4 mm	13.97 mm	15.4 mm
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	32	24	32	24	32	24	32	24
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	85 °C	85 °C	70 °C	70 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	SOP	QCCJ	SOP	QCCJ	SOP	QCCJ	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.55 mm	2.65 mm	3.55 mm	2.65 mm	3.55 mm	2.65 mm	3.55 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	GULL WING	J BEND	GULL WING	J BEND	GULL WING	J BEND	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL
width	11.43 mm	7.5 mm	11.43 mm	7.5 mm	11.43 mm	7.5 mm	11.43 mm	7.5 mm
Base Number Matches	1	1	1	1	1	-	-	-
