AMPAL20XRP8-45/BKA datasheet, PDF

AMPAL20XRP8-45/BKA: DescriptionOT PLD, 45ns, PAL-Type, TTL, CQFP24, CERAMIC, FP-24; CategoryProgrammable logic devices Programmable logic; File Size744KB，24 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

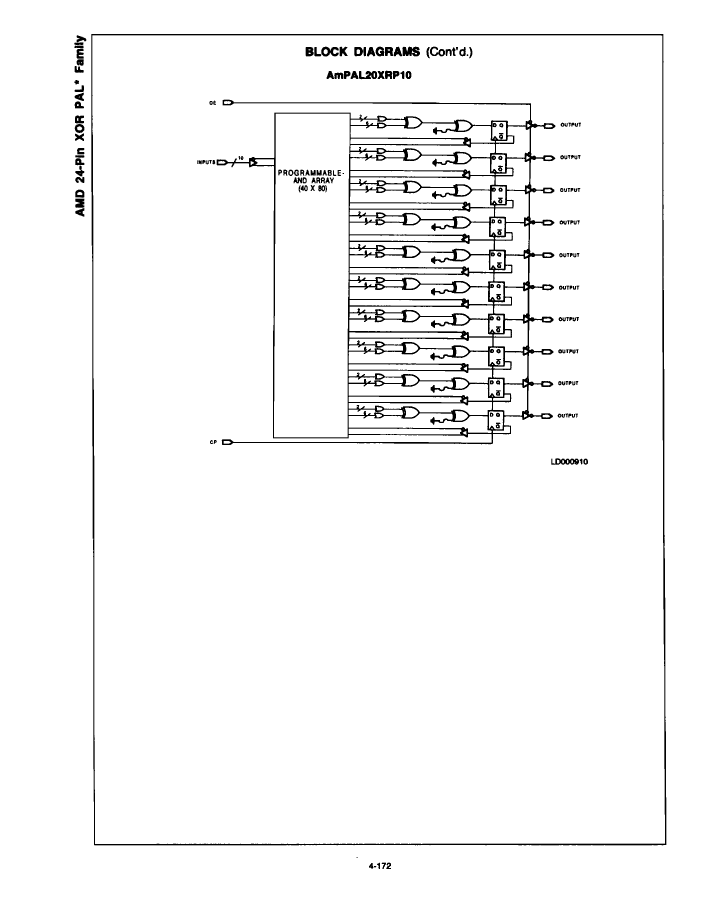

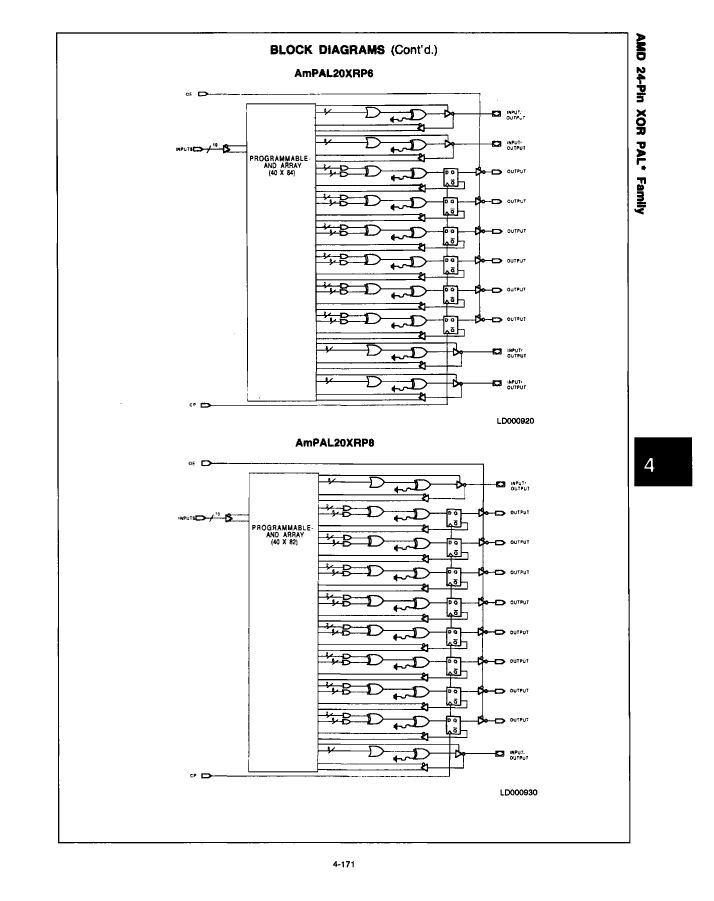

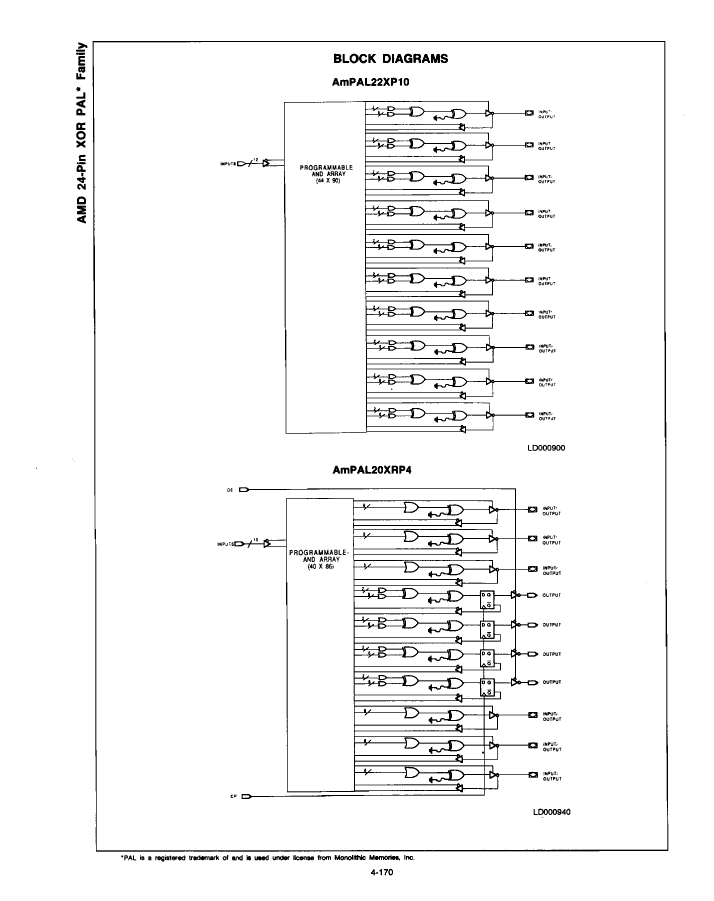

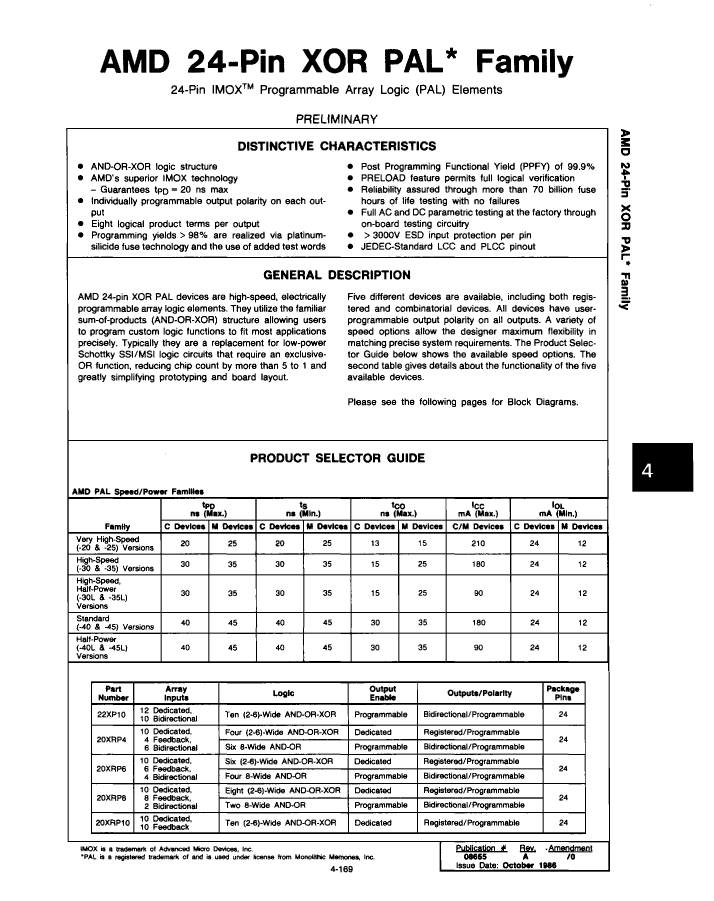

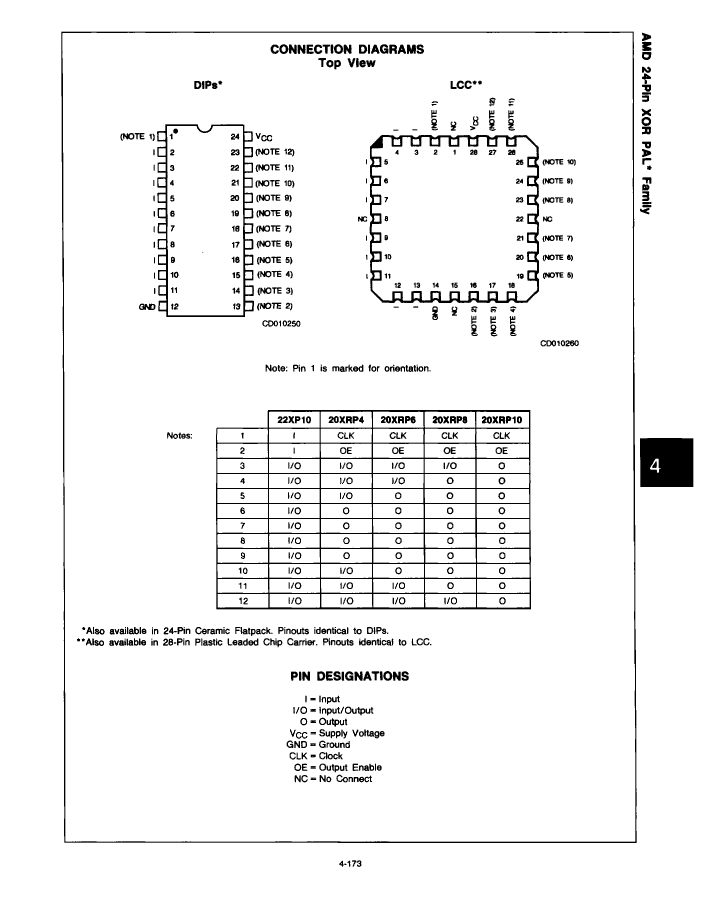

AMPAL20XRP8-45/BKA Overview

OT PLD, 45ns, PAL-Type, TTL, CQFP24, CERAMIC, FP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	QFF, FL24,.4
Contacts	24
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Architecture	PAL-TYPE
maximum clock frequency	12.5 MHz
JESD-30 code	R-CQFP-F24
JESD-609 code	e0
Dedicated input times	10
Number of I/O lines	2
Number of entries	20
Output times	10
Number of product terms	82
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 2 I/O
Output function	MIXED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	OT PLD
propagation delay	45 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1
