RDC-634A-L3R datasheet, PDF - EEWORLD Datasheet

RDC-634A-L3R: DescriptionSYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27; CategoryAnalog mixed-signal IC converter; File Size155KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

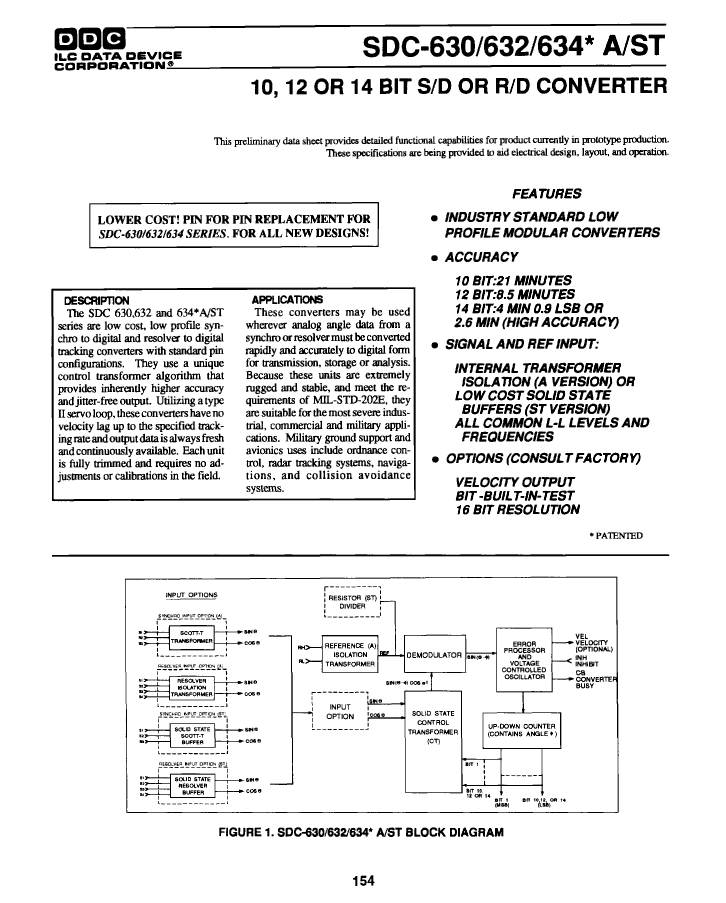

RDC-634A-L3R Overview

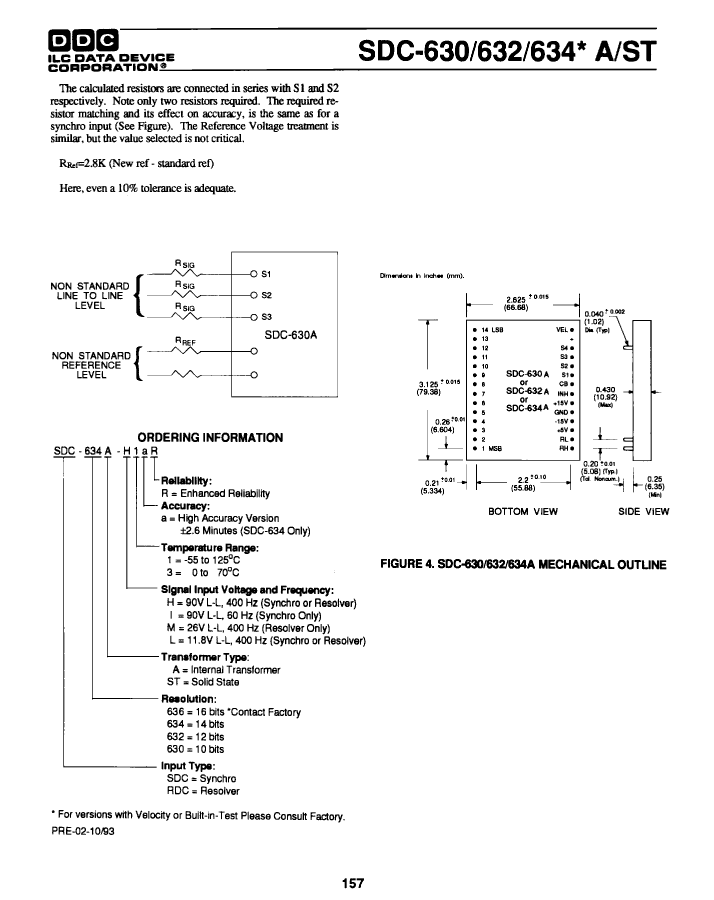

SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27

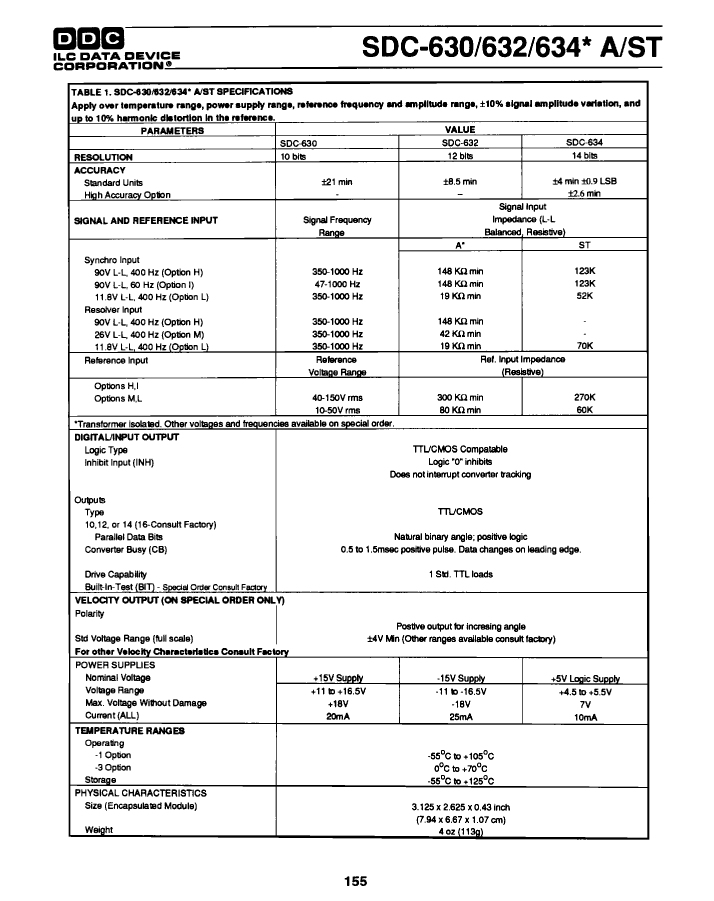

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	27
Reach Compliance Code	unknown
Maximum analog input voltage	11.8 V
Maximum angular accuracy	4 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XDIP-P27
length	79.375 mm
Maximum negative supply voltage	-16.5 V
Minimum negative supply voltage	-11 V
Nominal negative supply voltage	-15 V
Number of digits	14
Number of functions	1
Number of terminals	27
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	10.92 mm

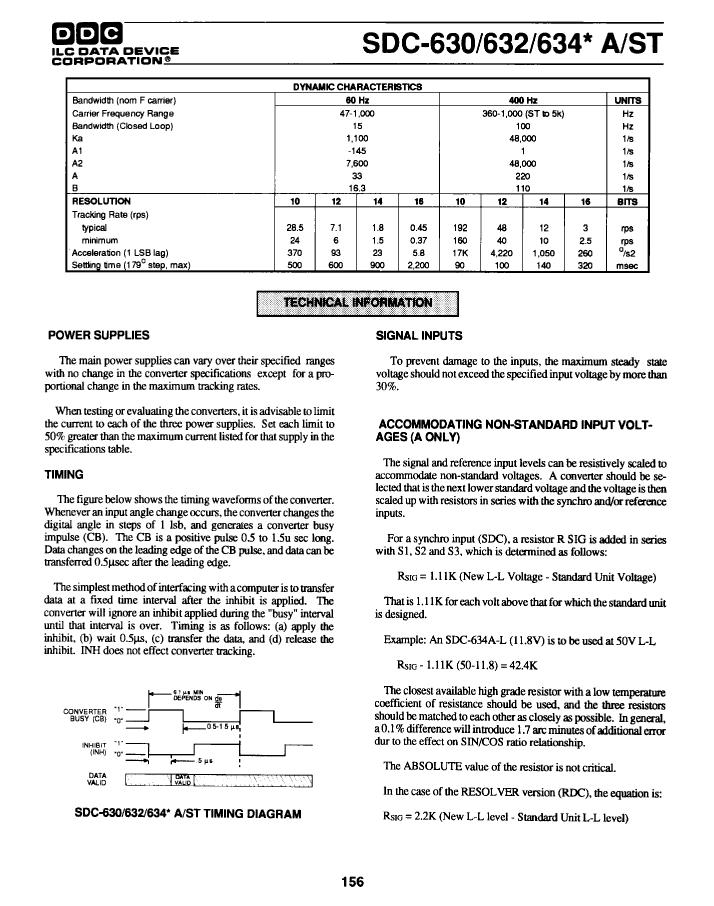

Maximum stabilization time	140 µs
Signal/output frequency	1000 Hz
Maximum slew rate	25 mA
Maximum supply voltage	16.5 V
Minimum supply voltage	11 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
Maximum tracking rate	10 rps
width	55.88 mm
Base Number Matches	1
