UPD28C64C-25: Description8KX8 EEPROM 5V, 250ns, PDIP28, PLASTIC, DIP-28; Categorystorage storage; File Size407KB，10 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD28C64C-25 Overview

8KX8 EEPROM 5V, 250ns, PDIP28, PLASTIC, DIP-28

UPD28C64C-25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	compliant
Maximum access time	250 ns
command user interface	NO
Data polling	YES
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
page size	32 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

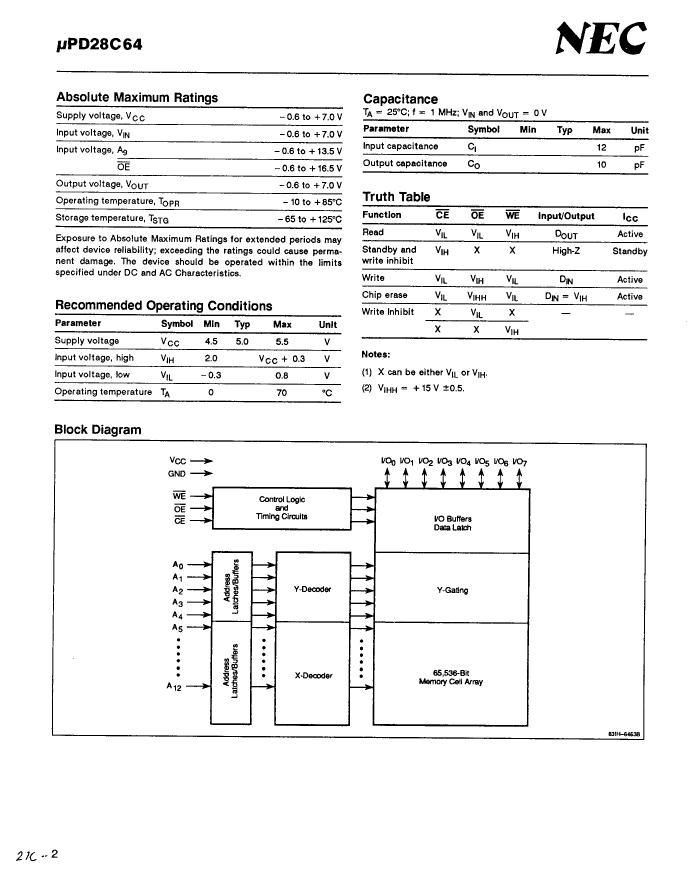

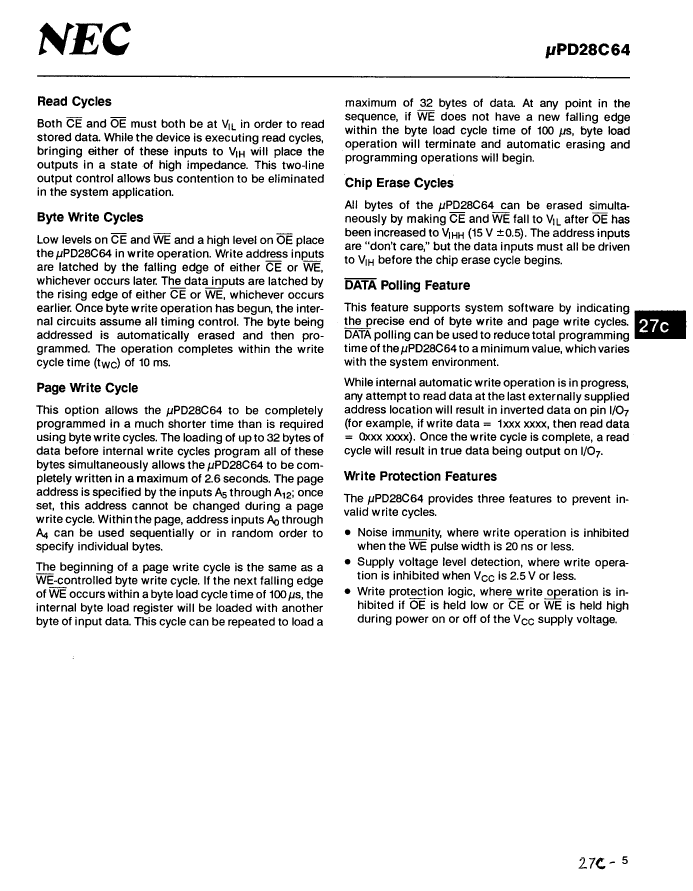

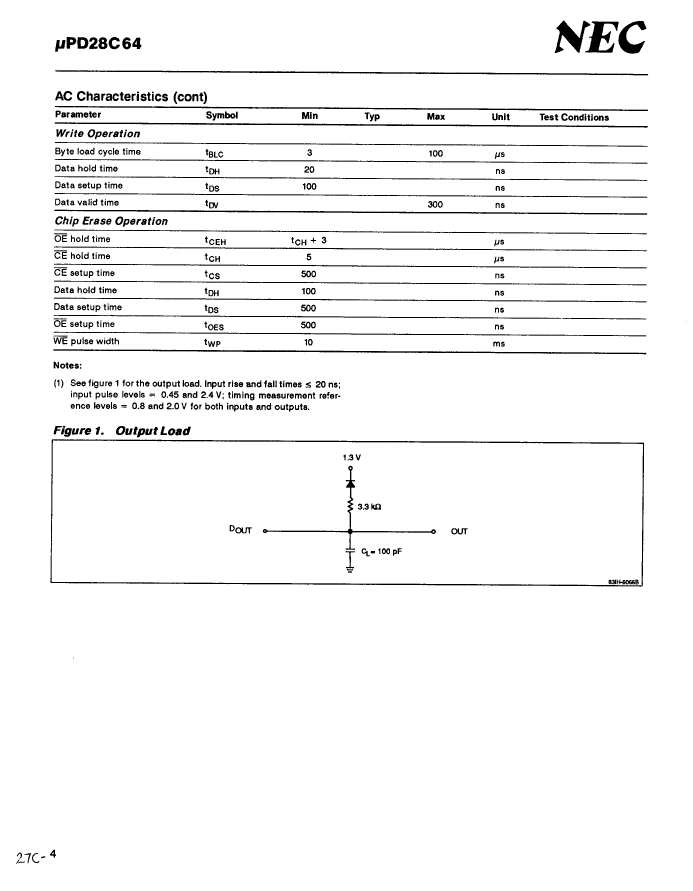

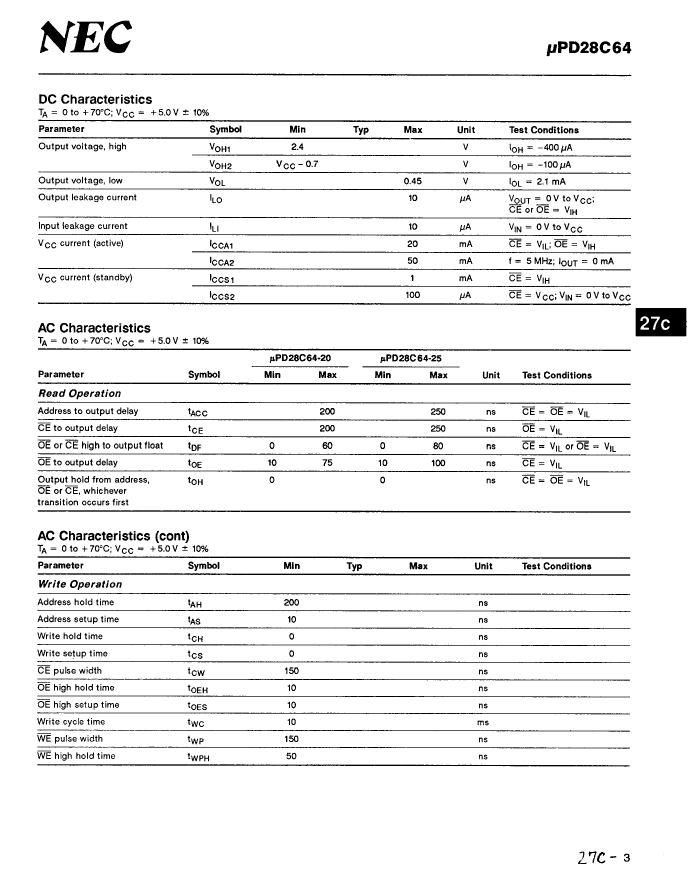

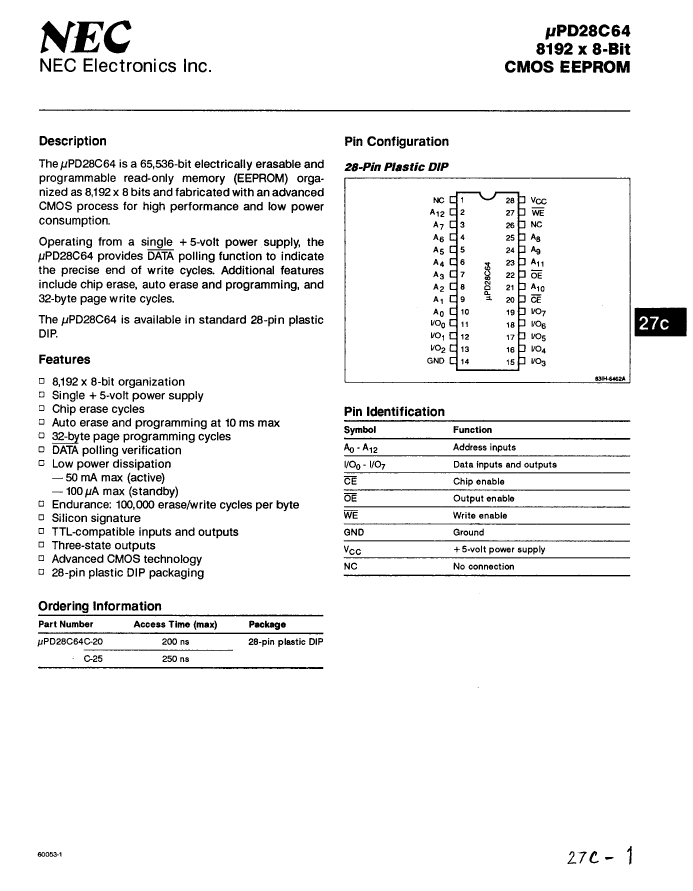

Preview

Download Datasheet

View All

UPD28C64C-25 Related Products

	UPD28C64C-25	UPD28C64C-20
Description	8KX8 EEPROM 5V, 250ns, PDIP28, PLASTIC, DIP-28	IC,EEPROM,8KX8,CMOS,DIP,28PIN,PLASTIC
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	DIP, DIP28,.6	DIP, DIP28,.6
Contacts	28	28
Reach Compliance Code	compliant	compliant
Maximum access time	250 ns	200 ns
command user interface	NO	NO
Data polling	YES	YES
JESD-30 code	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0
memory density	65536 bit	65536 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Number of functions	1	1
Number of terminals	28	28
word count	8192 words	8192 words
character code	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	8KX8	8KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
page size	32 words	32 words
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.0001 A	0.0001 A
Maximum slew rate	0.05 mA	0.05 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
switch bit	NO	NO
Maximum write cycle time (tWC)	10 ms	10 ms
Base Number Matches	1	1
