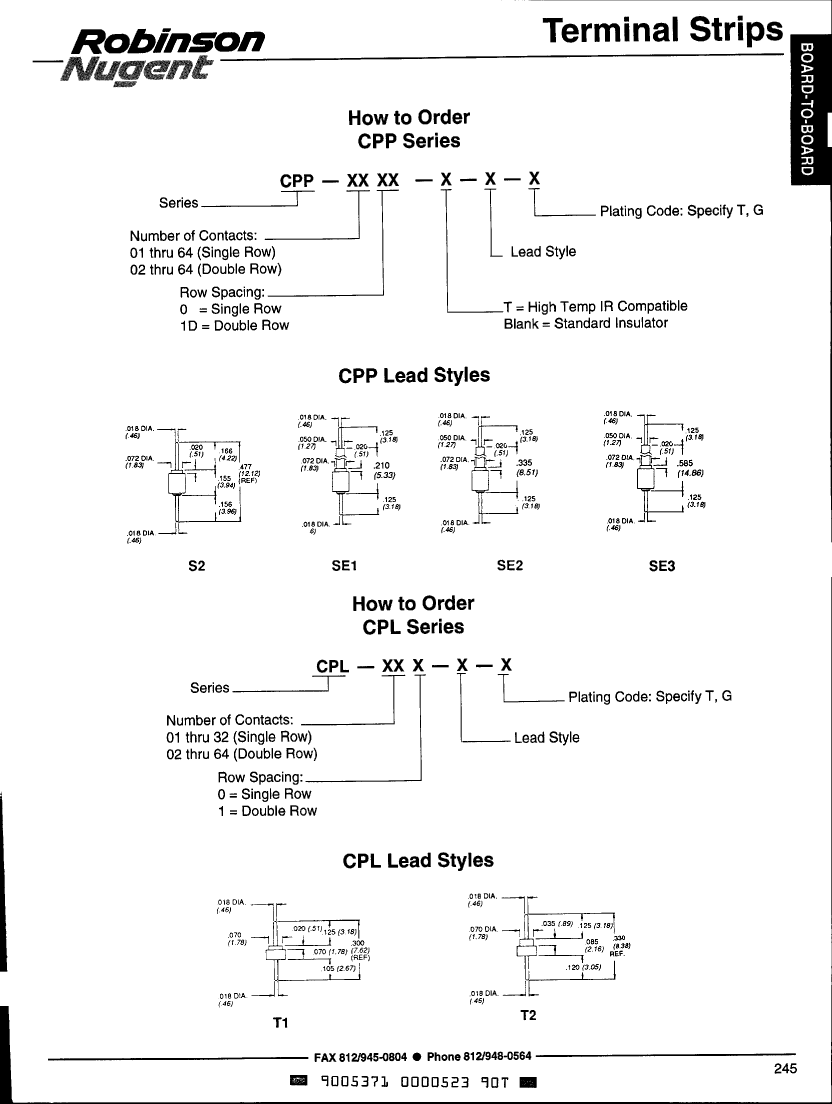

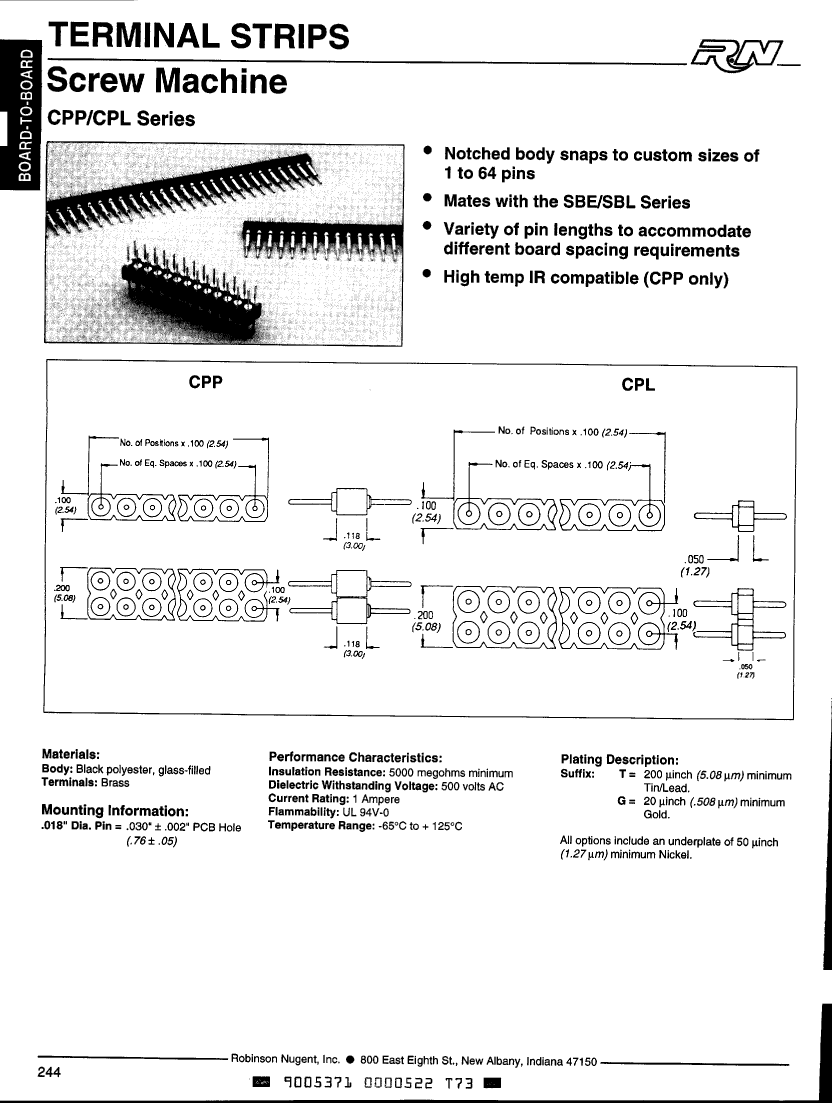

CPP-250-T-SE3-G datasheet, PDF

CPP-250-T-SE3-G: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,25 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size165KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

CPP-250-T-SE3-G Overview

HEADER CONNECTOR,PCB MNT,RECEPT,25 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Objectid	1153269444
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	2
subject depth	0.118 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
Manufacturer's serial number	CPP
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	25
