SIL740-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SIL740-100

SIL740-100: DescriptionGeneral Purpose Inductor, 10uH, 30%, 1 Element, SMD, 2828, ROHS COMPLIANT; CategoryPassive components inductor; File Size336KB，1 Pages; ManufacturerDelta Electronics; Environmental Compliance

Download Datasheet Parametric View All

SIL740-100 Overview

General Purpose Inductor, 10uH, 30%, 1 Element, SMD, 2828, ROHS COMPLIANT

SIL740-100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	2828
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2828
structure	Chip
DC Resistance	0.038 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SIL740
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Package height	4 mm
Package length	7 mm
Package form	SMT
Package width	7 mm
Maximum rated current	2 A
series	SIL740
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

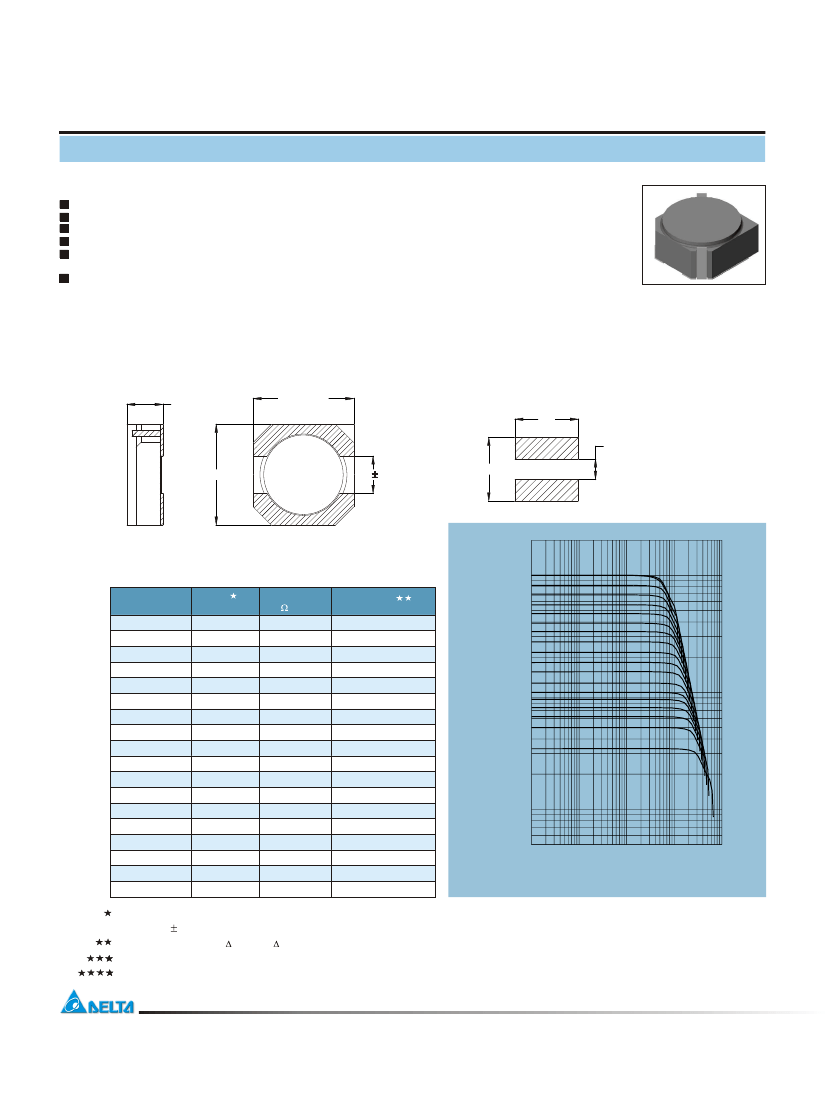

SMT Power Inductor

SIL740 Type

Features

Small size (6.6mm*6.6mm), low profile (4.0mm max. height) SMD type.

Magnetically shielded, suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

custom inductors are available to meet your exact requirements.

Mechanical Dimension:

Unit: mm

4.0 Max.

7.0 Max.

Recommended Pad

7.3

1.5

7.0 Max.

2.0 0.1

7.3

Electrical Characteristics:

PART NO.

SIL740 - 3R3

SIL740 - 5R0

SIL740 - 6R2

SIL740 - 7R4

SIL740 - 8R6

SIL740 - 100

SIL740 - 120

SIL740 - 150

SIL740 - 180

SIL740 - 220

SIL740 - 270

SIL740 - 330

SIL740 - 390

SIL740 - 470

SIL740 - 560

SIL740 - 680

SIL740 - 820

SIL740 - 101

100.00

DCR

( ) MAX

0.020

0.024

0.027

0.031

0.034

0.038

0.053

0.057

0.092

0.096

0.109

0.124

0.138

0.155

0.202

0.234

0.324

0.358

(uH)

3.3

5.0

6.2

7.4

8.6

100

RATED

(Adc)

3.50

2.90

2.50

2.30

2.20

2.00

1.70

1.60

1.50

1.30

1.20

1.10

1.00

0.95

0.85

0.75

0.70

0.65

INDUCTANCE (uH)

10.00

101

820

680

560

470

390

330

270

220

180

150

120

100

8R7

7R4

6R2

5R0

3R3

1.00

0.00

0.01

0.10

CURRENT (A)

1.00

10.00

Tolerance of inductance

3.3~100uH 30%

RATED

: rated current. L<35%, T<45

C at I

RATED

Operating temperature: -20

C to 105

C (including self-temperature rise)

Test condition at 25

C: 100KHz, 0.1V

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
