2KBP005M THRU 2KBP10M SERIES
3N253 THRU 3N259
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Reverse Voltage -
50 to 1000 Volts
Case Style KBPM
0.600 (15.24)
0.125 x 45
o
(3.2)
0.560 (14.22)
Forward Current -
2.0 Amperes
FEATURES
0.460 (11.68)
0.420 (10.67)
0.500 (12.70)
0.460 (11.68)
60
(15.2)
MIN.
0.060
(1.52)
0.160 (4.1)
0.140 (3.6)
0.50
(12.7)
MIN.
0.034 (8.6)
0.028 (7.6)
DIA.
♦
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
♦
This series is UL listed under the Recognized Component
Index, file number E54214
♦
Glass passivated chip junctions
♦
Typical I
R
less than 0.1µA
♦
High case dielectric strength
♦
Ideal for printed circuit boards
♦
High temperature soldering guaranteed:
260°C/10 seconds at 5 lbs. (2.3kg) tension
0.200 (5.08)
0.180 (4.57)
0.105 (2.67)
0.085 (2.16)
MECHANICAL DATA
Case:
Molded plastic body over passivated junctions
Terminals:
Plated leads solderable per MIL-STD-750,
Method 2026
Mounting Position:
Any
Weight:
0.06 ounce, 1.7 grams
Polarity shown on front side of case: positive lead by beveled corner
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
2KBP
005M
3N253
2KBP
01M
3N254
2KBP
02M
3N255
2KBP
04M
3N256
2KBP
06M
3N257
2KBP
08M
3N258
2KBP
10M
3N259
UNITS
* Maximum repetitive peak reverse voltage
* Maximum RMS voltage
* Maximum DC blocking voltage
* Maximum average forward output rectified current
at T
A
=55°C
* Peak forward surge current single half sine-wave
superimposed on rated load (JEDEC Method) T
J
=150°C
Rating for fusing (t < 8.3ms)
* Maximum instantaneous forward voltage drop
per leg at 3.14A
* Maximum DC reverse current
at rated DC blocking voltage per leg
Typical thermal resistance per leg
(NOTE 2)
* Operating junction and storage temperature range
T
A
=25°C
T
A
=125°C
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I
2
t
V
F
I
R
C
J
R
ΘJA
R
ΘJL
T
J
, T
STG
50
35
50
100
70
100
200
140
200
400
280
400
2.0
60.0
15.0
1.1
5.0
500.0
25.0
30.0
11.0
-55 to +165
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amps
Amps
A
2
sec
Volts
µA
pF
°C/W
°C
Typical junction capacitance per leg
(NOTE 1)
NOTES:
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(2) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.47 x 0.47” (12 x 12mm) copper pads
* JEDEC registered values
4/98

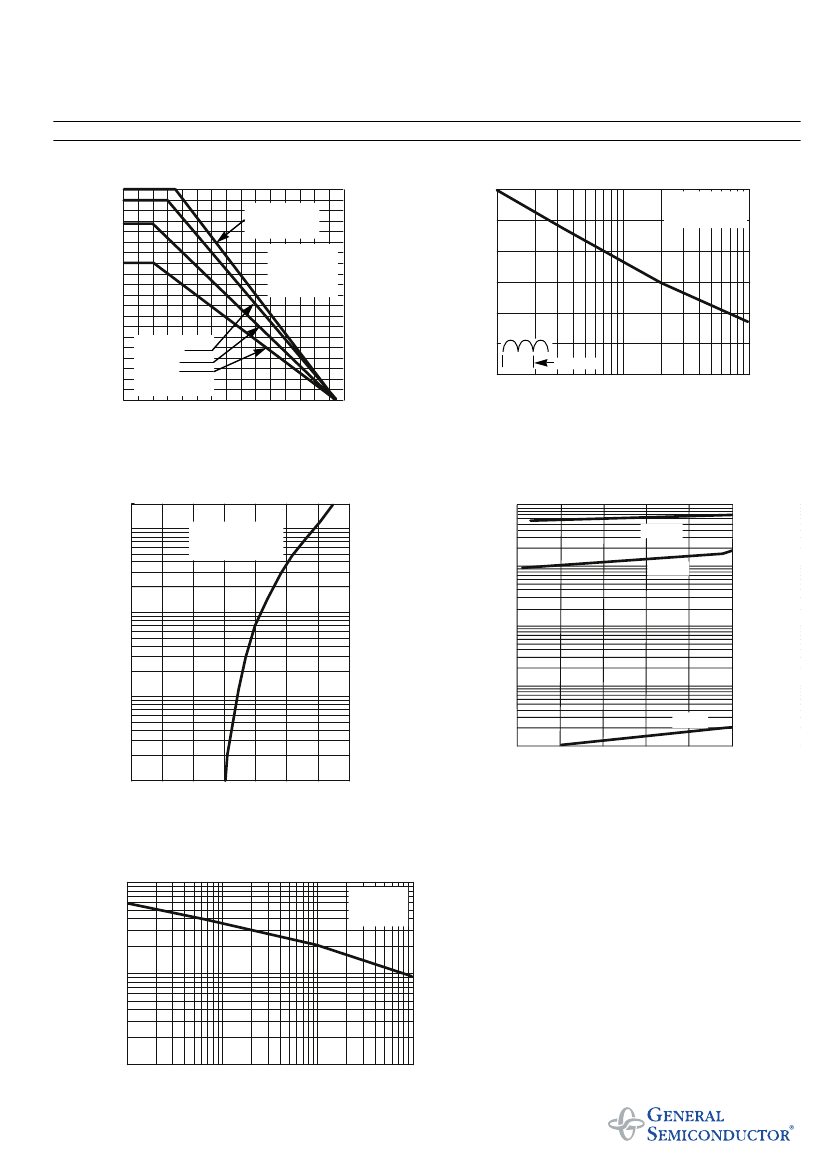

RATINGS AND CHARACTERISTICS CURVES 3N253 THRU 3N259 / 2KBP005M THRU 2KBP10M
FIG. 1 - DERATING CURVE OUTPUT
RECTIFIED CURRENT
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT PER LEG
AVERAGE FORWARD OUTPUT CURRENT,
AMPERES
PEAK FORWARD SURGE CURRENT,
AMPERES
2.0
60
50
40
30
20
10
1.0 CYCLE
T
J
=150°C
SINGLE SINE-WAVE
(JEDEC Method)
1.5
1.0
P.C.B.
MOUNTED WITH
0.47 x 0.47”
(12 x 12mm)
COPPER PADS
0.5
CAPACITIVE LOAD
Ipk/I
AV
=5.0
Ipk/I
AV
=10
Ipk/I
AV
=20
(PER LEG)
0
100
120
140
160 170
1
10
NUMBER OF CYCLES AT 60 H
Z
100
0
20
40
60
80
AMBIENT TEMPERATURE, °C
FIG. 3 - TYPICAL FORWARD CHARACTERISTICS
PER LEG
INSTANTANEOUS REVERSE CURRENT, MICROAM-
PERES
FIG. 4 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS PER LEG
20
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
100
T
J
=125°C
10
T
J
=100°C
1
1
0.1
T
J
=25°C
0.1
0.01
0
20
40
60
80
100
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
PER LEG
100
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
10
1
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
