3.0mmx1.0mm RIGHT ANGLE SMD CHIP LED
LAMP
Part Number: KPBVA-3010SURKMGKC
Hyper Red
Mega Green
Features
3.0mmx1.0mm right angle SMT LED, 2.0mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Various colors and lens types available.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.
The Mega Green source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.

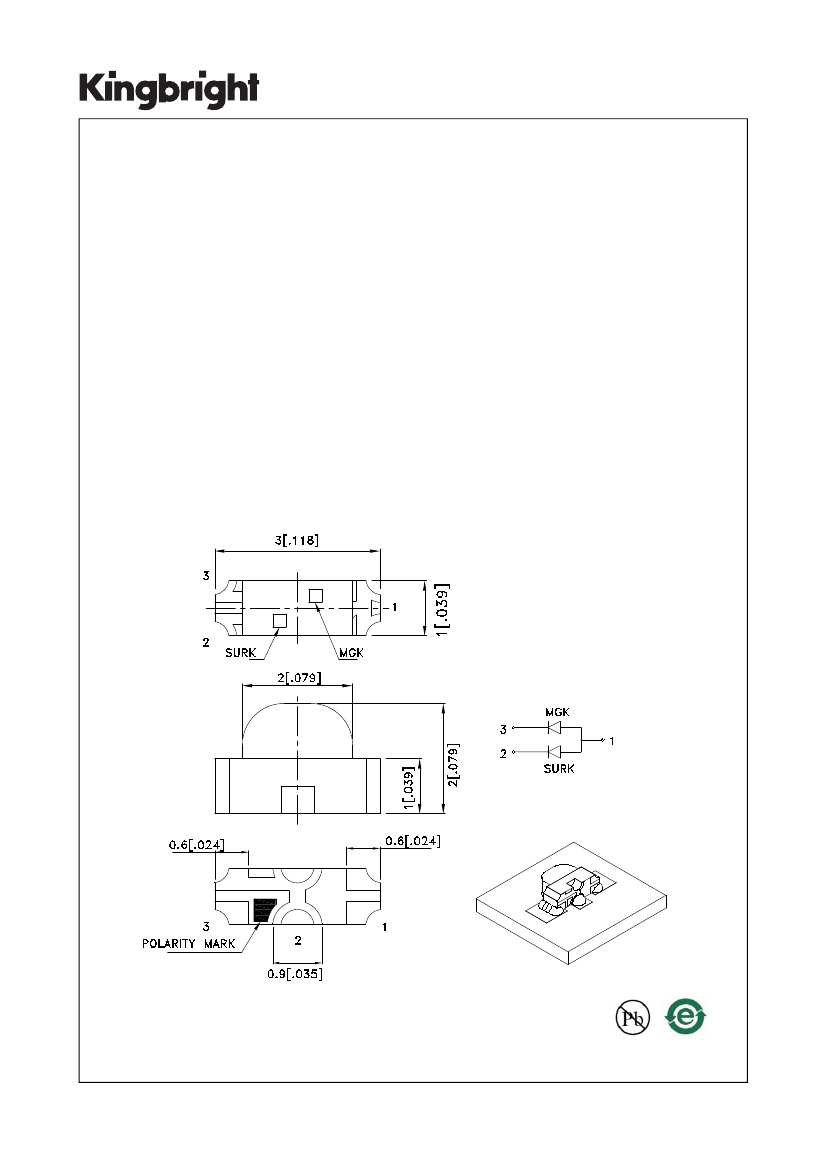

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.15(0.006") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH4943
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: OCT/08/2010
DRAWN: J.Yu
PAGE: 1 OF 6
ERP: 1203006802
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
Hyper Red (AlGaInP)
KPBVA-3010SURKMGKC
Mega Green (AlGaInP)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Viewing
Angle [1]
2θ1/2
140
°
Typ.
300
80
120
Water Clear
50
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Mega Green
Hyper Red
Mega Green
Hyper Red
Mega Green
Hyper Red
Mega Green
Hyper Red
Mega Green
Hyper Red
Mega Green
Typ.
650
574
630
570
28
20
35
15
1.95
2.1
2.5
2.5
10
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Hyper Red
75
30
185
5
Mega Green
75
30
150
Units
mW
mA
mA
V
-40°C To +85°C
-40°C To +85°C
SPEC NO: DSAH4943
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: OCT/08/2010
DRAWN: J.Yu
PAGE: 2 OF 6
ERP: 1203006802

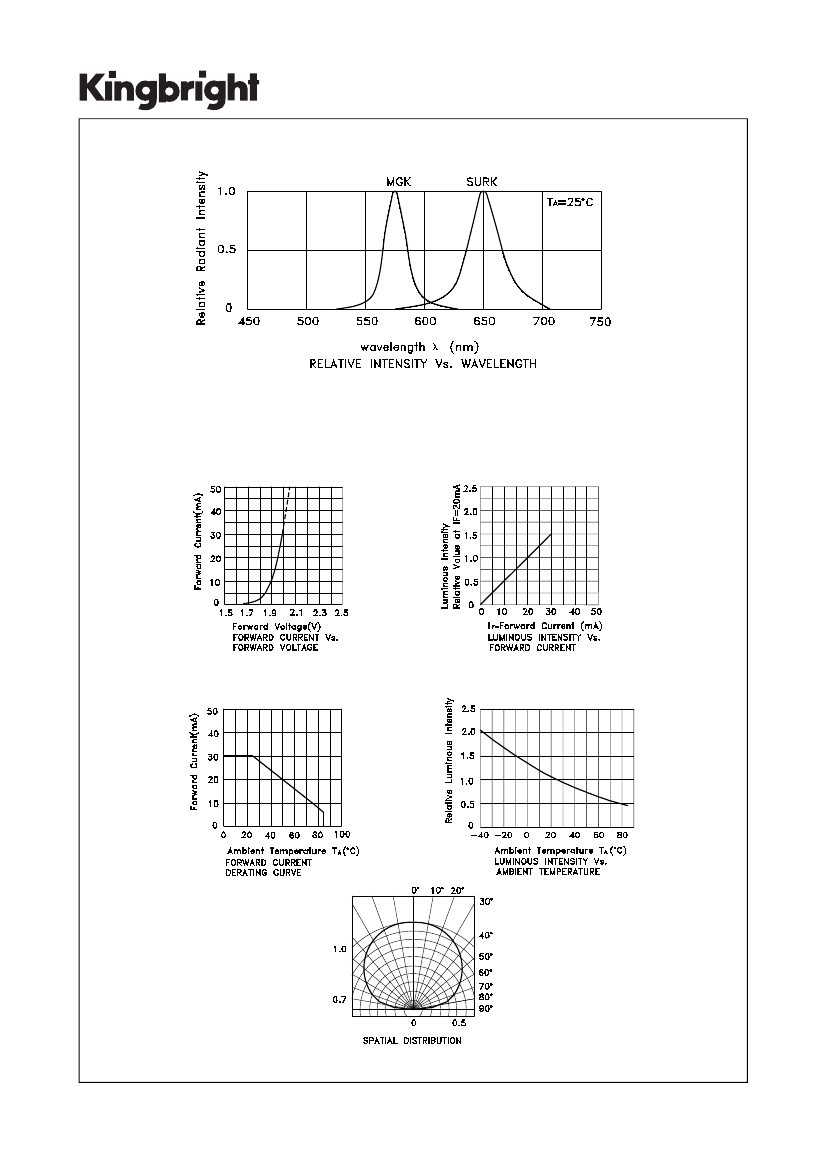

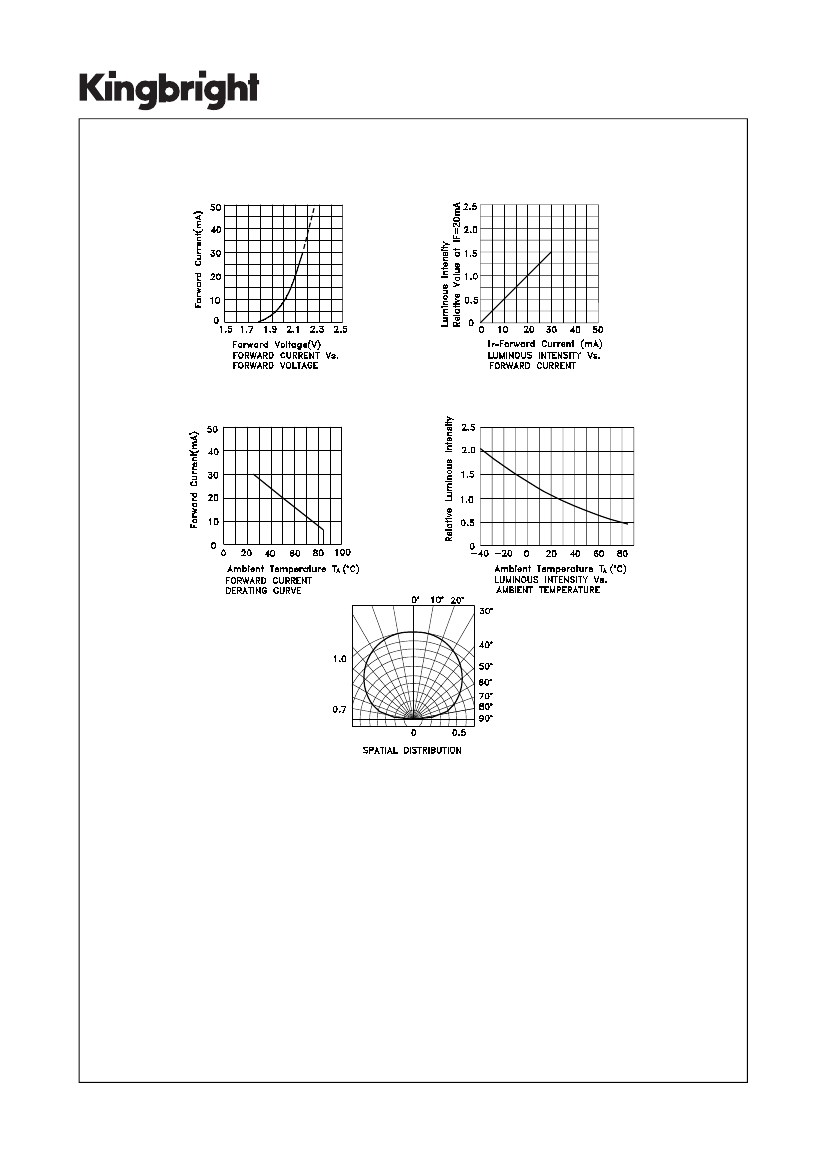

KPBVA-3010SURKMGKC

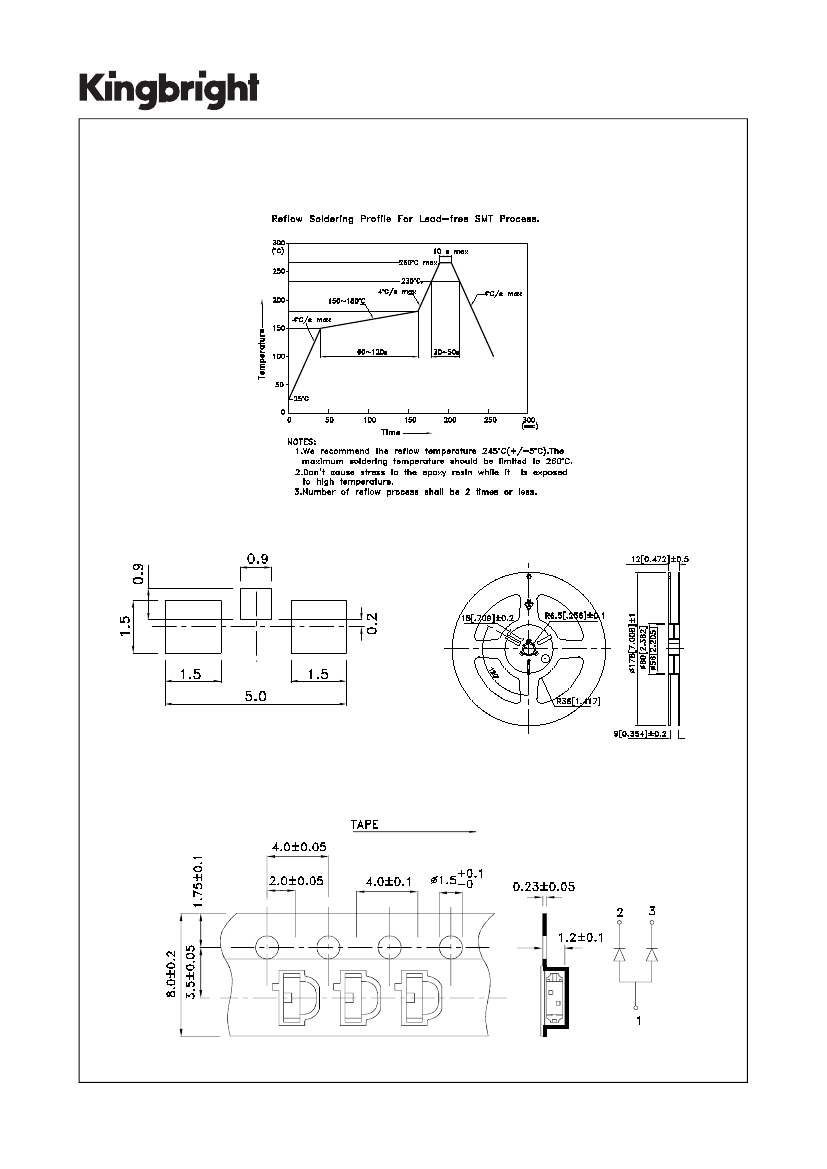

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAH4943
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: OCT/08/2010
DRAWN: J.Yu
PAGE: 5 OF 6
ERP: 1203006802
