CS-3865CDW16 datasheet, PDF - EEWORLD Datasheet

CS-3865CDW16: DescriptionDual Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO16,; CategoryPower/power management The power supply circuit; File Size754KB，8 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet Parametric Compare View All

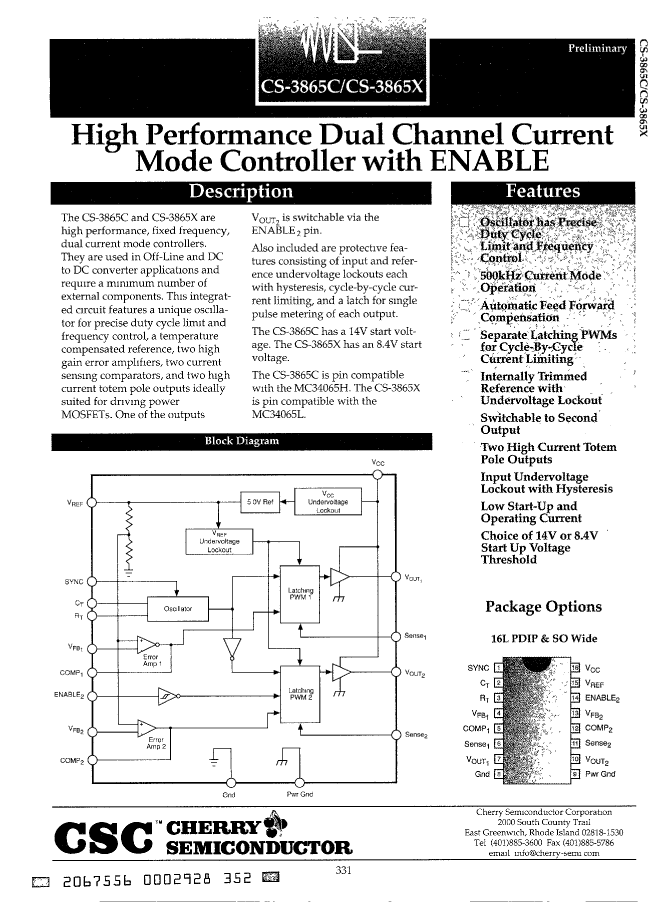

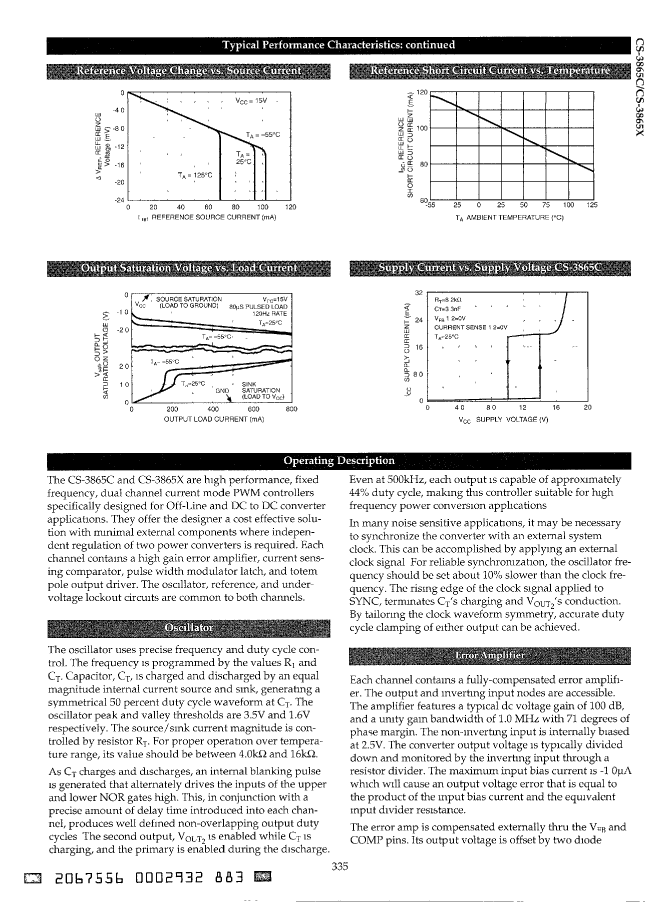

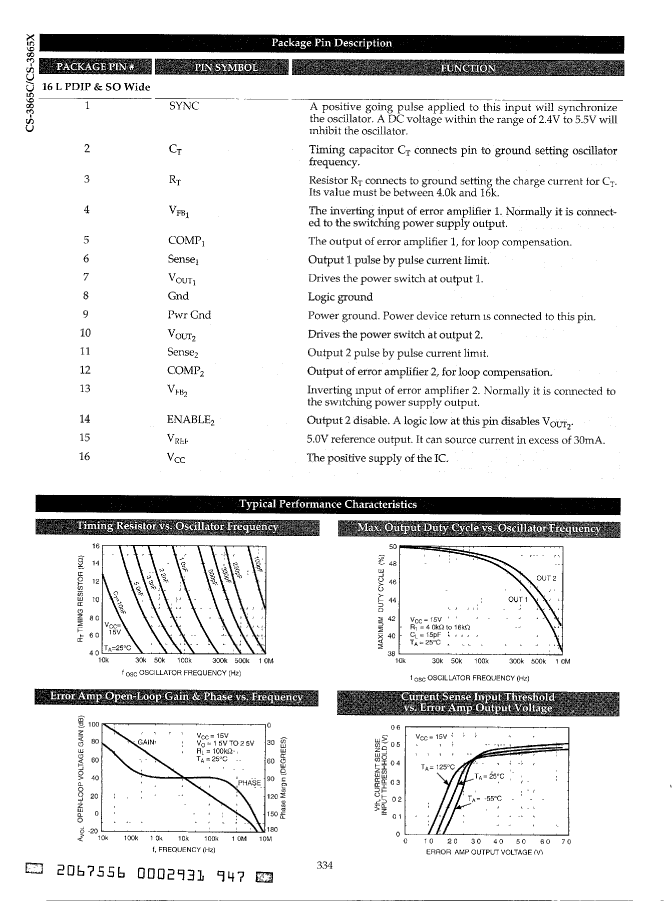

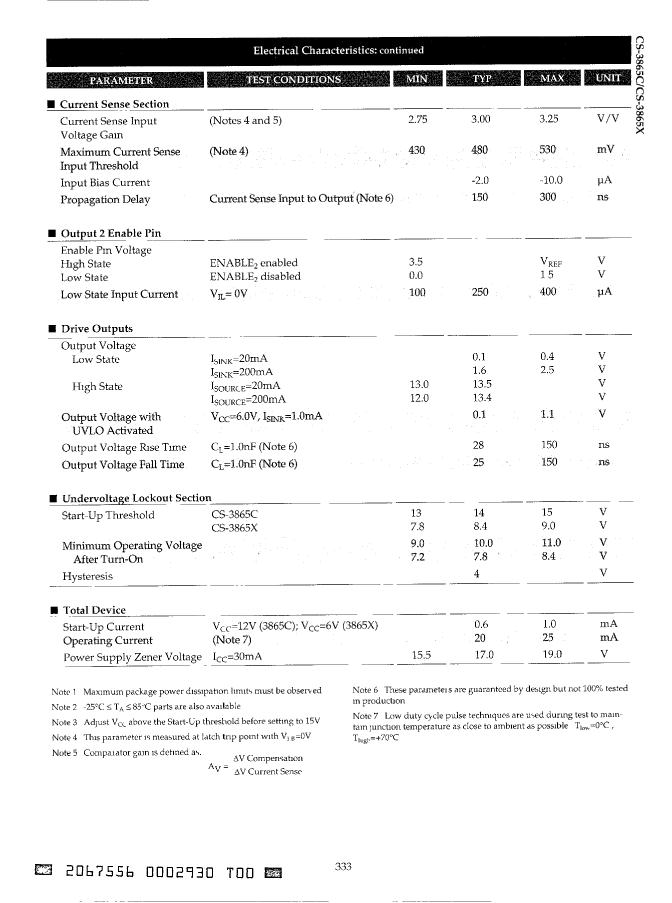

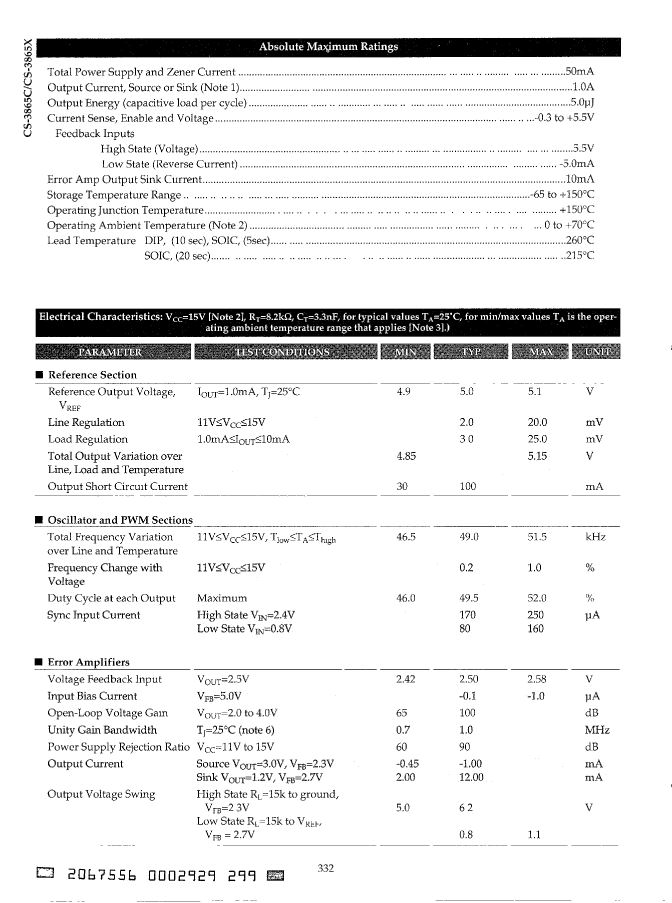

CS-3865CDW16 Overview

Dual Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP16,.4
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DUAL SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	15 V
Minimum input voltage	11 V
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	1 A
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	25 mA
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	500 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	CS-3865CDW16	CS-3865XN16
Description	Dual Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO16,	Dual Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP16,
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	15 V	15 V
Minimum input voltage	11 V	8.4 V
JESD-30 code	R-PDSO-G16	R-PDIP-T16
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Maximum output current	1 A	1 A
Nominal output voltage	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	25 mA	25 mA
surface mount	YES	NO
Switch configuration	SINGLE	SINGLE
Maximum switching frequency	500 kHz	500 kHz
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
