85052-0048 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85052-0048

85052-0048: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

85052-0048 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug

85052-0048 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.413 inch
subject depth	0.418 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	85052
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	24u inch
polarization key	ENDS
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

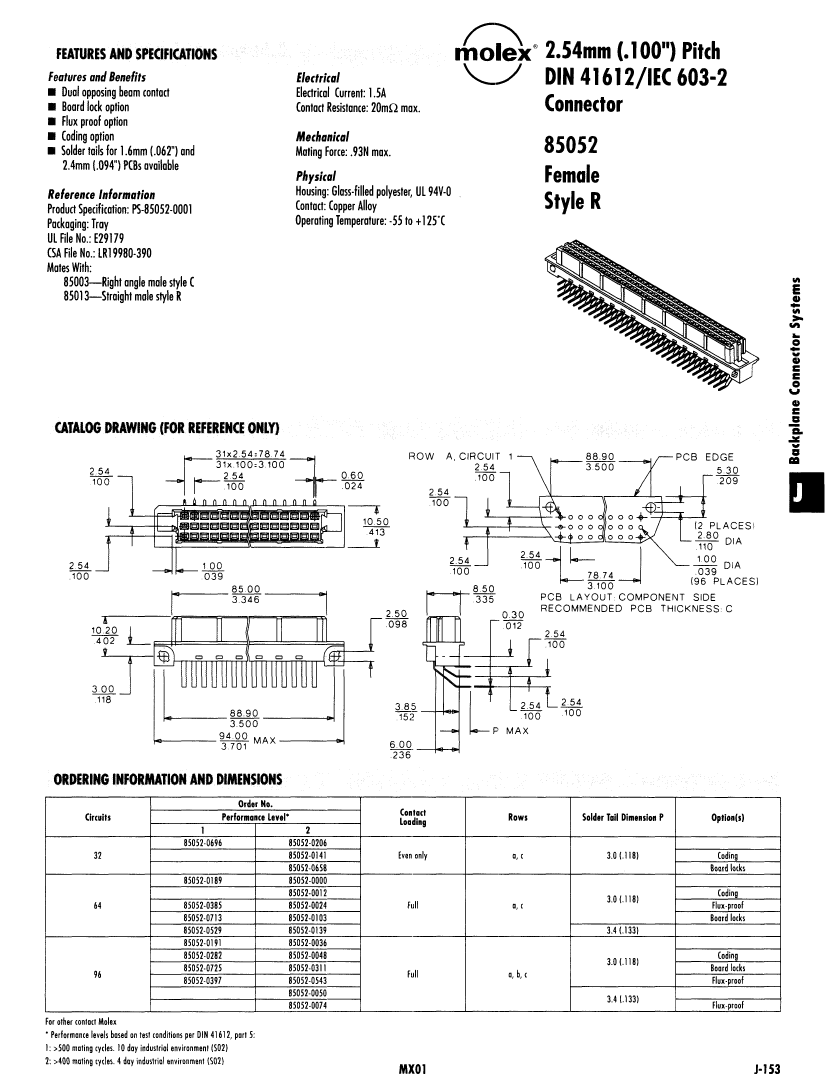

Preview

Download Datasheet

View All

85052-0048 Related Products

	85052-0048	85052-0713	85052-0385
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2
body width	0.413 inch	0.413 inch	0.413 inch
subject depth	0.418 inch	0.418 inch	0.418 inch
body length	3.701 inch	3.701 inch	3.701 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Durability	400 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO
IEC compliance	YES	YES	YES
maximum insertion force	.9452 N	.9452 N	.9452 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO
Manufacturer's serial number	85052	85052	85052
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.2 inch	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Loaded row name	A,B,C	A,C	A,C
PCB row number	3	3	3
Number of rows loaded	3	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
Plating thickness	24u inch	39u inch	39u inch
polarization key	ENDS	ENDS	ENDS
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	96	64	64
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	-
Maker	-	Molex	Molex
