87550-1103 datasheet, PDF - EEWORLD Datasheet

87550-1103: DescriptionBoard Connector, 3 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size33KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

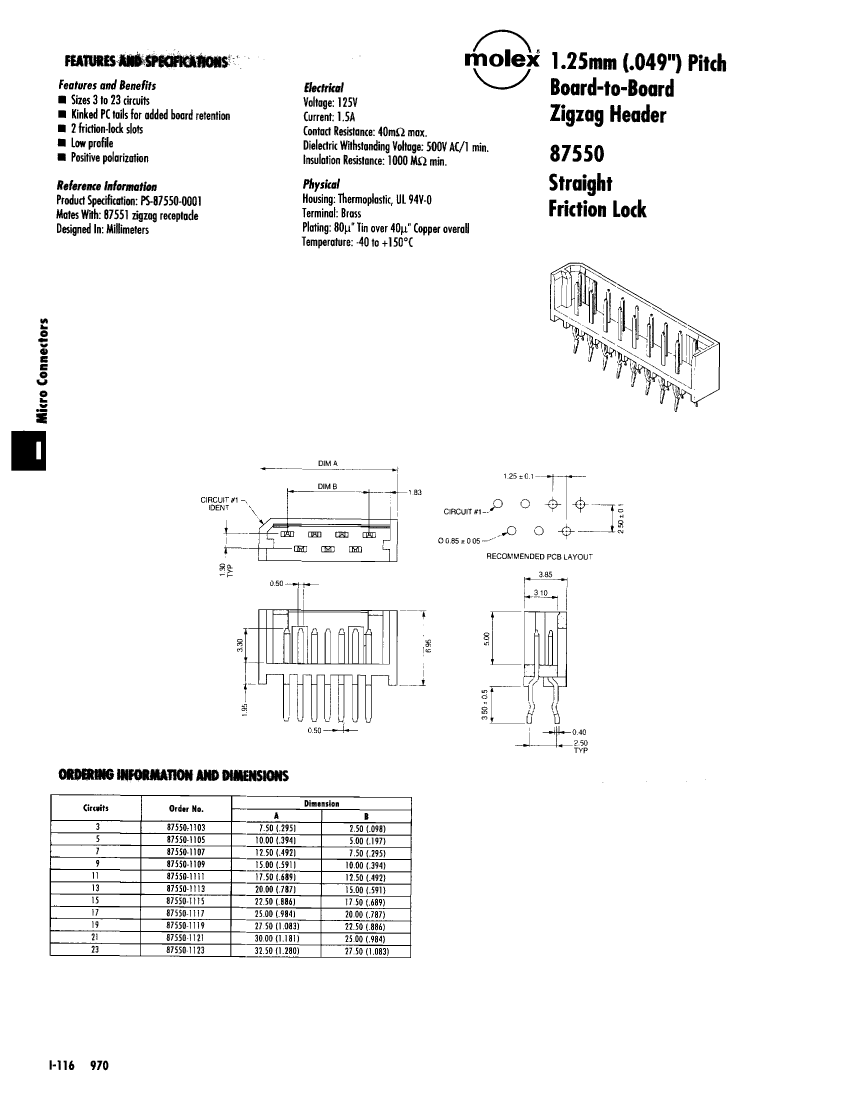

Download Datasheet Parametric View All

87550-1103 Overview

Board Connector, 3 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FRICTION LOCK, STAGGERED CONFIGURATION
body width	0.152 inch
subject depth	0.274 inch
body length	0.295 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	87550
Plug contact pitch	0.098 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	1.25 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
