FC25S5G1-2921 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

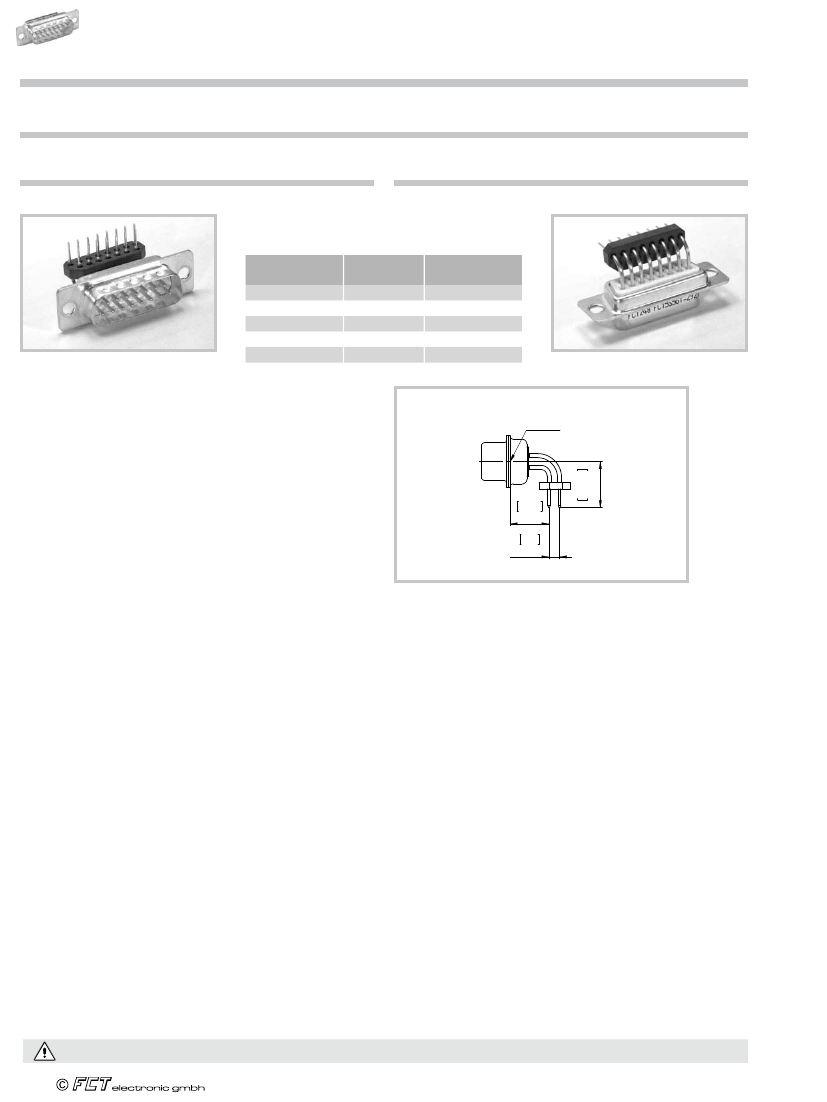

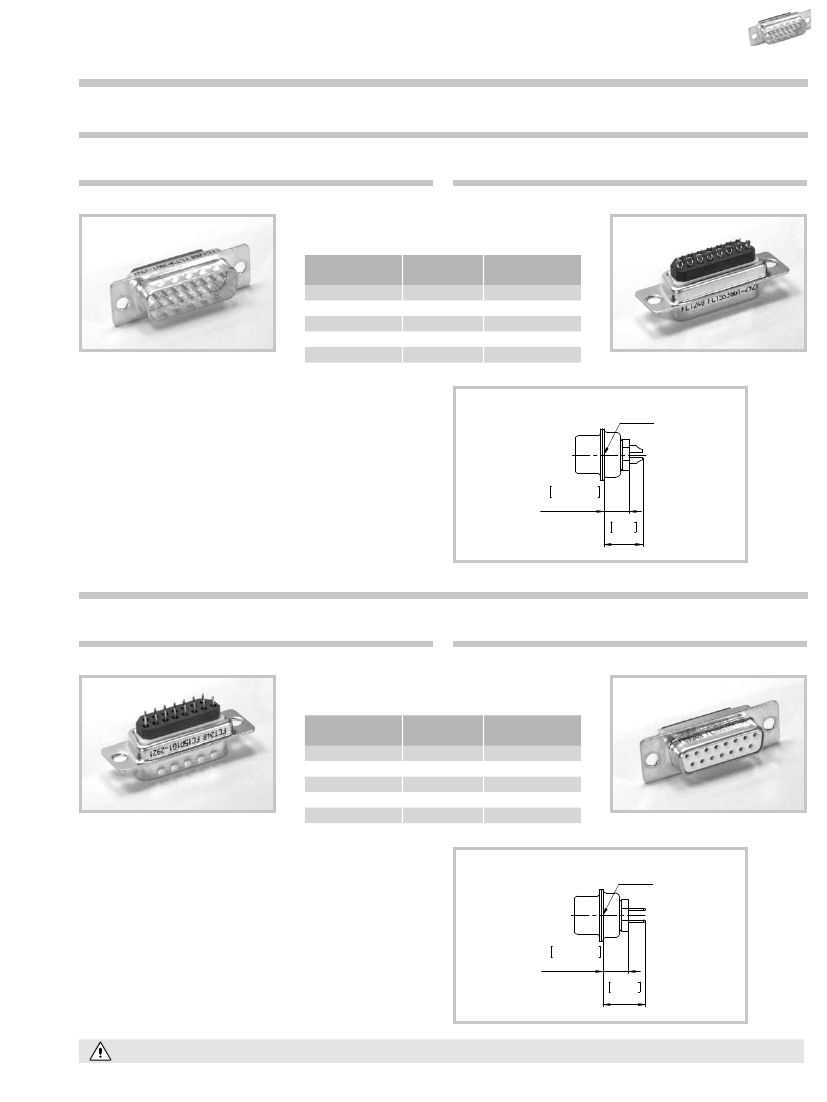

D-Sub, L-Filter

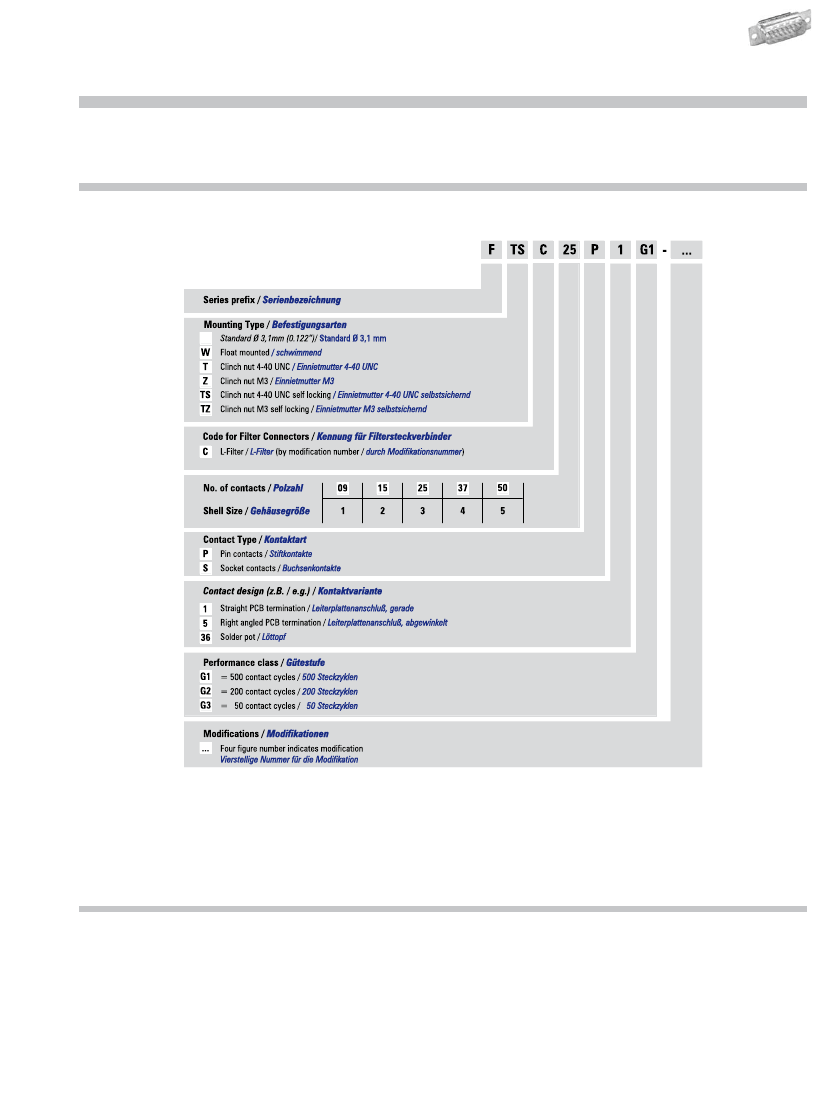

Ordering Code

Bestellschlüssel

Features, Advantages

Merkmale, Vorteile

•

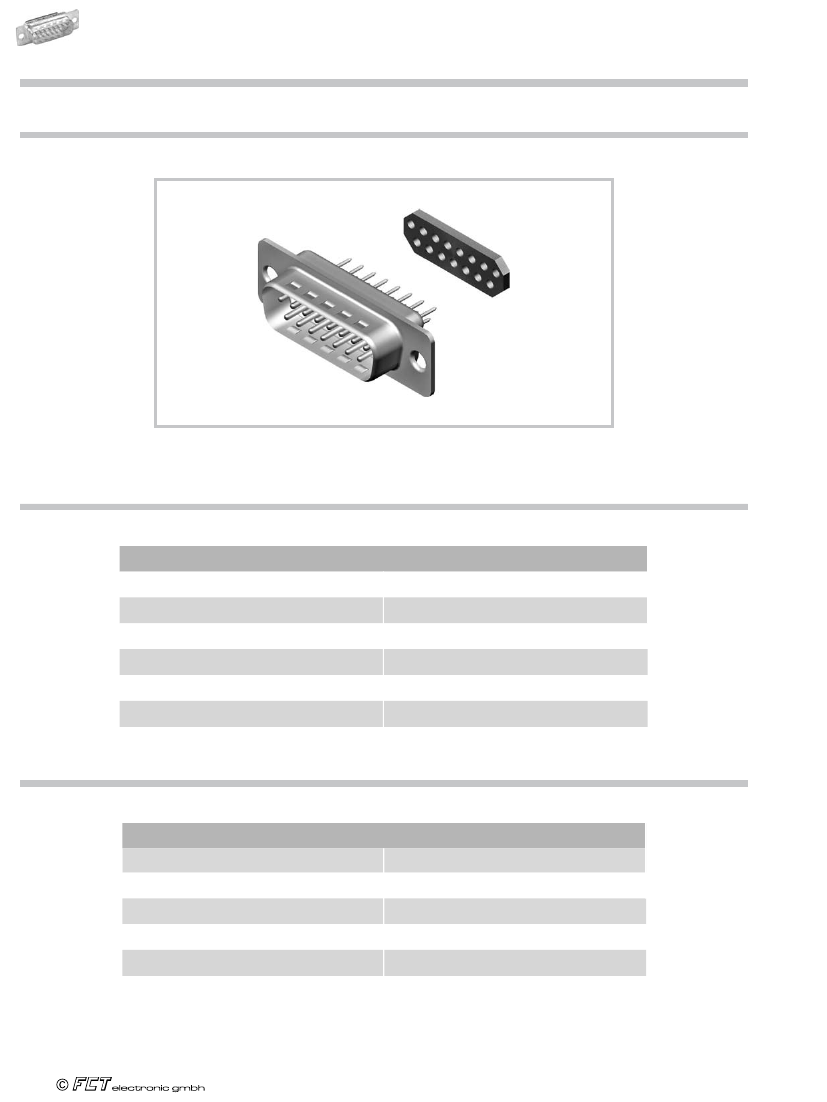

L-Filter

Ferrit

Fully compatible with standard D-Sub connectors

Facilitates the development of EMI/EMC approved designs

Space saving

Tin plated steel shells (with dimples for higher frequencies - male

connectors only)

Standard versions and many modified designs available

•

L-Filter

Ferrit

voll kompatibel zu üblichen D-Sub Steckverbindern

erleichtert EMV-gerechtes Design

platzsparend

verzinntes Stahlgehäuse (bei Stiftsteckverbindern mit Kontaktnoppen

für höhere Frequenzen)

Standardausführungen und viele Sonderanfertigungen verfügbar

FC 07/2008

ALL DIMENSIONS IN MILLIMETERS - VALUES FOR INCHES IN BRACKETS - TECHNICAL DATA SUBJECT TO CHANGE
