DBMMG5H5SJ: DescriptionD Subminiature Connector, 5 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DBMMG5H5SJ Overview

D Subminiature Connector, 5 Contact(s), Female, Solder Terminal, Receptacle

DBMMG5H5SJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-24308, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	CHROMATE
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

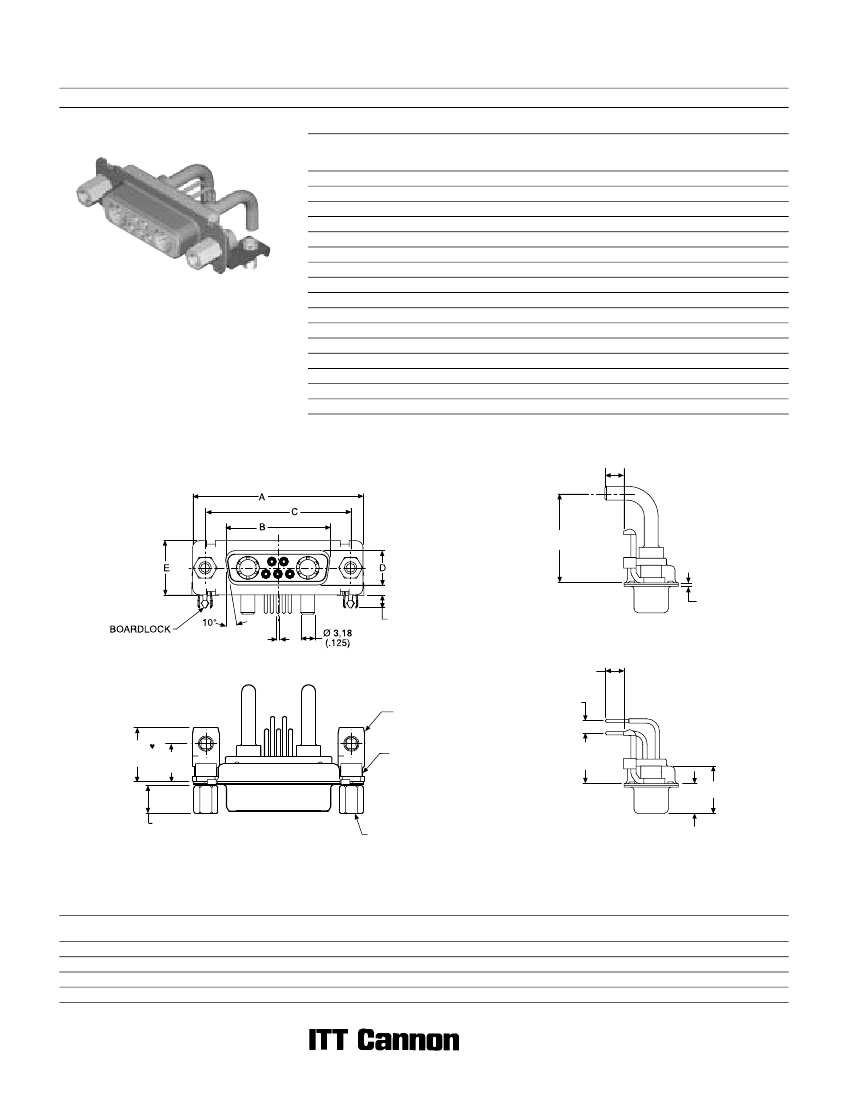

D Subminiature

40 A High Power 90° PCB (Sizes DE-DC)

Receptacle

Military/High Reliability

Part Numbers with Metal Bracket and Rivnut #4-40 UNC

Shell Size

DE

DA

DB

DC

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Part Number

Without Screw Locks

Without Boardlocks

DEMMP5H1SJ

DAMMP7H2SJ

DAMMP11H1SJ

DAMMP3H3SJ

DAMMP3HK3SJTM

DBMMP5H5SJ

DBMMP9H4SJ

DBMMP13H3SJ

DBMMP17H2SJ

DBMMP21H1SJ

DCMMP8H8SJ

DCMMP13H6SJ

DCMMP17H5SJ

DCMMP21HA4SJ

DCMMP25H3SJ

DCMMP27H2SJ

Part Number

Without Screw Locks

With Boardlocks

DEMMC5H1SJ

DAMMC7H2SJ

DAMMC11H1SJ

DAMMC3H3SJ

DAMMC3HK3SJTM

DBMMC5H5SJ

DBMMC9H4SJ

DBMMC13H3SJ

DBMMC17H2SJ

DBMMC21H1SJ

DCMMC8H8SJ

DCMMC13H6SJ

DCMMC17H5SJ

DCMMC21HA4SJ

DCMMC25H3SJ

DCMMC27H2SJ

Part Number

With Screw Locks

Without Boardlocks

DEMMD5H1SJ

DAMMD7H2SJ

DAMMD11H1SJ

DAMMD3H3SJ

DAMMD3HK3SJTM

DBMMD5H5SJ

DBMMD9H4SJ

DBMMD13H3SJ

DBMMD17H2SJ

DBMMD21H1SJ

DCMMD8H8SJ

DCMMD13H6SJ

DCMMD17H5SJ

DCMMD21HA4SJ

DCMMD25H3SJ

DCMMD27H2SJ

Part Number

With Screw Locks

With Boardlocks

DEMMG5H1SJ

DAMMG7H2SJ

DAMMG11H1SJ

DAMMG3H3SJ

DAMMG3HK3SJTM

DBMMG5H5SJ

DBMMG9H4SJ

DBMMG13H3SJ

DBMMG17H2SJ

DBMMG21H1SJ

DCMMG8H8SJ

DCMMG13H6SJ

DCMMG17H5SJ

DCMMG21HA4SJ

DCMMG25H3SJ

DCMMG27H2SJ

Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see pages 247-248.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

Notes: For DD shell size, see page 157.

Keyed.

Engaging Face

3,89 (.153)

MIN.

20,57

±

0,38

(.810

±

.015)

L

2,92

(.115)

Ø 0,76

(.030)

Screw lock, boardlock, and signal contacts

removed for clarity

4,33

±

0,38

(.170

±

.015)

2,84

(.112)

BRACKET,

METAL

12,34

(.486)

RIVNUT

#4-40 UNC

8,64

(.340)

11,53

±

0,25

(.454

±

.010)

F

W

6,50

±

0,25

(.256

±

.010)

SCREW LOCK

#4-40 UNC

Screw lock, boardlock, and high power contact

removed for clarity

Note:

Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.

Dimensions

Shell Size

DE

DA

DB

DC

A

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

B

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

C

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

D

±0,13

(.005)

7,90 (.311)

E

±0,38

(.015)

12,55 (.494)

F

±0,25

(.010)

10,90 (.429)

W

±0,38

(.015)

6,94 (.273)

L

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change

155

DBMMG5H5SJ Related Products

	DBMMG5H5SJ	DCMMP17H5SJ
Description	D Subminiature Connector, 5 Contact(s), Female, Solder Terminal, Receptacle	D Subminiature Connector, 17 Contact(s), Female, Solder Terminal, Receptacle,
Reach Compliance Code	compliant	compliant
Other features	STANDARD: MIL-C-24308, PANEL MOUNT	STANDARD: MIL-C-24308, PANEL MOUNT
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYESTER	POLYESTER
MIL compliance	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CHROMATE	CHROMATE
Shell material	STEEL	STEEL
Housing size	3/B	4/C
Termination type	SOLDER	SOLDER
Total number of contacts	5	17
UL Flammability Code	94V-0	94V-0
