LTC1437AAIG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LTC1437AAIG

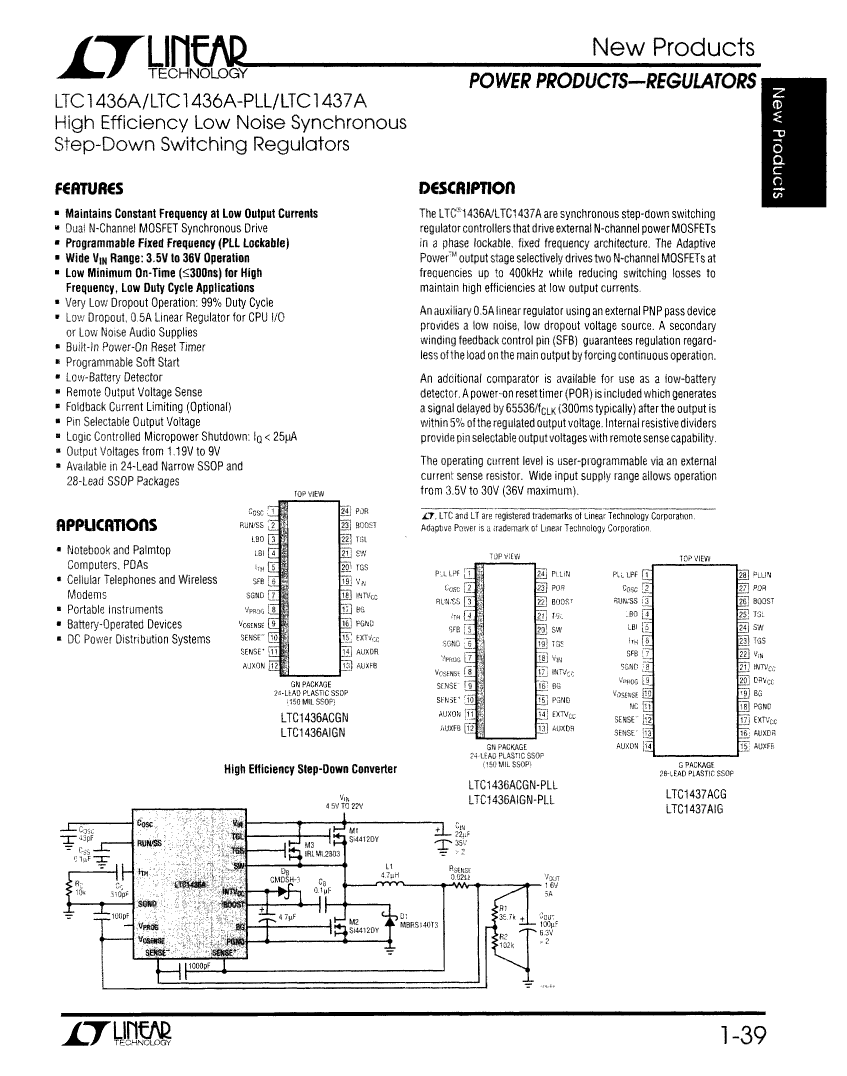

LTC1437AAIG: DescriptionIC SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO28, PLASTIC, SSOP-28, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size96KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1437AAIG Overview

IC SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO28, PLASTIC, SSOP-28, Switching Regulator or Controller

LTC1437AAIG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SSOP
package instruction	PLASTIC, SSOP-28
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	3.5 V
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	10.2 mm
Number of functions	1
Number of terminals	28
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2 mm
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	400 kHz
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

LTC1437AAIG Related Products

	LTC1437AAIG	LTC1436AAIGN	LTC1436AAIGN-PLL	LTC1436AACGN	LTC1436AACGN-PLL
Description	IC SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO28, PLASTIC, SSOP-28, Switching Regulator or Controller	IC SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO24, 0.150 INCH, PLASTIC, SSOP-24, Switching Regulator or Controller	IC SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO24, 0.150 INCH, PLASTIC, SSOP-24, Switching Regulator or Controller	IC SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO24, 0.150 INCH, PLASTIC, SSOP-24, Switching Regulator or Controller	IC SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, PDSO24, 0.150 INCH, PLASTIC, SSOP-24, Switching Regulator or Controller
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SSOP	SSOP	SSOP	SSOP	SSOP
package instruction	PLASTIC, SSOP-28	0.150 INCH, PLASTIC, SSOP-24	0.150 INCH, PLASTIC, SSOP-24	0.150 INCH, PLASTIC, SSOP-24	0.150 INCH, PLASTIC, SSOP-24
Contacts	28	24	24	24	24
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	30 V	30 V	30 V	30 V	30 V
Minimum input voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
JESD-30 code	R-PDSO-G28	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0	e0
length	10.2 mm	8.65 mm	8.65 mm	8.65 mm	8.65 mm
Number of functions	1	1	1	1	1
Number of terminals	28	24	24	24	24
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
surface mount	YES	YES	YES	YES	YES
Switch configuration	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL
Maximum switching frequency	400 kHz	400 kHz	400 kHz	400 kHz	400 kHz
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Base Number Matches	1	1	1	-	-
Maker	-	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
