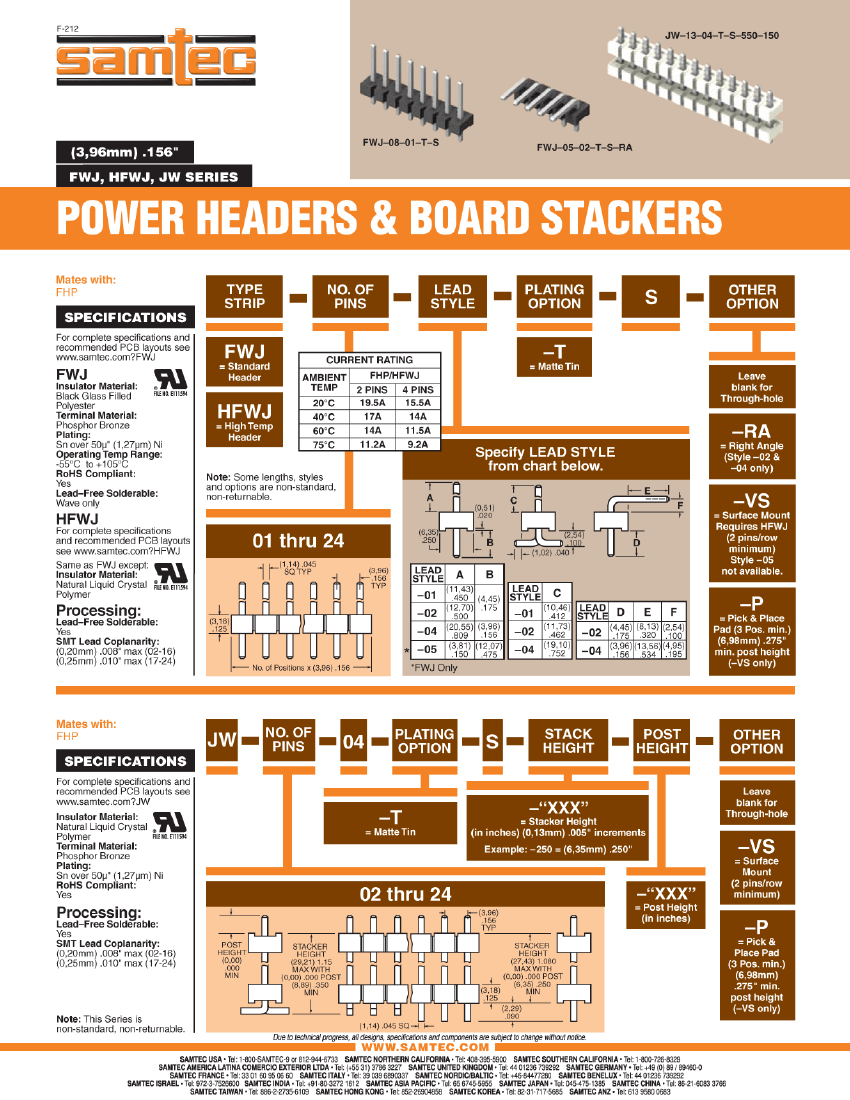

FWJ-09-05-T-S-VS-P datasheet, PDF

FWJ-09-05-T-S-VS-P: DescriptionBoard Stacking Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size379KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FWJ-09-05-T-S-VS-P Overview

Board Stacking Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PICK & PLACE PAD
body width	0.25 inch
subject depth	0.225 inch
body length	1.403 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	SN ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	FWJ
Plug contact pitch	0.156 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	SURFACE MOUNT
Total number of contacts	9
Base Number Matches	1
