AP8396JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> AP8396JC

AP8396JC: Description16-BIT, MROM, 12MHz, MICROCONTROLLER, PQFP68, PLASTIC, FP-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，21 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AP8396JC Overview

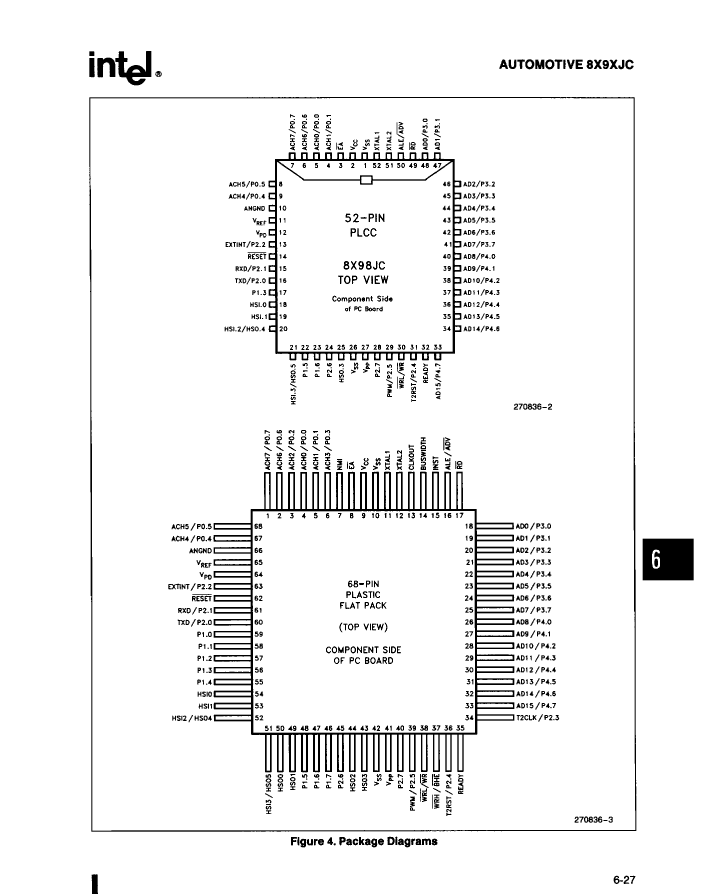

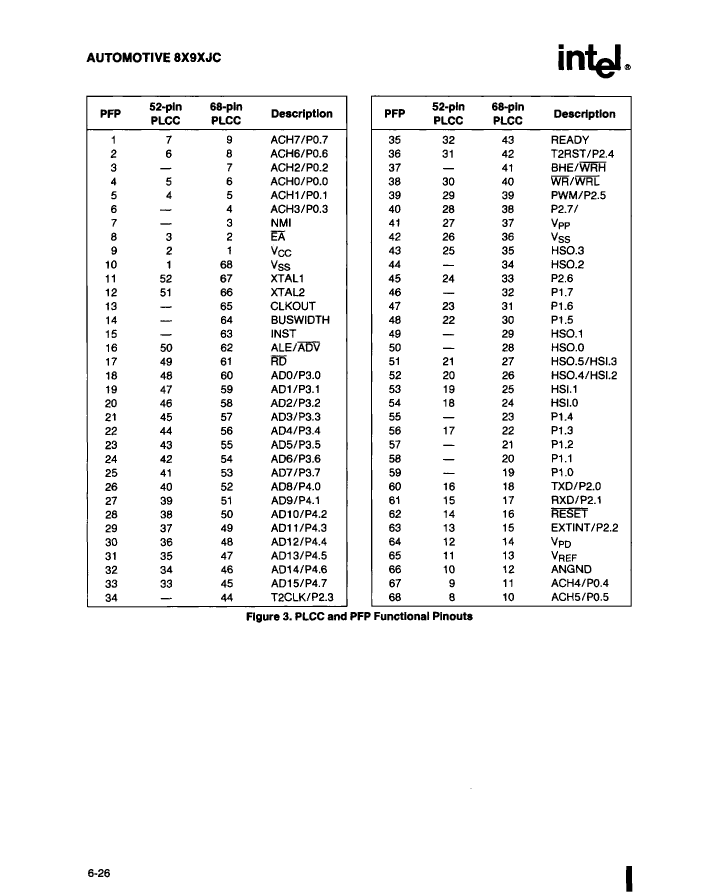

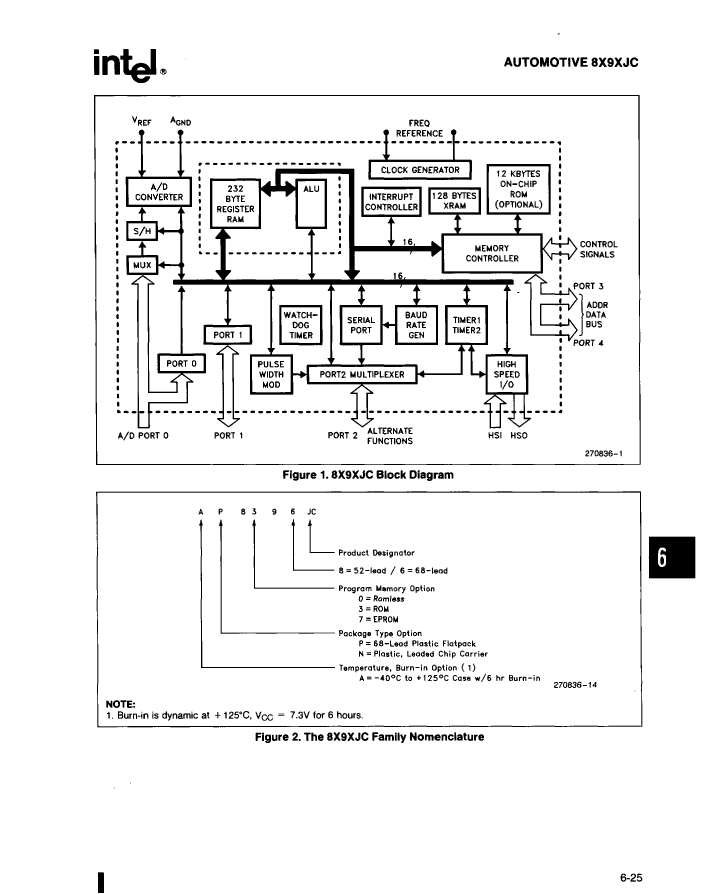

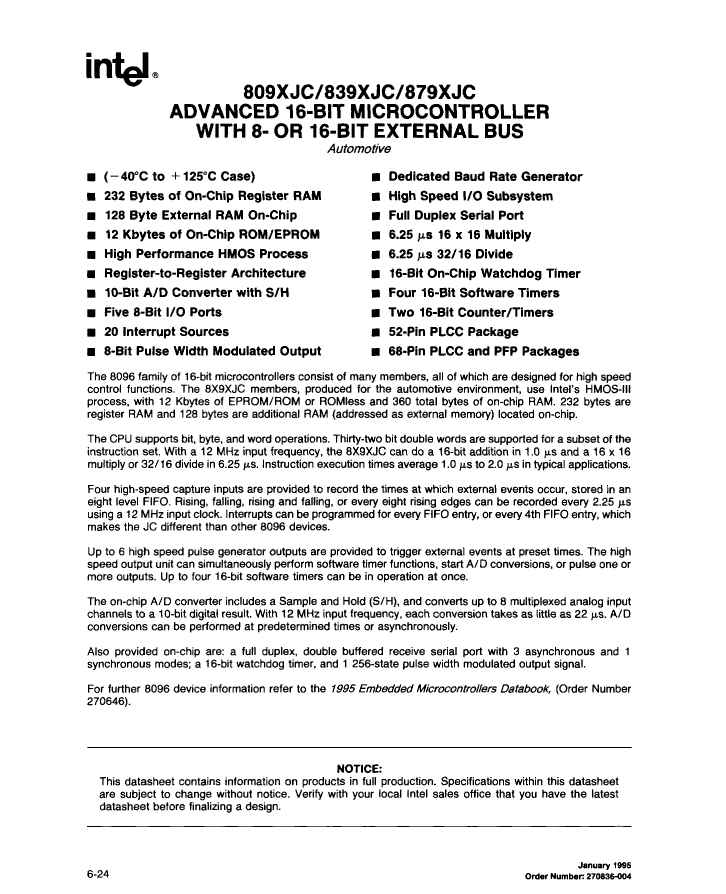

16-BIT, MROM, 12MHz, MICROCONTROLLER, PQFP68, PLASTIC, FP-68

AP8396JC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	PLASTIC, FP-68
Contacts	68
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	16
maximum clock frequency	12.05 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
JESD-30 code	S-PQFP-F68
JESD-609 code	e0
length	24.17 mm
Humidity sensitivity level	NOT SPECIFIED
Number of I/O lines	40
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
ROM programmability	MROM
Maximum seat height	4.34 mm
speed	12 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.17 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
