M83513/23-G03CW datasheet, PDF

M83513/23-G03CW: DescriptionD Type Connector, 51 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size4MB，6 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

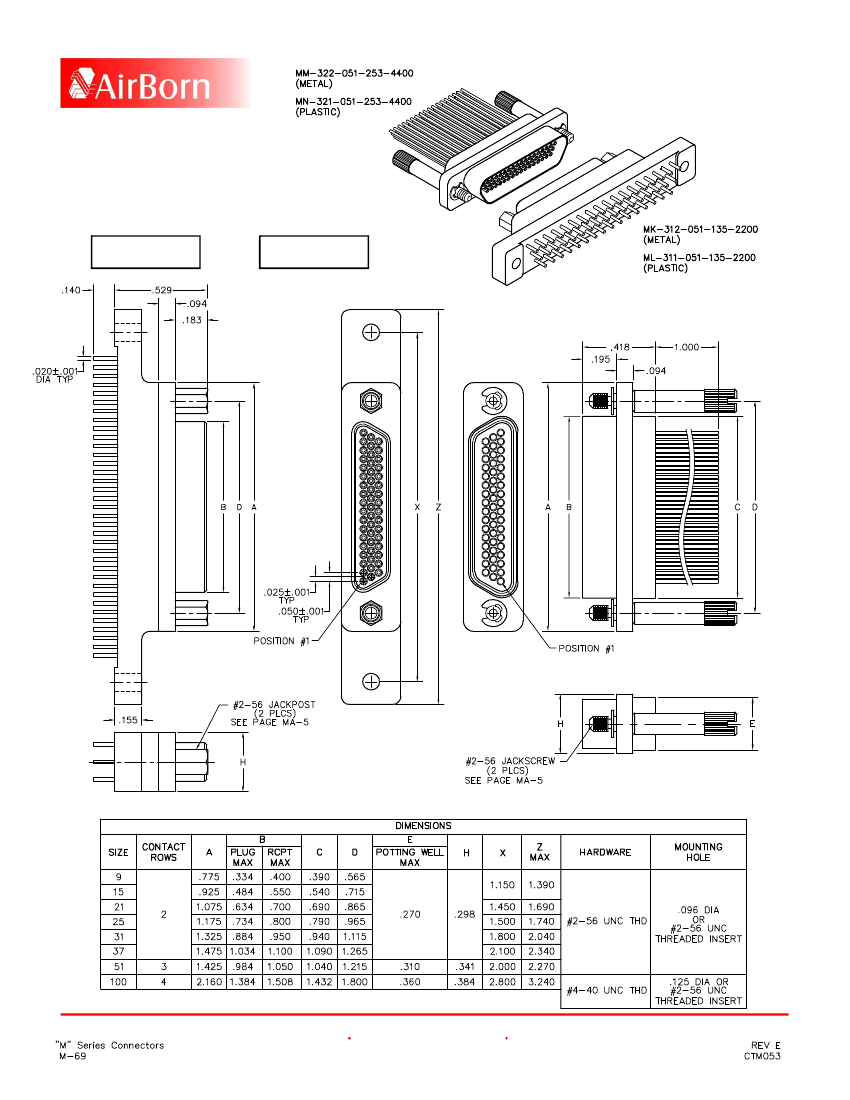

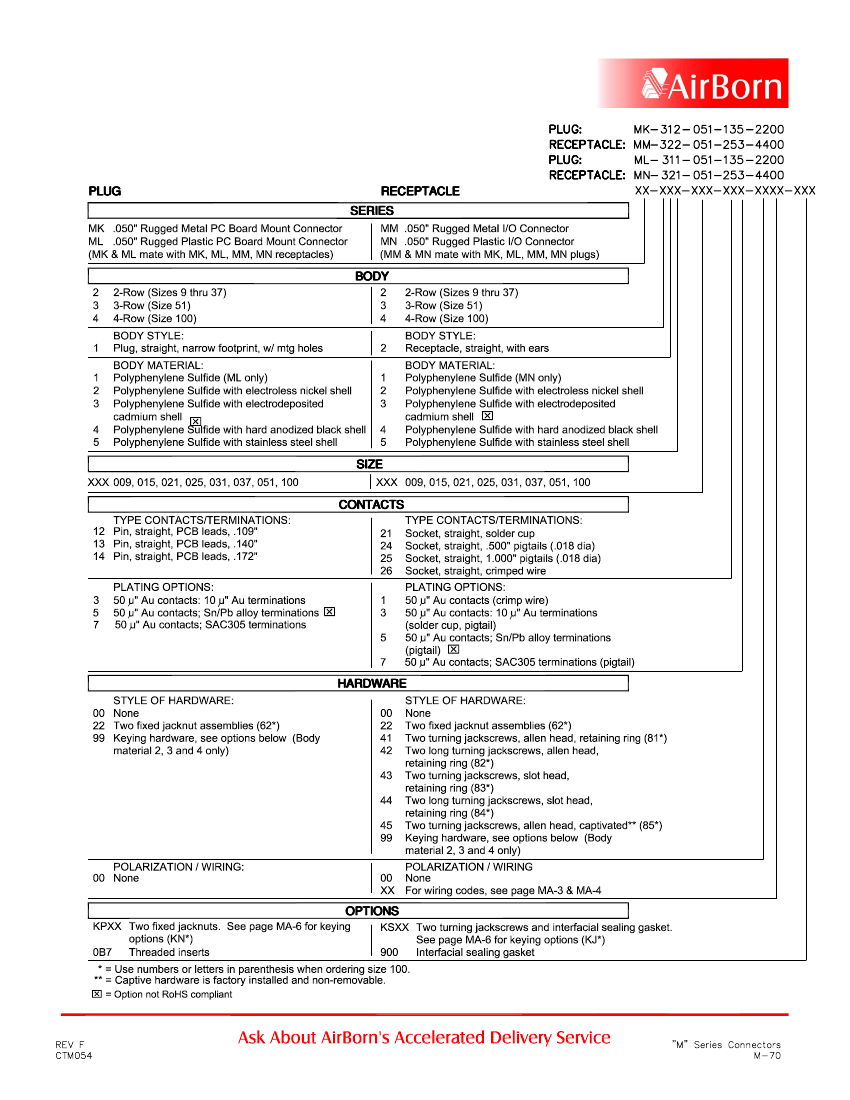

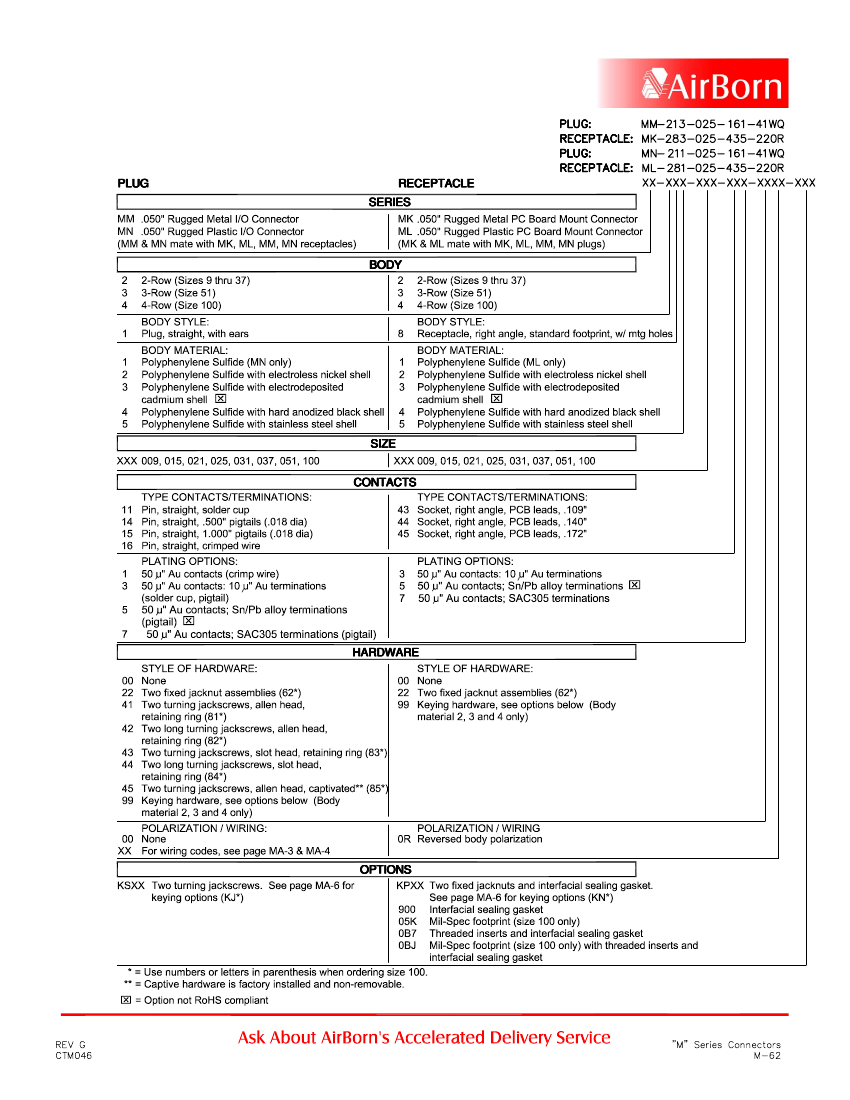

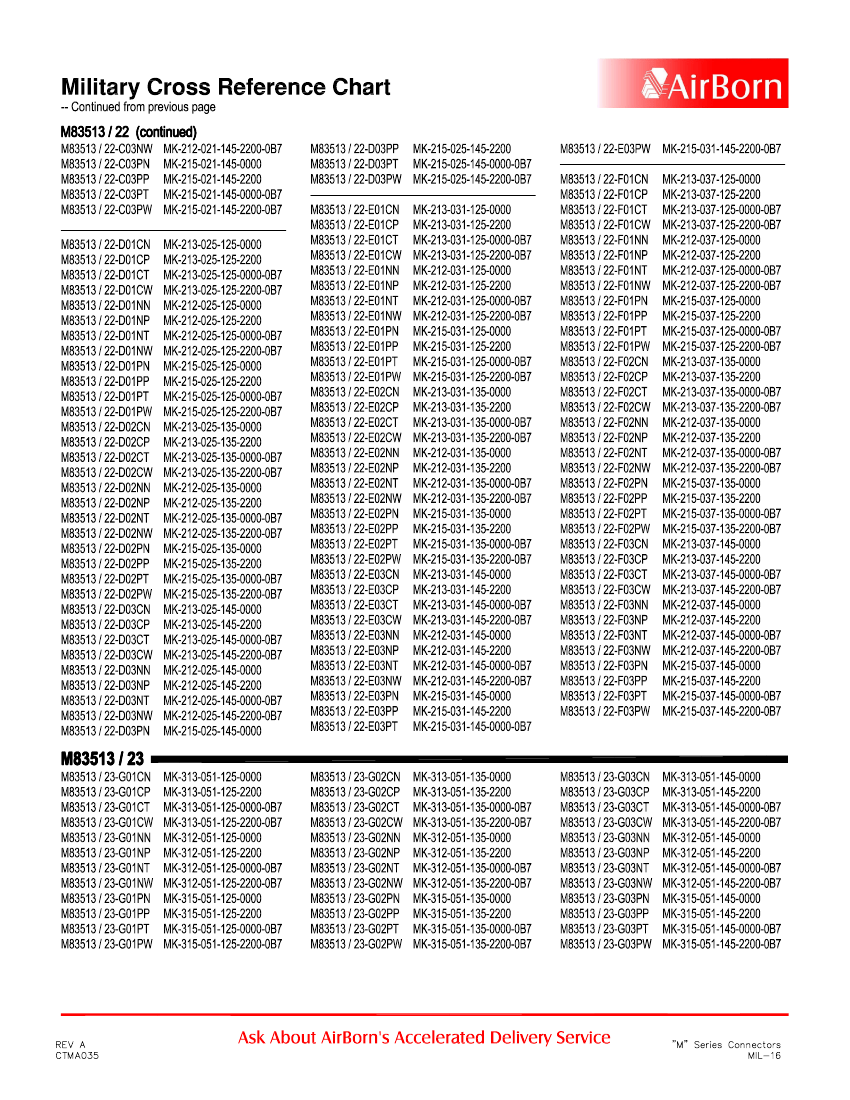

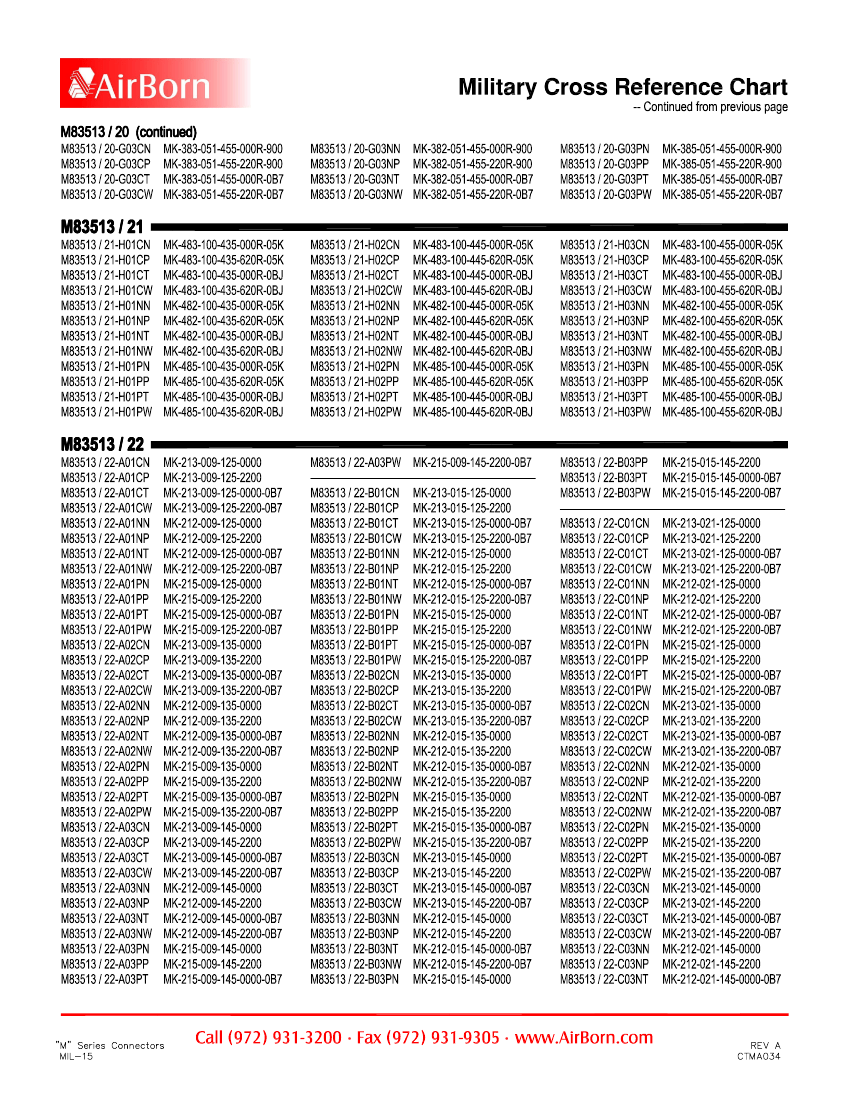

M83513/23-G03CW Overview

D Type Connector, 51 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, Locking, Plug

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-83513, THREADED INSERTS
Board mount options	HOLE .096
body width	0.351 inch
subject depth	0.355 inch
body length	2.27 inch
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S51P0
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	POLYPHENYLENE SULFIDE
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	JACKPOST
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
reliability	MIL-C-83513
Shell surface	CADMIUM
Shell material	METAL
Housing size	G
Terminal length	0.172 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	51
Evacuation force-minimum value	0.139 N
Base Number Matches	1
