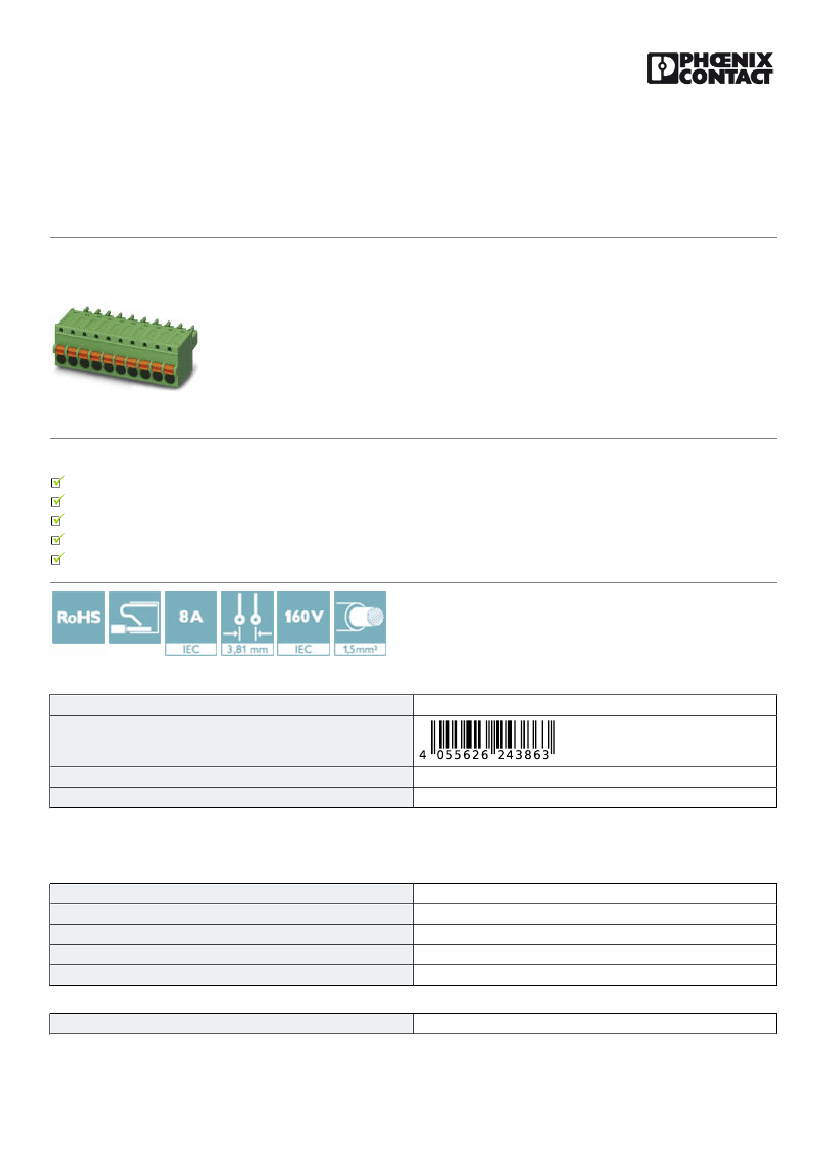

Printed-circuit board connector - FK-MCP 1,5/ 2-ST-3,81 BD:-
X27 - 1711588
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 2, pitch: 3.81 mm,
connection method: Push-in spring connection, color: green, contact surface: Tin
The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626243863
85366990
1
Technical data
Dimensions
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Dimension a
21 mm
8.41 mm
12.4 mm
3.81 mm
3.81 mm
General
Range of articles
FK-MCP 1,5/..-ST
01/14/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1711588
Printed-circuit board connector - FK-MCP 1,5/ 2-ST-3,81 BD:-
X27 - 1711588
Technical data
General
Number of positions
Connection method
Insulating material group
Rated voltage (III/2)
Nominal current I
N
Nominal cross section
Flammability rating according to UL 94
2
Push-in spring connection
I
160 V
8A
1.5 mm²
V0
Specifications for ferrules
Recommended crimping pliers
Ferrules without insulating collar, according to DIN 46228‑1
1212034 CRIMPFOX 6
Cross section: 0.25 mm²; Length: 7 mm ... 9 mm
Cross section: 0.34 mm²; Length: 7 mm ... 9 mm
Cross section: 0.5 mm²; Length: 8 mm ... 9 mm
Cross section: 0.75 mm²; Length: 8 mm ... 9 mm
Cross section: 1 mm²; Length: 8 mm ... 9 mm
Cross section: 1.5 mm²; Length: 8 mm ... 9 mm
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27260700
27260700
27440309
27440309
27440309
ETIM
ETIM 5.0
ETIM 6.0
EC002638
EC002638
Approvals
Approvals
01/14/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1711588
Printed-circuit board connector - FK-MCP 1,5/ 2-ST-3,81 BD:-
X27 - 1711588
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-60987-B1B2
160 V
8A
0.2-1.5
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
0.2-1.5
40011723
EAC
B
300 V
8A
28-16
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19920306
