CA3160E: DescriptionBasic information of CA3160E amplifier: CA3160E is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3 CA3160E amplifier core information: The minimum operating temperature of the CA3160E is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.00005 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of the CA3160E is 10 V/us. The maximum slew rate of the CA3160E given by the manufacturer is 15 mA. Its minimum voltage gain is 50000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the CA3160E gain becomes 0.707 times the low-frequency gain is 4000 kHz. The nominal supply voltage of CA3160E is 7.5 V, and its corresponding nominal negative supply voltage is -7.5 V. The power supply range is: 5/15 V. The input offset voltage of the CA3160E is 15000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of CA3160E: CA3160E has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8 CA3160E amplifier additional information: CA3160E adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of CA3160E is: YES. Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-PDIP-T8. The packaging code of CA3160E is: DIP. CA3160E packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The form of CA3160E package pins is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size2MB，17 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound2parts with similar functions to CA3160E; Alternative parts：CA3160E

Download Datasheet Parametric Compare View All

CA3160E Overview

Basic information of CA3160E amplifier:

CA3160E is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3

CA3160E amplifier core information:

The minimum operating temperature of the CA3160E is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.00005 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of the CA3160E is 10 V/us. The maximum slew rate of the CA3160E given by the manufacturer is 15 mA. Its minimum voltage gain is 50000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the CA3160E gain becomes 0.707 times the low-frequency gain is 4000 kHz.

The nominal supply voltage of CA3160E is 7.5 V, and its corresponding nominal negative supply voltage is -7.5 V. The power supply range is: 5/15 V. The input offset voltage of the CA3160E is 15000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of CA3160E:

CA3160E has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8

CA3160E amplifier additional information:

CA3160E adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of CA3160E is: YES. Its temperature grade is: MILITARY.

The corresponding JESD-30 code is: R-PDIP-T8. The packaging code of CA3160E is: DIP. CA3160E packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The form of CA3160E package pins is: IN-LINE.

Its terminal form is: THROUGH-HOLE.

CA3160E Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.00005 µA
Nominal Common Mode Rejection Ratio	90 dB
frequency compensation	YES
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDIP-T8
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-7.5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
Nominal slew rate	10 V/us
Maximum slew rate	15 mA
Supply voltage upper limit	16 V
Nominal supply voltage (Vsup)	7.5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	4000 kHz
Minimum voltage gain	50000
Base Number Matches	1

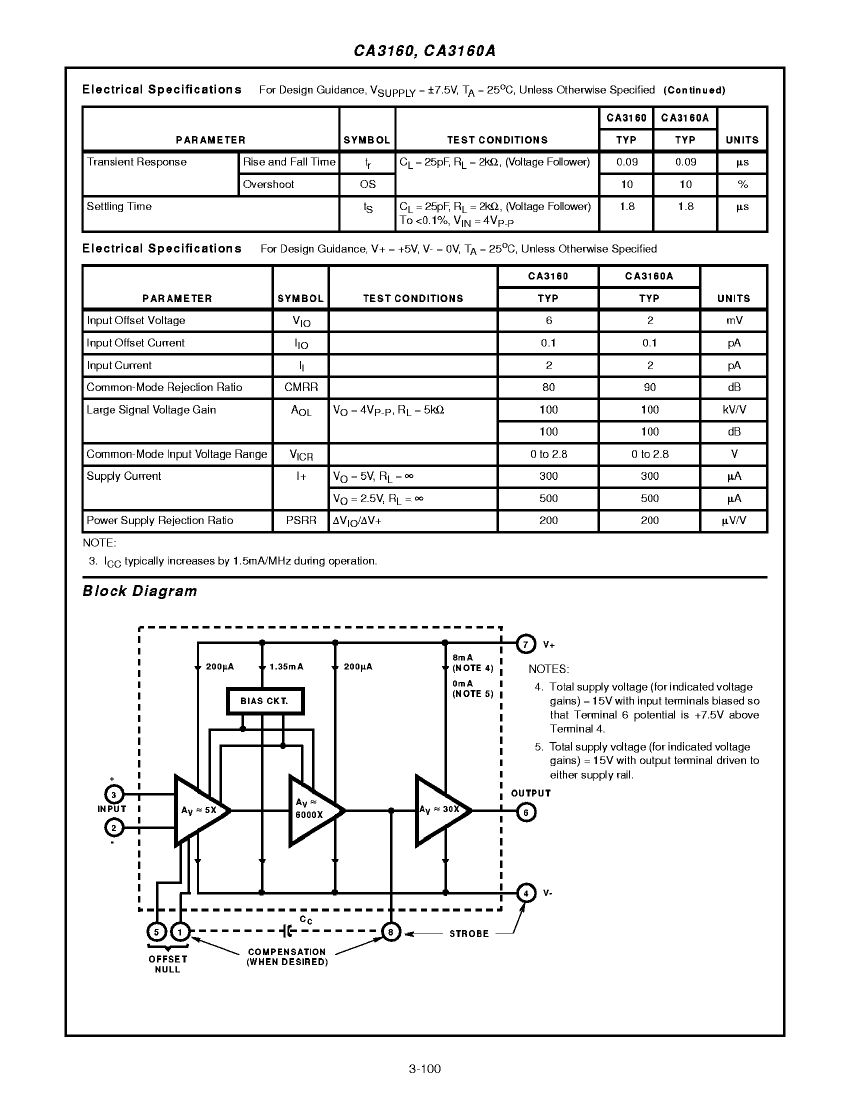

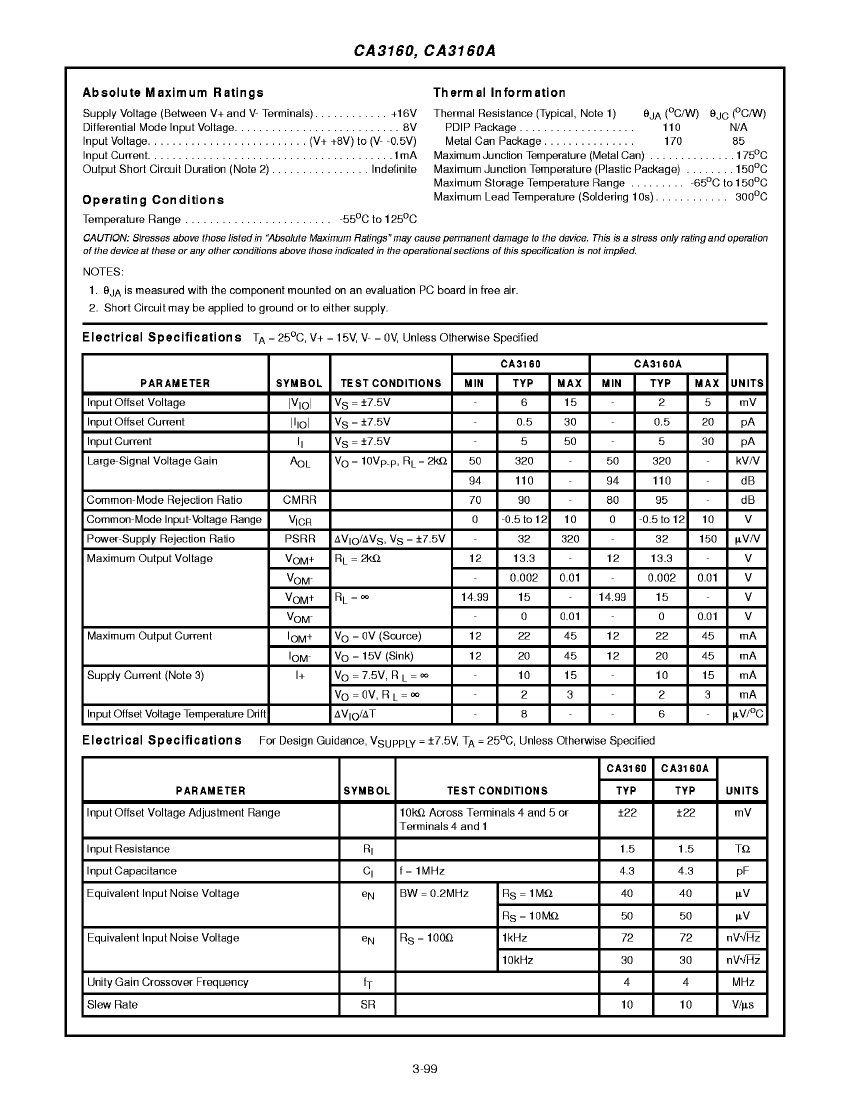

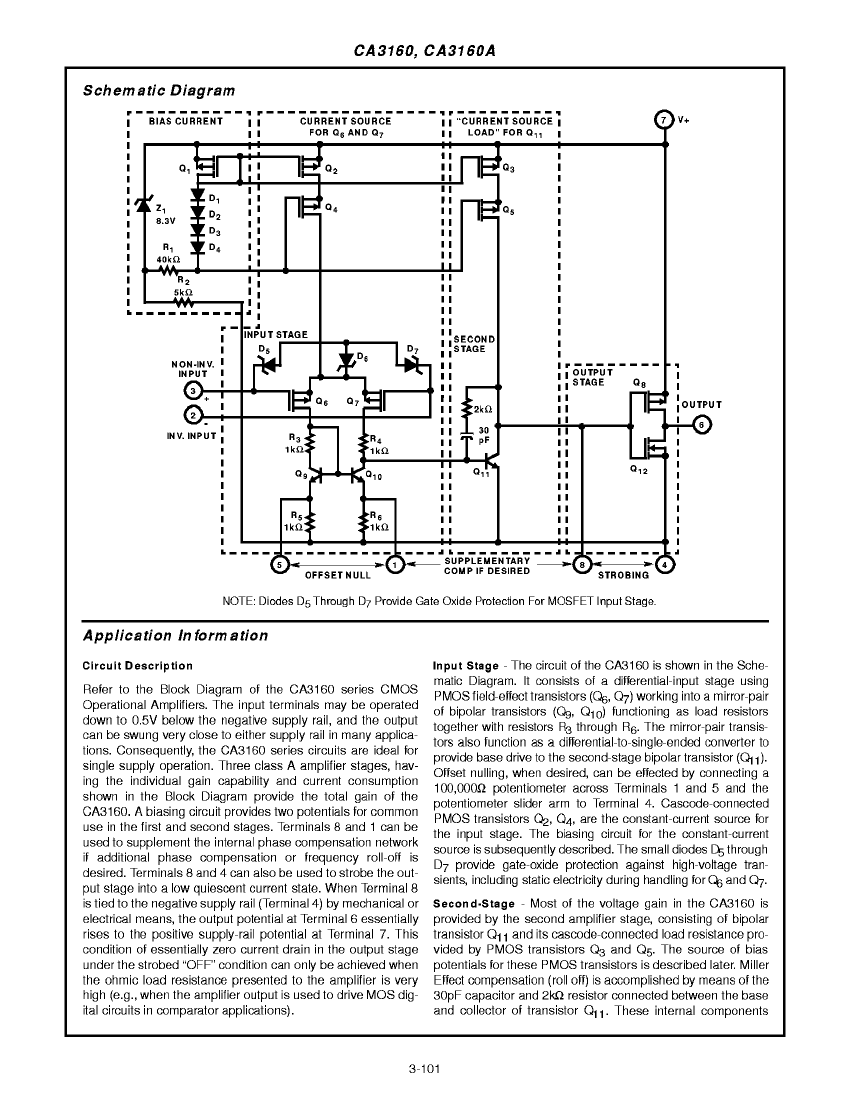

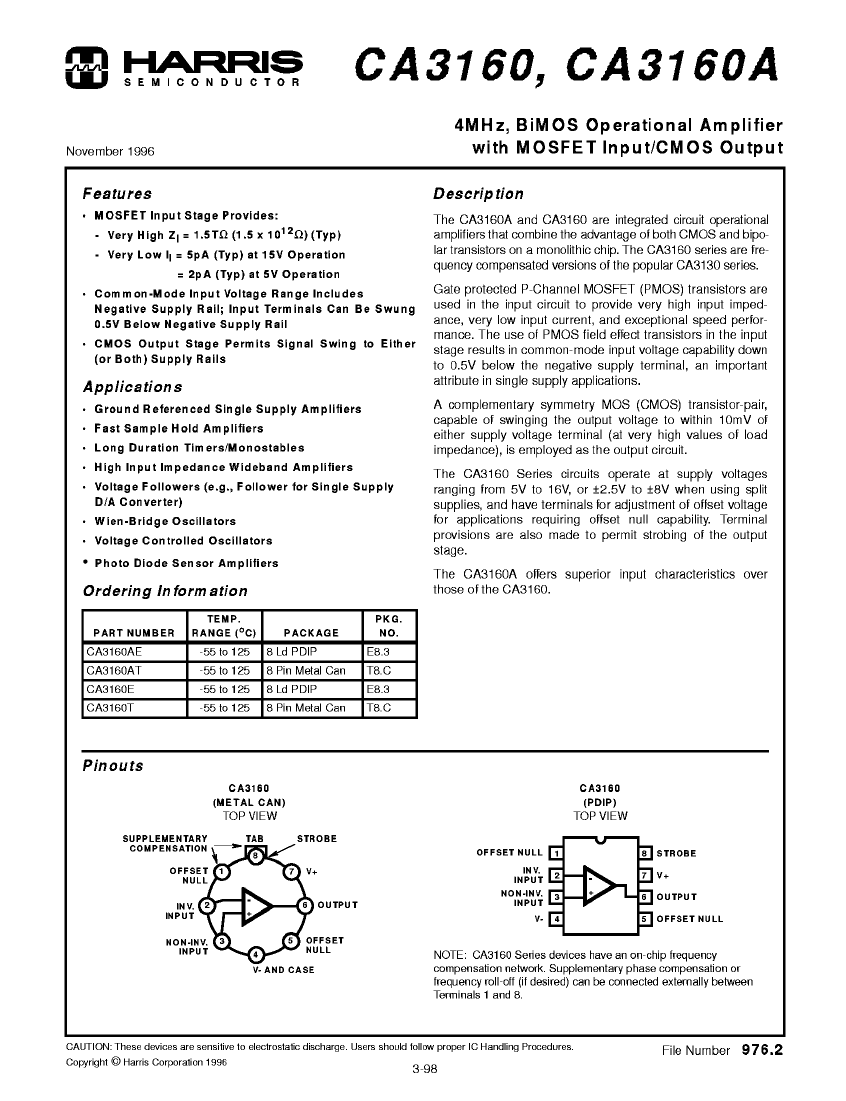

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

CA3160E Related Products

	CA3160E	CA3160AT	CA3160AT3	CA3160AE
Description	Operational Amplifier, 1 Func, 15000uV Offset-Max, BICMOS, PDIP8, PACKAGE-8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BICMOS, MBCY8, PACKAGE-8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIMOS, MBCY8, CAN-8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BICMOS, PDIP8, PACKAGE-8
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum input offset voltage	15000 µV	5000 µV	5000 µV	5000 µV
JESD-30 code	R-PDIP-T8	O-MBCY-W8	R-MBCY-W8	R-PDIP-T8
Nominal Negative Supply Voltage (Vsup)	-7.5 V	-7.5 V	-7.5 V	-7.5 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	METAL	METAL	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE
Nominal slew rate	10 V/us	10 V/us	10 V/us	10 V/us
Supply voltage upper limit	16 V	16 V	8 V	16 V
Nominal supply voltage (Vsup)	7.5 V	7.5 V	7.5 V	7.5 V
surface mount	NO	NO	NO	NO
technology	BICMOS	BICMOS	BIMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	BOTTOM	DUAL
Parts packaging code	DIP	BCY	-	DIP
Contacts	8	8	-	8
ECCN code	EAR99	EAR99	-	EAR99
Nominal Common Mode Rejection Ratio	90 dB	95 dB	-	95 dB
Nominal Uniform Gain Bandwidth	4000 kHz	4000 kHz	-	4000 kHz
Base Number Matches	1	1	1	-
