MAX4278ESA Overview

Basic information about the MAX4278ESA amplifier:

MAX4278ESA is a BUFFER. The commonly used packaging method is SOP,

MAX4278ESA amplifier core information:

The MAX4278ESA has a minimum operating temperature of -40 °C and a maximum operating temperature of 85 °C. Its peak reflow temperature is 240°C and its maximum average bias current is 5 µA

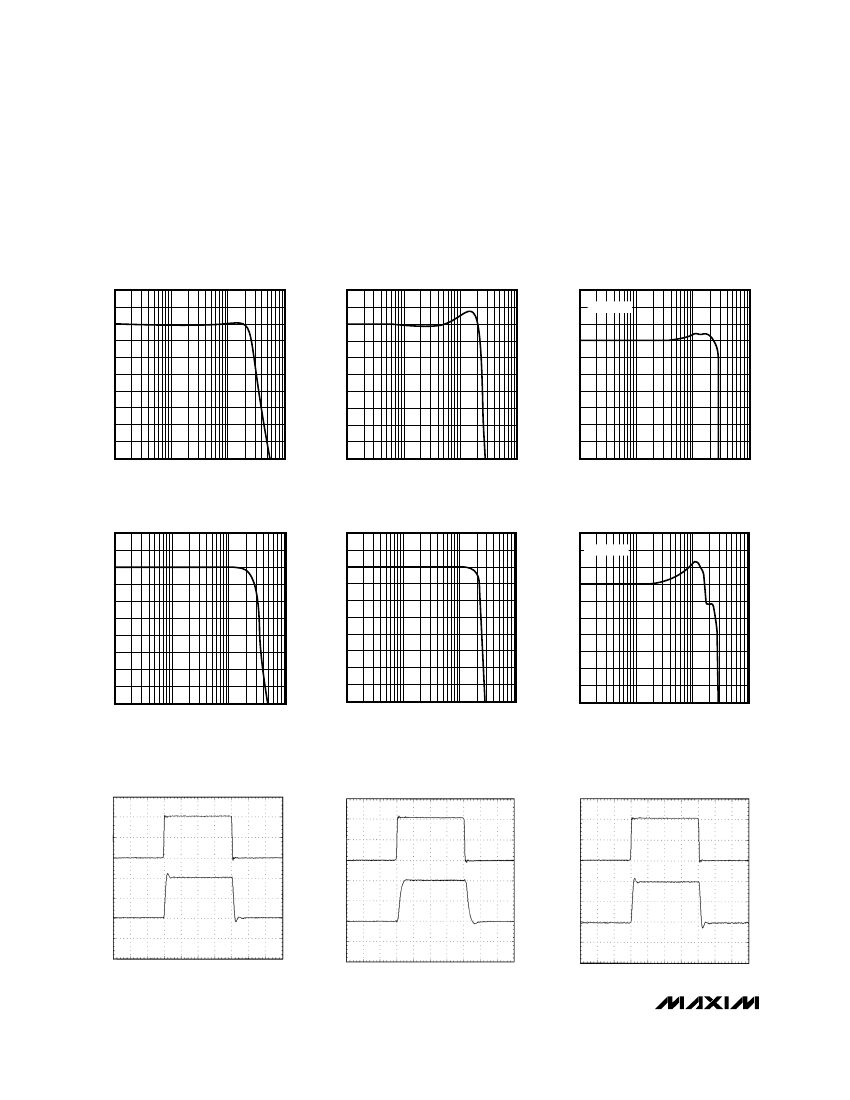

How to simply check the efficiency of an amplifier? Looking at its slew rate, the MAX4278ESA has a nominal slew rate of 1600 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the MAX4278ESA gain becomes 0.707 times the low-frequency gain is 310 MHz.

The MAX4278ESA's nominal supply voltage is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of the MAX4278ESA is 3000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the op amp output terminal 0V (or close to 0V).)

Related dimensions of MAX4278ESA:

The width of MAX4278ESA is: 3.9 mm and the length is 4.9 mm. MAX4278ESA has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8

Additional information about the MAX4278ESA amplifier:

Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. The MAX4278ESA is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-PDSO-G8.

The corresponding JESD-609 code is: e0. The package code of MAX4278ESA is: SOP. The materials of the MAX4278ESA package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The MAX4278ESA package pin formats are: SMALL OUTLINE.

Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.

MAX4278ESA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
Amplifier type	BUFFER
Maximum average bias current (IIB)	5 µA
Nominal bandwidth (3dB)	310 MHz
Maximum input offset voltage	3000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Negative supply voltage upper limit	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output current	0.1 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	COMMERCIAL
Maximum seat height	1.75 mm
Nominal slew rate	1600 V/us
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	3.9 mm
Base Number Matches	1
