RE45T1SR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> RE45T1SR2

RE45T1SR2: DescriptionOptical Position Encoder, ROTARY OPTICAL POSITION ENCODER; CategoryLED optoelectronic/LED photoelectric; File Size45KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric View All

RE45T1SR2 Overview

Optical Position Encoder, ROTARY OPTICAL POSITION ENCODER

RE45T1SR2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Optoelectronic device types	ROTARY POSITION ENCODER
Base Number Matches	1

Preview

Download Datasheet

View All

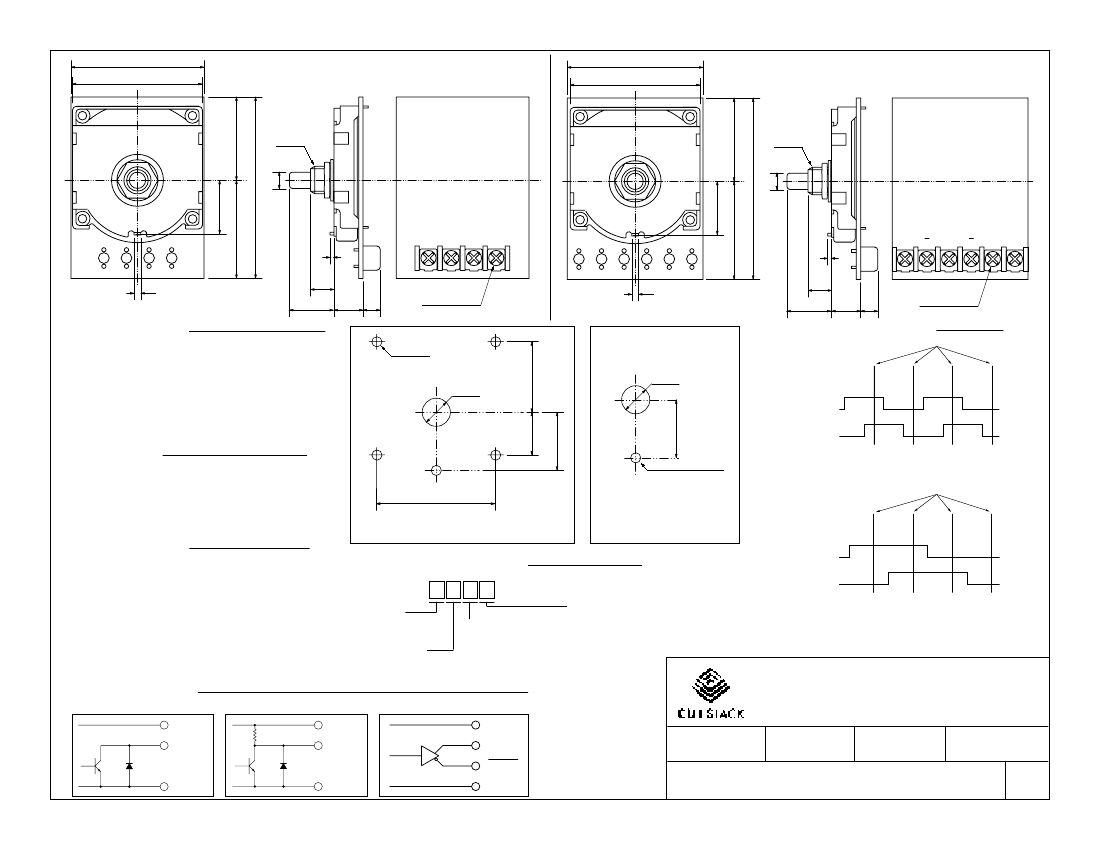

C U I Stack, Inc.,

1997

Type "D"

Type "C"/"R"

M9p75

Ø6

1.6

10.1

Ø6

1.6

4-M3 Screws

10.1

6-M3 Screws

SPECIFICATIONS

1. Supply Voltage: 5VDC ±10%

2. Current: 80mA max

3. Output Voltage: High = Vcc-.5V min.

Low = 0.5V max.

4. Resolution: 25 PPR per channel

5. Detent Stops: 100

5-Ø3.3

Ø9.2

OUTPUT WAVEFORM

Click Points

25PPR

Signal A

Ø9.2

MECHANICAL

1. Max Shaft Load, radial: 2 kgf

axial: 2 kgf

2. Click Torque: 160 - 320 gf•cm

3. Rotational Life: 1 x 10

cycles

38.8

Signal B

Ø3.3 Depth 1.8

Click Points

100PPR

WATERPROOF MOUNT

STANDARD MOUNT

Signal A

ENVIRONMENTAL

Operating Temp: -10° to +60° C

Storage Temp: -20° to +85° C

Humidity:

≤85%

RH, no condensation

Vibration: 10~55 Hz, 1.5 mm, 2 hrs

Shock: 50G, 11ms, 3 axes, 3 reps

ORDERING INFORMATION

RE45T

Resolution

1 = 100PPR

2 = 25PPR

Action:

C = Click

S = Soft Click

= No Click

Signal B

Input Voltage:

5 = 5VDC

2 =12/24VDC

OUTPUT CIRCUITS

"C" Open Collector

Vcc

2kΩ

Output Type:

M= CMOS

R = 2.2kΩ Pull-up

O = Open Collector

D = Diff Driver (RS-422A)*

*5VDC input only

"R" TTL Voltage

Vcc

Signal

"D" Differential Driver

Vcc

Signal

DRAWN BY

C U I Stack, Inc.

9615 SW Allen Blvd. #103

Beaverton, OR 97005

Tel: 503/643-4899 FAX: 503/643-6129

UPDATED

CHECKED

RELEASED

JAS

PART NO.

07/19/00

REV.

RE45TXXXXXX
