Wire Wound Chip Inductors
——O-Series
0603(1608)/5516
Features
1. Coil body of ceramic material.
2. Contact area of pure tin with a nickel barrier layer.
PAGE
1/3
3. Windings are created by laser-cutting of the copper layer and are –for protection – completely lacquer-coated.
4. Lead Free (RoHS Compliance)
Applications
Typical applications are resonant circuits or impedance matching for video cameras, mobile telephones and
antenna amplifiers etc
Ordering Information
5516
(1)
(1) Series
- 5516 : Size 0603(1608) Laser trimmed.
270
(2)
*
(3)
*
(4)
51
(4) Delivery Form
4 : coated, taped on 8 mm cardboard tape
packing unit reels
Φ180mm,
10.000 pcs.
(2) Inductance Value
example: 27x10
X
=27x10
0
=27(nH)
(3) Inductance Tolerance
8 : ±0.2 nH
9 : ±0.3 nH
3 : ±5%
4 : ±2%
Shape and Dimensions (mm)
Pad Layout Recommendation
a
0,8…1,0
b
2,0…2,6
c
0,7…0,9
Dimensions [mm]
*All specifications are subject to change without notice.
Wire Wound Chip Inductors
——O-Series
0603(1608)/5516
Electrical Parameters
L
[nH]
1
,0
Qtyp
@800MHz
60
f
L,Q
[MHz]
100
f
res,min
[MHz]
16000
D.C.R. max.
[mΩ ]
20
I
N,max
[mA]
1800
Tol.
[%]
PAGE
2/3
Order No.
5516 010
** 51
Q
min
7
5516 012 ** 51
5516 015 ** 51
5516 018 ** 51
5516 022 ** 51
5516 027 ** 51
5516 033 ** 51
5516 039 ** 51
5516 047 ** 51
5516 056 ** 51
5516 068 ** 51
5516 082 ** 51
5516 100 ** 51
5516 120 ** 51
5516 150 ** 51
5516 180 ** 51
5516 220 ** 51
5516 270 ** 51
5516 330 ** 51
5516 390 ** 51
5516 470 ** 51
5516 560 ** 51
5516 680 ** 51
5516 820 ** 51
5516 101 ** 51
5516 121 ** 51
5516 151 ** 51
5516 181 ** 51
5516 221 * *51
1,2
1,5
1,8
2,2
2,7
3,3
3,9
4,7
5,6
6,8
8,2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
8
8
12
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
5
5
4
4
60
50
50
50
40
40
40
40
40
40
40
40
40
40
40
40
35
35
35
35
35
35
35
30
30
30
25
25
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
25,2
25,2
25,2
25,2
15000
13000
12000
10000
10000
9000
8000
7000
6000
6000
6000
5000
5000
4500
4000
4000
3000
3000
2000
2500
2500
2000
2000
1800
1800
1600
1400
1300
25
30
33
35
40
60
65
100
150
150
180
200
350
400
450
500
550
600
800
950
1200
1300
1500
1800
3000
5000
6000
7000
1800
1500
1500
1500
1400
1200
1100
800
700
700
650
600
450
420
400
360
350
300
270
250
230
220
200
160
130
120
110
110
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/ 5 %
±0,2
/ 5 %
±0,2
/ 5 %
±0,2
/ 5 %
±0,2
/ 5 %
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
All values on ceramic core.
*All specifications are subject to change without notice.
Wire Wound Chip Inductors
——O-Series
0603(1608)/5516

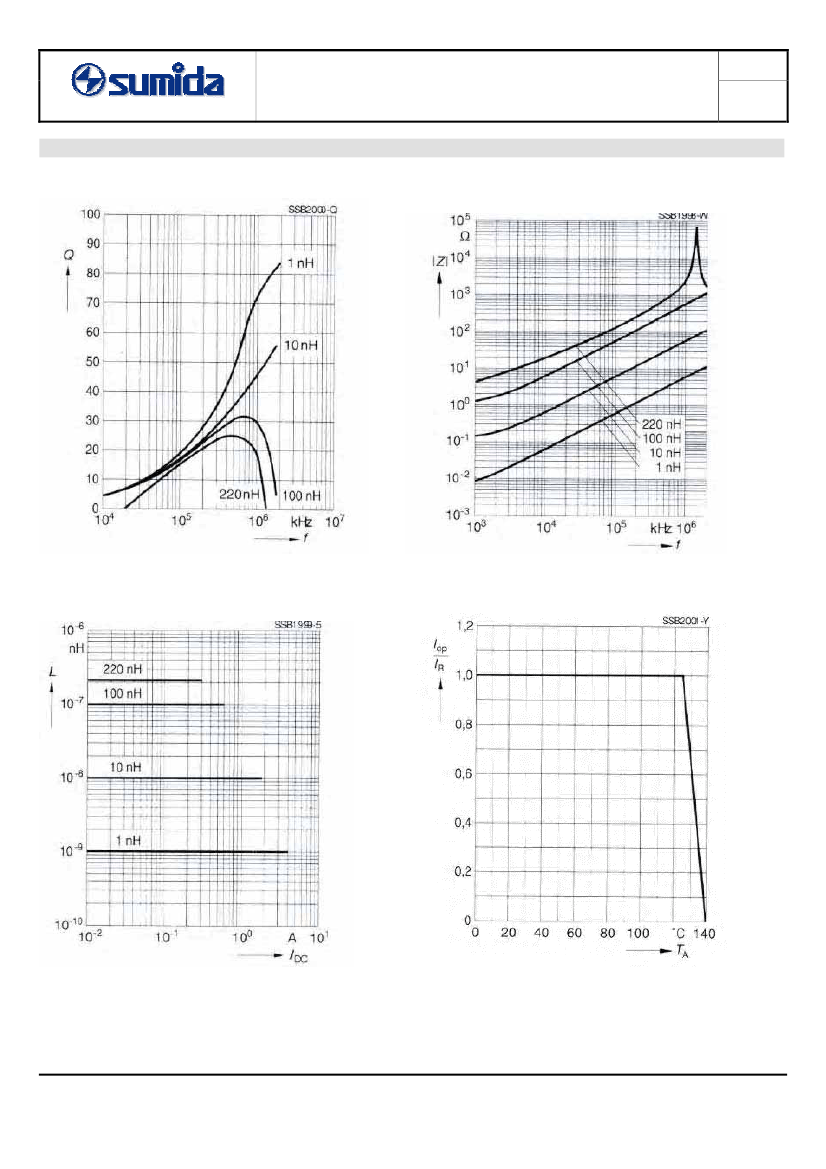

Electrical Characteristic Curves
Q factor versus frequency
Impedance |Z| versus frequency
PAGE
3/3
Inductance L versus DC Current
I
op
/I
R
versus ambient temperature
Climatic category acc. to DIN IEC 68-1:55/125/56
Test equipment : Inductance and Q: Agilent 4291A+16096A.
Resonant Frequency : Agilent 8720.
D.C.R. : Burst Resistomat 2329.(at20℃)
*All specifications are subject to change without notice.
