302AI01L: Description8302 SERIES, LOW SKEW CLOCK DRIVER, 1 TRUE OUTPUT(S), 1 INVERTED OUTPUT(S), PDSO8; Categorysemiconductor logic; File Size114KB，8 Pages; ManufacturerICS ( IDT ); Websitehttp://www.icst.com

Download Datasheet Parametric Compare View All

302AI01L Overview

8302 SERIES, LOW SKEW CLOCK DRIVER, 1 TRUE OUTPUT(S), 1 INVERTED OUTPUT(S), PDSO8

302AI01L Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	3.46 V
Minimum supply/operating voltage	3.14 V
Rated supply voltage	3.3 V
Processing package description	3.80 X 4.80 MM, 1.47 MM HEIGHT, ROHS COMPLIANT, MS-012, SOIC-8
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	MATTE TIN
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
series	8302
Enter conditions	STANDARD
Logic IC type	LOW SKEW CLOCK DRIVER
Number of inverted outputs	1
Real output number	1
propagation delay TPD	2.9 ns
Maximum same-side bending	0.2500 ns

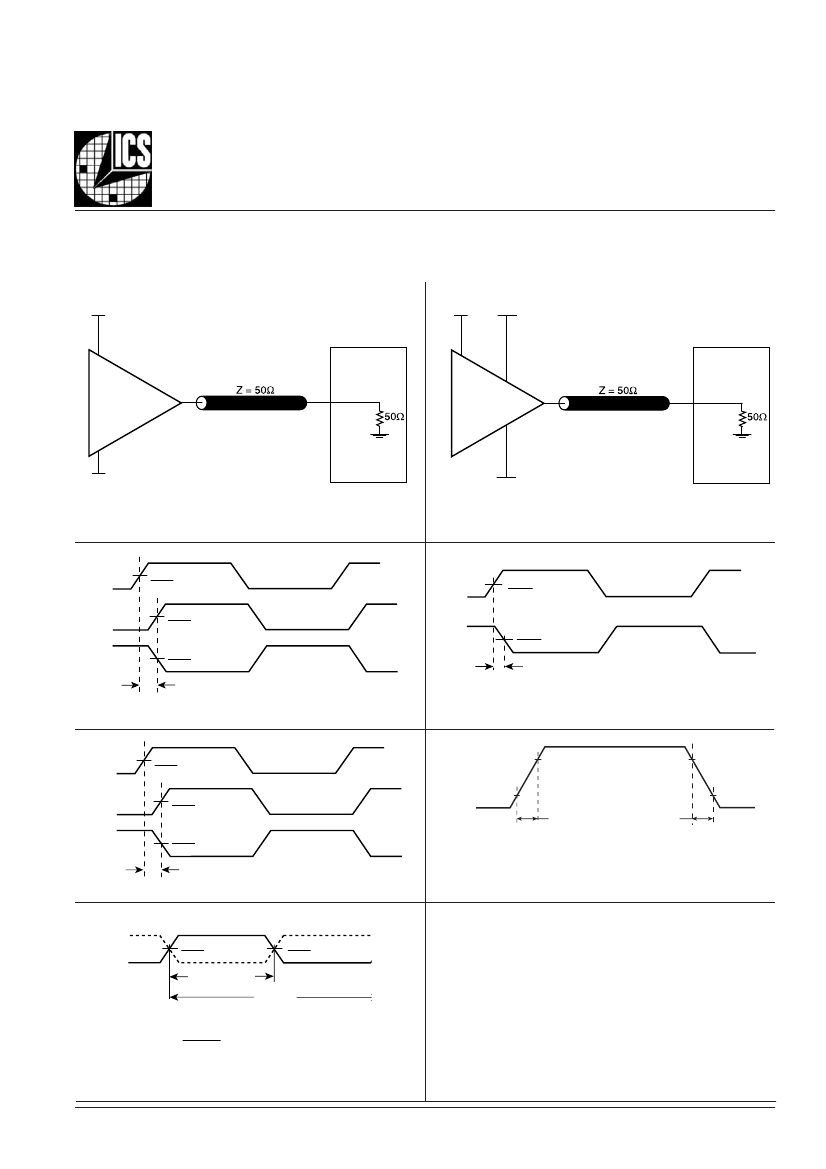

Preview

Download Datasheet

View All

Integrated

Circuit

Systems, Inc.

ICS8302I-01

KEW

, 1-

-2 LVCMOS / LVTTL

ANOUT

UFFER W

/ C

OMPLEMENTARY

UTPUT

EATURES

• Complementary LVCMOS / LVTTL output

• LVCMOS / LVTTL clock input accepts LVCMOS

or LVTTL input levels

• Maximum output frequency: 250MHz

• Output skew: 165ps (maximum)

• Part-to-part skew: 800ps (maximum)

• Small 8 lead SOIC package saves board space

• Full 3.3V or 3.3V core/2.5V output supply modes

• -40°C to 85°C ambient operating temperature

• Available in both standard and lead-free compliant

packages

ENERAL

ESCRIPTION

T h e I C S 8 3 0 2I-01 i s a l ow s kew, 1 - t o - 2

LVCMOS/LVTTL Fanout Buffer w/Complemen-

HiPerClockS™

tary Output a n d a m e m b e r o f t h e

HiPerClock S ™family of High Performance

Clock Solutions from ICS. The ICS8302I-01

has a single ended clock input. The single ended clock

input accepts LVCMOS or LVTTL input levels. T h e

ICS8302I-01 is characterized at full 3.3V for input V

and mixed 3.3V and 2.5V for output operating supply

modes (V

DDO

). Guaranteed output and part-to-part skew

characteristics make the ICS8302I-01 ideal for clock

distribution applications demanding well defined

performance and repeatability.

LOCK

IAGRAM

CLK

SSIGNMENT

DDO

CLK

GND

DDO

ICS8302I-01

8-Lead SOIC

3.8mm x 4.8mm, x 1.47mm package body

M Package

Top View

8302AMI-01

www.icst.com/products/hiperclocks.html

REV. A NOVEMBER 2, 2005
