FTS-138-02-L-DV-S datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTS-138-02-L-DV-S

FTS-138-02-L-DV-S: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size770KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FTS-138-02-L-DV-S Overview

Board Connector, 76 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

FTS-138-02-L-DV-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FTS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	76
Base Number Matches	1

Preview

Download Datasheet

View All

F-212-1

FTS–110–02–F–DV

FTS–111–02–L–DV–SA

FTS–122–01–F–DV

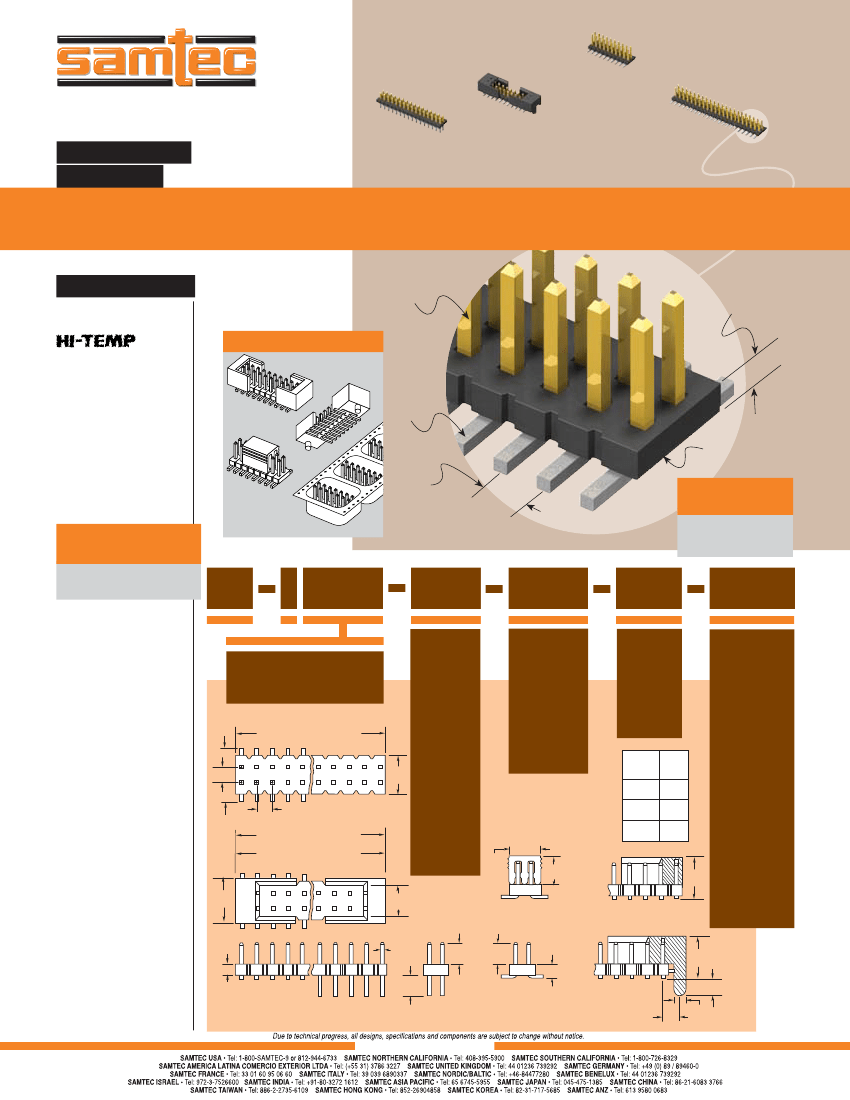

(1,27 mm) .050"

FTS SERIES

FTS–116–02–L–D

MICRO LOW PROFILE TERMINAL STRIPS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?FTS

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Current Rating:

1.75A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Plating:

Sn or Au over 50µ"

(1,27 µm) Ni

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

.004" (0,10 mm) max

Mates with:

FFSD, CLP, FLE,

SFMC (LIF)

Mates with

socket strips

or IDC cable

Low proﬁle

(1,27 mm) .050"

OPTIONS

–S OPTION

–SA OPTION

Surface

mount

or through

hole

–P OPTION

Shrouded and

alignment pin

options available

Micro pitch

.050" x .050"

(1,27 mm x 1,27 mm)

–TR OPTION

ALSO

AVAILABLE

Impedance matched for

high speed applications

Single row

(Mates to CLP Series).

Call Samtec.

APPLICATION

SPECIFIC OPTION

Alignment Pin.

Call Samtec.

FTS

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

–01

02 thru 50

(except –S & –SA

option = 05 thru 46)

= .120"

(3,05 mm)

Post

(Mates with

FFSD)

–F

= Gold ﬂash

on post,

Matte Tin

on tail

–DV

= Double

Vertical SMT

–SA

= End Shroud with

Alignment Pin

(05 thru 46

positions. Style

-02 & -03 only)

–D

= Double

Row

Through-hole

LEAD

STYLE

– 01

No. of positions x .050 (1,27)

–02

(3,42)

.135

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin

on tail

–S

= End Shroud

(05 thru 46

positions. Style

-02 & -03 only)

(1,27)

.050

= .075"

(1,91 mm)

Post

(Mates with

FLE)

(3,05)

.120

(1,91)

.075

(1,65)

.065

–P

= Pick &

Place Pad

(05 positions

minimum)

(1,27) .050

–03

= .065"

(1,65 mm)

Post

(Mates with

CLP)

(3,30)

.130

(5,08)

.200

– 02

– 03

(5,84)

.230

No of positions x .050 (1,27)

+ .325 (8,25) = –SA

No of positions x .050 (1,27)

+ .200 (5,08) = – S

(4,06)

.160

–TR

(3,56)

.140

(4,70)

.185

(3,48)

.137

–P OPTION

–S OPTION

= Tape & Reel

(-DV only)

(Required callout

for positions

2 thru 4)

(0,86)

.034

(0,41)

.016

(1,27)

.050

(3,56)

.140

(2,29)

.090

–SA OPTION

(1,59)

.0625

(1,40)

.055

(1,27)

.050

DIA

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(Shrouded options removed for clarity)

WWW.SAMTEC.COM
