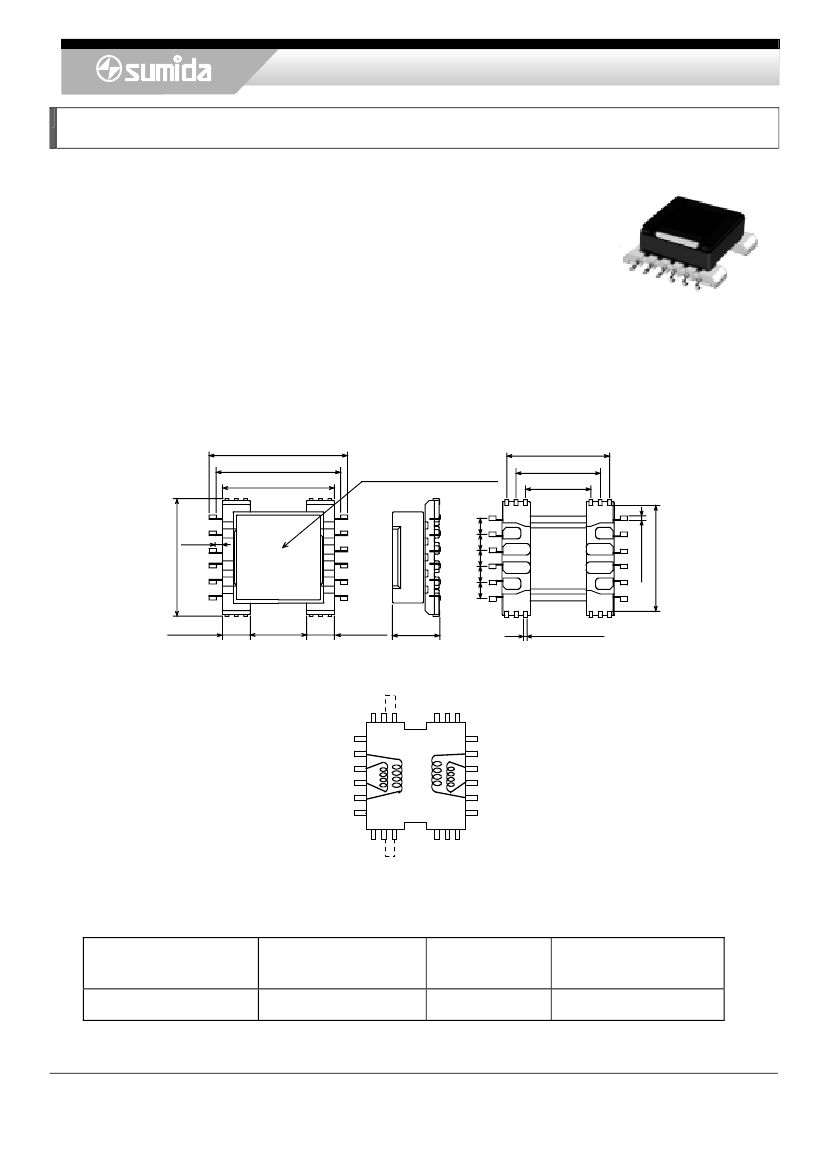

General Power Transformer<SMD Type: CEPH Series>
Type: CEPH199
◆
Product Description
・18.6×17.6mm
Max.(L×W), 10.8mm Max. Height.
・Custom
design is available.
◆
Feature
・Max.
Operating frequency 500kHz,Max. Operating Power 11.0W (500kHz),
7.5W(300kHz), 3.2W(100kHz).
・Ideally
used in Portable equipment.
・RoHS
Compliance.
◆
Dimensions (mm)
29.6±0.3
26.6±0.2
24.0±0.2
1.5
MAX.
TAPE 0.125mm
22.0±0.2
18.0±0.2
14.0±0.2
26.0±0.3
6.0±0.2
12.0±0.2
6.0±0.2 10.2 MAX.
0.8±0.07
◆
Schematics (Bottom)
12 11 10
987
(12)
S(11)
S(10)
(3)
(2)
(1)
12 3
45 6
(7)
(8)S
(9)S
(4)
(5)
(6)
“Ｓ”indicates
winding start.
◆
Specification
Sample No.
5381–T078
Inductance(2-11)
(1kHz/1.0V)
15μＨ±25% within
D.C.R.
(2-11)
200mΩ Max.
Hi-pot (2,3,10,11-4,5,8,9)
(50/60Hz)
AC4400Vrms/1min.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1.0±0.2
23.0±0.3
3.5±0.15
1/1
