PC4SD11NTZ Series
PC4SD11NTZ
Series
∗
V
DRM
: 800V
Non-zero cross type
DIP 6pin
Phototriac Coupler for triggering
Zero cross type is also available.
(PC4SD21NTZ
Series)
■
Description
PC4SD11NTZ Series
Phototriac Coupler include an
infrared emitting diode (IRED) optically coupled to an
output Phototriac.
These devices feature full wave control and are
ideal isolated drivers for medium to high current Triacs.
DIP package provides 5.0kV isolation from input to
output with superior commutative noise immunity.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
4SD11)
2. Approved by CSA, file No. CA95323 (as model No.
4SD11)
3. Optionary available VDE Approved
(
∗
)
(DIN EN 60747-
5-2), file No. 40008189 (as model No.
4SD11)
4. Package resin : UL flammability grade (94V-0)
(∗)
■
Features
1. High repetitive peak off-state voltage (V
DRM
: 800V)
2. Non-zero crossing functionality
3. I
FT
ranks available (see Model Line-up section in this
datasheet)
4. 6 pin DIP package
5.
Double transfer mold construction (Ideal for Flow
Soldering)
6.
High isolation voltage between input and output
(V
iso
(rms) : 5.0kV)
DIN EN60747-5-2 : succesor standard of DIN VDE0884.
Up to Date code "RD" (December 2003), approval of DIN
VDE0884.
From Date code "S1" (January 2004), approval of DIN
EN60747-5-2.
(∗∗)
Reinforced insulation type is also available.
(PC4SF11YVZ
Series)
■
Applications
1. Triggering for Triacs used to switch on and off
devices which require AC Loads.
For example heaters, fans, motors, solenoids, and
valves.
2. Triggering for Triacs used for implementing phase
control in applications such as lighting control and
temperature control (HVAC).
3. AC line control in power supply applications.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A07801FEN
Date Mar. 31. 2004
© SHARP Corporation
PC4SD11NTZ Series
■
Internal Connection Diagram
1
2
3
6
5
4
1
2
3
4
5
6
Anode
Cathode
NC
Anode/Cathode
No external connection
Cathode/Anode
■

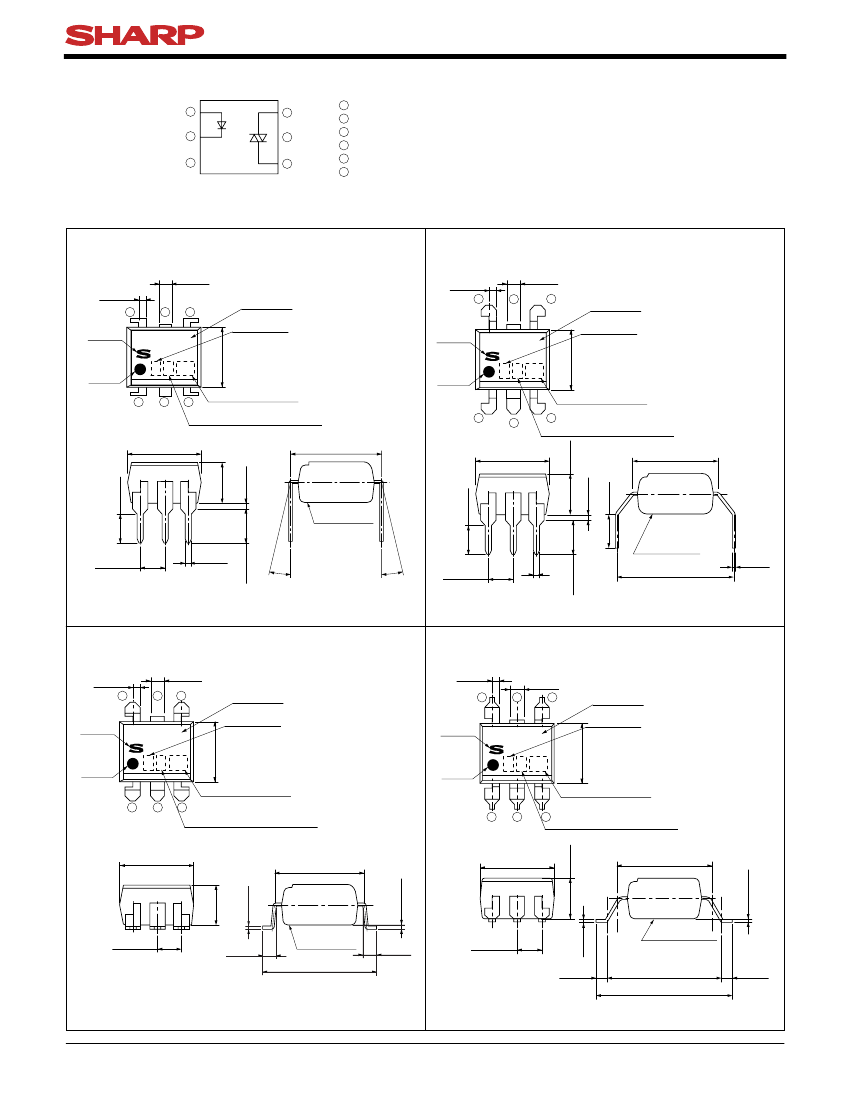

Outline Dimensions
1. Through-Hole [ex.
PC4SD11NTZ]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
Anode
mark
1
2
3
6
5
4
(Unit : mm)
2. Wide Through-Hole Lead-Form [ex.
PC4SD11NVZ]
0.6
±0.2
Model No.
6
5
1.2
±0.3
4
Rank mark
4SD11
6.5
±0.5
SHARP
mark
"S"
Anode
mark
Model No.
Rank mark
4SD11
6.5
±0.5
Date code (2 digit)
1
2
3
Date code (2 digit)
Factory identification mark
Factory identification mark
3.5
±0.5
7.62
0.5
TYP.
2.7
MIN.
±0.3
7.12
±0.5
7.62
±0.3
0.5
TYP.
3.5
±0.5
7.12
±0.5
2.9
±0.5
Epoxy resin
0.5
±0.1
3.25
±0.5
2.9
±0.5
Epoxy resin
3.25
±0.5
θ
θ
: 0 to 13˚
θ
2.54
±0.25
2.54
±0.25
10.16
±0.5
0.26
±0.1
0.5
±0.1
Product mass : approx. 0.35g
3. SMT Gullwing Lead-Form [ex.
PC4SD11NXP]
0.6
±0.2
6
5
Product mass : approx. 0.35g
4. Wide SMT Gullwing Lead-Form [ex.
PC4SD11NWP]
0.6
±0.2
1.2
±0.3
5
4
1.2
±0.3
4
SHARP
mark
"S"
Anode
mark
Model No.
Rank mark
SHARP
mark
"S"
Anode
mark
6
Model No.
Rank mark
4SD11
6.5
±0.5
4SD11
6.5
±0.5
1
2
3
Date code (2 digit)
1
2
3
Date code (2 digit)
Factory identification mark
3.5
±0.5
7.62
±0.3
0.25
±0.25
±0.1
Factory identification mark
7.12
±0.5
7.62
±0.3
0.26
±0.1
3.5
±0.5
0.35
±0.25
7.12
±0.5
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
0.26
2.54
±0.25
2.54
±0.25
Epoxy resin
10.16
±0.5
12.0
MAX.
0.75
±0.25
0.75
±0.25
Product mass : approx. 0.33g
Product mass : approx. 0.34g
Sheet No.: D2-A07801FEN
2
PC4SD11NTZ Series
■

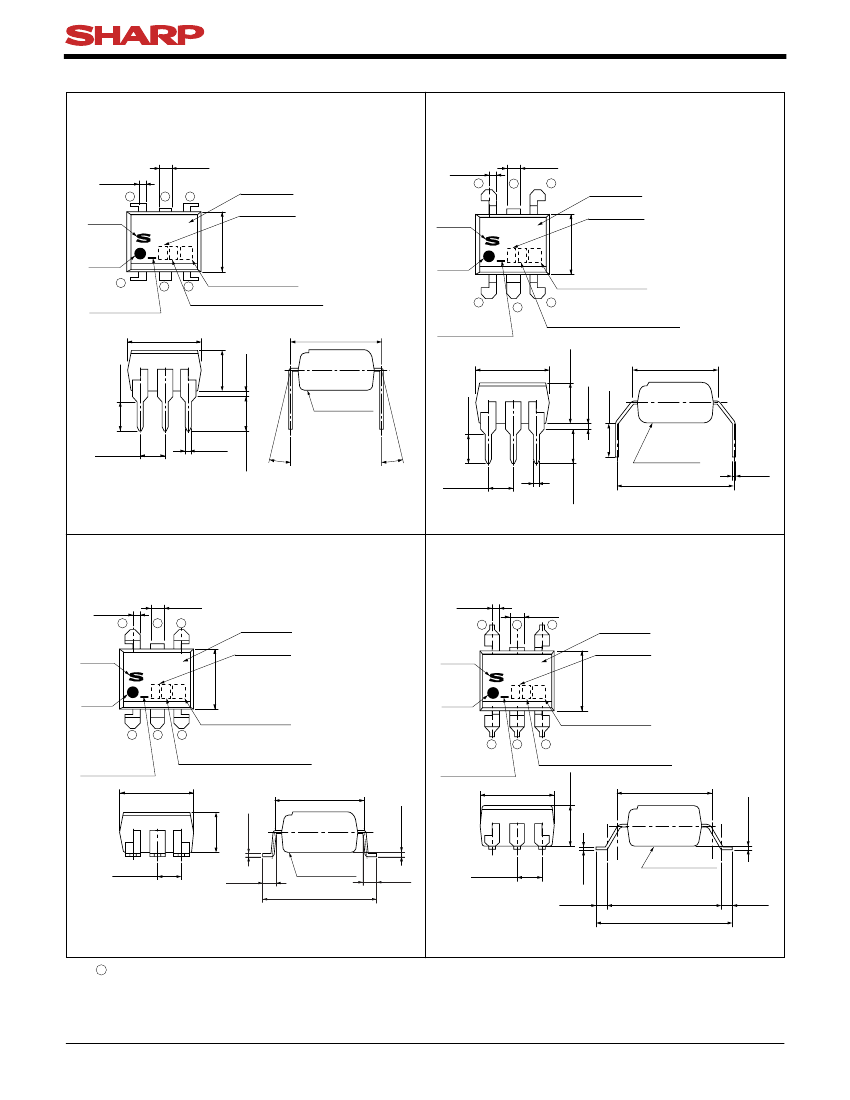

Outline Dimensions
5. Through-Hole VDE option [ex.
PC4SD11YTZ]
1.2
±0.3
0.6
±0.2
(Unit : mm)
6. Wide Through-Hole Lead-Form VDE option
[ex.
PC4SD11YVZ]
0.6
±0.2
Model No.
6
5
1.2
±0.3
4
SHARP
mark
"S"
Anode
mark
1
6
5
4
Rank mark
4SD11
SHARP
mark
"S"
Anode
mark
Model No.
Rank mark
4SD11
4
2
3
6.5
±0.5
4
1
2
3
Date code (2 digit)
Factory identification mark
VDE
identification mark
7.12
±0.5
7.62
0.5
TYP.
3.5
±0.5
±0.3
VDE
identification mark
7.12
±0.5
Factory identification mark
3.5
±0.5
6.5
±0.5
Date code (2 digit)
2.9
±0.5
7.62
0.5
TYP.
2.7
MIN.
±0.3
Epoxy resin
0.5
±0.1
3.25
±0.5
2.54
±0.25
θ
θ
: 0 to 13˚
θ
3.25
±0.5
2.54
±0.25
±0.1
2.9
±0.5
Epoxy resin
10.16
±0.5
0.26
±0.1
0.5
Product mass : approx. 0.35g
7. SMT Gullwing Lead-Form VDE option
[ex.
PC4SD11YXP]
0.6
±0.2
6
5
Product mass : approx. 0.35g
8. Wide SMT Gullwing Lead-Form VDE option
[ex.
PC4SD11YWP]
0.6
±0.2
1.2
±0.3
5
4
1.2
±0.3
4
SHARP
mark
"S"
Anode
mark
Model No.
Rank mark
6
4SD11
6.5
±0.5
SHARP
mark
"S"
Anode
mark
Model No.
Rank mark
4SD11
6.5
4
1
2
3
4
Date code (2 digit)
1
2
3
Date code (2 digit)
7.12
±0.5
3.5
±0.5
VDE
identification mark
Factory identification mark
7.62
±0.3
0.26
±0.1
3.5
±0.5
0.35
±0.25
VDE
identification mark
7.12
±0.5
Factory identification mark
7.62
±0.3
0.25
±0.25
±0.1
±0.5
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
0.26
2.54
±0.25
2.54
±0.25
Epoxy resin
10.16
±0.5
12.0
MAX.
0.75
±0.25
0.75
±0.25
Product mass : approx. 0.33g
∗Pin
5
Product mass : approx. 0.34g
is not allowed external connection
Sheet No.: D2-A07801FEN
3
PC4SD11NTZ Series
■
Absolute Maximum Ratings
(T
a
=25˚C)
Parameter
Symbol
Rating
Unit
I
F
50
mA
Forward current
Input
V
R
6
V
Reverse voltage
I
T
(rms)
0.1
A
RMS ON-state current
*3
Output
Peak one cycle surge current
I
surge
1.2
A
800
V
Repetitive peak OFF-state voltage V
DRM
*1
V
iso
(rms)
5.0
kV
Isolation voltage
T
opr
−30
to
+100
˚C
Operating temperature
T
stg
−55
to
+125
˚C
Storage temperature
*2
T
sol
270
*4
˚C
Soldering temperature
*1 40 to 60%RH, AC for 1minute, f=60Hz
*2 For 10s
*3 f=50Hz sine wave
*4 Lead solder plating models: 260˚C
Soldering area
■
Electro-optical Characteristics
Parameter
Forward voltage
Input
Reverse current
Repentitive peak OFF-state current
ON-state voltage
Output
Holding current
Critical rate of rise of OFF-state voltage
Rank B
Transfer Minimum trigger current
Rank C
charac-
teristics Isolation resistance
Turn-on time
Symbol
V
F
I
R
I
DRM
V
T
I
H
dV/dt
I
FT
R
ISO
t
on
Conditions
I
F
=20mA
V
R
=3V
V
D
=V
DRM
I
T
=0.1A
V
D
=6V
−
V
D
=1/√
2
·V
DRM
V
D
=6V,
R
L
=100Ω
DC500V,40 to 60%RH
V
D
=6V,
R
L
=100Ω,
I
F
=20mA
MIN. TYP.
1.2
−
−
−
−
−
−
−
−
0.1
−
50
−
−
−
−
5×10
10
10
11
−
−
1mm
(T
a
=25˚C)
MAX.
1.4
10
3
2.5
3.5
−
7
5
−
100
Unit
V
µA
µA
V
mA
V/µs
mA
Ω
µs
Sheet No.: D2-A07801FEN
5
