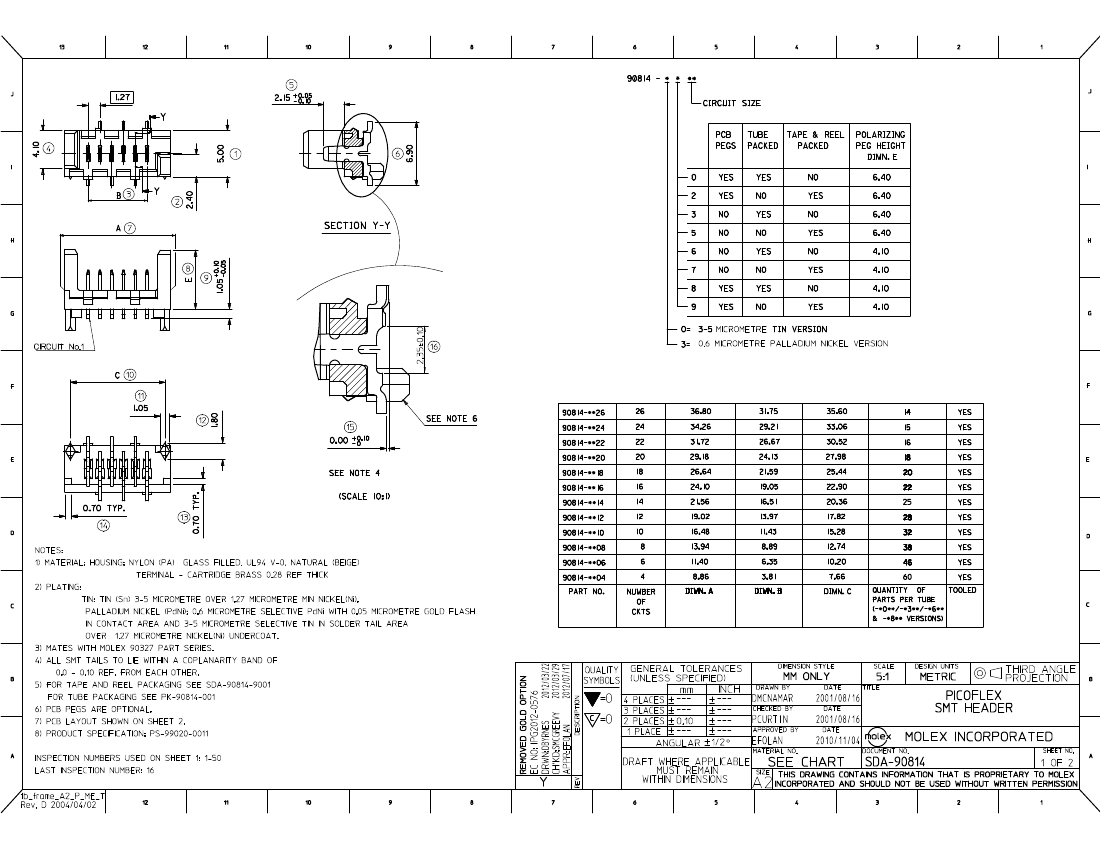

0908143318 Overview

Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking

Parameter Name	Attribute value
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.197 inch
subject depth	0.293 inch
body length	1.049 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Dielectric withstand voltage	750VAC V
Durability	100 Cycles
maximum insertion force	1.5012 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	90814
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

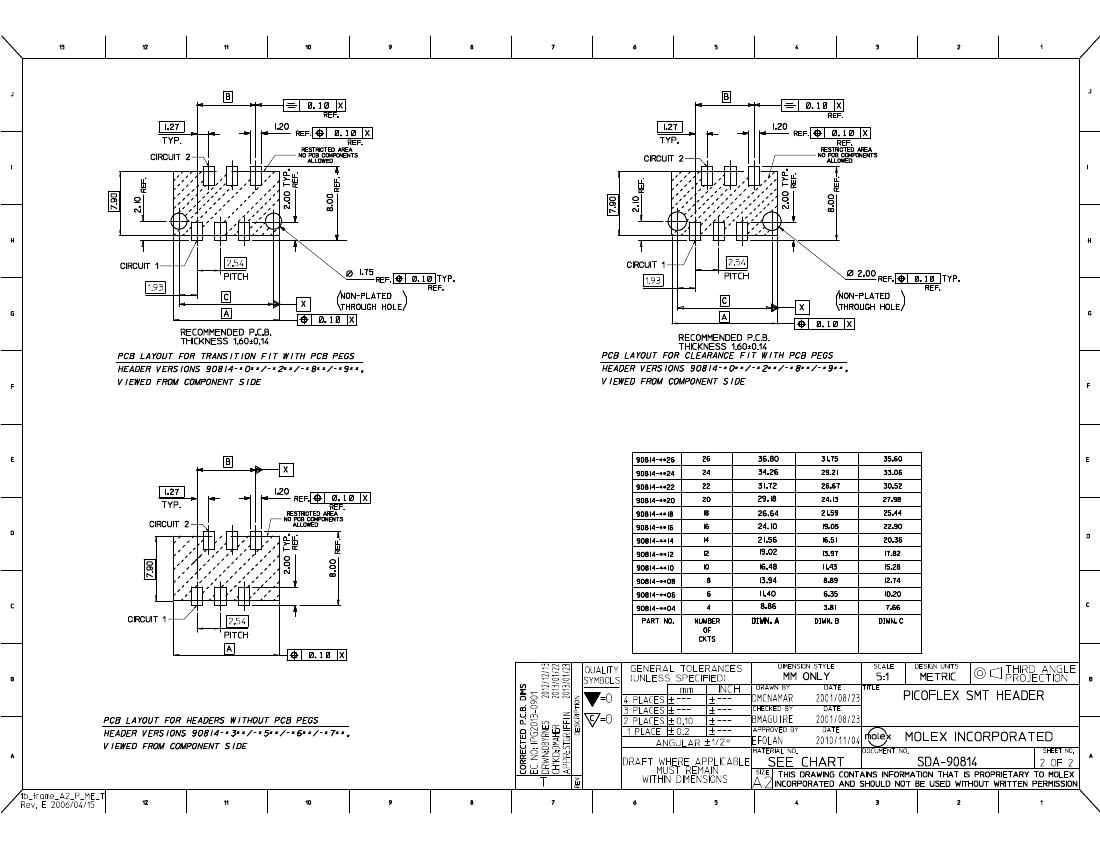

PCB contact pattern	STAGGERED
Plating thickness	24u inch
polarization key	POLARIZING PEG
Rated current (signal)	2.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
Evacuation force-minimum value	.2502 N
Base Number Matches	1
