C10138 Overview

ADSL Transformer< SMD Type: CEP Series>

C10138 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 0.408:1
high	10.5 mm
length	9.8 mm
Manufacturer's serial number	CEP
Installation features	SURFACE MOUNT
physical size	L9.8XB9.0XH10.5 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

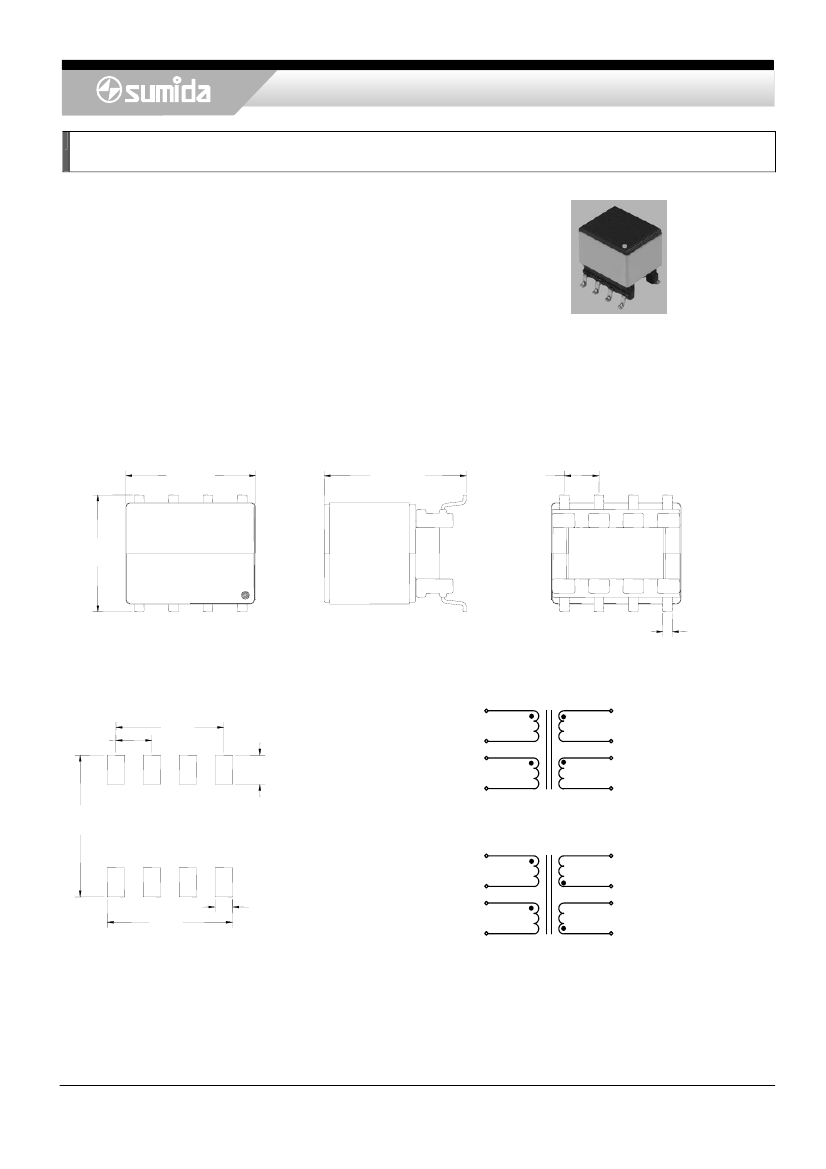

ADSL Transformer< SMD Type: CEP Series>

Type: CEP810

◆

Product Description

・9.8×9.0mm

Max.(L×W),10.5mm Max. Height.

◆

Feature

・xDSL

line transformer.

・Ideally

used in ADSL/VDSL Central Office.

・Approved

by Broadcom,Conexant and Infineon.

・RoHS

Compliance.

◆

Dimensions (mm)

9.8 MAX

[.386]

10.5 MAX

[.413]

6x2.5

[.098]

5

8

5

sumida

9.0 MAX

[.354]

Part Number

Country of Origin

Date Code

4

1

4

8x0.7

[.028]

◆

Land Pattern (mm)

7.5

[.295]

2.1

[.083]

10.2

[.402]

◆Schematics(Bottom)

1

Line

8

5

7

Chip

(A)

6

2.5

[.098]

3

2

4

1

1.2

[.047]

8

5

7

Chip

6

(B)

Line

3

4

8.7

[.343]

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
