2.54mm Pitch Bottom Entry Type Connector
MDF7 Series
sFeatures

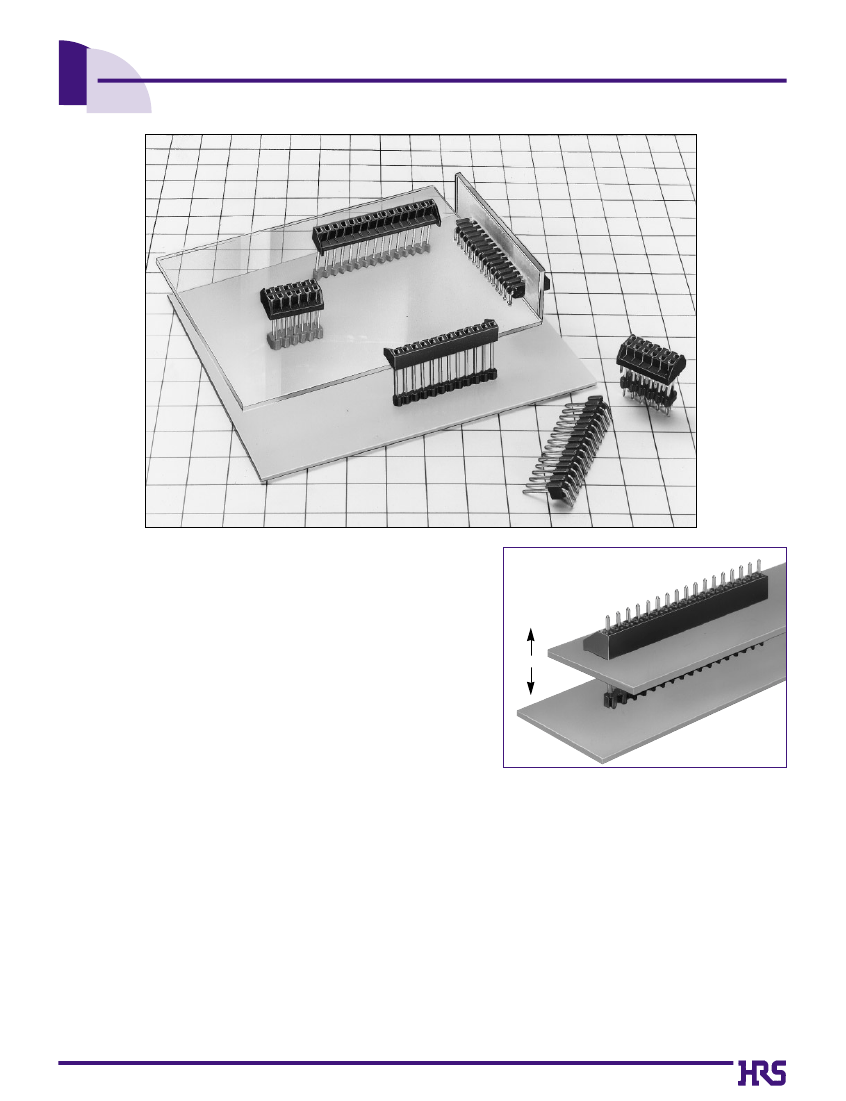

1. Board to Board Size Freely Settable
The board to board size can be set at infinite stages, according to the
header pin through type structure and the diverse header variation.
The board to board size can be set at infinite stages.
Board to Board size Freely settable
2. Integrity of Parts Mounted Surface
The parts mounted surface on two boards aren't face each other, and can
be oriented in the same direction.
3. Wide Variation
Single-row product, double-row product, tin plated and gold plated
products are lined up. In addition, the header to correspond to the board
to board size are prepared. Concerning board to board size, other
products can be provided, in addition to products in this catalog. Please
contact HRS company as required.
sApplications
Internal connection of telephone sets and OA/FA equipment, connection
between IPM, IGBT and the board.
A247
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Rating
Current rating: 3A
Operating Temperature Range: -30ç
to
+85ç(Note 1)
Storage Temperature Range: -10ç
to
+60ç (Note 2)
Storage Humidity Range: 40%
to
70%(Note 2)
Voltage rating: 250V AC Operating Humidity Range: 40%
to
70%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
6.
Humidity (Steady state)
7. Temperature Cycle
8. Durability
(Mating/un-mating)
1000M
ohms
min.
Specification
500V DC
650V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
30m
ohms
max.
4. Single Insertion/Extraction Force MIN 0.4N(40gf), MAX 4.4N(450gf)
Measured by the square steel pin with 0.635±0.002mm
No electrical discontinuity of 1µs or more
Contact resistance: 30m
ohms
max.
Insulation resistance: 500M
ohms
min.
Contact resistance: 30m
ohms
max.
Insulation resistance: 1000M
ohms
min.
Contact resistance: 30m
ohms
max.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of
40ç and humidity of 90% to 95%
(-55ç: 30 minutes, 5
to
35ç: 10 minutes
(-85ç:
30 minutes, 5
to
35ç: 10 minutes) 5cycles
Tin plating
Gold plating
: 30 cycles
: 50 cycles
9. Resistance to Soldering heat
No deformation of components affecting performance.
Flow: 250ç for 10 seconds
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
sMaterial
Product
Receptacle
Pin Header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor bronze
PBT
Brass
Finish
Black
Tin plated or gold plated
Main unit: Black/Locator: Gray
Tin plated or gold plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
sOrdering
Information
MDF7
q
q
Series Name
e
Connector Type
S : Single row receptacle
-
*
S - 2.54 DSA
w
e
r
t
: 2.54mm
r
Contact Pitch
t
Contact type
DSA: Straight through hole
DS : Right Angle through hole
: MDF7
w
Number of contacts : 3
to
46
D : Double row receptacle
P : Single row pin header
DP: Double row pin header
A248
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

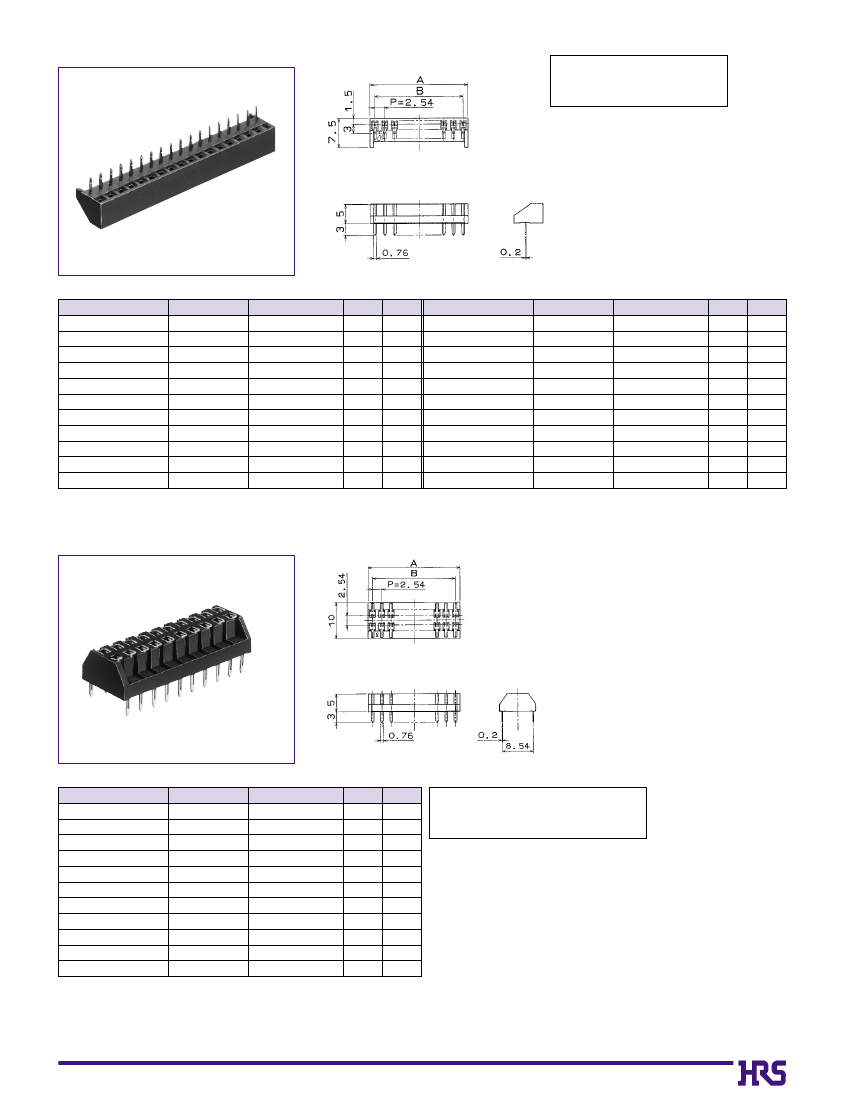

sSingle
Row Receptacle
[Specific No.]
–
* *
,
(*
*)
Blank :Tin plated
(01)
:Gold plated
Number of Contacts
Part Number
CL No.
A
B
7.62 5.08
3
MDF7- 3S-2.54DSA(**) 547-0355-0-**
12.7 10.16
5
MDF7- 5S-2.54DSA(**) 547-0112-9-**
15.24 12.7
6
MDF7- 6S-2.54DSA(**) 547-0129-1-**
17.78 15.24
7
MDF7- 7S-2.54DSA(**) 547-0135-4-**
20.32 17.78
8
MDF7- 8S-2.54DSA(**) 547-0136-7-**
22.86 20.32
9
MDF7- 9S-2.54DSA(**) 547-0137-0-**
25.4 22.86
10
MDF7-10S-2.54DSA(**) 547-0038-8-**
27.94 25.4
11
MDF7-11S-2.54DSA(**) 547-0138-2-**
30.48 27.94
12
MDF7-12S-2.54DSA(**) 547-0040-0-**
33.02 30.48
13
MDF7-13S-2.54DSA(**) 547-0139-5-**
35.56 33.02
14
MDF7-14S-2.54DSA(**) 547-0140-4-**
Note: The quantity for delivery is determined per pack (100 pcs.). If
Part Number
CL No.
MDF7-15S-2.54DSA(**) 547-0012-4-**
MDF7-16S-2.54DSA(**) 547-0141-7-**
MDF7-17S-2.54DSA(**) 547-0142-0-**
MDF7-18S-2.54DSA(**) 547-0013-7-**
MDF7-19S-2.54DSA(**) 547-0143-2-**
MDF7-20S-2.54DSA(**) 547-0051-6-**
MDF7-21S-2.54DSA(**) 547-0144-5-**
MDF7-22S-2.54DSA(**) 547-0145-8-**
MDF7-23S-2.54DSA(**) 547-0146-0-**
MDF7-24S-2.54DSA(**) 547-0147-3-**
MDF7-25S-2.54DSA(**) 547-0014-0-**
needed, please order the products
Unit: mm
Number of Contacts
A
B
38.1 35.56
15
40.64 38.1
16
43.18 40.64
17
45.72 43.18
18
48.26 45.72
19
50.8 48.26
20
53.34 50.8
21
55.88 53.34
22
58.42 55.88
23
60.96 58.42
24
63.5 60.96
25
per pack.
sDouble
Row Receptacle
Unit: mm
Number of Contacts
Part Number
CL No.
A
B
[Specific No.]
–
* *
,
(*
*)
(Note 2)
15.24 12.7
12
MDF7-12D-2.54DSA(**) 547-0032-1-**
Blank :Gold plated
(01)
:Tin plated
17.78 15.24
14
MDF7-14D-2.54DSA(**) 547-0354-8-**
20.32 17.78
16
MDF7-16D-2.54DSA(**) 547-0363-9-**
25.4 22.86
20
MDF7-20D-2.54DSA(**) 547-0033-4-**
27.94 25.4
22
MDF7-22D-2.54DSA(**) 547-0246-5-**
30.48 27.94
24
MDF7-24D-2.54DSA(**) 547-0244-0-**
33.02 30.48
26
MDF7-26D-2.54DSA(**) 547-0247-8-**
38.1 35.56
30
MDF7-30D-2.54DSA(**) 547-0016-5-**
43.18 40.64
34
MDF7-34D-2.54DSA(**) 547-0227-0-**
50.8 48.26
40
MDF7-40D-2.54DSA(**) 547-0228-3-**
58.42 55.88
46
MDF7-46D-2.54DSA(**) 547-0229-6-**
Note 1: A quantity for delivery is determined per pack (100 pcs.). If needed, please order the products per pack.
Note 2: The MDF7 series 2-row plating specification is different from the single-row plating specification.
No-specification indicates the gold plating, and (01) indicates the tin plating.
A249
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

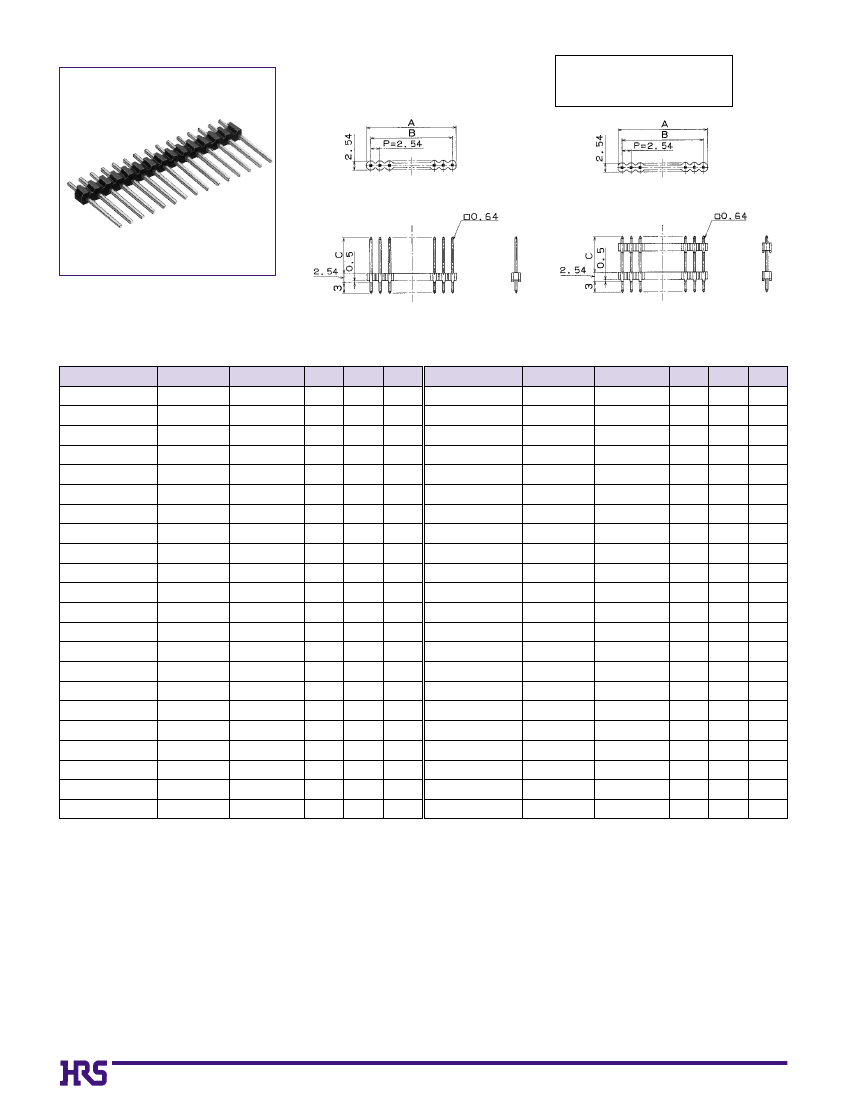

sSingle
Row Straight Pin Header
[Specific No.]
–
* *
,
(*
*)
Blank :Tin plated
(01)
:Gold plated
qBoard
Through-hole Diameter:
Ø1.0
+
0.1
+
0
[without locator]
[with locator]
qMDF7(Board
to Board Size: 2.54 to 5.5mm)
Part Number
CL No.
Number of Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
7.62
12.7
15.24
B
5.08
10.16
12.7
C
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
MDF7- 3P-2.54DSA(**) 547-0220-1-**
MDF7- 5P-2.54DSA(
**)
547-0113-1-**
MDF7- 6P-2.54DSA(
**
) 547-0130-0-**
MDF7- 7P-2.54DSA(**) 547-0148-6-**
MDF7- 8P-2.54DSA(
**)
547-0149-9-**
MDF7- 9P-2.54DSA(
**
) 547-0150-8-**
MDF7-10P-2.54DSA(**) 547-0039-0-**
MDF7-11P-2.54DSA(**) 547-0151-0-**
MDF7-12P-2.54DSA(
**)
547-0043-8-**
MDF7-13P-2.54DSA(**) 547-0152-3-**
MDF7-14P-2.54DSA(**) 547-0153-6-**
MDF7-15P-2.54DSA(
**)
547-0018-0-**
MDF7-16P-2.54DSA(**) 547-0111-6-**
NDF7-17P-2.54DSA(**) 547-0154-9-**
MDF7-18P-2.54DSA(
**)
547-0022-8-**
MDF7-19P-2.54DSA(**) 547-0155-1-**
MDF7-20P-2.54DSA(**) 547-0123-5-**
MDF7-21P-2.54DSA(
**
) 547-0156-4-**
MDF7-22P-2.54DSA(**) 547-0157-7-**
MDF7-23P-2.54DSA(**) 547-0158-0-**
MDF7-24P-2.54DSA(
**)
547-0159-2-**
MDF7-25P-2.54DSA(**) 547-0023-0-**
qMDF7B
(Board to Board Size 2.54 to 12mm)
Part Number
CL No.
Number of Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
7.62
12.7
15.24
B
5.08
12.7
MDF7B- 3P-2.54DSA(**) 547-0304-0-**
MDF7B- 5P-2.54DSA(**) 547-0133-9-**
MDF7B- 6P-2.54DSA(**) 547-0131-3-**
MDF7B- 7P-2.54DSA(**) 547-0177-4-**
MDF7B- 8P-2.54DSA(**) 547-0178-7-**
MDF7B- 9P-2.54DSA(**) 547-0179-0-**
MDF7B-10P-2.54DSA(**) 547-0048-1-**
MDF7B-11P-2.54DSA(**) 547-0047-9-**
MDF7B-12P-2.54DSA(**) 547-0041-2-**
MDF7B-13P-2.54DSA(**) 547-0180-9-**
MDF7B-14P-2.54DSA(**) 547-0181-1-**
MDF7B-15P-2.54DSA(**) 547-0024-3-**
MDF7B-16P-2.54DSA(**) 547-0182-4-**
MDF7B-17P-2.54DSA(**) 547-0183-7-**
MSD7B-18P-2.54DSA(**) 547-0025-6-**
MDF7B-19P-2.54DSA(**) 547-0184-0-**
MDF7B-20P-2.54DSA(**) 547-0052-9-**
MDF7B-21P-2.54DSA(**) 547-0185-2-**
MDF7B-22P-2.54DSA(**) 547-0186-5-**
MDF7B-23P-2.54DSA(**) 547-0066-3-**
MDF7B-24P-2.54DSA(**) 547-0067-6-**
MDF7B-25P-2.54DSA(**) 547-0026-9-**
Unit: mm
C
16.46
16.46
10.16 16.46
17.78 15.24
20.32 17.78
22.86 20.32
25.4
27.94
22.86
25.4
17.78 15.24 16.46
20.32 17.78 16.46
22.86 20.32 16.46
25.4
27.94
22.86 16.46
25.4
16.46
30.48 27.94
33.02 30.48
35.56 33.02
38.1
40.64
35.56
38.1
30.48 27.94 16.46
33.02 30.48 16.46
35.56 33.02 16.46
38.1
40.64
35.56 16.46
38.1
16.46
43.18 40.64
45.72 43.18
48.26 45.72
50.8
53.34
48.26
50.8
43.18 40.64 16.46
45.72 43.18 16.46
48.26 45.72 16.46
50.8
53.34
48.26 16.46
50.8
16.46
55.88 53.34
58.42 55.88
60.96 58.42
63.5
60.96
55.88 53.34 16.46
58.42 55.88 16.46
60.96 58.42 16.46
63.5
60.96 16.46
Note 1: The board to board size in the above table represents the case where the 1.6mm thickness board is used.
Note 2: The quantity for delivery is determined per pack (100 pcs.). If needed, please order the products per pack.
A250
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
qMDF7P
(Board to Board Size 2.54 to 8mm)
Unit: mm
Part Number
MDF7P- 3P-2.54DSA(**)
MDF7P- 5P-2.54DSA(**)
MDF7P- 6P-2.54DSA(**)
MDF7P- 7P-2.54DSA(**)
MDF7P- 8P-2.54DSA(**)
MDF7P- 9P-2.54DSA(**)
MDF7P-11P-2.54DSA(**)
MDF7P-13P-2.54DSA(**)
CL No.
–––––––
–––––––
–––––––
–––––––
–––––––
–––––––
–––––––
–––––––
Number of Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
7.62
12.7
B
5.08
10.16
C
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
12.5
qMDF7C
(Board to Board Size 5.08 to 15mm,with Locator)
Unit: mm
Part Number
MDF7C- 3P-2.54DSA(**)
CL No.
–––––––
Number of Contacts
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
A
7.62
12.7
B
C
5.08 19.46
10.16 19.46
19.46
MDF7C- 5P-2.54DSA(**) 547-0344-4-**
MDF7C- 6P-2.54DSA(**) 547-0268-8-**
MDF7C- 7P-2.54DSA(**) 547-0378-6-**
MDF7C- 8P-2.54DSA(**) 547-0375-8-**
MDF7C- 9P-2.54DSA(**)
MDF7C-10P-2.54DSA(**)
MDF7C-12P-2.54DSA(**)
–––––––
–––––––
–––––––
15.24 12.7
17.78 15.24
20.32 17.78
22.86 20.32
25.4
22.86
27.94 25.4
30.48 27.94
33.02 30.48
35.56 33.02
38.1
35.56
40.64 38.1
43.18 40.46
45.72 43.18
48.26 45.72
50.8
48.26
53.34 50.8
55.88 53.34
58.42 55.88
60.96 58.42
63.5
60.96
15.24 12.7
17.78 15.24 19.46
20.32 17.78 19.46
22.86 20.32 19.46
25.4
22.86 19.46
Note 4
19.46
27.97 25.4
MDF7P-10P-2.54DSA(**) 547-0360-0-**
MDF7P-12P-2.54DSA(**) 547-0345-7-**
MDF7P-14P-2.54DSA(**) 547-0385-1-**
MDF7P-15P-2.54DSA(**) 547-0230-5-**
MDF7P-16P-2.54DSA(**) 547-0346-0-**
MDF7P-17P-2.54DSA(**)
MDF7P-18P-2.54DSA(**)
MDF7P-20P-2.54DSA(**)
MDF7P-21P-2.54DSA(**)
MDF7P-22P-2.54DSA(**)
MDF7P-23P-2.54DSA(**)
MDF7P-24P-2.54DSA(**)
–––––––
–––––––
–––––––
–––––––
–––––––
–––––––
–––––––
MDF7C-11P-2.54DSA(**) 547-0376-0-**
MDF7C-13P-2.54DSA(**) 547-0401-6-**
MDF7C-14P-2.54DSA(**) 547-0380-8-**
MDF7C-15P-2.54DSA(**)
MDF7C-16P-2.54DSA(**)
MDF7C-17P-2.54DSA(**)
–––––––
–––––––
–––––––
30.48 27.94 19.46
33.02 30.48 19.46
35.56 33.02 19.46
38.1
35.56 19.46
Note 4
19.46
40.64 38.1
43.18 40.64 19.46
45.72 43.18 19.46
48.26 45.72 19.46
50.8
48.26 19.46
19.46
53.34 50.8
MDF7C-18P-2.54DSA(**) 547-0029-7-**
MDF7C-19P-2.54DSA(**) 547-0361-3-**
MDF7C-20P-2.54DSA(**) 547-0198-4-**
MDF7C-21P-2.54DSA(**)
MDF7C-22P-2.54DSA(**)
MDF7C-23P-2.54DSA(**)
MDF7C-24P-2.54DSA(**)
–––––––
–––––––
–––––––
–––––––
MDF7P-19P-2.54DSA(**) 547-0347-2-**
55.88 53.34 19.46
58.42 55.88 19.46
60.96 58.42 19.46
63.5
60.96 19.46
MDF7P-25P-2.54DSA(**) 547-0348-5-**
MDF7C-25P-2.54DSA(**) 547-0305-2-**
Note 1: The board to board size in the above table represents the case where the 1.6mm thickness board is used.
Note 2: A quantity for delivery is determined per pack (100 pcs.). If needed, please order the products per pack.
Note 3: As for the products, which HRS No. is not indicated in the above table, we will correspond to samples, and mass-production
according to your demand. Please contact HRS company, as required.
Hello everyone! I am a loyal fan of MSP430. When I have nothing to do, I always want to use 430 to make some small things. However, due to laziness, I bought a lot of things but have not started yet. ...
Manufacturing enterprises, especially the fast-moving consumer goods industry, face fierce competition and the market changes very quickly. However, the corresponding warehouse management methods are ...
There is a USB interface on the CH582 development board, which can be connected to peripherals such as keyboard and mouse. I want to use CH582 to control the LED indicator of the USB keyboard. I encou...
This series of microcontrollers are designed with high-performance static 80C51 and manufactured by advanced CMOS technology with non-volatile Flash program memory. All support 12-clock and 6-clock op...
I recently wrote a driver for the STMicroelectronics gravity acceleration sensor lis35de. I have some questions that I don't understand and the driver can't be adjusted. 1. The document says that when...
Emergency hand-held lamps powered by 6V maintenance-free batteries are widely used in rural areas. The charger used is a transformer step-down and single diode half-wave rectifier, and the charging...[Details]
At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guang...[Details]
Images in science fiction movies often break through the limits of reality, such as in the movie "Minority Report." Tom Cruise uses a multi-touch screen to browse information. Capacitive sensing te...[Details]
The data collector of the automatic weather station is generally designed based on a single-chip microcomputer or a PC/104 bus controller. It has the characteristics of good compatibility with PC, low...[Details]
1. Introduction to CIF Board
Fieldbus integration based on PC system
Whether it is a master or a slave, fieldbus has won unanimous praise in the field of PC-based automation. For more...[Details]
Xiaomi, a well-known Internet phone in mainland China, won a million-unit order contract from China Unicom on November 20 last year, which made Xiaomi famous in mainland China. In April this year...[Details]
1 Introduction
In recent years, there have been many major advances in the production technology and processes of automotive headlights, which have greatly improved the performance of automoti...[Details]
General LED lighting has a current limiting resistor in the driving circuit, and the power consumed by the resistor has nothing to do with the LED light emission. In order to improve efficiency, a...[Details]
LED lamps and bulbs are now rapidly replacing incandescent, halogen and CFL (compact fluorescent lamp) light sources in many general lighting applications. Flyback DC/DC converters are the power su...[Details]
Different initialization between C8051F and 80C51 series microcontrollers
In the past 30 years, major electronic component manufacturers in the world have launched their own unique single-chip...[Details]
Capacitors
are basic components in various electronic devices and are widely used for bypassing, coupling,
filtering
, tuning, etc. in electronic circuits. However, to use capacitors,...[Details]
According to the Industrial Technology Research Institute of Taiwan, due to factors such as the oil crisis and global warming, the issues of energy conservation and environmental protection have at...[Details]
Introduction
As the country increases its efforts to control the atmospheric environment, motorcycle emission regulations will become stricter year by year, and motorcycles that do not meet the...[Details]
At present, how various communication technologies will evolve after 3G is a focus of great concern in the industry. Especially for TD-SCDMA, whether it can achieve smooth evolution to the next gen...[Details]
The above is to use MB1404 as a stereo composite signal transmitter. You can use the internal high-frequency amplifier and oscillator or not! According to my experience, I still recommend beginners...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
