Conformity to RoHS Directive
EMC Filters for AC Power Line
For Triple-phase, Large-size Box Cased ZRCT-ME Series
FEATURES
• The ZRCT-ME series employ a highly efficient thermal design,
which ensures high current handling capacity in a compact
package with superior EMC suppression characteristics.
• They are highly effective at preventing both the radiation and
penetration of EMC noise. The parts are, therefore, highly
immune to externally generated noise and do not, themselves,
serve as sources of radiated noise.
• For the CISPR frequency band, this product provides superior
attenuation for both differential mode and common mode noise
components.
• The withstand voltage between line and ground is AC.2000V.
• Single-direction block terminal design simplifies wiring require-
ments, thereby improving workflow.
• It is a product conforming to RoHS directive.
APPLICATIONS
Computers, general purpose inverters, UPE (uninterruptible power
equipment), computer control devices, NC control devices, etc.
Highly recommended for large equipment destined for CE coun-
tries, where compliance with EMC radiation standards is required
as part of CE marking certification.

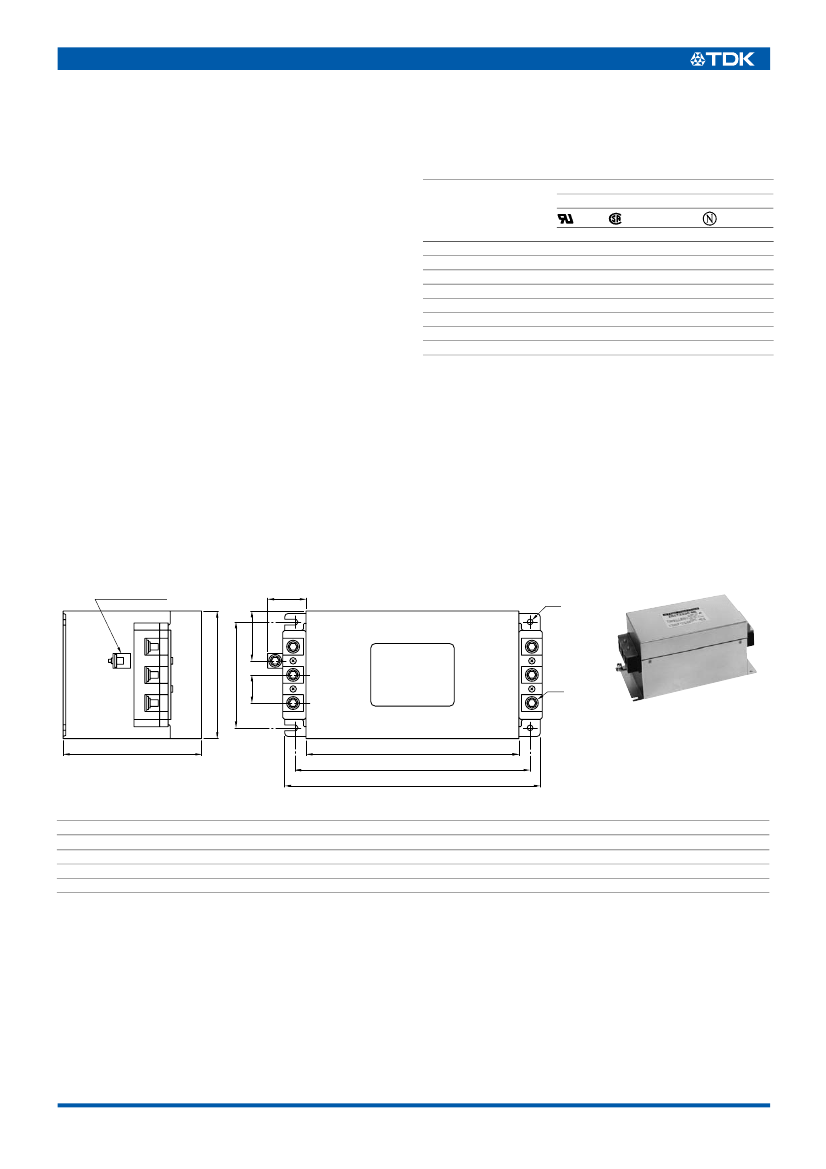

SHAPES AND DIMENSIONS
Ground terminal
J
SAFETY STANDARDS
Rated
voltage
250V
250V
250V
250V
440V
440V
440V
440V
Standard and standard No.
U.S.A.
Canada
UL
UL1283
E62388
—
—
—
—
—
—
—
CSA
CSA C22.2 No.8
LR76849C
LR76849C
LR76849C
LR76849C
—
—
—
—
Europe
NEMKO
EN60939
P08209024
P08209024
P08209024
P08209024
P08209023
P08209023
P08209023
P08209023
Part No.
ZRCT2030-ME
ZRCT2050-ME
ZRCT2080-ME
ZRCT2100-ME
ZRCT4030-ME
ZRCT4050-ME
ZRCT4080-ME
ZRCT4100-ME
øH
K
R
1
S
1
R
2
S
2
A
E
G
T
1
T
2
I
C
B
F
D
Dimensions in mm
Part No.
A
B
C
D
E
F
G
øH
I
ZRCT2030-ME 4030-ME
120
200
115
240
100
220
M6
5.5
27.5
ZRCT2050-ME 4050-ME
150
275
155
325
120
305
M6
6.5
34
ZRCT2080-ME 4080-ME
170
350
180
400
140
380
M8
6.5
34
ZRCT2100-ME 4100-ME
170
350
180
400
140
380
M8
6.5
34
∗
( ) : Reference value
• Case : metal, terminel cover : chloride vinyl plastic plate
Terminal : bolt with recessed screw head for 30 to 100A types, ø3mm punching holes to metal cover surface for 100A type.
J
34
40
45
45
K
(46.3)
∗
(58.5)
(68)
(78)
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
003-03 / 20080918 / e9112_zrct_me.fm
(2/2)
ELECTRICAL CHARACTERISTICS
Part No.
Rated voltage Eac(V)
∗
Rated current(A)
Test voltage Eac(V)[Between terminal and case]
Insulation resistance(MΩ)
[DC. 500V, 1min/between terminal and case]
Leakage current(mA)[250V • 60Hz/440V • 60Hz]
DC resistance(mΩ) or voltage down(V)
Operating temperature range(°C)
[Including self-temperature rise]
With derating over(°C)
Temperature rise(°C)
Differential mode at 40dB
Attenuation frequency range
(MHz)[+5 to +35°C]
Common mode at 40dB
Weight(kg)
∗
ZRCT2030-ME
ZRCT4030-ME
250/440
30
2000
100min.
1.5max./
3.5max.
40mΩ max.
–25 to +85
45
40max.
0.15 to 10
0.15 to 10
4.5
ZRCT2050-ME
ZRCT4050-ME
250/440
50
2000
100min.
1.5max./
3.5max.
15mΩ max.
–25 to +85
45
40max.
0.15 to 10
0.15 to 10
10
ZRCT2080-ME
ZRCT4080-ME
250/440
80
2000
100min.
1.5max./
3.5max.
7mΩ max.
–25 to +85
45
40max.
0.15 to 8
0.15 to 8
18
ZRCT2100-ME
ZRCT4100-ME
250/440
100
2000
100min.
1.5max./
3.5max.
1.5V max.
–25 to +85
45
40max.
0.15 to 8
ZRCT2100-ME: 0.2 to 8
ZRCT4100-ME: 0.15 to 8
20
ZRCT2XXX-ME(ZRCT2030-ME etc.) for 250V, ZRCT4XXX-ME(ZRCT4030-ME etc.) for 440V.

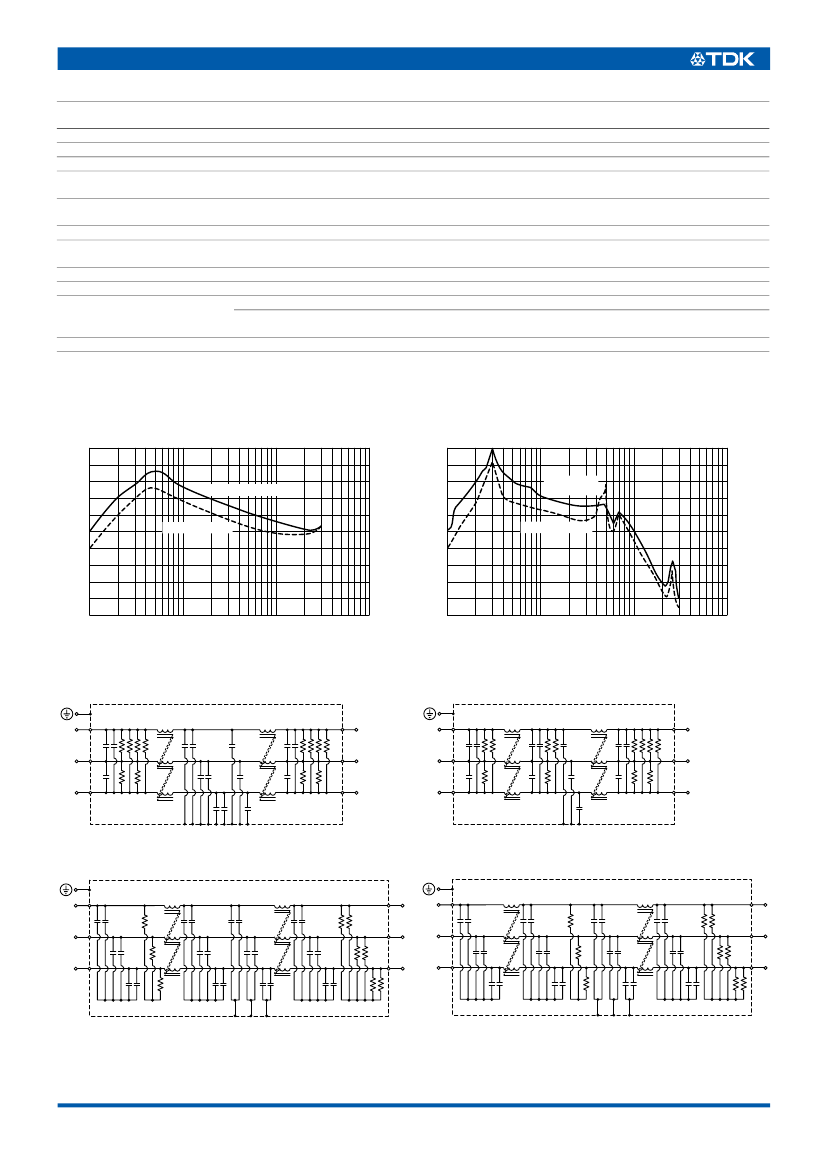

TYPICAL ELECTRICAL CHARACTERISTICS
ATTENUATION vs. FREQUENCY CHARACTERISTICS
ZRCT4030-ME
100
ZRCT4100-ME
100
80
Attenuation (dB)
60
Differential mode
Attenuation (dB)
80
60
Differential
mode
Common mode
40
20
0
0.1
Common mode
40
20
0
0.1
0.3
1
3
10
Frequency (MHz)
30
100
0.3
1
3
10
Frequency (MHz)
30
100
CIRCUIT DIAGRAMS
ZRCT2030-ME (250V)
R
1
S
1
T
1
R
R
R
2
S
2
T
2
ZRCT2050, 2080, 2100-ME (250V)
R
1
S
1
T
1
R
R
R
2
S
2
T
2
R: Bleeder resistor
Case GND
R: Bleeder resistor
Case GND
ZRCT4030-ME (440V)
E
R
1
R
R
S
1
T
1
R
2
S
2
T
2
ZRCT4050, 4080, 4100-ME (440V)
E
R
1
R
S
1
T
1
R
R
2
S
2
T
2
R: Bleeder resistor
Case GND
R: Bleeder resistor
Case GND
• All specifications are subject to change without notice.
003-03 / 20080918 / e9112_zrct_me.fm
