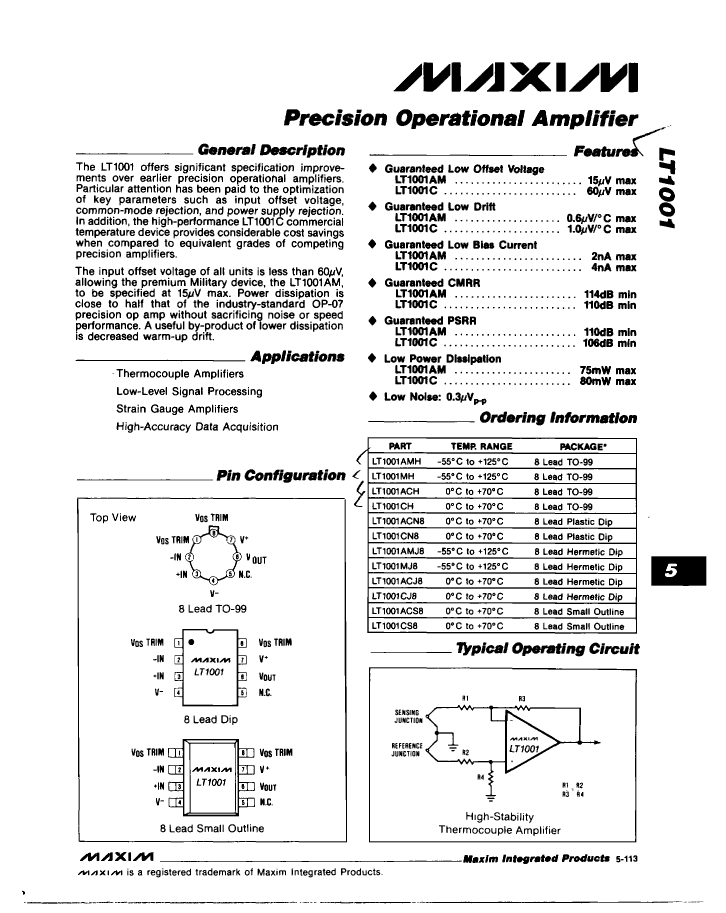

Basic information of LT1001MH amplifier:
LT1001MH is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are TO-99, 8 PIN
LT1001MH amplifier core information:
The minimum operating temperature of the LT1001MH is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.004 µA Its maximum average bias current is 0.008 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1001MH has a nominal slew rate of 0.25 V/us. The manufacturer specifies a maximum slew rate for the LT1001MH of 2.5 mA and a minimum slew rate of 0.1 V/us. Its minimum voltage gain is 200000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1001MH gain becomes 0.707 times the low-frequency gain is 800 kHz.
The nominal supply voltage of the LT1001MH is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the LT1001MH is 160 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

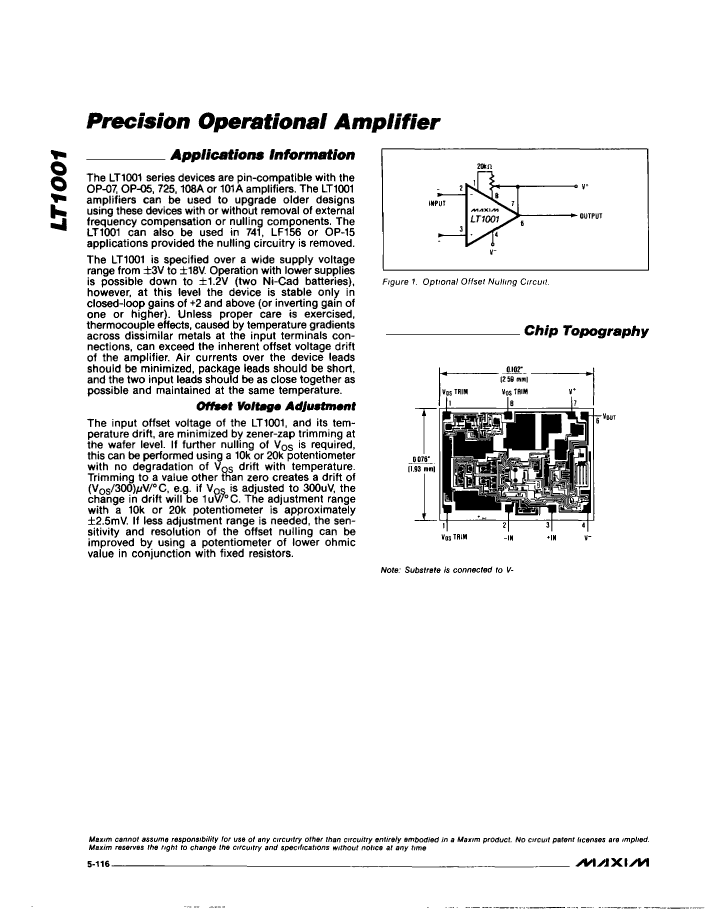

Related dimensions of LT1001MH:
LT1001MH has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LT1001MH amplifier additional information:
LT1001MH adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of LT1001MH is: YES. Its temperature grade is: MILITARY. The LT1001MH is not Rohs certified.
The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LT1001MH package are mostly METAL. And its package shape is ROUND. The LT1001MH package pin format is: CYLINDRICAL.
Its terminal form is: WIRE.
Basic information of LT1001MH amplifier:
LT1001MH is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are TO-99, 8 PIN
LT1001MH amplifier core information:
The minimum operating temperature of the LT1001MH is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.004 µA Its maximum average bias current is 0.008 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the LT1001MH has a nominal slew rate of 0.25 V/us. The manufacturer specifies a maximum slew rate for the LT1001MH of 2.5 mA and a minimum slew rate of 0.1 V/us. Its minimum voltage gain is 200000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1001MH gain becomes 0.707 times the low-frequency gain is 800 kHz.
The nominal supply voltage of the LT1001MH is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the LT1001MH is 160 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LT1001MH:
LT1001MH has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LT1001MH amplifier additional information:
LT1001MH adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of LT1001MH is: YES. Its temperature grade is: MILITARY. The LT1001MH is not Rohs certified.
The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LT1001MH package are mostly METAL. And its package shape is ROUND. The LT1001MH package pin format is: CYLINDRICAL.
Its terminal form is: WIRE.

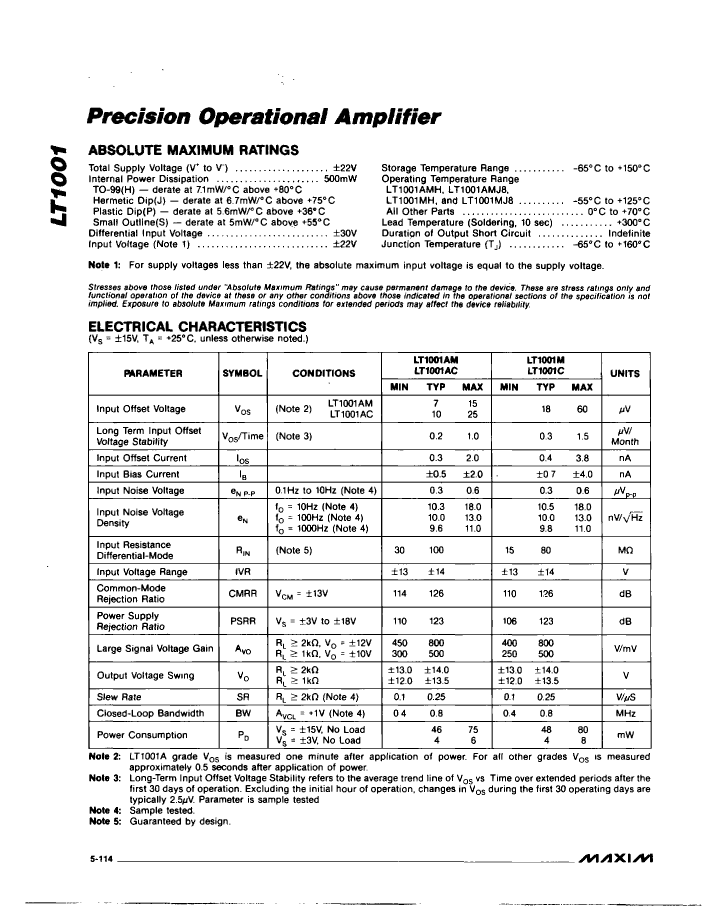

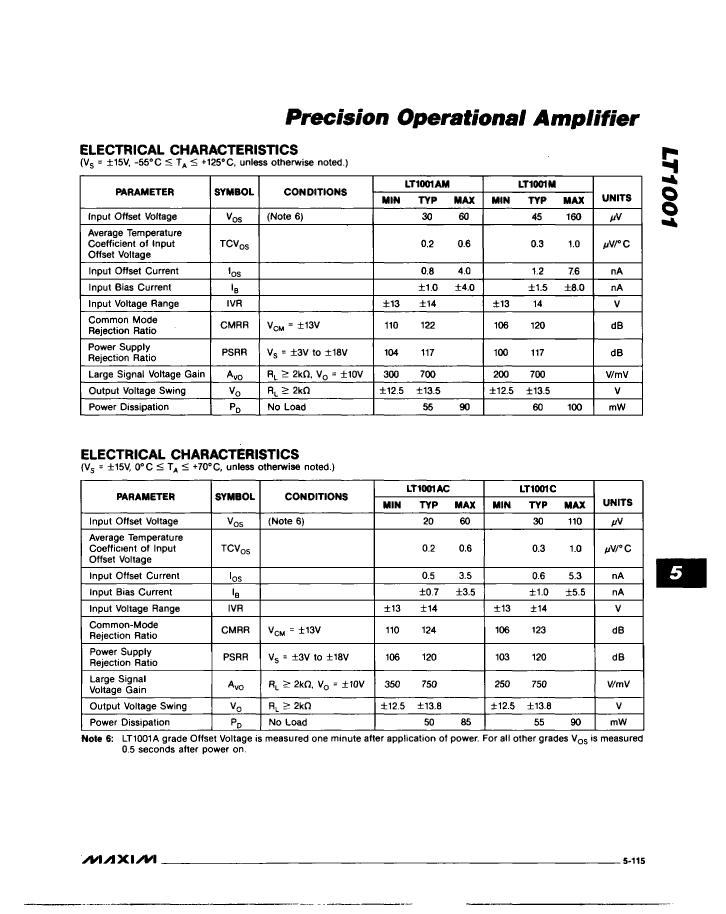

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | TO-99 |
| package instruction | TO-99, 8 PIN |
| Contacts | 8 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.008 µA |
| Maximum bias current (IIB) at 25C | 0.004 µA |
| Nominal Common Mode Rejection Ratio | 120 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 160 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-dissonance | YES |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| Encapsulate equivalent code | CAN8,.2 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 0.1 V/us |
| Nominal slew rate | 0.25 V/us |
| Maximum slew rate | 2.5 mA |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 800 kHz |
| Minimum voltage gain | 200000 |
| Base Number Matches | 1 |
