SP9345SQ/883 datasheet, PDF - EEWORLD Datasheet

SP9345SQ/883: DescriptionD/A Converter, 12-Bit, 4 Func, BICMOS, CDIP28,; CategoryAnalog mixed-signal IC converter; File Size805KB，10 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

SP9345SQ/883 Overview

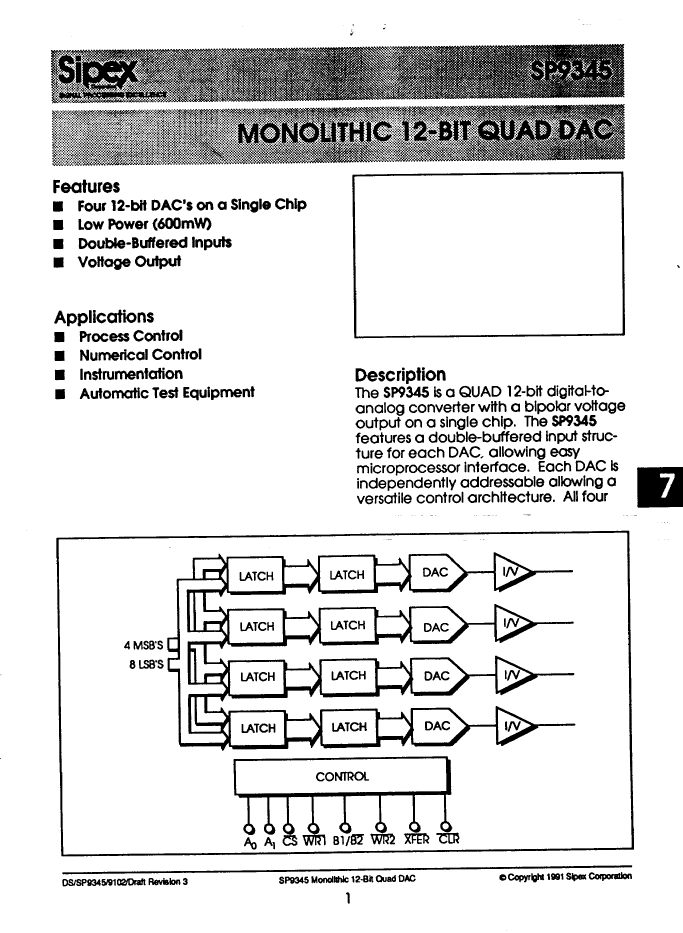

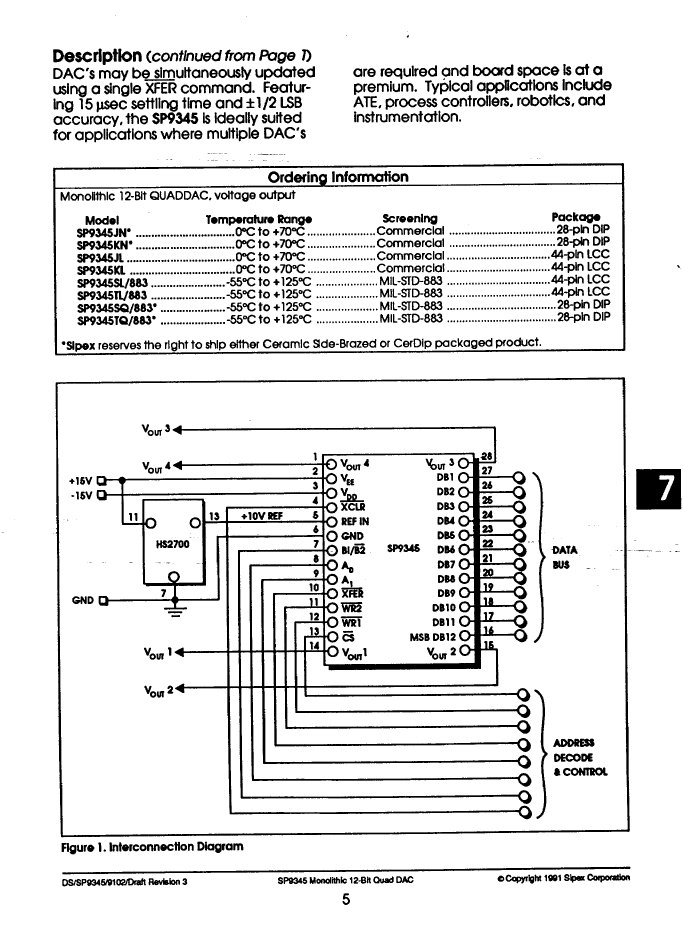

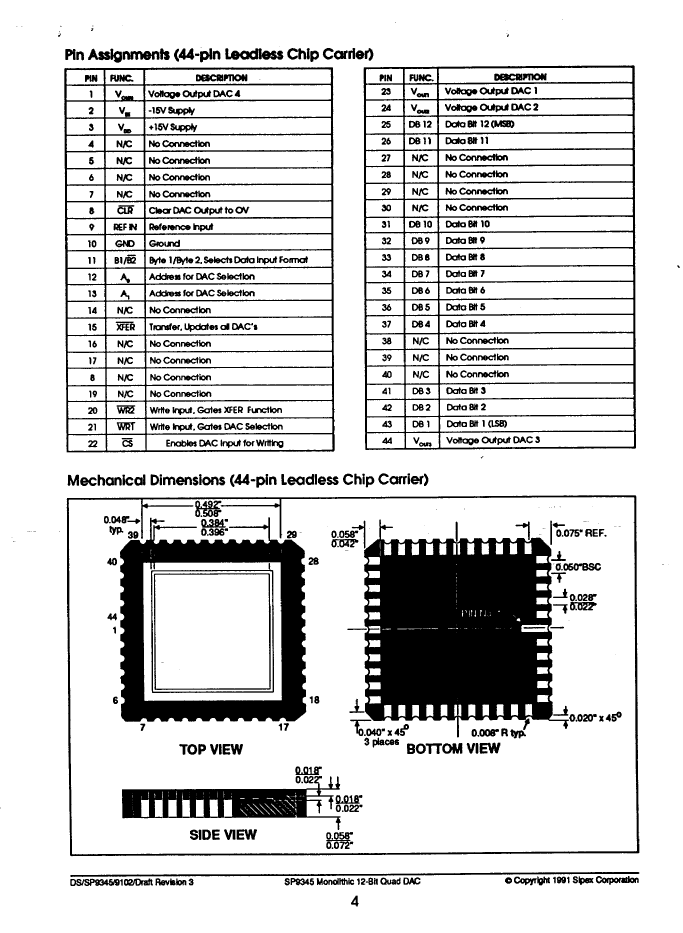

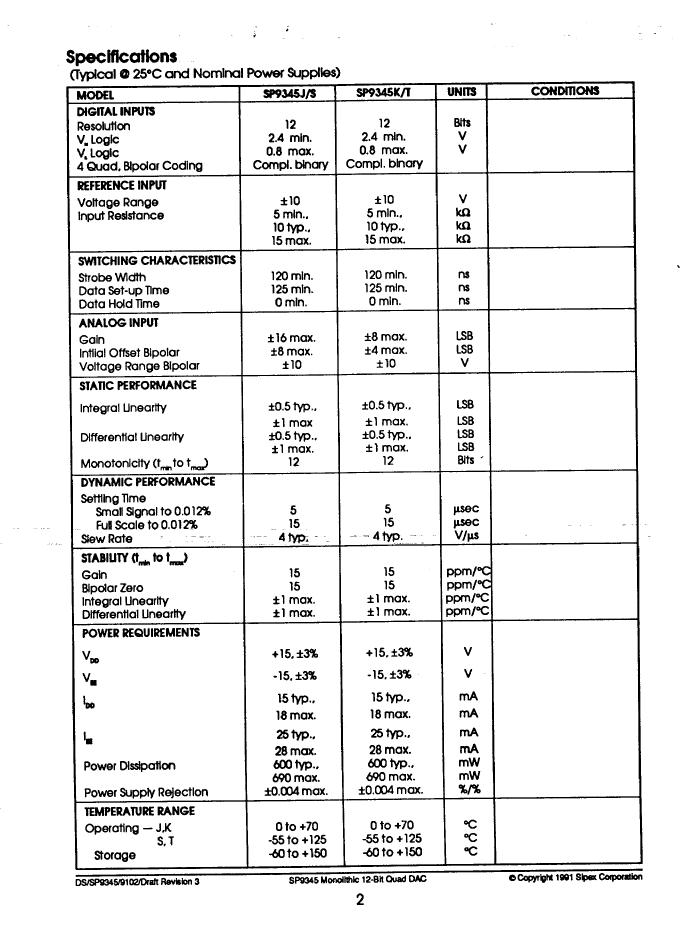

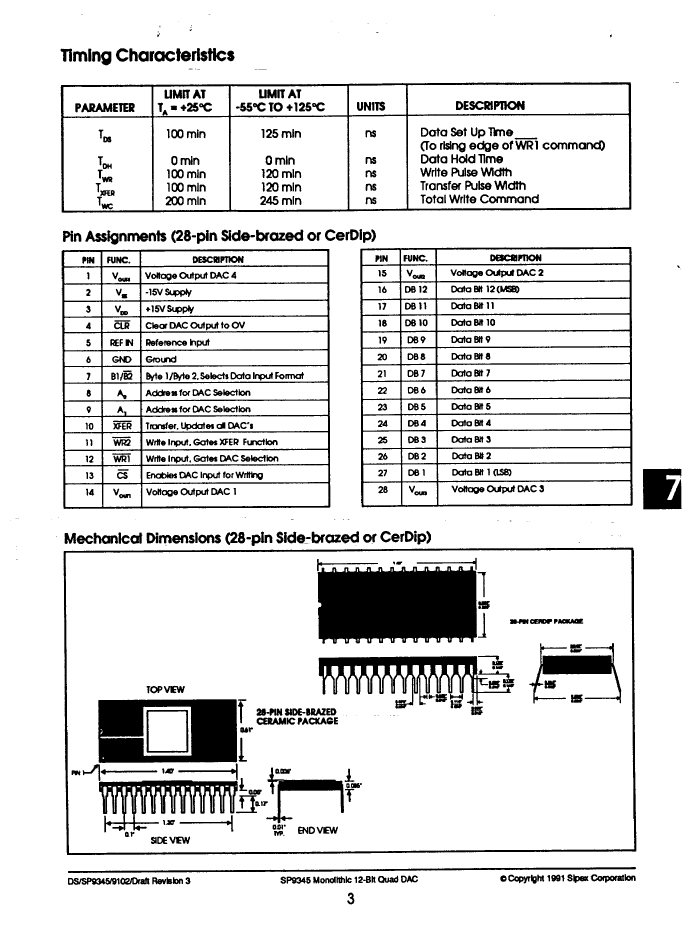

D/A Converter, 12-Bit, 4 Func, BICMOS, CDIP28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Maximum linear error (EL)	0.024%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	4
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	28 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	SP9345SQ/883	SP9345SL/883	SP9345TL/883
Description	D/A Converter, 12-Bit, 4 Func, BICMOS, CDIP28,	D/A Converter, 12-Bit, 4 Func, BICMOS, CQCC44,	D/A Converter, 12-Bit, 4 Func, BICMOS, CQCC44,
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY
JESD-30 code	R-XDIP-T28	S-XQCC-N44	S-XQCC-N44
JESD-609 code	e0	e0	e0
Maximum linear error (EL)	0.024%	0.024%	0.024%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of digits	12	12	12
Number of functions	4	4	4
Number of terminals	28	44	44
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	QCCN
Encapsulate equivalent code	DIP28,.6	LCC44,.65SQ	LCC44,.65SQ
Package shape	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum slew rate	28 mA	28 mA	28 mA
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	YES	YES
technology	BICMOS	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD
Base Number Matches	1	1	-
