CTEPH149F-R56N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> CTEPH149F-R56N

Preview

CTEPH149F-R56N: DescriptionGeneral Purpose Inductor, 0.56uH, 30%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size168KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric Compare View All

CTEPH149F-R56N Overview

General Purpose Inductor, 0.56uH, 30%, 1 Element, SMD, ROHS COMPLIANT

CTEPH149F-R56N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.001 Ω
Nominal inductance(L)	0.56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTEPH149F
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	30 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

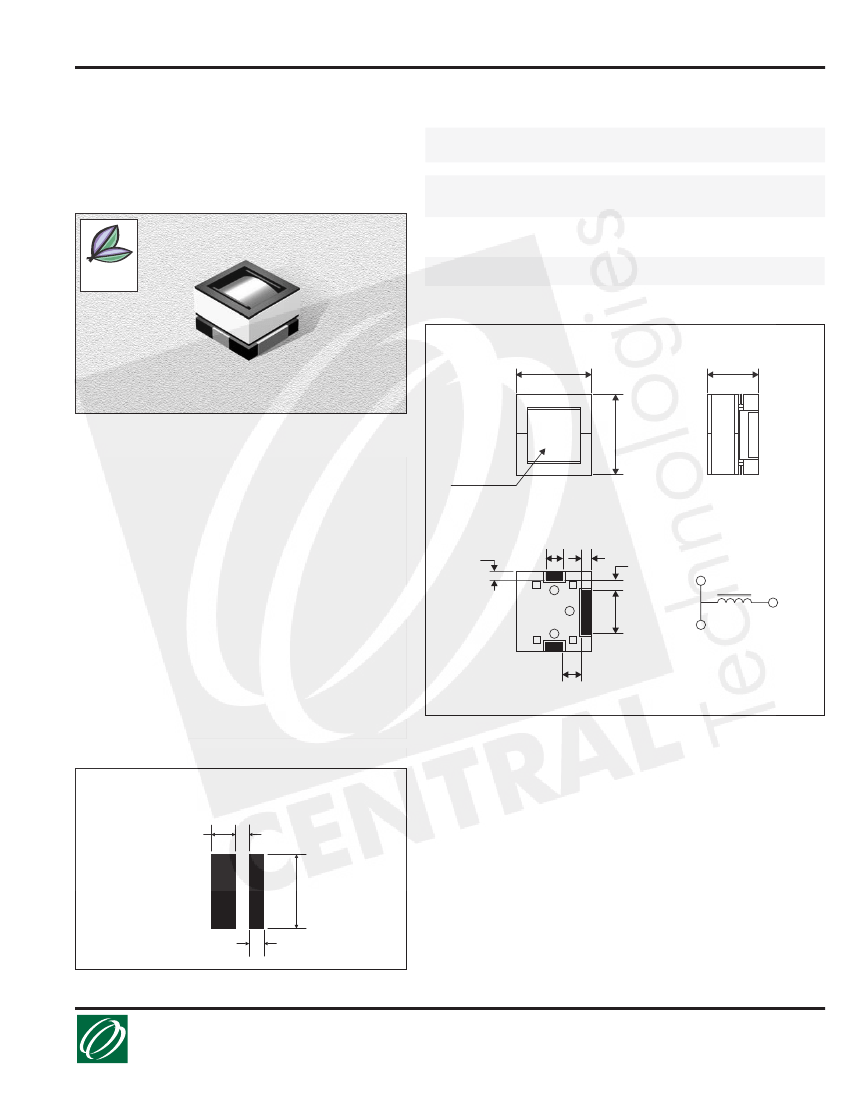

SMD Power Inductors - Shielded

ctparts.com

CTEPH149F Series

From 0.56 µH to 2.4 µH

Part

Number

CTEPH149F-R56N

CTEPH149F-1R0M

CTEPH149F-1R6M

CTEPH149F-2R2M

CTEPH149F-2R4M

Not shown at actual size.

SPECIFICATIONS

Part numbers indicate tolerance available.

M = ±20%, N = ±30%

Inductance

(µH)

0.56

1.00

1.60

2.20

2.40

L Test

Freq.

(kHz)

100

DCR

Max.

Ω

(Ω)

0.0010

0.00135

0.0017

0.00235

IDC

Max.

(A)

30

22

18

15

PHYSICAL DIMENSIONS

Compliant

RoHS

Size

mm

inches

A

14.7±0.3

0.58±0.01

B

15.0±0.3

0.59±0.01

C

9.5±0.3

0.37±0.01

D

4.0±0.3

D1

2.0±0.3

E

8.0±0.3

0.31±0.01

F

4.0±1.0

0.16±0.04

G

2.2±0.3

H

1.2±0.2

0.16±0.01 0.08±0.01

0.09±0.01 0.05±0.008

A

C

XXX

CHARACTERISTICS

Description:

SMD shielded power inductor (Ultra High Current)

Applications:

Excellent for power line DC-DC conversion

applications used in notebook computers and other handheld

electronic equipment

Operating Temperature:

-40°C to +85°C

Storage Temperature:

-40°C to +125°C

Temperature rise:

40°C Typical at IDC

Resistance to solder heat:

260°C for 10 seconds

Rated Current:

Based on temperature &

ΔL

/ L0A =25% Typ. at

IDC

Inductance Tolerance:

±20%, ±30%

Testing:

Tested on a HP4285A at 100 KHz , 1V

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

Marking

Inductance Code

D

G

1

3

2

D1

H

1

B

E

3

2

F

PAD LAYOUT

Unit: mm

5.0

3.0

13.5

07.15.08

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

CTEPH149F-R56N Related Products

	CTEPH149F-R56N	CTEPH149F-2R2M	CTEPH149F-1R6M	CTEPH149F-1R0M	CTEPH149F-2R4M
Description	General Purpose Inductor, 0.56uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1.6uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 2.4uH, 20%, 1 Element, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.001 Ω	0.00235 Ω	0.0017 Ω	0.00135 Ω	0.00235 Ω
Nominal inductance(L)	0.56 µH	2.2 µH	1.6 µH	1 µH	2.4 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTEPH149F	CTEPH149F	CTEPH149F	CTEPH149F	CTEPH149F
Number of functions	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	30 A	15 A	18 A	22 A	15 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	20%	20%	20%	20%
Base Number Matches	1	1	1	-	-
