REVISION H
DO NOT
SCALE FROM
THIS PRINT
11.43 .450
(TYP) REF
C
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
PESC-XX-XX-XX-01-X-VT-XX
POWER PINS (PER END)
-01, -02, -04
(SEE TABLE 1 FOR AVAILABLE
COMBINATIONS)
SIGNAL PINS
-12
-40 (SEE TABLE 1 FOR AVAILABLE
COMBINATIONS)
POWER PINS (PER END)
-01, -02, -04 (SEE TABLE 1 FOR AVAILABLE
COMBINATIONS)
LEAD STYLE
-01
OPTION
-LC: LOCKING CLIP
(USE LC-11-TM)
(SEE FIG 2, SHT 2)
VERTICAL
"B" (SEE TABLE 2)
5.72 .225 (TYP)
04
12.00 .472 REF
"A"
01
"A" REF (SEE TABLE 2)
"A"
PLATING SPECIFICATION
-S: SELECTIVE GOLD ON CONTACT
/MATTE TIN ON TAIL
-T: MATTE TIN ALL OVER
-L: LIGHT SELECTIVE GOLD ON
CONTACT/MATTE TIN ON TAIL
2.54 .100 REF (TYP)
C
2.040 .080
0.38 .015 REF (TYP)
"B"
"C"
4.40 .173 REF
6.60 .260 REF (TYP)
1.54 .061 (TYP)
PES-02-V-40
C
12.64 .497
REF
5.70 .224 REF
(CONTACT AREA)
4.00 .157
SUB-C-204-01-XX
0.50 .020 (TYP) REF
C
0.64 .025 REF
C-08-02-X
"B"
C
2.54 .100 (TYP)
"D" (SEE TABLE 2)
"C"
C
1.91 .075
+0.25
+.010
2.47
.097
- 0.50
- .020
(TYP)
C
0.79 .031 x 0.41 [.016] REF (TYP)
C
2 MAX SWAY (TYP)
(EITHER DIRECTION)
SECTION "C"-"C"
0.64 .025 (TYP) REF
2.54 .100 (TYP)
("E" SPACES @ [2.54] .100)
SECTION "A"-"A"
MAX
PESC-01-40-01-01-X-VT SHOWN
FIG 1
SECTION "B"-"B"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: 0.038[.0015] MAX.
3. MINIMUM PUSHOUT FORCE: 2.22N [.5 LB].
4. PARTS TO BE PACKAGED IN TRAYS.
INSULATOR: LCP, COLOR: BLACK
CONTACT: COPPER ALLOY
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667

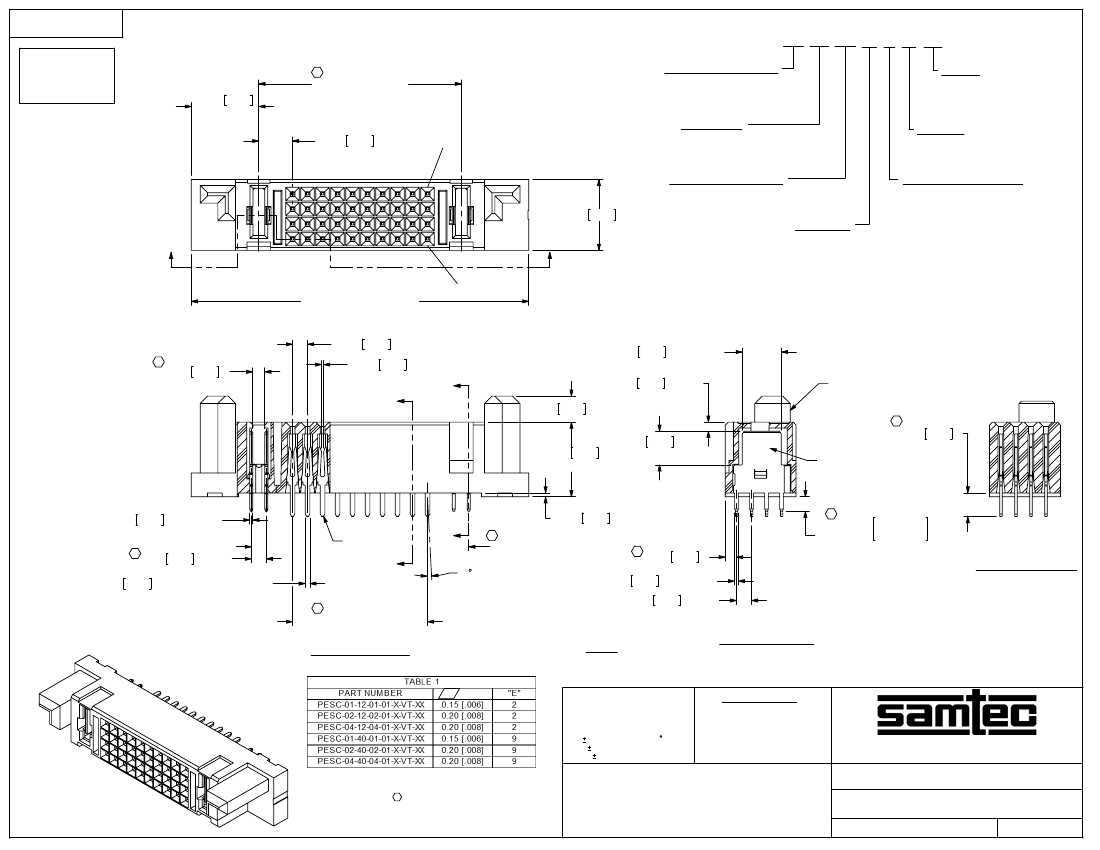

VERTICAL POWER SOCKET
1/10/2006
SHEET
1
OF
2
F:\DWG\MISC\MKTG\PESC-XX-XX-XX-01-X-VT-XX-MKT.SLDDRW
BY:
CLAY W
PESC-XX-XX-XX-01-X-VT-XX
REVISION H
PES-02-V-40
LC-11-TM
2 MAX SWAY (TYP)
(EITHER DIRECTION)
"C" (SEE TABLE 2)
(MEASURE AT TIPS)
2.75 .108
3.50 .138
(2 PLCS)
C
0.64 .025 (TYP) REF
2 MAX SWAY (TYP)
(EITHER DIRECTION)
3.50 .138 REF
PESC-01-40-01-01-X-VT-LC SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 2
C
"B" (SEE TABLE 2)
PES-04-V-40
6.35 .250 (TYP)
C
"B" (SEE TABLE 2)
PES-08-V-40
6.35 .250 (TYP)
"A" REF (SEE TABLE 2)
"A" REF (SEE TABLE 2)
C
C
"D" (SEE TABLE 2)
"D" (SEE TABLE 2)

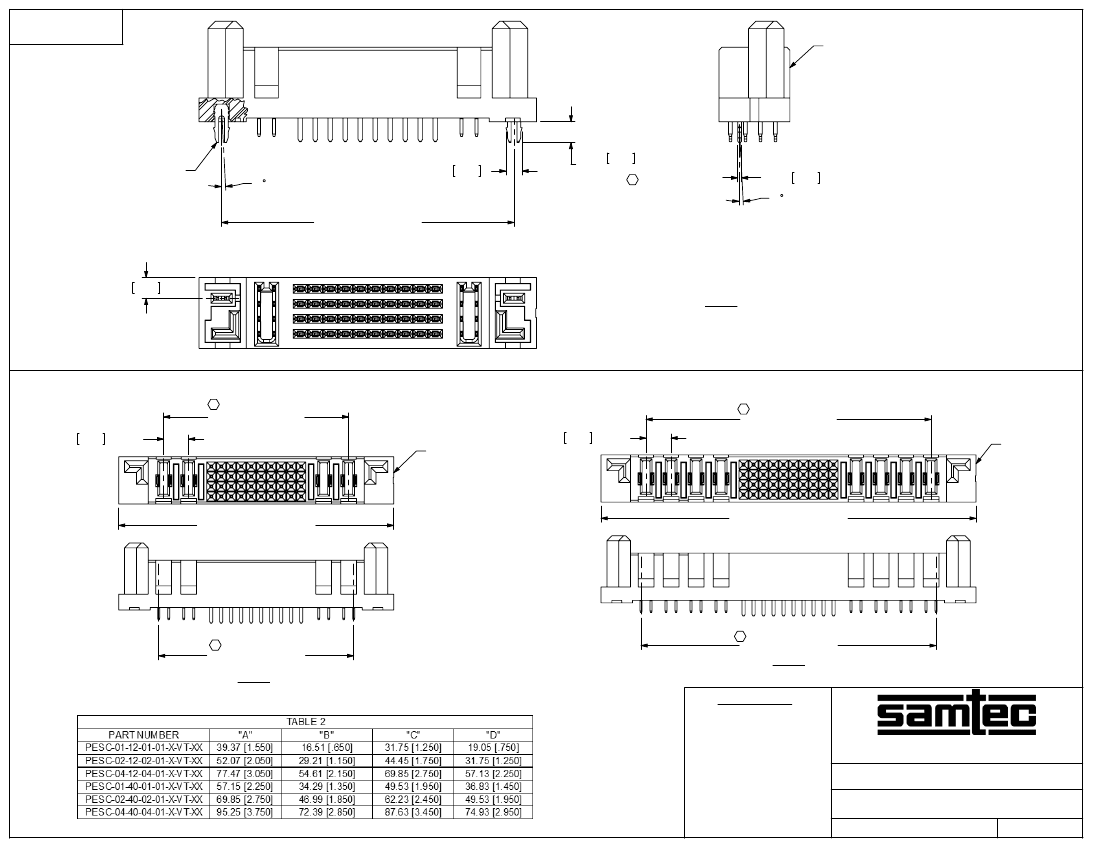

PESC-02-40-02-01-X-VT SHOWN
(SAME AS FIG 1 EXCEPT AS SHOWN)
FIG 3
PESC-04-40-04-01-X-VT SHOWN
(SAME AS FIG 1 EXCEPT AS SHOWN)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
VERTICAL POWER SOCKET
F:\DWG\MISC\MKTG\PESC-XX-XX-XX-01-X-VT-XX-MKT.SLDDRW
BY:
CLAY W
PESC-XX-XX-XX-01-X-VT-XX
1/10/2006
SHEET
2
OF
2
