R125.055.002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R125.055.002

R125.055.002: DescriptionRF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R125.055.002 Overview

RF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Solder Terminal, Locking, Receptacle,

R125.055.002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	CAPTIVE CENTRE CONTACT
subject depth	0.437 inch
Body/casing type	PLUG
Cable type	RG-402
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (79)
Contact completed and terminated	GOLD (51) OVER NICKEL (79)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.16 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	27 GHz
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.27
Base Number Matches	1

Preview

Download Datasheet

View All

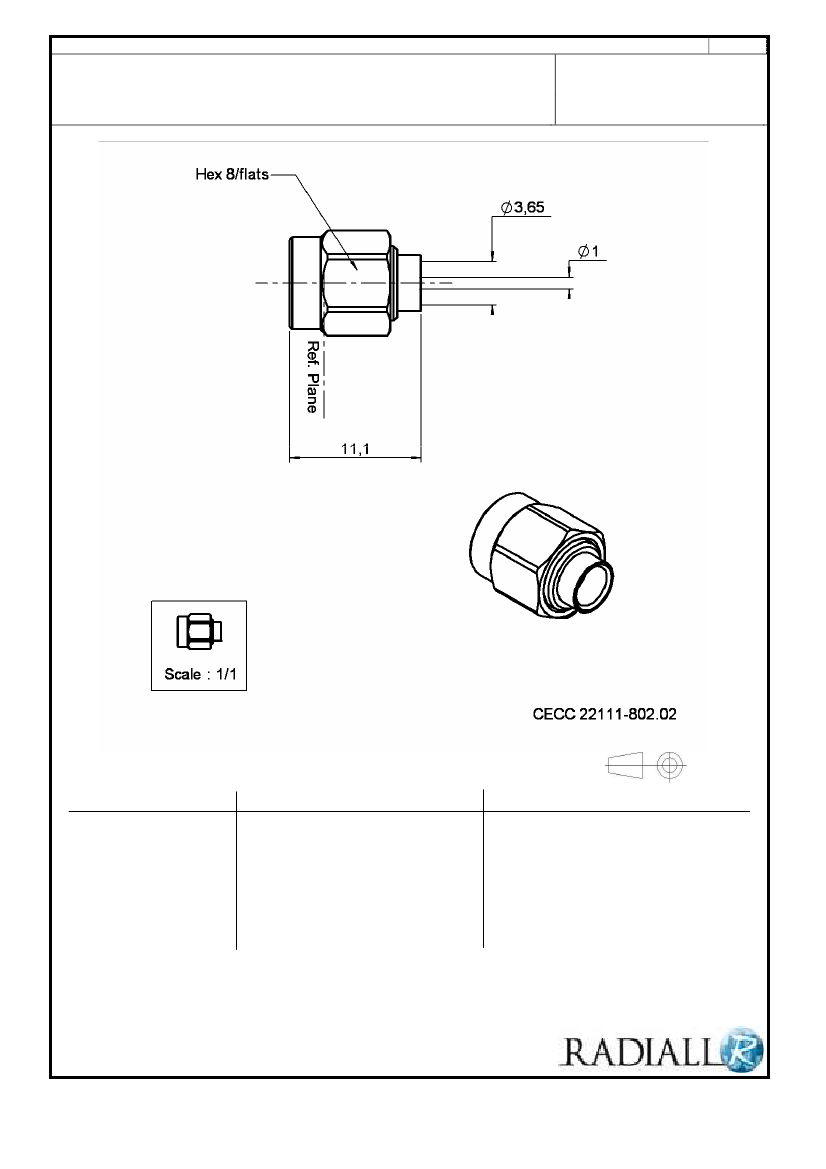

TECHNICAL DATA SHEET

1/2

STRAIGHT PLUG SOLDER TYPE

CABLE .141

R125.055.002

Series :

SMA

All dimensions are in mm.

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

MATERIALS

INOX

BRASS

PTFE

SILICONE RUBBER

INOX

PLATING

(µm)

GOLD 0.5 OVER NICKEL 2

GOLD 1.3 OVER NICKEL2

PASSIVATED.

Issue : 1208 F

In the effort to improve our products, we reserve the right to make changes judged to

be necessary.

R125.055.002 Related Products

	R125.055.002	R125.055.002W	R125.654.451
Description	RF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Solder Terminal, Locking, Receptacle,	RF SMA Connector, 1 Contact(s), Male, Panel Mount, Solder Lug Terminal, Locking, Plug,	RF SMA Connector, 1 Contact(s), Female, Panel Mount, Locking, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	not_compliant	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99
Body/casing type	PLUG	PLUG	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	MALE	MALE	FEMALE
Contact style	COAX	COAX	COAX
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Durability	500 Cycles	500 Cycles	500 Cycles
Insertion loss	0.16 dB	0.03 dB	0.3 dB
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUORO ETHYLENE
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE
Number of ports	1	1	1
Maximum operating frequency	27 GHz	27 GHz	18 GHz
Maximum operating temperature	105 °C	105 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	1	1	1
voltage standing wave ratio	1.27	1.05	1.1
Base Number Matches	1	1	1
Is it lead-free?	Lead free	-	Lead free
Other features	CAPTIVE CENTRE CONTACT	-	CAPTIVE CENTRE CONTACT
subject depth	0.437 inch	0.437 inch	-
Cable type	RG-402	RG-402	-
Contact to complete cooperation	GOLD (51) OVER NICKEL (79)	-	GOLD (51) OVER NICKEL (79)
Contact completed and terminated	GOLD (51) OVER NICKEL (79)	-	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
Coupling type	THREADED	-	THREADED
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
JESD-609 code	e4	-	e4
MIL compliance	NO	-	NO
Plug information	NO	-	NO
Installation type	CABLE	PANEL	-
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Panel mounting	YES	-	YES
Shell surface	GOLD OVER NICKEL	GOLD OVER NICKEL	-
Termination type	SOLDER	SOLDER LUG	-
