JCOS-ED6304A/2+: DescriptionVoltage Controlled Oscillator, 773MHz Min, 917MHz Max, CASE BG419, 14 PIN; CategoryPassive components oscillator; File Size94KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

JCOS-ED6304A/2+ Overview

Voltage Controlled Oscillator, 773MHz Min, 917MHz Max, CASE BG419, 14 PIN

JCOS-ED6304A/2+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Maximum control voltage	8 V
Minimum control voltage	1 V
JESD-609 code	e3
Modulation sensitivity	27 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	917 MHz
Minimum operating frequency	773 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	8 dBm
phase noise	-87 dBc/Hz
physical size	22.098mm x 20.32mm x 10.16mm
Maximum slew rate	30 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

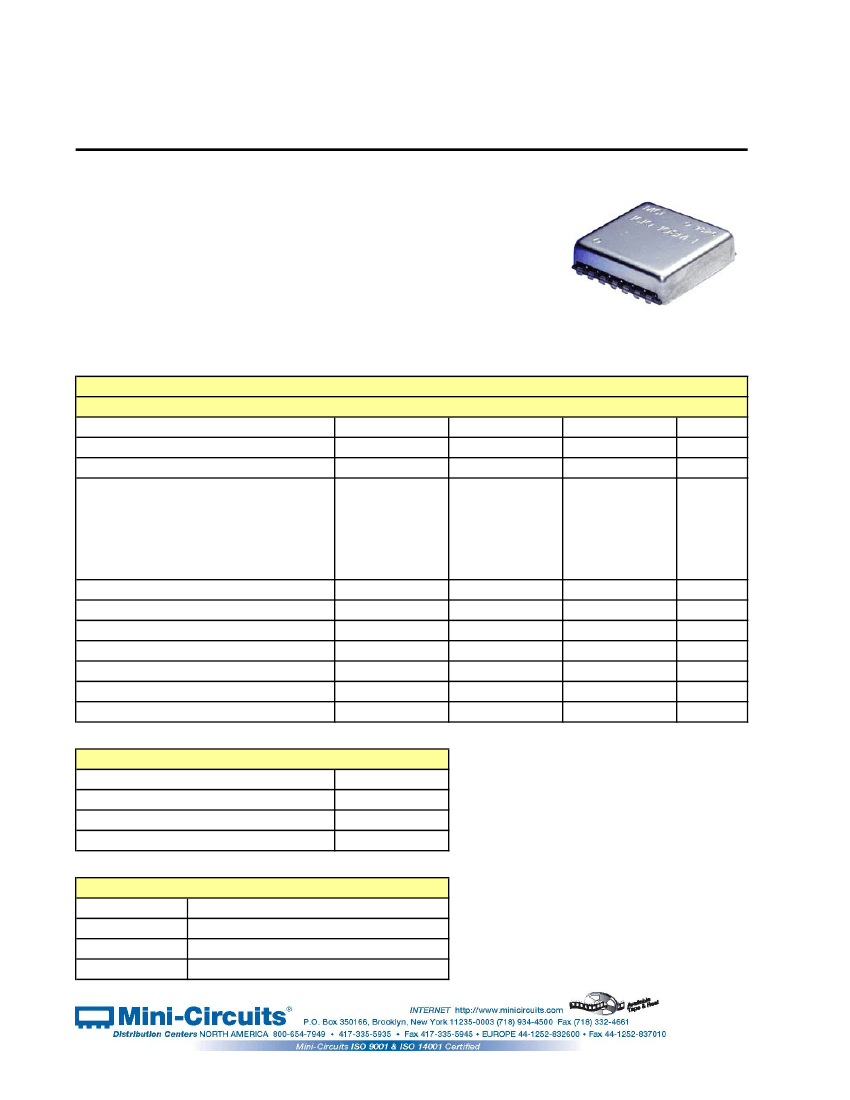

CASE STYLE : BG419

JCOS-ED6304A/2

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

773

1

Typ.

Max.

917

8

+8

-87

-111

-131

-150

2.7

0.5

22 - 27

-36

2000

5

30

Units

MHz

V

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

V

mA

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-55°C to 85°C

-55°C to 100°C

+7V

+10V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

10

14

1

2,3,4,5,6,9,10,11,12,13,14

REV. X1

JCOS-ED6304A/2
