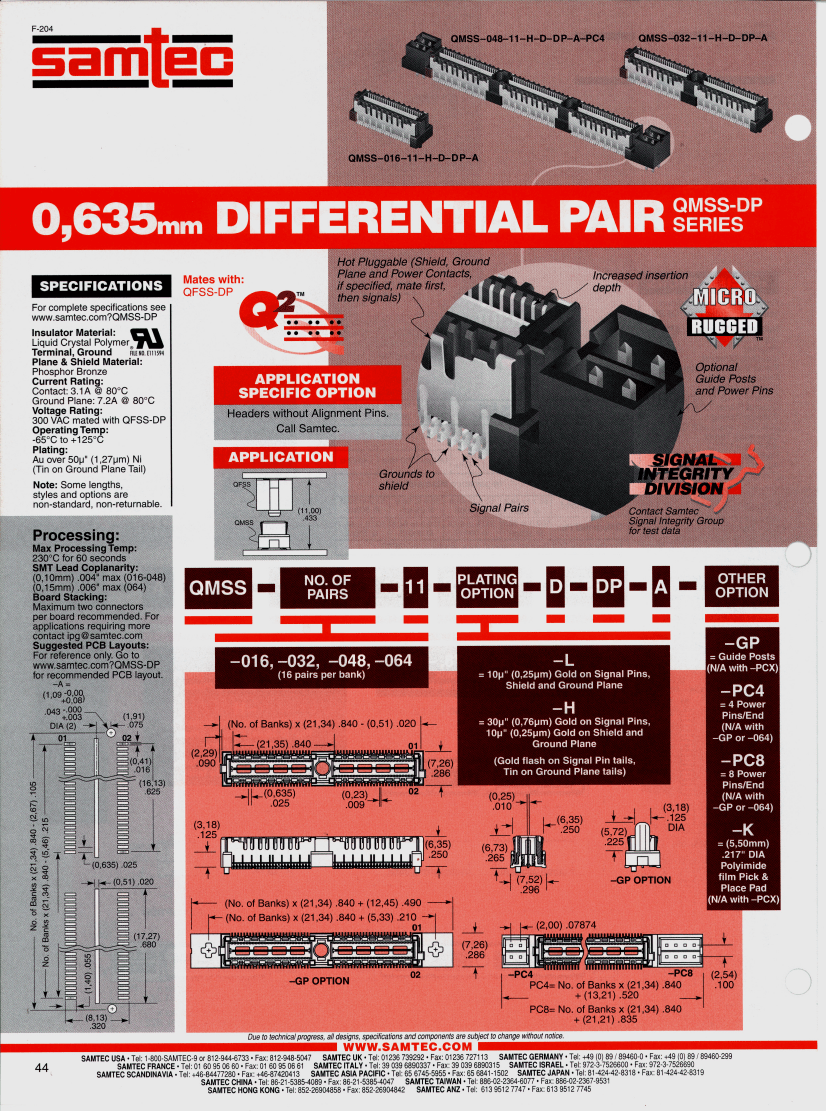

QMSS-048-11-L-D-DP-A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> QMSS-048-11-L-D-DP-A

Preview

QMSS-048-11-L-D-DP-A: DescriptionBoard Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size6MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

QMSS-048-11-L-D-DP-A Overview

Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

QMSS-048-11-L-D-DP-A Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	MICRO RUGGED, Q2, SHIELDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	96
Base Number Matches	1

Preview

Download Datasheet

View All

QMSS-048-11-L-D-DP-A Related Products

	QMSS-048-11-L-D-DP-A	QMSS-016-11-H-D-DP-A	QMSS-016-11-L-D-DP-A	QMSS-032-11-H-D-DP-A	QMSS-032-11-L-D-DP-A	QMSS-048-11-H-D-DP-A	QMSS-064-11-H-D-DP-A	QMSS-064-11-L-D-DP-A
Description	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 128 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 128 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	MICRO RUGGED, Q2, SHIELDED	MICRO RUGGED, Q2, SHIELDED	MICRO RUGGED, Q2, SHIELDED	MICRO RUGGED, Q2, SHIELDED	MICRO RUGGED, Q2, SHIELDED	MICRO RUGGED, Q2, SHIELDED	MICRO RUGGED, Q2, SHIELDED	MICRO RUGGED, Q2, SHIELDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	96	32	32	64	64	96	128	128
Base Number Matches	1	1	1	1	1	1	1	1
