BL-PMRG-GJS datasheet, PDF - EEWORLD Datasheet

BL-PMRG-GJS: DescriptionBi-Color DOMILED GaP High brightness bi-color surface mount LED.; CategoryLED optoelectronic/LED photoelectric; File Size167KB，5 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric Compare View All

BL-PMRG-GJS Overview

Bi-Color DOMILED GaP High brightness bi-color surface mount LED.

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3.20 X 2.80 MM, 1.90 MM HEIGHT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknow
color	RED/GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Nominal luminous intensity	19.85 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.8 mm

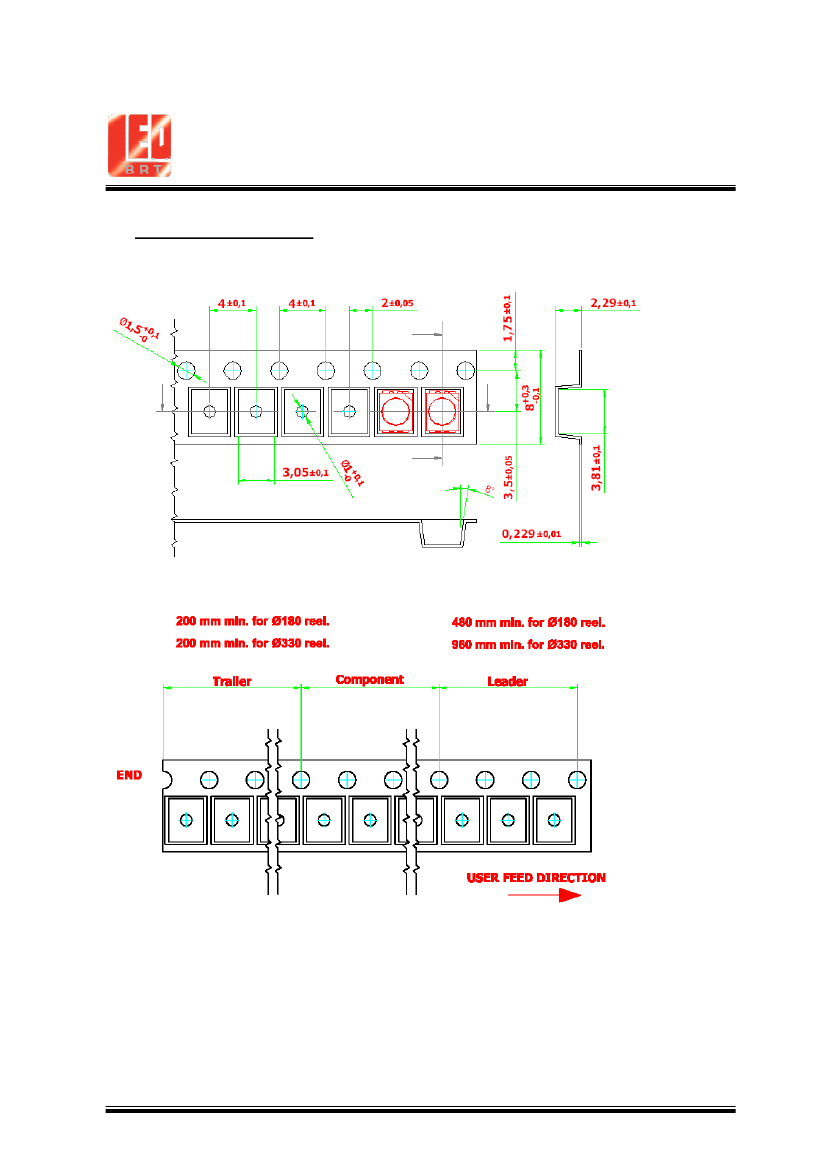

method of packing	TAPE AND REEL
shape	ROUND
surface mount	YES
Terminal pitch	3.1 mm
perspective	120 deg
Base Number Matches	1

AMERICAN BRIGHT

OPTOELECTRONICS CORP.

•

Bi-Color DOMILED GaP BL-PMxx-GJS Series

Feature:

1. High brightness bi-color surface mount LED.

2. 120° viewing angle.

3. Small package outline (LxWxH) of 2.8 x 3.2 x 1.9 mm.

4. Qualified according to JEDEC moisture sensitivity Level 2.

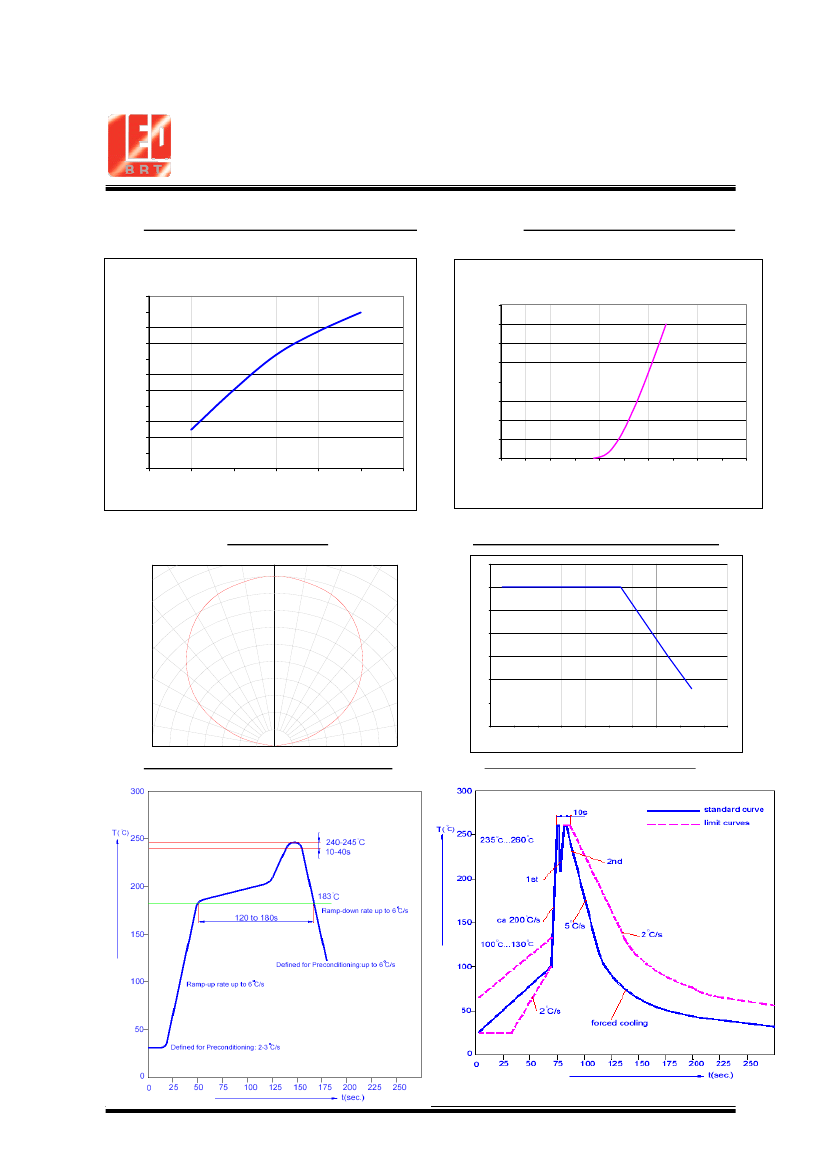

5. Compatible to both IR reflow soldering and TTW soldering.

•

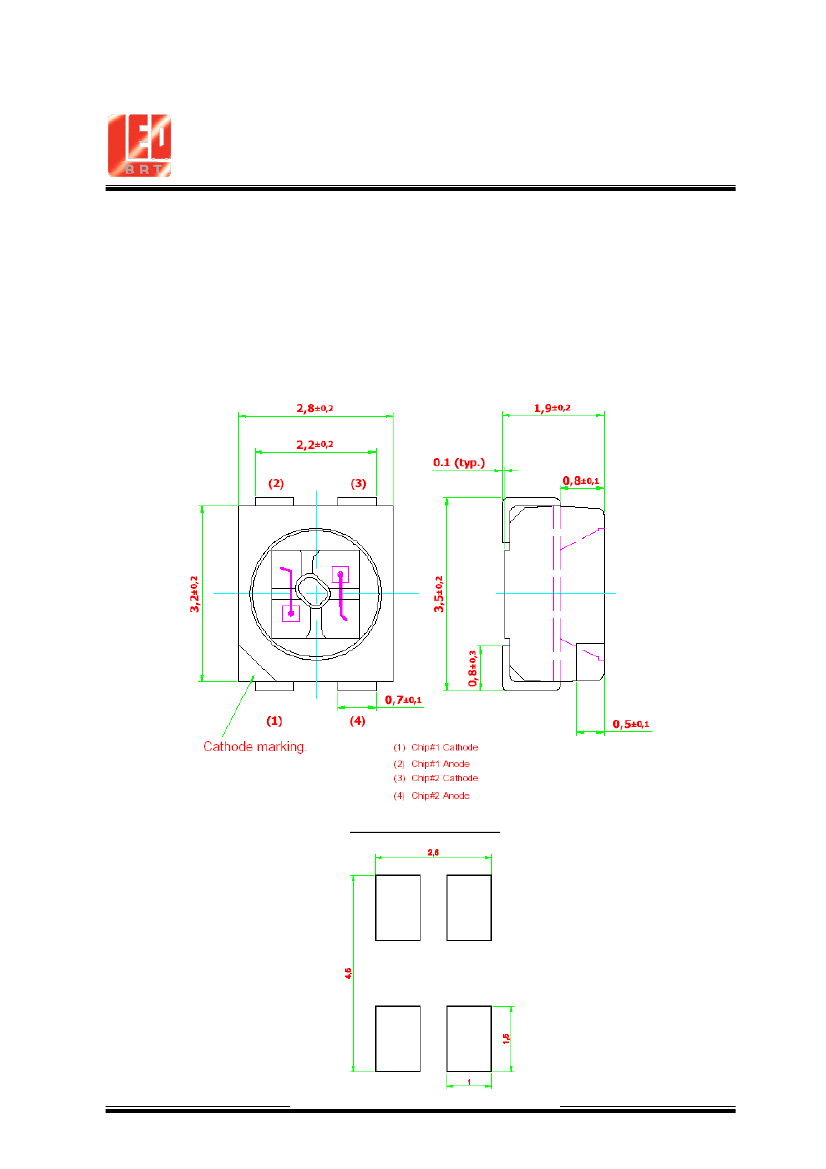

Package Dimension:

Recommended Solder Pad

V.3 Page: 1 of 5

	BL-PMRG-GJS	BL-PMRY-GJS	BL-PMYG-GJS
Description	Bi-Color DOMILED GaP High brightness bi-color surface mount LED.	Bi-Color DOMILED GaP High brightness bi-color surface mount LED.	Bi-Color DOMILED GaP High brightness bi-color surface mount LED.
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	3.20 X 2.80 MM, 1.90 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.90 MM HEIGHT, SURFACE MOUNT PACKAGE-4	3.20 X 2.80 MM, 1.90 MM HEIGHT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknow	unknow	unknown
color	RED/GREEN	RED/YELLOW	YELLOW/GREEN
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A
Nominal luminous intensity	19.85 mcd	19.85 mcd	19.85 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED
total height	1.8 mm	1.8 mm	1.8 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND	ROUND
surface mount	YES	YES	YES
Terminal pitch	3.1 mm	3.1 mm	3.1 mm
perspective	120 deg	120 deg	120 deg
Base Number Matches	1	1	1
